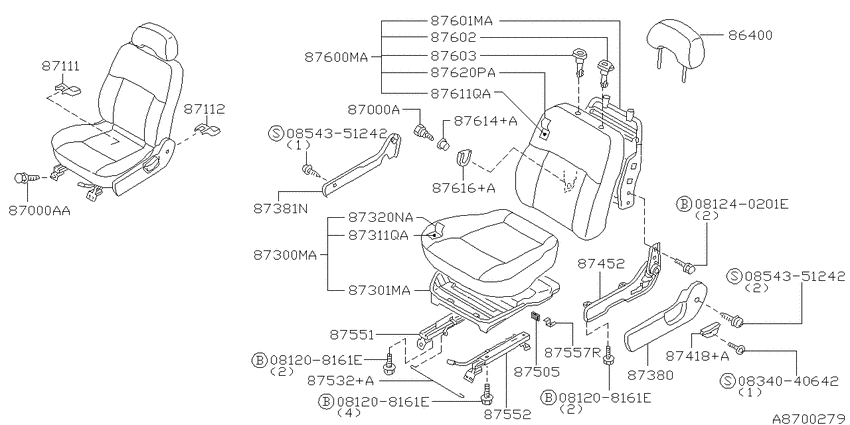

Front seat (1997-12-01 ~ 1999-06-01; セパレートシートLH; SC +KC +DC) Diagram Nissan DATSUN
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- KA24E
- drive
- 4WD
- transmission
- MT.F5
- grade
- AX
- body
- DC
- tire
- LB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.52 |
||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.52 |
||
|
86400
|
86400
86400-2S700 Head Rest Assy-Front Seat9701--01 ~ 9712--01; DC.2WD +DC.(AX+AXL); ﾐｷﾞ & ﾋﾀﾞﾘ |
86400-2S700 |
US $257.76 |
||
|
86400
|
86400
88400-2S400 Headrest Assy-Rear Seat9701--01 ~ 9906--01; DC.4WD.KA24E +DC.QD32 |
88400-2S400 |
US $162.72 |
||
|
87000A
|
87000A
87615-W5000 Bolt-Special9701--01 ~ 9712--01; DC |
87615-W5000 |
US $4.18 |
||
|
87000A
|
87000A
87850-VE000 Bolt-Special9701--01 ~ 9712--01; DC |
87850-VE000 |
US $3.46 |
||
|
87000AA
|
87000AA
87850-VE000 Bolt-Special9701--01 ~ 9712--01; DC |
87850-VE000 |
US $3.46 |
||
|
87111
|
87111
87112-2S400 Cover-Leg Inner Front, Rh9701--01 ~ 9712--01; DC |
87112-2S400 |
US $9.07 |
||
|
87112
|
87112
87113-2S400 Cover-Leg Outer Front, Rh9701--01 ~ 9712--01; DC |
87113-2S400 |
US $9.07 |
||
|
87300MA
|
87300MA
87300-2S700 ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ9701--01 ~ 9712--01; DC.2WD +DC.(AX+AXL); [D410] |
87300-2S700 |
US $1,638 |
||
|
87301MA
|
87301MA
87301-2S400 Frame Assy-Cushion, Front Seat9701--01 ~ 9712--01; DC |
87301-2S400 |
US $244.80 |
||
|
87311QA
|
87311QA
873112S400 Pad Assy-Cushion, Front Seat9701--01 ~ 9712--01; DC |
873112S400 |
US $156.96 |
||
|
87320NA
|
87320NA
87320-2S700 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ9701--01 ~ 9712--01; DC.2WD +DC.(AX+AXL); [D410] |
87320-2S700 |
US $497.02 |
||
|
87380
|
87380
87380-9E000 FINISHER ASSY-CUSHION,FRONT SEAT LH9701--01 ~ 9712--01; DC |
87380-9E000 |
US $19.15 |
||
| replacement | |||||
|
87380
|
87380
87380-0N281 Finisher Assy-Cushion, Front Seat Lh9701--01 ~ 9712--01; DC |
87380-0N281 |
US $19.58 |
||
|
87381N
|
87381N
87381-50C00 Finisher-Cushion, Front Seat Inner Lh9701--01 ~ 9712--01; DC |
87381-50C00 |
US $11.66 |
||
|
87418+A
|
87418+A
87468-9E000 KNOB-RECLINING DEVICE LEVER9701--01 ~ 9712--01; DC |
87468-9E000 |
US $4.61 |
||
|
87452
|
87452
87451-2S400 Device-Reclining, Front Seat Lh Inner9707--01 ~ 9712--01; DC.(AX+AXL) |
87451-2S400 |
US $94.03 |
||
|
87505
|
87505
87558-2S400 Cover-Seat Slide9701--01 ~ 9712--01; DC.4WD.KA24E +DC.QD32 |
87558-2S400 |
US $4.18 |
||
|
87532+A
|
87532+A
87532-2S400 Wire-Release9701--01 ~ 9712--01; DC |
87532-2S400 |
US $5.18 |
||
|
87551
|
87551
87552-2S400 Slide-Lh Seat, Inside9701--01 ~ 9712--01; DC |
87552-2S400 |
US $66.82 |
||
|
87552
|
87552
87551-2S400 Slide Assy-Lh Seat, Outside9701--01 ~ 9712--01; DC |
87551-2S400 |
US $66.82 |
||
|
87557R
|
87557R
87557-2S400 Cover-Seat Slide, Front Outer Lh9701--01 ~ 9712--01; DC |
87557-2S400 |
US $4.18 |
||
|
87600MA
|
87600MA
87650-2S700 ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ9701--01 ~ 9712--01; DC.2WD +DC.(AX+AXL); [D410] |
87650-2S700 |
US $1,638 |
||
|
87601MA
|
87601MA
87651-2S400 Frame Assy-Back, Front Seat9701--01 ~ 9712--01; DC |
87651-2S400 |
US $187.20 |
||
|
87602
|
87602
87602-9E000 HOLDER ASSY-HEADREST,LOCK9701--01 ~ 9712--01; DC |
87602-9E000 |
US $5.76 |
||
|
87603
|
87603
87603-9E000 HOLDER ASSY-HEADREST,FREE9701--01 ~ 9712--01; DC |
87603-9E000 |
US $5.76 |
||
| replacement | |||||
|
87603
|
87603
H7603-9E000
Holder assy-headrest,free
9701--01 ~ 9712--01; DC |
H7603-9E000 |
— | ||
|
87611QA
|
87611QA
87611-2S400 Pad Assy-Back, Front Seat Outer Rh9701--01 ~ 9712--01; DC |
87611-2S400 |
US $156.96 |
||
|
87614+A
|
87614+A
87614-73L00 Bush-Front Seat9701--01 ~ 9712--01; DC |
87614-73L00 |
US $1.73 |
||
|
87616+A
|
87616+A
8761610V00 Cover-Front Seat Hinge9701--01 ~ 9712--01; DC |
8761610V00 |
US $6.05 |
||
|
87620PA
|
87620PA
87620-2S700 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ9701--01 ~ 9712--01; DC.2WD +DC.(AX+AXL); [D410] |
87620-2S700 |
US $497.02 |
||
