Component List DATSUN
Governor,power train & planetary gear (1998-01-01 ~ 1999-06-01; KA24E.AT.F4)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
31420	31420 31420-41X06 Carrier Assy-Front Planet 9712--01 ~ 9906--01; KA24E.AT	31420-41X06	US $167.04
31435	31435 31435-21X00 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31435-21X00	US $19.87
31435	31435 31407-41X11 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X11	US $13.10
31435	31435 3140741X08 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	3140741X08	US $13.82
31435	31435 31407-41X10 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X10	US $12.96
	replacement
31435	31435 31407-41X09 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X09	US $12.96
31435	31435 31438-X0100 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31438-X0100	US $13.10
31435	31435 31435-21X00 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31435-21X00	US $19.87
31435	31435 31407-41X11 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X11	US $13.10
31435	31435 3140741X08 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	3140741X08	US $13.82
31435	31435 31407-41X10 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X10	US $12.96
	replacement
31435	31435 31407-41X09 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X09	US $12.96
31435	31435 31438-X0100 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31438-X0100	US $13.10
31435P	31435P 31407-41X11 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X11	US $13.10
31435P	31435P 3140741X08 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	3140741X08	US $13.82
31435P	31435P 31407-41X10 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X10	US $12.96
	replacement
31435P	31435P 31407-41X09 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X09	US $12.96
31435P	31435P 31438-X0100 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31438-X0100	US $13.10
31435PA	31435PA 3140741X08 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	3140741X08	US $13.82
31435PB	31435PB 31407-41X10 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X10	US $12.96
	replacement
31435PB	31435PB 31407-41X09 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31407-41X09	US $12.96
31435PC	31435PC 31438-X0100 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31438-X0100	US $13.10
31435PC	31435PC 31438-X0100 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	31438-X0100	US $13.10
31436M	31436M 31435-41X00 Race-Bearing 9712--01 ~ 9906--01; KA24E.AT	31435-41X00	US $6.05
31436M	31436M 31435-41X00 Race-Bearing 9712--01 ~ 9906--01; KA24E.AT	31435-41X00	US $6.05
31438	31438 3140741X06 Bearing-Needle, Thrust 9712--01 ~ 9906--01; KA24E.AT	3140741X06	US $7.20
31439M	31439M 31439-21X00 Race-Bearing 9712--01 ~ 9906--01; KA24E.AT	31439-21X00	US $5.76
31440	31440 31440-41X10 Carrier Assy-Rear Planet 9712--01 ~ 9906--01; KA24E.AT	31440-41X10	US $243.36
31440	31440 31508-41X00 Washer-Thrust 9712--01 ~ 9906--01; KA24E.AT	31508-41X00	US $7.20
31440	31440 31508-41X02 Washer-Thrust 9712--01 ~ 9906--01; KA24E.AT	31508-41X02	US $6.34
31440D	31440D 31508-41X00 Washer-Thrust 9712--01 ~ 9906--01; KA24E.AT	31508-41X00	US $7.20
31440D	31440D 31508-41X02 Washer-Thrust 9712--01 ~ 9906--01; KA24E.AT	31508-41X02	US $6.34
31440DA	31440DA 31508-41X02 Washer-Thrust 9712--01 ~ 9906--01; KA24E.AT	31508-41X02	US $6.34
31450	31450 31450-41X02 Gear Assy-Internal 9712--01 ~ 9906--01; KA24E.AT	31450-41X02	US $253.44
31460	31460 31460-41X04 Gear Assy-Sun 9712--01 ~ 9906--01; KA24E.AT; ﾌﾛﾝﾄﾖｳ	31460-41X04	US $108.72
31469	31469 31469-41X04 Gear-Sun, Rear 9712--01 ~ 9906--01; KA24E.AT	31469-41X04	US $59.04
31472A	31472A 31377-41X16 Bolt 9712--01 ~ 9906--01; KA24E.AT	31377-41X16	US $1.73
31472M	31472M 31472-41X01 Race-Inner, One Way Clutch 9712--01 ~ 9906--01; KA24E.AT	31472-41X01	US $55.73
31473	31473 31484-41X00 Clutch Assy-One Way 9712--01 ~ 9906--01; KA24E.AT; ﾌｵﾜ-ﾄﾞﾖｳ	31484-41X00	US $99.07
31473	31473 31473-41X02 Clutch Assy-Low, One Way 9712--01 ~ 9906--01; KA24E.AT	31473-41X02	US $43.49
31475	31475 31487-41X00 Race-Outer, One Way Clutch 9712--01 ~ 9906--01; KA24E.AT	31487-41X00	US $86.98
31476	31476 31506-41X11 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT	31506-41X11	US $4.03
31476	31476 31506-41X04 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT	31506-41X04	US $4.03
31476+A	31476+A 31506-41X04 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT	31506-41X04	US $4.03
31476+A	31476+A 31506-41X04 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT	31506-41X04	US $4.03
31480	31480 31480-48X02 Shaft Assy-Output 9712--01 ~ 9906--01; KA24E.AT	31480-48X02	US $112.75
31486	31486 31486-48X00 Distributor Assy-Oil 9712--01 ~ 9906--01; KA24E.AT	31486-48X00	US $85.39
31486	31486 31506-41X01 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT; ﾊﾟ-ｷﾝｸﾞｷﾞﾔﾖｳ	31506-41X01	US $3.31
31486	31486 31506-41X02 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT; ﾘﾔｷﾔﾘﾔﾖｳ	31506-41X02	US $3.31
31486	31486 31525-48X00 Ring-Seal 9712--01 ~ 9906--01; KA24E.AT	31525-48X00	US $4.03
31486E	31486E 31506-41X01 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT; ﾊﾟ-ｷﾝｸﾞｷﾞﾔﾖｳ	31506-41X01	US $3.31
31486E	31486E 31506-41X02 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT; ﾘﾔｷﾔﾘﾔﾖｳ	31506-41X02	US $3.31
31486EA	31486EA 31506-41X02 Ring-Snap 9712--01 ~ 9906--01; KA24E.AT; ﾘﾔｷﾔﾘﾔﾖｳ	31506-41X02	US $3.31
31486F	31486F 31525-48X00 Ring-Seal 9712--01 ~ 9906--01; KA24E.AT	31525-48X00	US $4.03
31487	31487 31525-41X00 Ring-Seal 9712--01 ~ 9906--01; KA24E.AT	31525-41X00	US $6.05
31550	31550 31550-41X04 Hub-Clutch, High 9712--01 ~ 9906--01; KA24E.AT	31550-41X04	US $118.58
31591	31591 31591-41X00 Hub-Overrun Clutch 9712--01 ~ 9906--01; KA24E.AT	31591-41X00	US $24.77
31860	31860 31860-48X09 Governor Assy 9712--01 ~ 9906--01; KA24E.AT	31860-48X09	—
31862	31862 31862-X0100 Valve-Primary, Governor 9712--01 ~ 9906--01; KA24E.AT	31862-X0100	US $5.04
31864	31864 31864-48X00 Plate-Retainer 9712--01 ~ 9906--01; KA24E.AT	31864-48X00	US $4.03
31864	31864 31864-X0100 Plate-Retainer 9712--01 ~ 9906--01; KA24E.AT	31864-X0100	US $0.86
31864	31864 31864-48X01 Plate-Retainer 9712--01 ~ 9906--01; KA24E.AT	31864-48X01	US $1.73
31864+A	31864+A 31864-X0100 Plate-Retainer 9712--01 ~ 9906--01; KA24E.AT	31864-X0100	US $0.86
31864+A	31864+A 31864-X0100 Plate-Retainer 9712--01 ~ 9906--01; KA24E.AT	31864-X0100	US $0.86
31864+B	31864+B 31864-48X01 Plate-Retainer 9712--01 ~ 9906--01; KA24E.AT	31864-48X01	US $1.73
31872	31872 31872-48X13 Valve-Secondary, Governor 9712--01 ~ 9906--01; KA24E.AT	31872-48X13	US $23.18
31872	31872 31872-48X07 Valve-Secondary, Governor 9712--01 ~ 9906--01; KA24E.AT	31872-48X07	US $0.86
31872+A	31872+A 31872-48X07 Valve-Secondary, Governor 9712--01 ~ 9906--01; KA24E.AT	31872-48X07	US $0.86
31873	31873 31742-48X09 Spring-Governor 9712--01 ~ 9906--01; KA24E.AT	31742-48X09	US $0.86
31873	31873 31742-48X10 Spring-Governor 9712--01 ~ 9906--01; KA24E.AT	31742-48X10	US $0.86
31873	31873 31742-48X11 Spring-Governor 9712--01 ~ 9906--01; KA24E.AT	31742-48X11	US $0.86
31873+A	31873+A 31742-48X10 Spring-Governor 9712--01 ~ 9906--01; KA24E.AT	31742-48X10	US $0.86
31873+B	31873+B 31742-48X11 Spring-Governor 9712--01 ~ 9906--01; KA24E.AT	31742-48X11	US $0.86
31875M	31875M 31875-X0100 Filter-Governor 9712--01 ~ 9906--01; KA24E.AT	31875-X0100	US $4.03

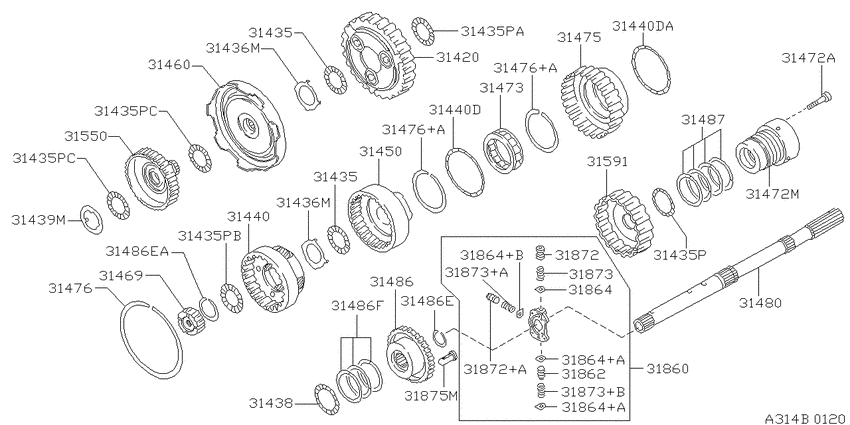

Governor,power train & planetary gear (1998-01-01 ~ 1999-06-01; KA24E.AT.F4) Diagram Nissan DATSUN Japan 7760561-618154

Governor,power train & planetary gear (1998-01-01 ~ 1999-06-01; KA24E.AT.F4) Diagram Nissan DATSUN Japan 7760561-618154
