Component List DATSUN
Power steering piping (1997-12-01 ~ 1999-06-01; KA24E.AT.F4)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
083636125B	083636125B 08363-6125B Bolt	08363-6125B	—
083636125B	083636125B 08363-6125B Bolt	08363-6125B	—
490	Power steering pump 490
490	Power steering pump 490
49020A	49020A 0161900011 BOLT 9712--01 ~ 9906--01; KA24E.AT	0161900011	from US $3.74
49020A	49020A 49738-V5000 Bolt-Connector 9712--01 ~ 9906--01; KA24E.AT	49738-V5000	US $5.47
	replacement
49020A	49020A 49738V500A Bolt 9712--01 ~ 9906--01; KA24E.AT	49738V500A	US $5.33
49020AX	49020AX 49738-V5000 Bolt-Connector 9712--01 ~ 9906--01; KA24E.AT	49738-V5000	US $5.47
	replacement
49020AX	49020AX 49738V500A Bolt 9712--01 ~ 9906--01; KA24E.AT	49738V500A	US $5.33
49020D	49020D 01456-00211 SCREW 9712--01 ~ 9906--01; KA24E.AT	01456-00211	US $0.97
49020EA	49020EA 4979131G00 Clip 9712--01 ~ 9906--01; KA24E.AT	4979131G00	US $5.33
49020EA	49020EA 4979131G00 Clip 9712--01 ~ 9906--01; KA24E.AT	4979131G00	US $5.33
49020G	49020G 0155500691 CLAMP 9712--01 ~ 9906--01; KA24E.AT	0155500691	from US $2.11
49020G	49020G 0155500691 CLAMP 9712--01 ~ 9906--01; KA24E.AT	0155500691	from US $2.11
49020G	49020G 49729-2J016 Clamp 9712--01 ~ 9906--01; KA24E.AT	49729-2J016	—
	replacement
49020G	49020G 497292J01B Clamp 9712--01 ~ 9906--01; KA24E.AT	497292J01B	from US $1.96
49020GA	49020GA 0155500691 CLAMP 9712--01 ~ 9906--01; KA24E.AT	0155500691	from US $2.11
49020GA	49020GA 0155500691 CLAMP 9712--01 ~ 9906--01; KA24E.AT	0155500691	from US $2.11
49020GA	49020GA 0155500691 CLAMP 9712--01 ~ 9906--01; KA24E.AT	0155500691	from US $2.11
49020GS	49020GS 49729-2J016 Clamp 9712--01 ~ 9906--01; KA24E.AT	49729-2J016	—
	replacement
49020GS	49020GS 497292J01B Clamp 9712--01 ~ 9906--01; KA24E.AT	497292J01B	from US $1.96
49020GS	49020GS 49729-2J016 Clamp 9712--01 ~ 9906--01; KA24E.AT	49729-2J016	—
	replacement
49020GS	49020GS 497292J01B Clamp 9712--01 ~ 9906--01; KA24E.AT	497292J01B	from US $1.96
49030D	49030D 0145600031 SCREW 9712--01 ~ 9906--01; KA24E.AT	0145600031	from US $1.11
49030D	49030D 0145600031 SCREW 9712--01 ~ 9906--01; KA24E.AT	0145600031	from US $1.11
49125	49125 49180-2S400 New Genuine Part 9712--01 ~ 9906--01; KA24E.AT	49180-2S400	US $226.08
49125	49125 49190-2S400 Bracket-Reservoir Tank 9712--01 ~ 9906--01; KA24E.AT	49190-2S400	US $41.47
49125G	49125G 49190-2S400 Bracket-Reservoir Tank 9712--01 ~ 9906--01; KA24E.AT	49190-2S400	US $41.47
49181	49181 49181W1705 Cap Assy-Pump 9712--01 ~ 9906--01; KA24E.AT	49181W1705	from US $14.42
49182	49182 49182-42L00 Filter Assy-Pump 9712--01 ~ 9906--01; KA24E.AT	49182-42L00	US $5.55
492	Power steering gear 492
49710R	49710R 49710-2S840 Hose & Tube Set-Power Steering 9712--01 ~ 9906--01; KA24E.AT	49710-2S840	US $409.22
49717M	49717M 49717-2S700 Hose Assy-Suction, Power Steering 9712--01 ~ 9906--01; KA24E.AT	49717-2S700	US $40.32
49722MA	49722MA 49720-2S840 Hose & Tube Assy-Pressure, Ps 9712--01 ~ 9906--01; KA24E.AT	49720-2S840	US $221.76
49723MA	49723MA 49721-2S840 Hose & Tube Assy-Power Steering 9712--01 ~ 9906--01; KA24E.AT	49721-2S840	—
49725MA	49725MA 49725-2S840 Hose-Return, Power Steering 9712--01 ~ 9906--01; KA24E.AT	49725-2S840	US $32.11
49725MB	49725MB 49725-54C00 Hose-Return, Power Steering 9712--01 ~ 9906--01; KA24E.AT	49725-54C00	US $28.80
49726	49726 49726Y0100 Washer-Copper 9712--01 ~ 9906--01; KA24E.AT	49726Y0100	from US $1.72
49726	49726 4972650W00 Seal-O Ring 9712--01 ~ 9906--01; KA24E.AT	4972650W00	from US $1.94
49726	49726 49726Y0100 Washer-Copper 9712--01 ~ 9906--01; KA24E.AT	49726Y0100	from US $1.72
49726	49726 4972650W00 Seal-O Ring 9712--01 ~ 9906--01; KA24E.AT	4972650W00	from US $1.94
49726+X	49726+X 4972650W00 Seal-O Ring 9712--01 ~ 9906--01; KA24E.AT	4972650W00	from US $1.94
49726+X	49726+X 4972650W00 Seal-O Ring 9712--01 ~ 9906--01; KA24E.AT	4972650W00	from US $1.94
49730MA	49730MA 49730-85G00 Bracket-Tube 9712--01 ~ 9906--01; KA24E.AT	49730-85G00	US $10.37
49730MB	49730MB 49730-01J60 Clamp 9712--01 ~ 9906--01; KA24E.AT	49730-01J60	US $7.63
	replacement
49730MB	49730MB 49730-01J6A Clamp 9712--01 ~ 9906--01; KA24E.AT	49730-01J6A	US $7.63
49732MA	49732MA 49732-89900 Bracket-Power Steering Tube 9712--01 ~ 9906--01; KA24E.AT	49732-89900	US $10.66
49732MB	49732MB 49732-89903 Bracket-Power Steering Tube 9712--01 ~ 9906--01; KA24E.AT	49732-89903	US $8.35
	replacement
49732MB	49732MB 49732-8990B Bracket-Power Steering Tube 9712--01 ~ 9906--01; KA24E.AT	49732-8990B	US $11.81
49733+A	49733+A 49733-63G15 Insulator 9712--01 ~ 9906--01; KA24E.AT	49733-63G15	from US $7.20
49733+A	49733+A 49733-63G15 Insulator 9712--01 ~ 9906--01; KA24E.AT	49733-63G15	from US $7.20
49733+B	49733+B 49733-01J60 Insulator 9712--01 ~ 9906--01; KA24E.AT	49733-01J60	US $7.34
49736MA	49736MA 49736-24G00 Clip-Power Steering Tube 9712--01 ~ 9906--01; KA24E.AT	49736-24G00	US $7.06
	replacement
49736MA	49736MA 49736-24G0A Clamp 9712--01 ~ 9906--01; KA24E.AT	49736-24G0A	US $7.20
49736MB	49736MB 49736-24G10 Clip-Power Steering Tube 9712--01 ~ 9906--01; KA24E.AT	49736-24G10	US $12.38
	replacement
49736MB	49736MB 49736-24G1A Bracket-Power Steering 9712--01 ~ 9906--01; KA24E.AT	49736-24G1A	—
49761+A	49761+A 49761-06F00 Switch-Pressure, Power Steering 9712--01 ~ 9906--01; KA24E.AT	49761-06F00	US $72.09

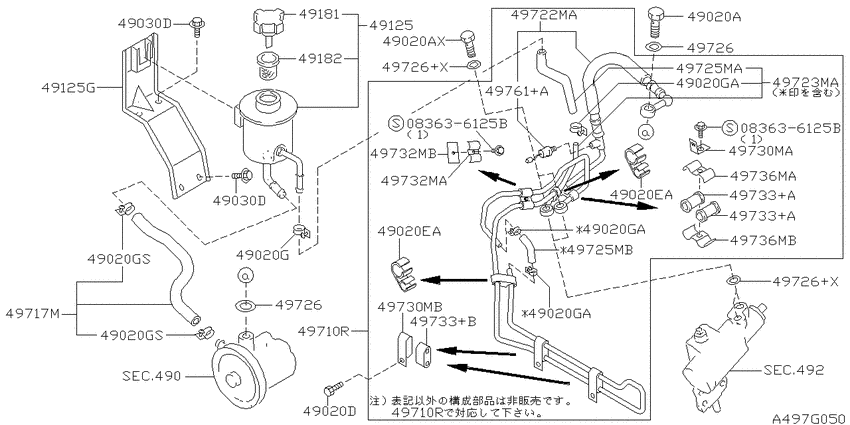

Power steering piping (1997-12-01 ~ 1999-06-01; KA24E.AT.F4) Diagram Nissan DATSUN Japan 7760925-618154

Power steering piping (1997-12-01 ~ 1999-06-01; KA24E.AT.F4) Diagram Nissan DATSUN Japan 7760925-618154
