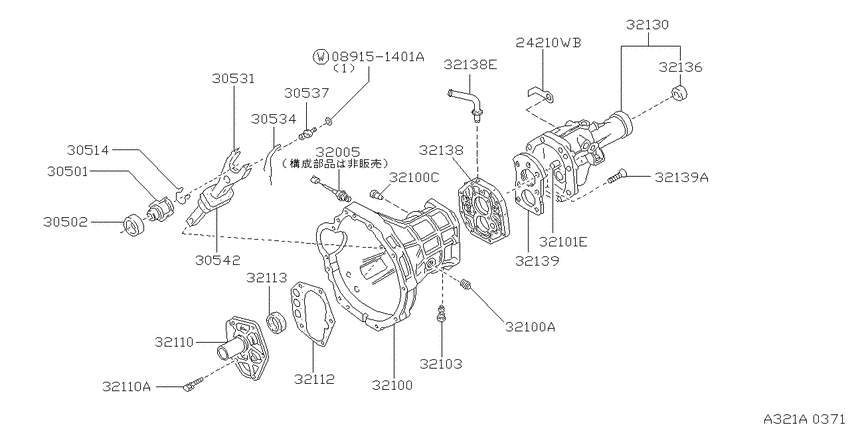

Transmission case & clutch release (1997-01-01 ~ 1999-06-01; RS5W71C; NA20S.MT.R5) Diagram Nissan DATSUN
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- NA20S
- drive
- 2WD
- transmission
- MT.R5
- grade
- DX
- body
- SC
- tire
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
24210WB
|
24210WB
24210-89944 Clamp9701--01 ~ 9906--01; NA20S.MT |
24210-89944 |
US $3.46 |
||
|
30501
|
30501
30501-0H600 Sleeve-Clutch Release9701--01 ~ 9906--01; NA20S.MT |
30501-0H600 |
US $23.33 |
||
|
30502
|
30502
3050245P00
Bearing-Clutch Release
9701--01 ~ 9906--01; NA20S.MT; [B106] |
3050245P00 |
— | ||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release9701--01 ~ 9906--01; NA20S.MT; [B106] |
30502-69F1A |
from US $27.32 |
||
|
30514
|
30514
3051414600 Spring-Holder, Clutch Release Bearing9701--01 ~ 9906--01; NA20S.MT |
3051414600 |
from US $3.07 |
||
|
30531
|
30531
3053101S00 Lever-Withdrawal, Clutch9701--01 ~ 9906--01; NA20S.MT |
3053101S00 |
from US $36.60 |
||
|
30534
|
30534
30534E9000 Spring-Retainer, Withdrawal Lever9701--01 ~ 9906--01; NA20S.MT |
30534E9000 |
from US $1.54 |
||
|
30537
|
30537
305370H601 Pin-Ball, Withdrawal Lever9701--01 ~ 9906--01; NA20S.MT |
305370H601 |
from US $3.64 |
||
|
30542
|
30542
3054201S00 Cover-Dust, With drawal Lever9701--01 ~ 9906--01; NA20S.MT |
3054201S00 |
from US $10.08 |
||
|
32005
|
32005
32005-21U00
Switch Assy-Reverse Lamp
9701--01 ~ 9704--01; NA20S.MT |
32005-21U00 |
— | ||
| replacement | |||||
|
32005
|
32005
3200521U1B Switch Assy-Reverse Lamp9701--01 ~ 9704--01; NA20S.MT |
3200521U1B |
from US $21.37 |
||
|
32005
|
32005
32005-21U10 Switch Assy-Reverse Lamp9704--01 ~ 9906--01; NA20S.MT |
32005-21U10 |
US $32.83 |
||
|
32100
|
32100
32101-07G67 Case Assy-Transmission9701--01 ~ 9906--01; NA20S.MT |
32101-07G67 |
US $406.39 |
||
|
32100
|
32100
31306-65F00 Plug-Thread9701--01 ~ 9712--01; NA20S.MT |
31306-65F00 |
from US $2.68 |
||
|
32100
|
32100
31306-65F10 Plug-Thread9712--01 ~ 9906--01; NA20S.MT |
31306-65F10 |
US $3.31 |
||
|
32100
|
32100
34465-P0100 Bearing-Cross Shaft9701--01 ~ 9906--01; NA20S.MT |
34465-P0100 |
US $4.03 |
||
|
32100A
|
32100A
31306-65F00 Plug-Thread9701--01 ~ 9712--01; NA20S.MT |
31306-65F00 |
from US $2.68 |
||
|
32100A
|
32100A
31306-65F10 Plug-Thread9712--01 ~ 9906--01; NA20S.MT |
31306-65F10 |
US $3.31 |
||
|
32100C
|
32100C
34465-P0100 Bearing-Cross Shaft9701--01 ~ 9906--01; NA20S.MT |
34465-P0100 |
US $4.03 |
||
|
32101E
|
32101E
32106-20100 Pin-Dowel9701--01 ~ 9906--01; NA20S.MT |
32106-20100 |
US $1.73 |
||
|
32103
|
32103
32103U8400
Plug-Drain
9701--01 ~ 9712--01; NA20S.MT |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain9701--01 ~ 9712--01; NA20S.MT |
32103-U840B |
US $7.35 |
||
|
32103
|
32103
32103-U8410 Plug-Drain9712--01 ~ 9906--01; NA20S.MT |
32103-U8410 |
US $4.03 |
||
|
32110
|
32110
32111E9803
Cover Assy-Front
9701--01 ~ 9906--01; NA20S.MT |
32111E9803 |
— | ||
| replacement | |||||
|
32110
|
32110
3211191P00 Cover Assy-Front9701--01 ~ 9906--01; NA20S.MT |
3211191P00 |
from US $40.45 |
||
|
32110
|
32110
32135-58S60 Bolt-Fixing, Front Cover9701--01 ~ 9906--01; NA20S.MT |
32135-58S60 |
US $1.73 |
||
|
32110A
|
32110A
32135-58S60 Bolt-Fixing, Front Cover9701--01 ~ 9906--01; NA20S.MT |
32135-58S60 |
US $1.73 |
||
|
32112
|
32112
32112-08U00
Gasket-Front Cover
9701--01 ~ 9702--01; NA20S.MT |
32112-08U00 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover9701--01 ~ 9702--01; NA20S.MT |
3211208U01 |
from US $6.49 |
||
|
32112
|
32112
3211208U01 Gasket-Front Cover9702--01 ~ 9906--01; NA20S.MT |
3211208U01 |
from US $6.49 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover9701--01 ~ 9906--01; NA20S.MT |
32114Y4000 |
US $3.19 |
||
|
32130
|
32130
32130-2T311 Extension Assy-Rear9701--01 ~ 9712--01; NA20S.MT |
32130-2T311 |
US $266.40 |
||
|
32130
|
32130
32130VH001 Extension Assy-Rear9712--01 ~ 9906--01; NA20S.MT |
32130VH001 |
US $266.40 |
||
|
32136
|
32136
32136U0100
Seal-Oil, Rear Extension
9701--01 ~ 9906--01; NA20S.MT |
32136U0100 |
— | ||
| replacement | |||||
|
32136
|
32136
32136-U010A Seal-Oil, Rear Extension9701--01 ~ 9906--01; NA20S.MT |
32136-U010A |
from US $4.92 |
||
|
32138
|
32138
32138-0C861 Plate-Adapter9701--01 ~ 9906--01; NA20S.MT |
32138-0C861 |
US $78.19 |
||
|
32138
|
32138
38322-54W00 Breather9701--01 ~ 9906--01; NA20S.MT |
38322-54W00 |
US $9.07 |
||
| replacement | |||||
|
32138
|
32138
38322-54W0B
Breather
9701--01 ~ 9906--01; NA20S.MT |
38322-54W0B |
— | ||
|
32138E
|
32138E
38322-54W00 Breather9701--01 ~ 9906--01; NA20S.MT |
38322-54W00 |
US $9.07 |
||
| replacement | |||||
|
32138E
|
32138E
38322-54W0B
Breather
9701--01 ~ 9906--01; NA20S.MT |
38322-54W0B |
— | ||
|
32139
|
32139
32139-36N00 Retainer-Bearing9701--01 ~ 9705--01; NA20S.MT |
32139-36N00 |
US $16.99 |
||
|
32139
|
32139
32139VH000 Retainer-Bearing9705--01 ~ 9906--01; NA20S.MT |
32139VH000 |
US $16.99 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER9701--01 ~ 9906--01; NA20S.MT |
0114100021 |
US $2.91 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER9701--01 ~ 9906--01; NA20S.MT |
0114100021 |
US $2.91 |
||
