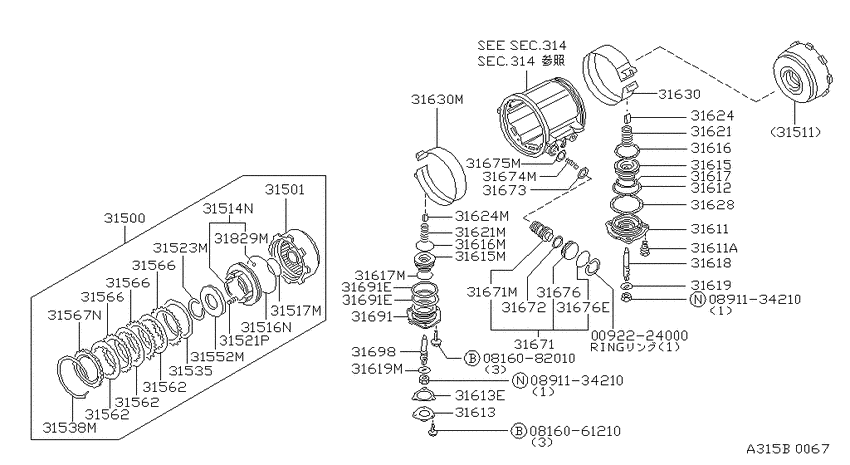

Clutch & band servo (1982-07-01 ~ ; DIRECT CLUTCH & SERVO; ATM) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- L24E
- transmission
- AT
- body
- S
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092224000
|
0092224000
00922-24000 RING-SNAP |
00922-24000 |
US $2.45 |
||
|
0816061210
|
0816061210
08160-61210
Bolt-hexagon
|
08160-61210 |
— | ||
| replacement | |||||
|
0816061210
|
0816061210
08110-61225
Bolt-hexagon
|
08110-61225 |
— | ||
|
0816082010
|
0816082010
08160-82010
Bolt-hexagon
|
08160-82010 |
— | ||
|
0891134210
|
0891134210
08911-34210
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-34210 |
— | ||
|
0891134210
|
0891134210
08911-34210
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-34210 |
— | ||
|
31500
|
31500
31500-X8670 Clutch Assy-Direct1982-07-01 ~ ; L24E.AT; , |
31500-X8670 |
US $201.60 |
||
|
31500
|
31500
31500-X8671 Clutch Assy-Direct1980-07-01 ~ ; L24E.AT; , |
31500-X8671 |
US $201.60 |
||
|
31501
|
31501
31501-X8601 Drum Assy-Direct Clutch1982-07-01 ~ ; L24E.AT; , |
31501-X8601 |
US $73.01 |
||
|
31511
|
31511
31511-X0101 Drum-Front Clutch1980-07-01 ~ 1982-06-01; AT; , |
31511-X0101 |
US $78.77 |
||
|
31511
|
31511
31511-X2801 Drum-Front Clutch1982-07-01 ~ ; L24E.AT; , |
31511-X2801 |
US $101.23 |
||
|
31514N
|
31514N
31514-X0103 Piston Assy-Clutch1982-07-01 ~ ; AT; , |
31514-X0103 |
US $26.50 |
||
|
31516N
|
31516N
31516-X0100 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31516-X0100 |
US $5.18 |
||
|
31517M
|
31517M
31517-X0100 Seal-O Ring1982-07-01 ~ ; AT; , |
31517-X0100 |
US $2.45 |
||
|
31521P
|
31521P
31521-X0100 Spring-Piston Return1982-07-01 ~ ; AT; , |
31521-X0100 |
US $6.48 |
||
|
31523M
|
31523M
31523-X0100 Ring-Snap1982-07-01 ~ ; AT; , |
31523-X0100 |
US $2.45 |
||
|
31535
|
31535
31529-X0100 Plate-Dished1982-07-01 ~ ; L24E.AT; , |
31529-X0100 |
US $10.51 |
||
|
31538M
|
31538M
31538-X0100 Ring-Snap1982-07-01 ~ ; L24E.AT; , |
31538-X0100 |
US $6.48 |
||
|
31552M
|
31552M
31552-X0103 Retainer-Spring1982-07-01 ~ ; AT; , |
31552-X0103 |
US $2.45 |
||
|
31562
|
31562
31532-X0101 Plate Assy-Drive1982-07-01 ~ ; AT; 115 |
31532-X0101 |
US $18.14 |
||
|
31562
|
31562
31532-X0102
Plate Assy-Drive
1980-07-01 ~ ; AT; 115 |
31532-X0102 |
— | ||
|
31562
|
31562
31532-X0101 Plate Assy-Drive1982-07-01 ~ ; AT; 115 |
31532-X0101 |
US $18.14 |
||
|
31562
|
31562
31532-X0102
Plate Assy-Drive
1980-07-01 ~ ; AT; 115 |
31532-X0102 |
— | ||
|
31562
|
31562
31532-X0101 Plate Assy-Drive1982-07-01 ~ ; AT; 115 |
31532-X0101 |
US $18.14 |
||
|
31562
|
31562
31532-X0102
Plate Assy-Drive
1980-07-01 ~ ; AT; 115 |
31532-X0102 |
— | ||
|
31566
|
31566
31536-X0100 Plate-Driven1982-07-01 ~ ; AT; 115 |
31536-X0100 |
US $5.55 |
||
|
31566
|
31566
31536-X0100 Plate-Driven1982-07-01 ~ ; AT; 115 |
31536-X0100 |
US $5.55 |
||
|
31566
|
31566
31536-X0100 Plate-Driven1982-07-01 ~ ; AT; 115 |
31536-X0100 |
US $5.55 |
||
|
31567N
|
31567N
31507-X8600 Plate-Retaining1982-07-01 ~ ; L24E.AT; 115 T=6.4 |
31507-X8600 |
US $24.19 |
||
|
31567N
|
31567N
31507-X8601 Plate-Retaining1982-07-01 ~ ; L24E.AT; 115 T=6.6 |
31507-X8601 |
US $24.19 |
||
|
31567N
|
31567N
31537-X2800 Plate-Retaining1982-07-01 ~ ; L24E.AT; 115 T=6.8 |
31537-X2800 |
US $12.96 |
||
|
31567N
|
31567N
31537-X2801 Plate-Retaining1982-07-01 ~ ; L24E.AT; 115 T=7.0 |
31537-X2801 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2903 Plate-Retaining1982-07-01 ~ ; L24E.AT; 115 T=5.6 |
31567-X2903 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2904 Plate-Retaining1982-07-01 ~ ; L24E.AT; 115 T=5.8 |
31567-X2904 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2905 Plate-Retaining1982-07-01 ~ ; L24E.AT; 115 T=6.0 |
31567-X2905 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2906 Plate-Retaining1982-07-01 ~ ; L24E.AT; 115 T=6.2 |
31567-X2906 |
US $12.96 |
||
|
31611
|
31611
31611-X0401 Retainer-Servo Piston1982-07-01 ~ ; L24E.AT; , |
31611-X0401 |
US $30.38 |
||
|
31611
|
31611
31611-X0611 Retainer-Servo Piston1980-07-01 ~ 1982-06-01; AT; 60-36 |
31611-X0611 |
US $38.59 |
||
|
31611
|
31611
01121-00391 BOLT1982-07-01 ~ ; AT; , |
01121-00391 |
US $2.45 |
||
|
31611A
|
31611A
01121-00391 BOLT1982-07-01 ~ ; AT; , |
01121-00391 |
US $2.45 |
||
|
31612
|
31612
31612-X0300 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31612-X0300 |
US $2.36 |
||
|
31613
|
31613
31613-X3101 Cover-Overdrive Servo Retainer1982-07-01 ~ ; AT; , |
31613-X3101 |
US $7.20 |
||
|
31613
|
31613
31612-X3101 Gasket-Overdrive Servo Retainer Cover1982-07-01 ~ ; AT; , |
31612-X3101 |
US $1.73 |
||
| replacement | |||||
|
31613
|
31613
31623-X3100 Gasket-Retainer, Servo1982-07-01 ~ ; AT; , |
31623-X3100 |
US $1.73 |
||
|
31613E
|
31613E
31612-X3101 Gasket-Overdrive Servo Retainer Cover1982-07-01 ~ ; AT; , |
31612-X3101 |
US $1.73 |
||
| replacement | |||||
|
31613E
|
31613E
31623-X3100 Gasket-Retainer, Servo1982-07-01 ~ ; AT; , |
31623-X3100 |
US $1.73 |
||
|
31615
|
31615
31615-X0400 Piston-Band Servo1982-07-01 ~ ; L24E.AT; , |
31615-X0400 |
US $12.96 |
||
|
31615
|
31615
31615-X0611 Piston-Band Servo1980-07-01 ~ 1982-06-01; AT; 60-36 |
31615-X0611 |
US $15.70 |
||
|
31615
|
31615
31615-X0611 Piston-Band Servo1982-07-01 ~ ; AT; , |
31615-X0611 |
US $15.70 |
||
|
31615M
|
31615M
31615-X0611 Piston-Band Servo1982-07-01 ~ ; AT; , |
31615-X0611 |
US $15.70 |
||
|
31616
|
31616
31616-X0100 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31616-X0100 |
US $2.88 |
||
|
31616
|
31616
31616X1000 Seal-Lathe Cut Ring1980-07-01 ~ 1982-06-01; AT; 60 |
31616X1000 |
US $2.45 |
||
|
31616
|
31616
31616X1000 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31616X1000 |
US $2.45 |
||
|
31616M
|
31616M
31616X1000 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31616X1000 |
US $2.45 |
||
|
31617
|
31617
31617X0400 Seal-Lathe Cut Ring1982-07-01 ~ ; L24E.AT; , |
31617X0400 |
US $2.88 |
||
|
31617
|
31617
31617-X1200 Seal-Lathe Cut Ring1980-07-01 ~ 1982-06-01; AT; 36 |
31617-X1200 |
US $4.18 |
||
|
31617
|
31617
31617-X1200 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31617-X1200 |
US $4.18 |
||
|
31617M
|
31617M
31617-X1200 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31617-X1200 |
US $4.18 |
||
|
31618
|
31618
31618-X0101 Stem-Band Servo Piston1982-07-01 ~ ; AT; , |
31618-X0101 |
US $4.18 |
||
|
31619
|
31619
31619-X0100 Washer-Piston Stem1982-07-01 ~ ; AT; , |
31619-X0100 |
US $0.86 |
||
|
31619
|
31619
31619-X0100 Washer-Piston Stem1982-07-01 ~ ; AT; , |
31619-X0100 |
US $0.86 |
||
|
31619M
|
31619M
31619-X0100 Washer-Piston Stem1982-07-01 ~ ; AT; , |
31619-X0100 |
US $0.86 |
||
|
31621
|
31621
31621-X0100 Spring-Piston Return1980-07-01 ~ 1982-06-01; AT; 10KG |
31621-X0100 |
US $1.73 |
||
|
31621
|
31621
31621-X8600 Spring-Piston Return1982-07-01 ~ ; L24E.AT; , |
31621-X8600 |
US $4.18 |
||
|
31624
|
31624
31624-X0101 Strut-Band1982-07-01 ~ ; AT; , |
31624-X0101 |
US $4.18 |
||
|
31624
|
31624
31624-X0101 Strut-Band1982-07-01 ~ ; AT; , |
31624-X0101 |
US $4.18 |
||
|
31624M
|
31624M
31624-X0101 Strut-Band1982-07-01 ~ ; AT; , |
31624-X0101 |
US $4.18 |
||
|
31628
|
31628
31628-X0100 Seal-O Ring1982-07-01 ~ ; AT; , |
31628-X0100 |
US $1.67 |
||
|
31630
|
31630
31630-X0103 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0103 |
US $62.78 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0106 |
US $49.25 |
||
|
31630
|
31630
31630-X0104 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0104 |
US $82.66 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0106 |
US $49.25 |
||
|
31630
|
31630
31630-X0103 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0103 |
US $62.78 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0106 |
US $49.25 |
||
|
31630
|
31630
31630-X0104 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0104 |
US $82.66 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0106 |
US $49.25 |
||
|
31630M
|
31630M
31630-X0103 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0103 |
US $62.78 |
||
| replacement | |||||
|
31630M
|
31630M
31630-X0106 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0106 |
US $49.25 |
||
|
31630M
|
31630M
31630-X0104 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0104 |
US $82.66 |
||
| replacement | |||||
|
31630M
|
31630M
31630-X0106 Band Assy-Brake1982-07-01 ~ ; AT; , |
31630-X0106 |
US $49.25 |
||
|
31671
|
31671
31670-X8600
Piston-Accumulator
1982-07-01 ~ ; AT; , |
31670-X8600 |
— | ||
|
31671
|
31671
31671-X8600 Piston-Accumulator, Overdrive Case1980-07-01 ~ ; AT; , |
31671-X8600 |
US $17.86 |
||
|
31671
|
31671
31671-X8610 Piston-Accumulator, Overdrive Case1982-07-01 ~ ; AT; , |
31671-X8610 |
US $17.86 |
||
|
31671M
|
31671M
31671-X8610 Piston-Accumulator, Overdrive Case1982-07-01 ~ ; AT; , |
31671-X8610 |
US $17.86 |
||
|
31672
|
31672
31672-X8600 Ring-Seal, Overdrive Accumulator Piston1982-07-01 ~ ; AT; , |
31672-X8600 |
US $6.19 |
||
|
31673
|
31673
31673-X8600 Ring-Seal, Overdrive Accumulator Piston1982-07-01 ~ 1983-05-01; AT; , |
31673-X8600 |
US $6.19 |
||
|
31673
|
31673
31673-X8610 Ring-Seal, Overdrive Accumulator Piston1983-06-01 ~ ; AT; , |
31673-X8610 |
US $6.19 |
||
|
31674M
|
31674M
31674-X8600
Spring-Accumulator Servo
1982-07-01 ~ ; AT; , |
31674-X8600 |
— | ||
|
31674M
|
31674M
31674-X8601 Spring-Accumulator Servo1982-07-01 ~ ; AT; , |
31674-X8601 |
US $1.73 |
||
|
31675M
|
31675M
31675-X8600 Spacer-Accumulator1982-07-01 ~ ; AT; , |
31675-X8600 |
US $30.82 |
||
|
31676
|
31676
31676-X8600 Plug-Accumulator, Overdrive1982-07-01 ~ ; AT; , |
31676-X8600 |
US $6.91 |
||
|
31676
|
31676
31677-X8600 Seal-O Ring, Overdrive Accumulator Plug1982-07-01 ~ ; AT; , |
31677-X8600 |
US $6.91 |
||
|
31676E
|
31676E
31677-X8600 Seal-O Ring, Overdrive Accumulator Plug1982-07-01 ~ ; AT; , |
31677-X8600 |
US $6.91 |
||
|
31691
|
31691
31691-X8606 Retainer-Piston, Overdrive Servo1982-07-01 ~ ; AT; , |
31691-X8606 |
US $36.58 |
||
|
31691
|
31691
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai1982-07-01 ~ ; AT; , |
31692X8600 |
US $6.19 |
||
|
31691E
|
31691E
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai1982-07-01 ~ ; AT; , |
31692X8600 |
US $6.19 |
||
|
31691E
|
31691E
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai1982-07-01 ~ ; AT; , |
31692X8600 |
US $6.19 |
||
|
31698
|
31698
31698-X8600 Stem-Overdrive Servo Piston1982-07-01 ~ ; AT; , |
31698-X8600 |
US $12.53 |
||
|
31829M
|
31829M
31829-68300 Ball-Steel1982-07-01 ~ ; AT; , |
31829-68300 |
US $1.73 |
||
