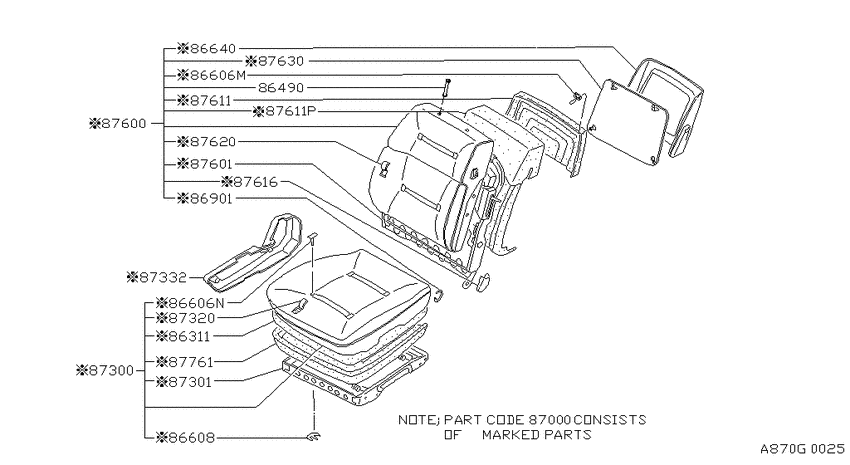

Front seat (1980-07-01 ~ ; RH SEAT; ALL) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- L24E
- transmission
- AT
- body
- S
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86606N
|
86606N
86606-W3476
ｸﾘﾂﾌﾟ,ﾄﾘﾑ
1980-07-01 ~ 1981-06-01; S.DX +W.DX; , |
86606-W3476 |
— | ||
|
86608
|
86608
86608-Y8000 Stopper-Ornament1980-07-01 ~ ; S.DX +W.DX; , |
86608-Y8000 |
US $1.73 |
||
|
86901
|
86901
8690132200 Clip1980-07-01 ~ ; S +W; , |
8690132200 |
from US $0.22 |
||
|
87000
|
87000
87000-W2410
Seat assy-front,rh
1980-07-01 ~ 1981-06-01; S.DX; (C) |
87000-W2410 |
— | ||
|
87000
|
87000
87000-W2411
Seat assy-front,rh
1980-07-01 ~ 1982-04-01; S.DX; (K) |
87000-W2411 |
— | ||
|
87000
|
87000
87000-W2412
Seat assy-front,rh
1980-07-01 ~ 1982-04-01; S.DX; (B) |
87000-W2412 |
— | ||
|
87000
|
87000
87000-W3210
Seat assy-front,rh
1981-07-01 ~ 1982-06-01; S.DX; (P) |
87000-W3210 |
— | ||
|
87000
|
87000
87000-W3211
Seat assy-front,rh
1982-05-01 ~ 1982-06-01; S.DX +W.DX; (K) |
87000-W3211 |
— | ||
|
87000
|
87000
87000-W3212
Seat assy-front,rh
1981-07-01 ~ 1982-06-01; S.DX +W.DX; (B) |
87000-W3212 |
— | ||
|
87000
|
87000
87000-W3260
Seat assy-front,rh
1982-07-01 ~ 1983-04-01; S.DX.AT; (P) |
87000-W3260 |
— | ||
|
87000
|
87000
87000-W3261
Seat assy-front,rh
1982-07-01 ~ 1983-04-01; S.DX.AT +W.DX.AT; (K) |
87000-W3261 |
— | ||
|
87000
|
87000
87000-W3262
Seat assy-front,rh
1982-07-01 ~ 1983-04-01; S.DX.AT +W.DX.AT; (B) |
87000-W3262 |
— | ||
|
87000
|
87000
87615-Y1900 ﾎﾞﾙﾄ,ｽﾍﾟｼﾔﾙ1980-07-01 ~ ; S +W; BACK TO CUSH |
87615-Y1900 |
US $4.32 |
||
|
87000
|
87000
87614-K0100 Bush-Rear Seat1980-07-01 ~ ; S +W; BACK TO CUSH |
87614-K0100 |
US $1.73 |
||
|
87300
|
87300
87300-W2410
Cushion assy-seat,rh
1980-07-01 ~ 1981-06-01; S.DX; (C) |
87300-W2410 |
— | ||
|
87300
|
87300
87300-W2411
Cushion assy-seat,rh
1980-07-01 ~ 1982-06-01; S.DX +W.DX; (K) |
87300-W2411 |
— | ||
|
87300
|
87300
87300-W2412
Cushion assy-seat,rh
1980-07-01 ~ 1982-06-01; S.DX +W.DX; (B) |
87300-W2412 |
— | ||
|
87300
|
87300
87300-W3210
Cushion assy-seat,rh
1981-07-01 ~ 1982-06-01; S.DX; (P) |
87300-W3210 |
— | ||
|
87300
|
87300
87300-W3260
Cushion assy-seat,rh
1982-07-01 ~ ; S.DX.AT; (P) |
87300-W3260 |
— | ||
|
87300
|
87300
87300-W3261
Cushion assy-seat,rh
1982-07-01 ~ ; S.DX.AT +W.DX.AT; (K) |
87300-W3261 |
— | ||
|
87300
|
87300
87300-W3262
Cushion assy-seat,rh
1982-07-01 ~ ; S.DX.AT +W.DX.AT; (B) |
87300-W3262 |
— | ||
|
87301
|
87301
87301-W1000
Frame assy-front seat cushion,rh
1980-07-01 ~ 1982-06-01; S.DX.AT +W.DX.AT; , |
87301-W1000 |
— | ||
|
87301
|
87301
87301-W3260
Frame assy-front seat cushion,rh
1982-07-01 ~ ; S.DX.AT +W.DX.AT; , |
87301-W3260 |
— | ||
|
87320
|
87320
87320-W2410
Trim assy-seat cushion,rh
1980-07-01 ~ 1981-06-01; S.DX; (C) |
87320-W2410 |
— | ||
|
87320
|
87320
87320-W2411
Trim assy-seat cushion,rh
1980-07-01 ~ ; S.DX; (K) |
87320-W2411 |
— | ||
|
87320
|
87320
87320-W2412
Trim assy-seat cushion,rh
1980-07-01 ~ ; S.DX; (B) |
87320-W2412 |
— | ||
|
87320
|
87320
87320-W3210
Trim assy-seat cushion,rh
1981-07-01 ~ ; S.DX; (P) |
87320-W3210 |
— | ||
|
87332
|
87332
87330-W1000 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1980-07-01 ~ 1981-06-01; S.DX +W.DX; (C) |
87330-W1000 |
US $12.82 |
||
| replacement | |||||
|
87332
|
87332
87330-W1003 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1980-07-01 ~ 1981-06-01; S.DX +W.DX; (C) |
87330-W1003 |
US $15.70 |
||
|
87332
|
87332
87330-W1001 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1980-07-01 ~ 1982-04-01; S.DX +W.DX; (K) |
87330-W1001 |
US $12.82 |
||
| replacement | |||||
|
87332
|
87332
87330-W1003 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1980-07-01 ~ 1982-04-01; S.DX +W.DX; (K) |
87330-W1003 |
US $15.70 |
||
|
87332
|
87332
87330-W1002
Finisher-device,rh seat outside
1980-07-01 ~ 1982-04-01; S.DX +W.DX; (B) |
87330-W1002 |
— | ||
|
87332
|
87332
87330-W3500
Finisher-device,rh seat outside
1981-07-01 ~ 1982-04-01; S.DX +W.DX; (P) |
87330-W3500 |
— | ||
|
87332
|
87332
87330-W3910 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1982-05-01 ~ ; S.DX +W.DX; (P) |
87330-W3910 |
US $12.24 |
||
| replacement | |||||
|
87332
|
87332
87330-W3913 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1982-05-01 ~ ; S.DX +W.DX; (P) |
87330-W3913 |
US $12.24 |
||
|
87332
|
87332
87330-W3911 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1982-05-01 ~ ; S.DX +W.DX; (K) |
87330-W3911 |
US $12.82 |
||
| replacement | |||||
|
87332
|
87332
87330-W3913 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1982-05-01 ~ ; S.DX +W.DX; (K) |
87330-W3913 |
US $12.24 |
||
|
87332
|
87332
87330-W3912
Finisher-device,rh seat outside
1982-05-01 ~ ; S.DX +W.DX; (B) |
87330-W3912 |
— | ||
| replacement | |||||
|
87332
|
87332
87330-W3913 ﾌｲﾆﾂｼﾔ-,ﾃﾞｲﾊﾞｲｽ rh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1982-05-01 ~ ; S.DX +W.DX; (B) |
87330-W3913 |
US $12.24 |
||
|
87600
|
87600
87600-W2410
Back assy-front seat,rh
1980-07-01 ~ 1981-06-01; S.DX; (C) |
87600-W2410 |
— | ||
|
87600
|
87600
87600-W2411
Back assy-front seat,rh
1980-07-01 ~ ; S.DX; (K) |
87600-W2411 |
— | ||
|
87600
|
87600
87600-W2412
Back assy-front seat,rh
1980-07-01 ~ ; S.DX; (B) |
87600-W2412 |
— | ||
|
87600
|
87600
87600-W3210
Back assy-front seat,rh
1981-07-01 ~ ; S.DX; (P) |
87600-W3210 |
— | ||
|
87601
|
87601
87601-W1000
Frame assy-front seat back,rh
1980-07-01 ~ ; S.DX +W.DX; , |
87601-W1000 |
— | ||
|
87611
|
87611
87611-W2410
Pad-front seat back,rh
1980-07-01 ~ ; S.DX +W.DX; , |
87611-W2410 |
— | ||
|
87616
|
87616
87616-W1000
ｶﾊﾞ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾋﾝｼﾞ
1980-07-01 ~ 1981-06-01; S +W.L24E.SL +W.LD28; (C) |
87616-W1000 |
— | ||
|
87616
|
87616
87616-W1001
ｶﾊﾞ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾋﾝｼﾞ
1980-07-01 ~ 1982-06-01; S +W.L24E.SL +W.LD28; (K) |
87616-W1001 |
— | ||
|
87616
|
87616
87616-W1002
Cover-front seat hinge
1980-07-01 ~ 1982-06-01; S +W.L24E.SL +W.LD28; (B) |
87616-W1002 |
— | ||
|
87616
|
87616
87616-W3400
ｶﾊﾞ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾋﾝｼﾞ
1981-07-01 ~ 1982-06-01; S +W.L24E.SL +W.LD28; (P) |
87616-W3400 |
— | ||
|
87620
|
87620
87620-W2410
Trim assy-back,front seat rh
1980-07-01 ~ 1981-06-01; S.DX; (C) |
87620-W2410 |
— | ||
|
87620
|
87620
87620-W2411
Trim assy-back,front seat rh
1980-07-01 ~ ; S.DX; (K) |
87620-W2411 |
— | ||
|
87620
|
87620
87620-W2412
Trim assy-back,front seat rh
1980-07-01 ~ ; S.DX; (B) |
87620-W2412 |
— | ||
|
87620
|
87620
87620-W3210
Trim assy-back,front seat rh
1981-07-01 ~ ; S.DX; (P) |
87620-W3210 |
— | ||
|
87630
|
87630
87640-W1000
ﾎﾞ-ﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ rh
1980-07-01 ~ 1981-06-01; S.DX +W.DX; (C) |
87640-W1000 |
— | ||
|
87630
|
87630
87640-W1001
ﾎﾞ-ﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ rh
1980-07-01 ~ ; S.DX +W.DX; (K) |
87640-W1001 |
— | ||
|
87630
|
87630
87640-W1002
Board assy-seat back,rh
1980-07-01 ~ ; S.DX +W.DX; (B) |
87640-W1002 |
— | ||
|
87630
|
87630
87640-W3400
ﾎﾞ-ﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ rh
1981-07-01 ~ ; S.DX +W.DX; (P) |
87640-W3400 |
— | ||
