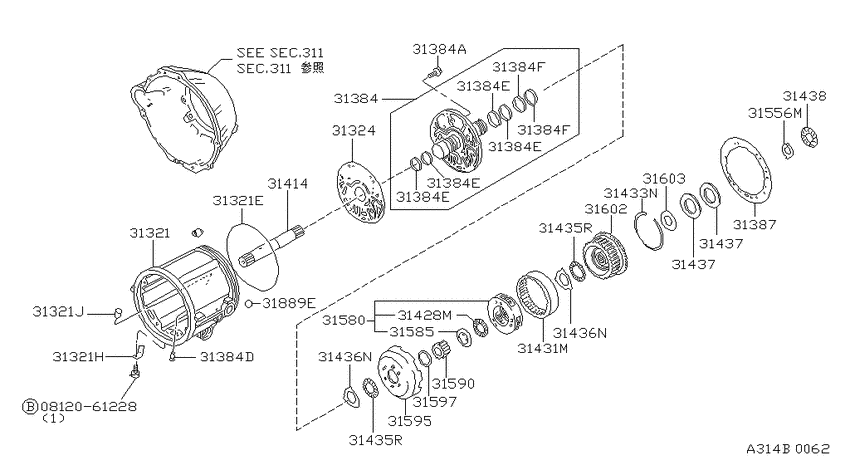

Governor,power train & planetary gear (1982-07-01 ~ ; FRONT; ATM) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- L24E
- transmission
- AT
- body
- S
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
31321
|
31321
31321-X8611
Case-Overdrive
1982-07-01 ~ 1983-04-01; AT; , |
31321-X8611 |
— | ||
|
31321
|
31321
31321-X8653 Case-Overdrive1983-05-01 ~ ; AT; , |
31321-X8653 |
US $337.01 |
||
|
31321
|
31321
31363-X0100 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31363-X0100 |
US $4.75 |
||
|
31321
|
31321
31357-20300 Ball-Steel1982-07-01 ~ ; AT; , |
31357-20300 |
US $0.86 |
||
|
31321
|
31321
21644-V2700 Bracket-Oil Cooler Tube1982-07-01 ~ ; AT; , |
21644-V2700 |
US $17.86 |
||
|
31321
|
31321
31356-X8600 Valve Assy-One Way Overdrive Case1982-07-01 ~ ; AT; , |
31356-X8600 |
US $1.73 |
||
|
31321E
|
31321E
31363-X0100 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31363-X0100 |
US $4.75 |
||
|
31321H
|
31321H
21644-V2700 Bracket-Oil Cooler Tube1982-07-01 ~ ; AT; , |
21644-V2700 |
US $17.86 |
||
|
31321J
|
31321J
31356-X8600 Valve Assy-One Way Overdrive Case1982-07-01 ~ ; AT; , |
31356-X8600 |
US $1.73 |
||
|
31324
|
31324
31324-X8600 Gasket-Drum Support, Front1982-07-01 ~ ; AT; , |
31324-X8600 |
US $4.18 |
||
|
31384
|
31384
31384-X8603 Support Assy-Drum1982-07-01 ~ ; AT; , |
31384-X8603 |
US $264.96 |
||
|
31384
|
31384
31389-X8600 Bolt-Drum Support1982-07-01 ~ ; AT; , |
31389-X8600 |
US $0.86 |
||
|
31384
|
31384
31853-X8600 Plug-Lubrication1982-07-01 ~ ; AT; , |
31853-X8600 |
US $1.73 |
||
|
31384
|
31384
31361-X8600 Ring-Seal1982-07-01 ~ ; AT; , |
31361-X8600 |
US $7.49 |
||
|
31384
|
31384
31362-X8600 Ring-Seal1982-07-01 ~ ; AT; , |
31362-X8600 |
US $7.49 |
||
|
31384A
|
31384A
31389-X8600 Bolt-Drum Support1982-07-01 ~ ; AT; , |
31389-X8600 |
US $0.86 |
||
|
31384D
|
31384D
31853-X8600 Plug-Lubrication1982-07-01 ~ ; AT; , |
31853-X8600 |
US $1.73 |
||
|
31384E
|
31384E
31361-X8600 Ring-Seal1982-07-01 ~ ; AT; , |
31361-X8600 |
US $7.49 |
||
|
31384E
|
31384E
31361-X8600 Ring-Seal1982-07-01 ~ ; AT; , |
31361-X8600 |
US $7.49 |
||
|
31384E
|
31384E
31361-X8600 Ring-Seal1982-07-01 ~ ; AT; , |
31361-X8600 |
US $7.49 |
||
|
31384E
|
31384E
31361-X8600 Ring-Seal1982-07-01 ~ ; AT; , |
31361-X8600 |
US $7.49 |
||
|
31384F
|
31384F
31362-X8600 Ring-Seal1982-07-01 ~ ; AT; , |
31362-X8600 |
US $7.49 |
||
|
31384F
|
31384F
31362-X8600 Ring-Seal1982-07-01 ~ ; AT; , |
31362-X8600 |
US $7.49 |
||
|
31387
|
31387
31387-X8600 Gasket-Oil Pump1982-07-01 ~ ; AT; , |
31387-X8600 |
US $4.18 |
||
| replacement | |||||
|
31387
|
31387
31387-X8601 Gasket-Oil Pump1982-07-01 ~ ; AT; , |
31387-X8601 |
US $4.18 |
||
|
31387
|
31387
21644-V3100 Bracket-Oil Cooler Tube1982-07-01 ~ ; AT; , |
21644-V3100 |
US $9.94 |
||
|
31414
|
31414
31416-X8600 Shaft-Intermediate1982-07-01 ~ ; AT; , |
31416-X8600 |
US $42.62 |
||
|
31428M
|
31428M
31428-X0100 Bearing-Needle, Thrust1982-07-01 ~ ; AT; 3047 |
31428-X0100 |
US $12.96 |
||
|
31431M
|
31431M
31431-X0100
Gear-Internal
1982-07-01 ~ ; AT; , |
31431-X0100 |
— | ||
|
31433N
|
31433N
31433-X0100 Ring-Snap, Internal Drive Flange1982-07-01 ~ ; AT; , |
31433-X0100 |
US $5.18 |
||
|
31435R
|
31435R
31435-X0100 Bearing-Needle, Thrust1982-07-01 ~ ; AT; 5070 |
31435-X0100 |
US $10.80 |
||
|
31435R
|
31435R
31438-X0100 Bearing-Needle, Thrust1980-07-01 ~ 1982-06-01; AT; , |
31438-X0100 |
US $13.10 |
||
|
31435R
|
31435R
31435-X0100 Bearing-Needle, Thrust1982-07-01 ~ ; AT; 5070 |
31435-X0100 |
US $10.80 |
||
|
31435R
|
31435R
31438-X0100 Bearing-Needle, Thrust1980-07-01 ~ 1982-06-01; AT; , |
31438-X0100 |
US $13.10 |
||
|
31436N
|
31436N
31436-X0100
Race-Bearing
1982-07-01 ~ ; AT; , |
31436-X0100 |
— | ||
|
31436N
|
31436N
31436-X0100
Race-Bearing
1982-07-01 ~ ; AT; , |
31436-X0100 |
— | ||
|
31437
|
31437
31528-X0100 Washer-Thrust1982-07-01 ~ ; AT; T=1.9 |
31528-X0100 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0103 Washer-Thrust1982-07-01 ~ ; AT; T=1.9 |
31508-X0103 |
US $6.05 |
||
|
31437
|
31437
31528-X0101 Washer-Thrust1982-07-01 ~ ; AT; T=2.1 |
31528-X0101 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0104 Washer-Thrust1982-07-01 ~ ; AT; T=2.1 |
31508-X0104 |
US $6.05 |
||
|
31437
|
31437
31528-X0102 Washer-Thrust1982-07-01 ~ ; AT; T=2.3 |
31528-X0102 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0105 Washer-Thrust1982-07-01 ~ ; AT; T=2.3 |
31508-X0105 |
US $6.05 |
||
|
31437
|
31437
31528-X0103 Washer-Thrust1982-07-01 ~ ; AT; T=2.5 |
31528-X0103 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0106 Washer-Thrust1982-07-01 ~ ; AT; T=2.5 |
31508-X0106 |
US $6.05 |
||
|
31437
|
31437
31528-X0104 Washer-Thrust1982-07-01 ~ ; AT; T=2.7 |
31528-X0104 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0107 Washer-Thrust1982-07-01 ~ ; AT; T=2.7 |
31508-X0107 |
US $6.05 |
||
|
31437
|
31437
31528-X0105 Washer-Thrust1982-07-01 ~ ; AT; T=1.5 |
31528-X0105 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0101 Washer-Thrust1982-07-01 ~ ; AT; T=1.5 |
31508-X0101 |
US $6.05 |
||
|
31437
|
31437
31528-X0106 Washer-Thrust1982-07-01 ~ ; AT; T=1.7 |
31528-X0106 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0102 Washer-Thrust1982-07-01 ~ ; AT; T=1.7 |
31508-X0102 |
US $6.05 |
||
|
31437
|
31437
31528-X0107 Washer-Thrust1982-07-01 ~ ; AT; T=1.3 |
31528-X0107 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0100 Washer-Thrust1982-07-01 ~ ; AT; T=1.3 |
31508-X0100 |
US $6.05 |
||
|
31437
|
31437
31528-X0100 Washer-Thrust1982-07-01 ~ ; AT; T=1.9 |
31528-X0100 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0103 Washer-Thrust1982-07-01 ~ ; AT; T=1.9 |
31508-X0103 |
US $6.05 |
||
|
31437
|
31437
31528-X0101 Washer-Thrust1982-07-01 ~ ; AT; T=2.1 |
31528-X0101 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0104 Washer-Thrust1982-07-01 ~ ; AT; T=2.1 |
31508-X0104 |
US $6.05 |
||
|
31437
|
31437
31528-X0102 Washer-Thrust1982-07-01 ~ ; AT; T=2.3 |
31528-X0102 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0105 Washer-Thrust1982-07-01 ~ ; AT; T=2.3 |
31508-X0105 |
US $6.05 |
||
|
31437
|
31437
31528-X0103 Washer-Thrust1982-07-01 ~ ; AT; T=2.5 |
31528-X0103 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0106 Washer-Thrust1982-07-01 ~ ; AT; T=2.5 |
31508-X0106 |
US $6.05 |
||
|
31437
|
31437
31528-X0104 Washer-Thrust1982-07-01 ~ ; AT; T=2.7 |
31528-X0104 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0107 Washer-Thrust1982-07-01 ~ ; AT; T=2.7 |
31508-X0107 |
US $6.05 |
||
|
31437
|
31437
31528-X0105 Washer-Thrust1982-07-01 ~ ; AT; T=1.5 |
31528-X0105 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0101 Washer-Thrust1982-07-01 ~ ; AT; T=1.5 |
31508-X0101 |
US $6.05 |
||
|
31437
|
31437
31528-X0106 Washer-Thrust1982-07-01 ~ ; AT; T=1.7 |
31528-X0106 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0102 Washer-Thrust1982-07-01 ~ ; AT; T=1.7 |
31508-X0102 |
US $6.05 |
||
|
31437
|
31437
31528-X0107 Washer-Thrust1982-07-01 ~ ; AT; T=1.3 |
31528-X0107 |
US $6.05 |
||
| replacement | |||||
|
31437
|
31437
31508-X0100 Washer-Thrust1982-07-01 ~ ; AT; T=1.3 |
31508-X0100 |
US $6.05 |
||
|
31438
|
31438
31555-X0100 Bearing-Needle, Thrust1982-07-01 ~ ; AT; 2035 |
31555-X0100 |
US $6.19 |
||
|
31438
|
31438
31438-X0100 Bearing-Needle, Thrust1980-07-01 ~ 1982-06-01; AT; , |
31438-X0100 |
US $13.10 |
||
|
31556M
|
31556M
31556-X0100 Race-Bearing, Pump Cover1982-07-01 ~ ; AT; T=1.2 |
31556-X0100 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0101 Race-Bearing, Pump Cover1982-07-01 ~ ; AT; T=1.4 |
31556-X0101 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0102 Race-Bearing, Pump Cover1982-07-01 ~ ; AT; T=1.6 |
31556-X0102 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0103 Race-Bearing, Pump Cover1982-07-01 ~ ; AT; T=1.8 |
31556-X0103 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0104 Race-Bearing, Pump Cover1982-07-01 ~ ; AT; T=2.0 |
31556-X0104 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0105 Race-Bearing, Pump Cover1982-07-01 ~ ; AT; T=2.2 |
31556-X0105 |
US $2.45 |
||
|
31580
|
31580
31580-X8600
Carrier Assy-Overdrive Planet
1982-07-01 ~ ; AT; , |
31580-X8600 |
— | ||
|
31585
|
31585
31585-X8600 Race-Bearing, Overdrive Carrier1982-07-01 ~ ; AT; , |
31585-X8600 |
US $4.18 |
||
|
31590
|
31590
31590-X8600 Gear Assy-Sun, Overdrive1982-07-01 ~ ; AT; , |
31590-X8600 |
US $78.77 |
||
|
31595
|
31595
31595-X8600 Shell-Connecting Overdrive1982-07-01 ~ ; AT; , |
31595-X8600 |
US $28.51 |
||
|
31597
|
31597
31597-X8600 Ring-Snap, Overdrive Sun Gear1982-07-01 ~ ; AT; , |
31597-X8600 |
US $1.73 |
||
|
31602
|
31602
31602-X8600 Hub-Direct Clutch1982-07-01 ~ ; AT; , |
31602-X8600 |
US $74.74 |
||
|
31603
|
31603
31603-X8600 Race-Bearing, Direct Clutch Hub1982-07-01 ~ ; AT; T=1.2 |
31603-X8600 |
US $4.18 |
||
|
31603
|
31603
31603-X8601 Race-Bearing, Direct Clutch Hub1982-07-01 ~ ; AT; T=1.4 |
31603-X8601 |
US $4.18 |
||
|
31603
|
31603
31603-X8602 Race-Bearing, Direct Clutch Hub1982-07-01 ~ ; AT; T=1.6 |
31603-X8602 |
US $4.18 |
||
|
31603
|
31603
31603-X8603 Race-Bearing, Direct Clutch Hub1982-07-01 ~ ; AT; T=1.8 |
31603-X8603 |
US $4.18 |
||
|
31603
|
31603
31603-X8604 Race-Bearing, Direct Clutch Hub1982-07-01 ~ ; AT; T=2.0 |
31603-X8604 |
US $4.18 |
||
|
31603
|
31603
31603-X8605 Race-Bearing, Direct Clutch Hub1982-07-01 ~ ; AT; T=2.2 |
31603-X8605 |
US $4.18 |
||
|
31889E
|
31889E
32720-36900 Ball-Steel1982-07-01 ~ ; AT; , |
32720-36900 |
US $0.82 |
||
