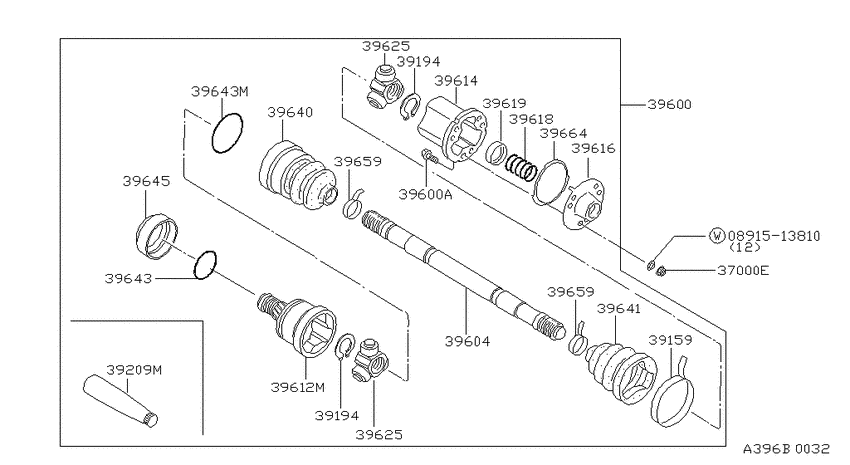

Rear drive shaft (1981-01-01 ~ ; SEDAN) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- L24E
- transmission
- AT
- body
- S
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
37000E
|
37000E
0122300041 NUT1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
0122300041 |
from US $1.37 |
||
|
39159
|
39159
39742-W1200 Band-Dust Cover, Inner1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; LARGE |
39742-W1200 |
US $4.03 |
||
|
39194
|
39194
3970841W00 Ring-Snap, C1983-04-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
3970841W00 |
US $0.92 |
||
|
39194
|
39194
3970841W00 Ring-Snap, C1983-04-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
3970841W00 |
US $0.92 |
||
|
39209M
|
39209M
39209-41W25 Grease-Inner1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39209-41W25 |
US $16.27 |
||
|
39209M
|
39209M
39709-W1525 Grease-Inner1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39709-W1525 |
US $14.98 |
||
|
39600
|
39600
39600-04S00 Shaft Assy-Rear Drive1983-06-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39600-04S00 |
US $1,086.07 |
||
| replacement | |||||
|
39600
|
39600
39600-04S05
Shaft assy-rear drive
1983-06-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39600-04S05 |
— | ||
|
39600
|
39600
39600-U7700 Shaft Assy-Rear Drive1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39600-U7700 |
US $1,064.83 |
||
|
39600
|
39600
39600-W1456
Shaft Assy-Rear Drive
1980-07-01 ~ 1983-05-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39600-W1456 |
— | ||
|
39600
|
39600
39606-W1202 Bolt1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39606-W1202 |
US $7.20 |
||
|
39600
|
39600
39628-E4100 Bolt1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39628-E4100 |
US $15.93 |
||
|
39600A
|
39600A
39606-W1202 Bolt1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39606-W1202 |
US $7.20 |
||
|
39600A
|
39600A
39628-E4100 Bolt1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39628-E4100 |
US $15.93 |
||
|
39604
|
39604
39704-04S00 Shaft-Rear Drive1983-06-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39704-04S00 |
US $141.84 |
||
| replacement | |||||
|
39604
|
39604
39704-04S50
Shaft-rear drive
1983-06-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39704-04S50 |
— | ||
|
39604
|
39604
39704-W1200 Shaft-Rear Drive1980-07-01 ~ 1983-03-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39704-W1200 |
US $220.32 |
||
|
39604
|
39604
39704-W1201
Shaft-Rear Drive
1983-04-01 ~ 1983-05-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39704-W1201 |
— | ||
|
39612M
|
39612M
39712-W1425
Housing, W/shaft Set
1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39712-W1425 |
— | ||
|
39612M
|
39612M
39712-W1426
Housing, W/shaft Set
1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39712-W1426 |
— | ||
|
39614
|
39614
39714-W1200 Housing-Slide Joint1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39714-W1200 |
US $297.36 |
||
|
39616
|
39616
39715-W1202 Plug-Slide Joint1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39715-W1202 |
US $15.98 |
||
|
39616
|
39616
39716-W1201 Plug-Slide Joint1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39716-W1201 |
US $17.28 |
||
|
39618
|
39618
39718-W1400 Spring-Slide Housing1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39718-W1400 |
US $5.12 |
||
|
39619
|
39619
39719-W1400 Cap-Spring, Slide Housing1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39719-W1400 |
US $3.31 |
||
|
39625
|
39625
39720-W1200 Spider Assy-Slide Joint1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39720-W1200 |
US $62.78 |
||
|
39625
|
39625
39625N4125 Journal Kit1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39625N4125 |
US $110.74 |
||
| replacement | |||||
|
39625
|
39625
37126VB925 Journal Kit1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
37126VB925 |
from US $83.51 |
||
|
39625
|
39625
39720-W1200 Spider Assy-Slide Joint1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39720-W1200 |
US $62.78 |
||
|
39625
|
39625
39625N4125 Journal Kit1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39625N4125 |
US $110.74 |
||
| replacement | |||||
|
39625
|
39625
37126VB925 Journal Kit1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
37126VB925 |
from US $83.51 |
||
|
39640
|
39640
39740-04F25
Repair Kit-Seal, Inner
1983-06-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39740-04F25 |
— | ||
|
39640
|
39640
39740-W1525
Repair Kit-Seal, Inner
1981-01-01 ~ 1983-05-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39740-W1525 |
— | ||
|
39641
|
39641
39741-04F25 Repair Kit-Seal, Outer1983-06-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39741-04F25 |
US $67.37 |
||
|
39641
|
39641
3974141W25 Repair Kit-Dust B00T, Inner1981-01-01 ~ 1983-05-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
3974141W25 |
US $61.63 |
||
|
39643
|
39643
39743-W1201 Seal-O Ring, Housing Joint1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39743-W1201 |
US $5.04 |
||
|
39643
|
39643
39743-W1500 Seal-O Ring, Housing Ring1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39743-W1500 |
US $5.04 |
||
|
39643M
|
39643M
39743-W1500 Seal-O Ring, Housing Ring1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39743-W1500 |
US $5.04 |
||
|
39645
|
39645
39745-W1505 Cover-Slide Housing, Inner1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39745-W1505 |
US $80.06 |
||
|
39659
|
39659
39659-U7600
Band-Rubber Boot, Rear Drive Shaft
1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39659-U7600 |
— | ||
|
39659
|
39659
39742W1205 Band-Dust Cover, Shaft1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; SMALL |
39742W1205 |
US $8.90 |
||
|
39659
|
39659
39659-U7600
Band-Rubber Boot, Rear Drive Shaft
1980-07-01 ~ 1980-12-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39659-U7600 |
— | ||
|
39659
|
39659
39742W1205 Band-Dust Cover, Shaft1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; SMALL |
39742W1205 |
US $8.90 |
||
|
39664
|
39664
39764-W1200 Seal-Plug, Slide Housing1981-01-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
39764-W1200 |
US $4.61 |
||
