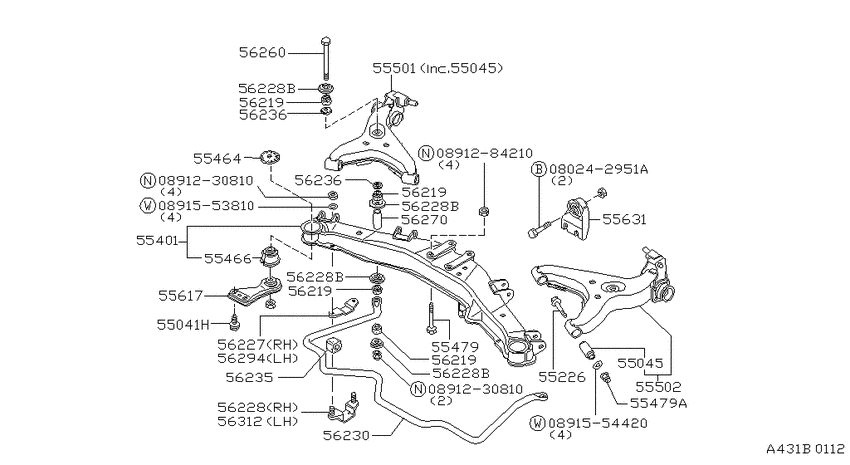

Rear suspension (1980-07-01 ~ ; MEMBER; I.R.S. AXLE) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- L24E
- transmission
- AT
- body
- S
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080242951A
|
080242951A
08024-2951A
Bolt-hexagon
|
08024-2951A |
— | ||
|
0891230810
|
0891230810
08912-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-30810 |
— | ||
|
0891230810
|
0891230810
08912-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-30810 |
— | ||
|
0891284210
|
0891284210
08912-84210
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-84210 |
— | ||
|
0891553810
|
0891553810
08915-53810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-53810 |
— | ||
|
0891554420
|
0891554420
08915-54420
Pl washer
|
08915-54420 |
— | ||
|
55041H
|
55041H
01125-00161 BOLT1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
01125-00161 |
US $2.45 |
||
|
55045
|
55045
55045K0400 Bush-Rear Spring1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55045K0400 |
US $12.05 |
||
|
55226
|
55226
55226-W1200
Pin-Arm
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55226-W1200 |
— | ||
|
55401
|
55401
55401-W2100 Member Assy-Rear Suspension1980-07-01 ~ 1981-06-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55401-W2100 |
US $815.62 |
||
| replacement | |||||
|
55401
|
55401
55400-31L61 Member Assy-Rear Suspension1980-07-01 ~ 1981-06-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55400-31L61 |
US $1,325.38 |
||
|
55401
|
55401
55401-W4000 Member Assy-Rear Suspension1981-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55401-W4000 |
US $1,003.94 |
||
| replacement | |||||
|
55401
|
55401
55400-05S60 Member Assy-Rear Suspension1981-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55400-05S60 |
US $1,325.38 |
||
|
55464
|
55464
55464-U7600
Stopper-Member Mounting, Upper
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55464-U7600 |
— | ||
|
55466
|
55466
55466-W1200
Insulator-Member Mounting
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55466-W1200 |
— | ||
| replacement | |||||
|
55466
|
55466
55466-31L01 Insulator-Member Mounting1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55466-31L01 |
US $53.51 |
||
|
55479
|
55479
55479-U7600 Bolt-Differential Mounting1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55479-U7600 |
US $4.03 |
||
|
55479
|
55479
0122500032 NUT-MOUNTING BOLT,LOWER1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
0122500032 |
from US $3.06 |
||
|
55479A
|
55479A
0122500032 NUT-MOUNTING BOLT,LOWER1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
0122500032 |
from US $3.06 |
||
|
55501
|
55501
55501-W2100 Arm Assy-Rear Suspension, Rh1980-07-01 ~ 1981-03-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55501-W2100 |
US $849.60 |
||
|
55501
|
55501
55501-W2400
Arm assy-rear suspension,rh
1981-04-01 ~ 1982-06-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55501-W2400 |
— | ||
|
55501
|
55501
55501-W4000 Arm Assy-Rear Suspension, Rh1982-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55501-W4000 |
US $1,053.50 |
||
|
55502
|
55502
55502-W2100 Arm Assy-Rear Suspension, Lh1980-07-01 ~ 1981-03-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55502-W2100 |
US $546.58 |
||
|
55502
|
55502
55502-W2400
Arm assy-rear suspension,lh
1981-04-01 ~ 1982-06-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55502-W2400 |
— | ||
|
55502
|
55502
55502-W4000 Arm Assy-Rear Suspension, Lh1982-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55502-W4000 |
US $1,053.50 |
||
|
55617
|
55617
55617-W1201 Stay-Rear Suspension Member1980-07-01 ~ 1983-02-01; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55617-W1201 |
US $15.41 |
||
|
55617
|
55617
55617-W1202 ｽﾃ-,ﾘﾔ ｻｽﾍﾟﾝｼﾖﾝ ﾒﾝﾊﾞ-1983-03-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55617-W1202 |
US $12.82 |
||
|
55631
|
55631
55450-W1200 Bracket Assy-Differential Mount, Rh1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
55450-W1200 |
US $87.41 |
||
|
56219
|
56219
5461201P00 Bush-Rubber, Shock Absorber1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5461201P00 |
from US $2.98 |
||
|
56219
|
56219
56125-18000
Bushing-Rubber
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56125-18000 |
— | ||
| replacement | |||||
|
56219
|
56219
5461201P00 Bush-Rubber, Shock Absorber1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5461201P00 |
from US $2.98 |
||
|
56219
|
56219
5461201P00 Bush-Rubber, Shock Absorber1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5461201P00 |
from US $2.98 |
||
|
56219
|
56219
56125-18000
Bushing-Rubber
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56125-18000 |
— | ||
| replacement | |||||
|
56219
|
56219
5461201P00 Bush-Rubber, Shock Absorber1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5461201P00 |
from US $2.98 |
||
|
56219
|
56219
5461201P00 Bush-Rubber, Shock Absorber1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5461201P00 |
from US $2.98 |
||
|
56219
|
56219
56125-18000
Bushing-Rubber
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56125-18000 |
— | ||
| replacement | |||||
|
56219
|
56219
5461201P00 Bush-Rubber, Shock Absorber1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5461201P00 |
from US $2.98 |
||
|
56219
|
56219
5461201P00 Bush-Rubber, Shock Absorber1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5461201P00 |
from US $2.98 |
||
|
56219
|
56219
56125-18000
Bushing-Rubber
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56125-18000 |
— | ||
| replacement | |||||
|
56219
|
56219
5461201P00 Bush-Rubber, Shock Absorber1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5461201P00 |
from US $2.98 |
||
|
56227
|
56227
56231-01S60 Bracket-Mounting, Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56231-01S60 |
US $5.04 |
||
|
56227
|
56227
56231-S6400 Bracket Assy-Rear Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56231-S6400 |
US $4.90 |
||
|
56228
|
56228
56233-01S60 Bracket Assy-Rear Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56233-01S60 |
US $14.69 |
||
|
56228
|
56228
56233-S6400 Bracket-Mounting, Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56233-S6400 |
US $16.99 |
||
|
56228
|
56228
56113-04F00
Washer-Lock
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56113-04F00 |
— | ||
| replacement | |||||
|
56228
|
56228
5611333P00 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5611333P00 |
US $1.82 |
||
|
56228
|
56228
56126-18000 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56126-18000 |
US $4.18 |
||
|
56228B
|
56228B
56113-04F00
Washer-Lock
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56113-04F00 |
— | ||
| replacement | |||||
|
56228B
|
56228B
5611333P00 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5611333P00 |
US $1.82 |
||
|
56228B
|
56228B
56126-18000 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56126-18000 |
US $4.18 |
||
|
56228B
|
56228B
56113-04F00
Washer-Lock
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56113-04F00 |
— | ||
| replacement | |||||
|
56228B
|
56228B
5611333P00 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5611333P00 |
US $1.82 |
||
|
56228B
|
56228B
56126-18000 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56126-18000 |
US $4.18 |
||
|
56228B
|
56228B
56113-04F00
Washer-Lock
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56113-04F00 |
— | ||
| replacement | |||||
|
56228B
|
56228B
5611333P00 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5611333P00 |
US $1.82 |
||
|
56228B
|
56228B
56126-18000 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56126-18000 |
US $4.18 |
||
|
56228B
|
56228B
56113-04F00
Washer-Lock
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56113-04F00 |
— | ||
| replacement | |||||
|
56228B
|
56228B
5611333P00 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5611333P00 |
US $1.82 |
||
|
56228B
|
56228B
56126-18000 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56126-18000 |
US $4.18 |
||
|
56230
|
56230
56230-W1410 Stabilizer-Rear1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56230-W1410 |
US $207.36 |
||
|
56230
|
56230
56230-W1411
Stabilizer-rear
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56230-W1411 |
— | ||
|
56235
|
56235
54613-F0100 Bush-Rear Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
54613-F0100 |
US $4.18 |
||
|
56236
|
56236
5611404F00 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5611404F00 |
US $4.85 |
||
|
56236
|
56236
56127-18000 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56127-18000 |
US $4.18 |
||
|
56236
|
56236
5611404F00 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
5611404F00 |
US $4.85 |
||
|
56236
|
56236
56127-18000 Washer-Lock1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56127-18000 |
US $4.18 |
||
|
56260
|
56260
56261-U7610 Bolt-Special1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56261-U7610 |
US $77.23 |
||
|
56270
|
56270
56270-U7610
Collar-Rear Stabilizer
1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56270-U7610 |
— | ||
|
56294
|
56294
56232-01S60 Bracket-Mounting, Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56232-01S60 |
US $5.04 |
||
|
56294
|
56294
56232-S6400 Bracket Assy-Rear Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56232-S6400 |
US $4.90 |
||
|
56312
|
56312
56234-01S60 Bracket Assy-Rear Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56234-01S60 |
US $14.69 |
||
|
56312
|
56312
56234-S6400 Bracket-Mounting, Stabilizer1980-07-01 ~ ; LD28.MT.F5 +S.LD28.AT +S.L24E; , |
56234-S6400 |
US $16.99 |
||
