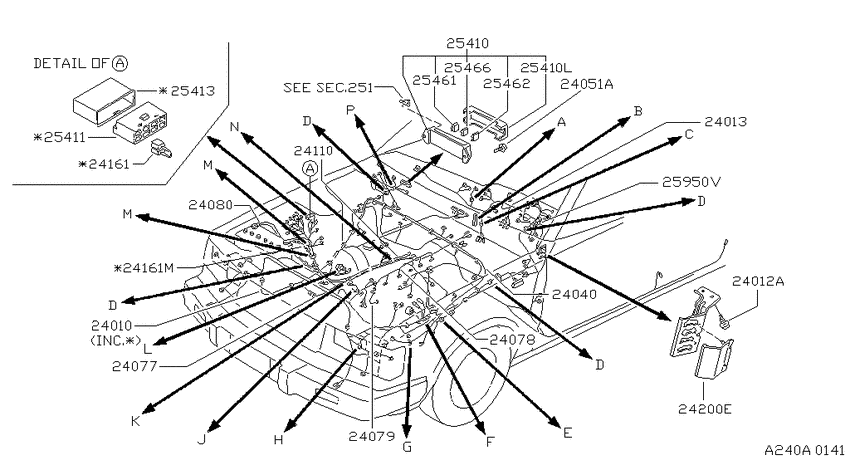

Wiring (1980-07-01 ~ ; HARNESS ENGINE ROOM&INSTRUMENT; ALL) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- L24E
- transmission
- AT
- body
- S
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-W2410
Harness-Main
1980-07-01 ~ 1981-06-01; S.DX; , |
24010-W2410 |
— | ||
|
24010
|
24010
24010-W3210
Harness-Main
1981-07-01 ~ 1982-06-01; S.DX; , |
24010-W3210 |
— | ||
|
24012A
|
24012A
0145100221 SCREW1980-07-01 ~ ; S +W; BRACKET JUNCTION |
0145100221 |
US $2.21 |
||
|
24013
|
24013
24013-W2410
Harness-Instrument
1980-07-01 ~ 1981-06-01; S.DX +W.DX; , |
24013-W2410 |
— | ||
|
24013
|
24013
24013-W3115
Harness-Instrument
1982-07-01 ~ 1983-06-01; S.DX +W.DX; , |
24013-W3115 |
— | ||
|
24013
|
24013
24013-W3210
Harness-Instrument
1981-07-01 ~ 1982-06-01; S.DX +W.DX; , |
24013-W3210 |
— | ||
|
24040
|
24040
24041-W2400
Harness-Air Conditioner
1980-07-01 ~ ; *S +*W; FOR AIR CON |
24041-W2400 |
— | ||
|
24040
|
24040
24042-W3200
Harness-Air Conditioner
1980-07-01 ~ ; *S +*W; FOR AIR CON |
24042-W3200 |
— | ||
|
24051A
|
24051A
01451-00171 SCREW1980-07-01 ~ ; S; , |
01451-00171 |
US $2.08 |
||
|
24077
|
24077
24077-W2405
Harness-Sub, Engine Room
1980-07-01 ~ 1981-06-01; S.DX +W.DX; , |
24077-W2405 |
— | ||
|
24077
|
24077
24077-W3115
Harness-Sub, Engine Room
1982-07-01 ~ ; S.L24E.AT +W.L24E.AT; , |
24077-W3115 |
— | ||
|
24077
|
24077
24077-W3210
Harness-Sub, Engine Room
1981-07-01 ~ 1982-06-01; S.DX.AT +W.DX.AT; , |
24077-W3210 |
— | ||
|
24078
|
24078
24011-W2400
Harness-Egi
1980-07-01 ~ 1981-06-01; S +W; , |
24011-W2400 |
— | ||
|
24078
|
24078
24011-W3101
Harness-Egi
1982-07-01 ~ 1983-06-01; S +W; , |
24011-W3101 |
— | ||
|
24078
|
24078
24011-W3102
Harness-Egi
1983-07-01 ~ ; S +W; , |
24011-W3102 |
— | ||
|
24078
|
24078
24011-W3200
Harness-Egi
1981-07-01 ~ 1982-06-01; S +W; , |
24011-W3200 |
— | ||
|
24078
|
24078
B4111-U7601 Spring-Harness, Egi1980-07-01 ~ ; S +W; 7 POLES |
B4111-U7601 |
US $2.45 |
||
|
24078
|
24078
B4111-U7602 Spring-Harness, Egi1980-07-01 ~ ; S +W; 3 POLES |
B4111-U7602 |
from US $3.31 |
||
|
24079
|
24079
24079-W0709
Harness Assy-Egi Sub
1980-07-01 ~ ; S +W; , |
24079-W0709 |
— | ||
|
24080
|
24080
24080-W2400
Cable Assy-Battery Earth
1980-07-01 ~ ; S.L24E +W.L24E; , |
24080-W2400 |
— | ||
|
24110
|
24110
24110-W2400 Cable Assy-Battery To Starter Motor1980-07-01 ~ ; S.L24E +W.L24E; , |
24110-W2400 |
US $88.27 |
||
|
24161
|
24161
2416128500 Link-Fusible1981-07-01 ~ ; S +W; 0.5:GREEN |
2416128500 |
US $7.92 |
||
|
24161
|
24161
24161-A0100 Link-Fusible1980-07-01 ~ ; S +W; 1.25:GREEN |
24161-A0100 |
US $11.81 |
||
|
24161
|
24161
24161-Y0100 Link-Fusible1980-07-01 ~ ; S +W; 0.3:BROWN |
24161-Y0100 |
US $9.94 |
||
|
24161
|
24161
24022-V1000 Link-Fusible1980-07-01 ~ ; S.L24E +W.L24E; , |
24022-V1000 |
US $14.98 |
||
|
24161M
|
24161M
24022-V1000 Link-Fusible1980-07-01 ~ ; S.L24E +W.L24E; , |
24022-V1000 |
US $14.98 |
||
|
24200E
|
24200E
24220-W1100
Clip-Wiring Harness
1980-07-01 ~ ; S +W; , |
24220-W1100 |
— | ||
|
25410
|
25410
24310-V1300
Block Assy-Fuse
1980-07-01 ~ ; S +W; , |
24310-V1300 |
— | ||
|
25410
|
25410
24311-V0100
Block Assy-Fuse
1980-07-01 ~ 1980-12-01; S +W; , |
24311-V0100 |
— | ||
|
25410
|
25410
24311-W1400 Block Assy-Fuse1981-01-01 ~ ; S +W; , |
24311-W1400 |
US $18.72 |
||
|
25410L
|
25410L
24311-V0100
Block Assy-Fuse
1980-07-01 ~ 1980-12-01; S +W; , |
24311-V0100 |
— | ||
|
25410L
|
25410L
24311-W1400 Block Assy-Fuse1981-01-01 ~ ; S +W; , |
24311-W1400 |
US $18.72 |
||
|
25411
|
25411
24371-W2400
Holder-Fusible Link
1980-07-01 ~ ; S.L24E +W.L24E; , |
24371-W2400 |
— | ||
|
25413
|
25413
24372-W2400
Cover-Fusible Link
1980-07-01 ~ 1981-06-01; S +W; , |
24372-W2400 |
— | ||
|
25413
|
25413
24372-W3200
Cover-Fusible Link
1981-07-01 ~ ; S +W; , |
24372-W3200 |
— | ||
|
25461
|
25461
0894121000 FUSE-10A1980-07-01 ~ ; S.L24E +W.L24E; , |
0894121000 |
US $0.59 |
||
|
25461
|
25461
24319-V0110
Fuse-10A
1980-07-01 ~ ; S.L24E +W.L24E; , |
24319-V0110 |
— | ||
| replacement | |||||
|
25461
|
25461
0894121000 FUSE-10A1980-07-01 ~ ; S.L24E +W.L24E; , |
0894121000 |
US $0.59 |
||
|
25462
|
25462
0894122000 FUSE-20A1980-07-01 ~ ; S +W; , |
0894122000 |
from US $0.59 |
||
|
25462
|
25462
24319-V0120
Fuse-20A
1980-07-01 ~ ; S +W; , |
24319-V0120 |
— | ||
| replacement | |||||
|
25462
|
25462
0894122000 FUSE-20A1980-07-01 ~ ; S +W; , |
0894122000 |
from US $0.59 |
||
|
25466
|
25466
0894121500 FUSE-15A1980-07-01 ~ ; S.L24E +W.L24E; , |
0894121500 |
from US $0.59 |
||
|
25466
|
25466
24319-V0115
Fuse-15A
1980-07-01 ~ ; S.L24E +W.L24E; , |
24319-V0115 |
— | ||
| replacement | |||||
|
25466
|
25466
0894121500 FUSE-15A1980-07-01 ~ ; S.L24E +W.L24E; , |
0894121500 |
from US $0.59 |
||
|
25950V
|
25950V
24280-M3060
Resistor Assy-Tachometer
1980-07-01 ~ ; S +W; , |
24280-M3060 |
— | ||
