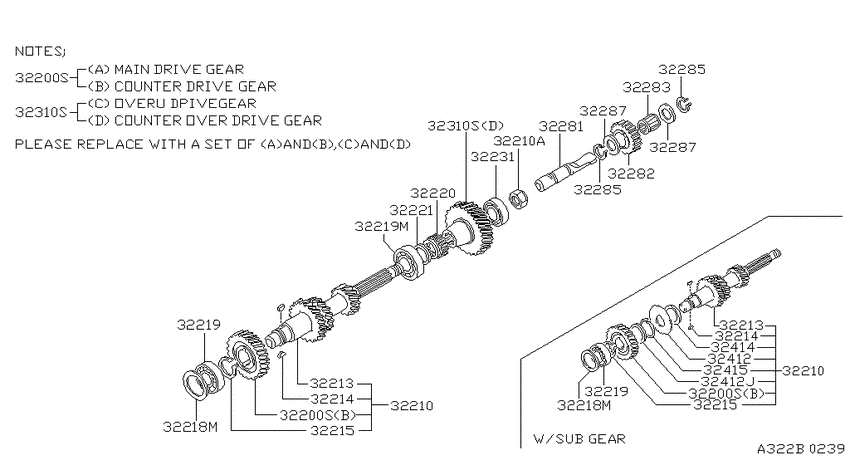

Transmission gear (1980-07-01 ~ ; COUNTER GEAR FS5W71B; 5-SPEED) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- LD28
- transmission
- F5
- body
- S
- trim lvl
- SL
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32200S
|
32200S
32200-E9559 Gear Set-Main & Counter Drive1980-07-01 ~ ; LD28.MT.F5; , |
32200-E9559 |
US $359.66 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9599 Gear Set-Main & Counter Drive1980-07-01 ~ ; LD28.MT.F5; , |
32200-E9599 |
US $366.74 |
||
|
32200S
|
32200S
32200-E9559 Gear Set-Main & Counter Drive1980-07-01 ~ ; LD28.MT.F5; , |
32200-E9559 |
US $359.66 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9599 Gear Set-Main & Counter Drive1980-07-01 ~ ; LD28.MT.F5; , |
32200-E9599 |
US $366.74 |
||
|
32200S
|
32200S
32200-E9559 Gear Set-Main & Counter Drive1980-07-01 ~ ; LD28.MT.F5; , |
32200-E9559 |
US $359.66 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9599 Gear Set-Main & Counter Drive1980-07-01 ~ ; LD28.MT.F5; , |
32200-E9599 |
US $366.74 |
||
|
32210
|
32210
32210-E9813 Gear Assy-Counter1980-07-01 ~ ; LD28.MT.F5; , |
32210-E9813 |
US $288.86 |
||
|
32210
|
32210
32236E9500 Nut1980-07-01 ~ ; MT.F5; , |
32236E9500 |
from US $5.99 |
||
|
32210
|
32210
32210-E9813 Gear Assy-Counter1980-07-01 ~ ; LD28.MT.F5; , |
32210-E9813 |
US $288.86 |
||
|
32210
|
32210
32236E9500 Nut1980-07-01 ~ ; MT.F5; , |
32236E9500 |
from US $5.99 |
||
|
32210A
|
32210A
32236E9500 Nut1980-07-01 ~ ; MT.F5; , |
32236E9500 |
from US $5.99 |
||
|
32213
|
32213
32212-E9800 Gear-Counter1980-07-01 ~ ; MT.F5; , |
32212-E9800 |
US $273.60 |
||
|
32213
|
32213
32212-E9800 Gear-Counter1980-07-01 ~ ; MT.F5; , |
32212-E9800 |
US $273.60 |
||
|
32214
|
32214
32214-E9029 Key-Woodruff1980-07-01 ~ ; LD28.MT.F5; , |
32214-E9029 |
US $2.45 |
||
| replacement | |||||
|
32214
|
32214
32214-E9011 Key-Woodruff1980-07-01 ~ ; LD28.MT.F5; , |
32214-E9011 |
US $2.45 |
||
|
32214
|
32214
32214-E9029 Key-Woodruff1980-07-01 ~ ; LD28.MT.F5; , |
32214-E9029 |
US $2.45 |
||
| replacement | |||||
|
32214
|
32214
32214-E9011 Key-Woodruff1980-07-01 ~ ; LD28.MT.F5; , |
32214-E9011 |
US $2.45 |
||
|
32215
|
32215
32215-E9000 Ring-Snap1980-07-01 ~ ; MT.F5; T=1.4 |
32215-E9000 |
US $3.06 |
||
|
32215
|
32215
32215-E9001 Ring-Snap1980-07-01 ~ ; MT.F5; T=1.5 |
32215-E9001 |
US $3.06 |
||
|
32215
|
32215
32215-E9002 Ring-Snap1980-07-01 ~ ; MT.F5; T=1.6 |
32215-E9002 |
US $3.06 |
||
|
32215
|
32215
32215-E9000 Ring-Snap1980-07-01 ~ ; MT.F5; T=1.4 |
32215-E9000 |
US $3.06 |
||
|
32215
|
32215
32215-E9001 Ring-Snap1980-07-01 ~ ; MT.F5; T=1.5 |
32215-E9001 |
US $3.06 |
||
|
32215
|
32215
32215-E9002 Ring-Snap1980-07-01 ~ ; MT.F5; T=1.6 |
32215-E9002 |
US $3.06 |
||
|
32218M
|
32218M
32218-E9000 Shim-Bearing1980-07-01 ~ 1984-05-01; MT.F5; T=0.1 |
32218-E9000 |
US $3.46 |
||
|
32218M
|
32218M
32218E9001
Shim-Bearing
1980-07-01 ~ 1984-05-01; MT.F5; T=0.2 |
32218E9001 |
— | ||
|
32218M
|
32218M
32218-E9002 Shim-Bearing1980-07-01 ~ 1984-05-01; MT.F5; T=0.3 |
32218-E9002 |
US $3.18 |
||
|
32218M
|
32218M
32218-E9003
Shim-Bearing
1980-07-01 ~ 1984-05-01; MT.F5; T=0.4 |
32218-E9003 |
— | ||
|
32218M
|
32218M
32218E9004
Shim-Bearing
1980-07-01 ~ 1984-05-01; MT.F5; T=0.5 |
32218E9004 |
— | ||
|
32218M
|
32218M
32218-E9005
Shim-Bearing
1980-07-01 ~ 1984-05-01; MT.F5; T=0.6 |
32218-E9005 |
— | ||
|
32218M
|
32218M
32218-V5000 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.1 |
32218-V5000 |
from US $3.76 |
||
|
32218M
|
32218M
32218-V5001 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.2 |
32218-V5001 |
from US $3.87 |
||
|
32218M
|
32218M
32218-V5002 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.3 |
32218-V5002 |
from US $3.63 |
||
|
32218M
|
32218M
32218-V5003 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.4 |
32218-V5003 |
from US $3.68 |
||
|
32218M
|
32218M
32218V5004 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.5 |
32218V5004 |
from US $2.98 |
||
|
32218M
|
32218M
32218V5005 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.6 |
32218V5005 |
from US $3.70 |
||
|
32218M
|
32218M
32218-E9000 Shim-Bearing1980-07-01 ~ 1984-05-01; MT.F5; T=0.1 |
32218-E9000 |
US $3.46 |
||
|
32218M
|
32218M
32218E9001
Shim-Bearing
1980-07-01 ~ 1984-05-01; MT.F5; T=0.2 |
32218E9001 |
— | ||
|
32218M
|
32218M
32218-E9002 Shim-Bearing1980-07-01 ~ 1984-05-01; MT.F5; T=0.3 |
32218-E9002 |
US $3.18 |
||
|
32218M
|
32218M
32218-E9003
Shim-Bearing
1980-07-01 ~ 1984-05-01; MT.F5; T=0.4 |
32218-E9003 |
— | ||
|
32218M
|
32218M
32218E9004
Shim-Bearing
1980-07-01 ~ 1984-05-01; MT.F5; T=0.5 |
32218E9004 |
— | ||
|
32218M
|
32218M
32218-E9005
Shim-Bearing
1980-07-01 ~ 1984-05-01; MT.F5; T=0.6 |
32218-E9005 |
— | ||
|
32218M
|
32218M
32218-V5000 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.1 |
32218-V5000 |
from US $3.76 |
||
|
32218M
|
32218M
32218-V5001 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.2 |
32218-V5001 |
from US $3.87 |
||
|
32218M
|
32218M
32218-V5002 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.3 |
32218-V5002 |
from US $3.63 |
||
|
32218M
|
32218M
32218-V5003 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.4 |
32218-V5003 |
from US $3.68 |
||
|
32218M
|
32218M
32218V5004 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.5 |
32218V5004 |
from US $2.98 |
||
|
32218M
|
32218M
32218V5005 Shim-Bearing1984-06-01 ~ ; MT.F5; T=0.6 |
32218V5005 |
from US $3.70 |
||
|
32219
|
32219
32219-E9000
Bearing-Counter Shaft
1980-07-01 ~ 1984-05-01; MT.F5; , |
32219-E9000 |
— | ||
| replacement | |||||
|
32219
|
32219
32219E9020 Bearing-Counter Shaft1980-07-01 ~ 1984-05-01; MT.F5; , |
32219E9020 |
from US $19.41 |
||
|
32219
|
32219
32219-V5201
Bearing-Counter Shaft
1984-06-01 ~ ; MT.F5; , |
32219-V5201 |
— | ||
| replacement | |||||
|
32219
|
32219
32219V5260 Bearing-Counter Shaft1984-06-01 ~ ; MT.F5; , |
32219V5260 |
from US $19.41 |
||
|
32219
|
32219
3220318000 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
3220318000 |
US $12.24 |
||
|
32219
|
32219
32203-E9800 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
32203-E9800 |
US $13.25 |
||
|
32219
|
32219
32203-V5201 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
32203-V5201 |
US $13.70 |
||
|
32219
|
32219
32219-E9000
Bearing-Counter Shaft
1980-07-01 ~ 1984-05-01; MT.F5; , |
32219-E9000 |
— | ||
| replacement | |||||
|
32219
|
32219
32219E9020 Bearing-Counter Shaft1980-07-01 ~ 1984-05-01; MT.F5; , |
32219E9020 |
from US $19.41 |
||
|
32219
|
32219
32219-V5201
Bearing-Counter Shaft
1984-06-01 ~ ; MT.F5; , |
32219-V5201 |
— | ||
| replacement | |||||
|
32219
|
32219
32219V5260 Bearing-Counter Shaft1984-06-01 ~ ; MT.F5; , |
32219V5260 |
from US $19.41 |
||
|
32219
|
32219
3220318000 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
3220318000 |
US $12.24 |
||
|
32219
|
32219
32203-E9800 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
32203-E9800 |
US $13.25 |
||
|
32219
|
32219
32203-V5201 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
32203-V5201 |
US $13.70 |
||
|
32219M
|
32219M
3220318000 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
3220318000 |
US $12.24 |
||
|
32219M
|
32219M
32203-E9800 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
32203-E9800 |
US $13.25 |
||
|
32219M
|
32219M
32203-V5201 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
32203-V5201 |
US $13.70 |
||
|
32220
|
32220
32220-E9200
Gear-Reverse, Counter
1980-07-01 ~ 1983-04-01; MT.F5; , |
32220-E9200 |
— | ||
|
32220
|
32220
32220-E9811 Gear-Reverse, Counter1983-05-01 ~ 1983-08-01; MT.F5; , |
32220-E9811 |
US $41.76 |
||
| replacement | |||||
|
32220
|
32220
32220-V5070 Gear-Reverse, Counter1983-05-01 ~ 1983-08-01; MT.F5; , |
32220-V5070 |
US $45.65 |
||
|
32220
|
32220
32220-V5000 Gear-Reverse, Counter1983-09-01 ~ ; MT.F5; , |
32220-V5000 |
US $45.65 |
||
| replacement | |||||
|
32220
|
32220
32220-V5070 Gear-Reverse, Counter1983-09-01 ~ ; MT.F5; , |
32220-V5070 |
US $45.65 |
||
|
32221
|
32221
32221-E9800 Spacer-Counter Reverse Gear1980-07-01 ~ ; MT.F5; , |
32221-E9800 |
US $5.04 |
||
|
32231
|
32231
32319-N4800
Bearing-Counter Shaft
1980-07-01 ~ ; MT.F5; , |
32319-N4800 |
— | ||
| replacement | |||||
|
32231
|
32231
32319N4870 Bearing-Counter Shaft1980-07-01 ~ ; MT.F5; , |
32319N4870 |
from US $10.10 |
||
|
32281
|
32281
32281-E9800
Shaft-Reverse Idler
1980-07-01 ~ 1983-04-01; MT.F5; , |
32281-E9800 |
— | ||
|
32281
|
32281
32281-E9810 Shaft-Reverse Idler1983-05-01 ~ ; MT.F5; , |
32281-E9810 |
US $29.81 |
||
|
32282
|
32282
32282E9000 Gear-Reverse Idler1980-07-01 ~ 1983-04-01; MT.F5; , |
32282E9000 |
US $59.19 |
||
|
32282
|
32282
32282-E9810
Gear-Reverse Idler
1983-05-01 ~ 1983-08-01; MT.F5; , |
32282-E9810 |
— | ||
| replacement | |||||
|
32282
|
32282
32282-80G24 Gear-Reverse Idler1983-05-01 ~ 1983-08-01; MT.F5; , |
32282-80G24 |
from US $54.89 |
||
|
32282
|
32282
32282-V5000
Gear-Reverse Idler
1983-09-01 ~ ; MT.F5; , |
32282-V5000 |
— | ||
| replacement | |||||
|
32282
|
32282
32282-80G24 Gear-Reverse Idler1983-09-01 ~ ; MT.F5; , |
32282-80G24 |
from US $54.89 |
||
|
32283
|
32283
32272-36900
Bearing-Drive Shaft
1980-07-01 ~ 1983-04-01; MT.F5; , |
32272-36900 |
— | ||
| replacement | |||||
|
32283
|
32283
32272-36910 Bearing-Pilot, Main1980-07-01 ~ 1983-04-01; MT.F5; , |
32272-36910 |
from US $10.63 |
||
|
32283
|
32283
32272-E9810 Bearing-Reverse Idler Gear1983-05-01 ~ ; MT.F5; , |
32272-E9810 |
US $13.10 |
||
|
32285
|
32285
32285-20100 Ring-Snap1980-07-01 ~ ; MT.F5; , |
32285-20100 |
from US $2.92 |
||
|
32285
|
32285
32285-20100 Ring-Snap1980-07-01 ~ ; MT.F5; , |
32285-20100 |
from US $2.92 |
||
|
32287
|
32287
32284-E9000 Washer-Thrust, Reverse Idler1980-07-01 ~ ; MT.F5; , |
32284-E9000 |
US $4.03 |
||
|
32287
|
32287
32284-E9000 Washer-Thrust, Reverse Idler1980-07-01 ~ ; MT.F5; , |
32284-E9000 |
US $4.03 |
||
|
32310S
|
32310S
32310-E9851 Gear Set-Main & Counter Overdrive1980-07-01 ~ ; LD28.MT.F5; , |
32310-E9851 |
US $359.66 |
||
|
32310S
|
32310S
32310-E9851 Gear Set-Main & Counter Overdrive1980-07-01 ~ ; LD28.MT.F5; , |
32310-E9851 |
US $359.66 |
||
|
32412
|
32412
32412-E9529 Gear-Sub, Counter Drive Gear1980-07-01 ~ ; LD28.MT.F5; , |
32412-E9529 |
US $47.38 |
||
|
32412
|
32412
32413-E9029 Damper-Torsion1980-07-01 ~ ; LD28.MT.F5; , |
32413-E9029 |
US $18.29 |
||
|
32412J
|
32412J
32413-E9029 Damper-Torsion1980-07-01 ~ ; LD28.MT.F5; , |
32413-E9029 |
US $18.29 |
||
|
32414
|
32414
32414-E9029 Spacer-Sub Gear1980-07-01 ~ ; LD28.MT.F5; , |
32414-E9029 |
US $2.45 |
||
|
32415
|
32415
32415-E9029 Spring-Ring1980-07-01 ~ ; LD28.MT.F5; , |
32415-E9029 |
US $7.92 |
||
