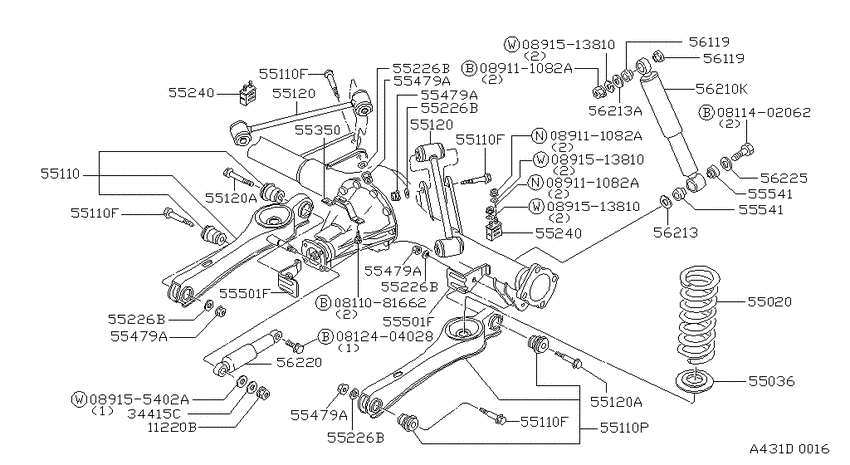

Rear suspension (1982-07-01 ~ ; 4-LINK AXLE) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- LD28
- transmission
- AT
- body
- W
- trim lvl
- SL
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811081662
|
0811081662
08110-81662
Bolt-hexagon
|
08110-81662 |
— | ||
|
0811402062
|
0811402062
08114-02062
Bolt-hexagon
|
08114-02062 |
— | ||
|
0812404028
|
0812404028
08124-04028
Bolt-hexagon
|
08124-04028 |
— | ||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
089155402A
|
089155402A
08915-5402A
WASHERPLAIN
|
08915-5402A |
— | ||
| replacement | |||||
|
089155402A
|
089155402A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
55020
|
55020
55020-W3000
Spring-rear suspension,rh
1980-07-01 ~ ; W.L24E +W.LD28; , |
55020-W3000 |
— | ||
| replacement | |||||
|
55020
|
55020
55020-W3010
Spring-rear suspension,rh
1980-07-01 ~ ; W.L24E +W.LD28; , |
55020-W3010 |
— | ||
|
55020
|
55020
55020-W3301
Spring-rear suspension,rh
1982-07-01 ~ 1983-08-01; W.L24E +W.LD28; , |
55020-W3301 |
— | ||
|
55020
|
55020
55020-W3303
Spring-rear suspension,rh
1983-09-01 ~ ; W.L24E +W.LD28; , |
55020-W3303 |
— | ||
|
55036
|
55036
55036-41S01 Seat-Rubber, Rear Spring1982-07-01 ~ ; W.L24E +W.LD28; , |
55036-41S01 |
US $17.14 |
||
|
55110
|
55110
55111-W4201 Link Compl-Lower, Rear Suspension Rh1982-07-01 ~ ; W.L24E.AT +W.LD28; , |
55111-W4201 |
US $175.68 |
||
|
55110
|
55110
55111-W4210
Link compl-lower,rear suspension rh
1980-07-01 ~ ; W.L24E.AT +W.LD28; , |
55111-W4210 |
— | ||
|
55110
|
55110
55048-Q0101 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR FR & UPR |
55048-Q0101 |
US $5.04 |
||
|
55110
|
55110
55111-W4201 Link Compl-Lower, Rear Suspension Rh1982-07-01 ~ ; W.L24E +W.LD28; , |
55111-W4201 |
US $175.68 |
||
|
55110
|
55110
55111-W4210
Link compl-lower,rear suspension rh
1980-07-01 ~ ; W.L24E +W.LD28; , |
55111-W4210 |
— | ||
|
55110F
|
55110F
55048-Q0101 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR FR & UPR |
55048-Q0101 |
US $5.04 |
||
|
55110F
|
55110F
55048-Q0101 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR FR & UPR |
55048-Q0101 |
US $5.04 |
||
|
55110F
|
55110F
55048-Q0101 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR FR & UPR |
55048-Q0101 |
US $5.04 |
||
|
55110F
|
55110F
55048-Q0101 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR FR & UPR |
55048-Q0101 |
US $5.04 |
||
|
55110P
|
55110P
55111-W4201 Link Compl-Lower, Rear Suspension Rh1982-07-01 ~ ; W.L24E +W.LD28; , |
55111-W4201 |
US $175.68 |
||
|
55110P
|
55110P
55111-W4210
Link compl-lower,rear suspension rh
1980-07-01 ~ ; W.L24E +W.LD28; , |
55111-W4210 |
— | ||
|
55120
|
55120
55120-W3800 Link Compl-Upper, Rear Suspension1982-07-01 ~ ; W.L24E +W.LD28; , |
55120-W3800 |
US $91.87 |
||
|
55120
|
55120
55048-41S00 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR RR |
55048-41S00 |
US $8.93 |
||
|
55120
|
55120
55120-W3800 Link Compl-Upper, Rear Suspension1982-07-01 ~ ; W.L24E +W.LD28; , |
55120-W3800 |
US $91.87 |
||
|
55120
|
55120
55048-41S00 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR RR |
55048-41S00 |
US $8.93 |
||
|
55120A
|
55120A
55048-41S00 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR RR |
55048-41S00 |
US $8.93 |
||
|
55120A
|
55120A
55048-41S00 Pin-Arm1982-07-01 ~ ; W.L24E +W.LD28; LWR RR |
55048-41S00 |
US $8.93 |
||
|
55226B
|
55226B
01311-00251 WASHER-ARM PIN1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
01311-00251 |
US $2.45 |
||
|
55226B
|
55226B
01311-00251 WASHER-ARM PIN1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
01311-00251 |
US $2.45 |
||
|
55226B
|
55226B
01311-00251 WASHER-ARM PIN1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
01311-00251 |
US $2.45 |
||
|
55226B
|
55226B
01311-00251 WASHER-ARM PIN1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
01311-00251 |
US $2.45 |
||
|
55226B
|
55226B
01311-00251 WASHER-ARM PIN1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
01311-00251 |
US $2.45 |
||
|
55240
|
55240
55240-U1400 Bumper Assy-Bound Rear Suspension1980-07-01 ~ 1981-06-01; W.L24E +W.LD28; , |
55240-U1400 |
US $35.71 |
||
|
55240
|
55240
55240-W2705 Bumper Assy-Bound Rear Suspension1981-07-01 ~ ; W.L24E +W.LD28; , |
55240-W2705 |
US $24.91 |
||
|
55240
|
55240
55240-U1400 Bumper Assy-Bound Rear Suspension1980-07-01 ~ 1981-06-01; W.L24E +W.LD28; , |
55240-U1400 |
US $35.71 |
||
|
55240
|
55240
55240-W2705 Bumper Assy-Bound Rear Suspension1981-07-01 ~ ; W.L24E +W.LD28; , |
55240-W2705 |
US $24.91 |
||
|
55350
|
55350
55350-W2701 Arrester Assy-Torque1980-07-01 ~ ; W.L24E +W.LD28; , |
55350-W2701 |
US $26.50 |
||
|
55350
|
55350
55350-W3300
Arrester Assy-Torque
1982-07-01 ~ ; W.L24E +W.LD28; , |
55350-W3300 |
— | ||
|
55479A
|
55479A
0122500032 NUT-MOUNTING BOLT,LOWER1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
0122500032 |
from US $3.06 |
||
|
55479A
|
55479A
0122500032 NUT-MOUNTING BOLT,LOWER1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
0122500032 |
from US $3.06 |
||
|
55479A
|
55479A
0122500032 NUT-MOUNTING BOLT,LOWER1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
0122500032 |
from US $3.06 |
||
|
55479A
|
55479A
0122500032 NUT-MOUNTING BOLT,LOWER1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
0122500032 |
from US $3.06 |
||
|
55479A
|
55479A
0122500032 NUT-MOUNTING BOLT,LOWER1982-07-01 ~ ; W.L24E +W.LD28; FIX LINK |
0122500032 |
from US $3.06 |
||
|
55501F
|
55501F
43115-41S00 Protector-Brake Tube, No 11982-07-01 ~ ; W.L24E +W.LD28; , |
43115-41S00 |
US $16.56 |
||
|
55501F
|
55501F
43115-41S00 Protector-Brake Tube, No 11982-07-01 ~ ; W.L24E +W.LD28; , |
43115-41S00 |
US $16.56 |
||
|
55541
|
55541
56119-32201
Bush-Rubber, Shock Absorber
1982-07-01 ~ ; W.L24E +W.LD28; LWR MTG |
56119-32201 |
— | ||
|
55541
|
55541
56119-U8600 Bush-Rubber, Shock Absorber1982-07-01 ~ ; W.L24E +W.LD28; LWR MTG |
56119-U8600 |
US $2.45 |
||
|
55541
|
55541
56119-32201
Bush-Rubber, Shock Absorber
1982-07-01 ~ ; W.L24E +W.LD28; LWR MTG |
56119-32201 |
— | ||
|
55541
|
55541
56119-U8600 Bush-Rubber, Shock Absorber1982-07-01 ~ ; W.L24E +W.LD28; LWR MTG |
56119-U8600 |
US $2.45 |
||
|
56119
|
56119
56119-32201
Bush-Rubber, Shock Absorber
1982-02-01 ~ ; W.L24E +W.LD28; , |
56119-32201 |
— | ||
|
56119
|
56119
56119-W2700 Bush-Rubber, Shock Absorber1980-07-01 ~ 1982-01-01; W.L24E +W.LD28; , |
56119-W2700 |
US $1.58 |
||
|
56119
|
56119
56119-32201
Bush-Rubber, Shock Absorber
1982-02-01 ~ ; W.L24E +W.LD28; , |
56119-32201 |
— | ||
|
56119
|
56119
56119-W2700 Bush-Rubber, Shock Absorber1980-07-01 ~ 1982-01-01; W.L24E +W.LD28; , |
56119-W2700 |
US $1.58 |
||
|
56210K
|
56210K
56210-W2825 Absorber Kit-Shock, Rear1980-07-01 ~ ; W.L24E +W.LD28; , |
56210-W2825 |
US $88.85 |
||
|
56210K
|
56210K
56210-W2827
Absorber kit-shock,rear
1980-07-01 ~ ; W.L24E +W.LD28; , |
56210-W2827 |
— | ||
|
56210K
|
56210K
56210-W3825 Absorber Kit-Shock, Rear1980-07-01 ~ 1982-07-01; W.L24E +W.LD28; %STAMPED.56210-W3800 SELECT USE TOKICO |
56210-W3825 |
US $154.08 |
||
|
56210K
|
56210K
56210-W3826 Absorber Kit-Shock, Rear1980-07-01 ~ 1982-07-01; W.L24E +W.LD28; %STAMPED.56210-W3800 SELECT USE KAYABA |
56210-W3826 |
US $154.08 |
||
|
56213
|
56213
5612976000 Washer1982-02-01 ~ ; W.L24E +W.LD28; , |
5612976000 |
US $5.33 |
||
|
56213
|
56213
56129-J6700
Washer-special,outer
1982-02-01 ~ ; W.L24E +W.LD28; , |
56129-J6700 |
— | ||
|
56213
|
56213
56225-27400 Washer-Special, Inner1982-02-01 ~ ; W.L24E +W.LD28; , |
56225-27400 |
US $2.45 |
||
| replacement | |||||
|
56213
|
56213
562252740A Washer-Special1982-02-01 ~ ; W.L24E +W.LD28; , |
562252740A |
from US $1.20 |
||
|
56213
|
56213
56225-W2700 Washer1980-07-01 ~ 1982-01-01; W.L24E +W.LD28; , |
56225-W2700 |
US $1.58 |
||
|
56213
|
56213
56225-W2700 Washer1982-07-01 ~ ; W.L24E +W.LD28; UPR MTG |
56225-W2700 |
US $1.58 |
||
|
56213A
|
56213A
56225-W2700 Washer1982-07-01 ~ ; W.L24E +W.LD28; UPR MTG |
56225-W2700 |
US $1.58 |
||
|
56220
|
56220
54132-W1000 Spindle-Lower Arm1980-07-01 ~ ; L24E +LD28; , |
54132-W1000 |
US $5.62 |
||
|
56225
|
56225
56225-A0800
Washer-special
1982-07-01 ~ ; W.L24E +W.LD28; LWR MTG |
56225-A0800 |
— | ||
