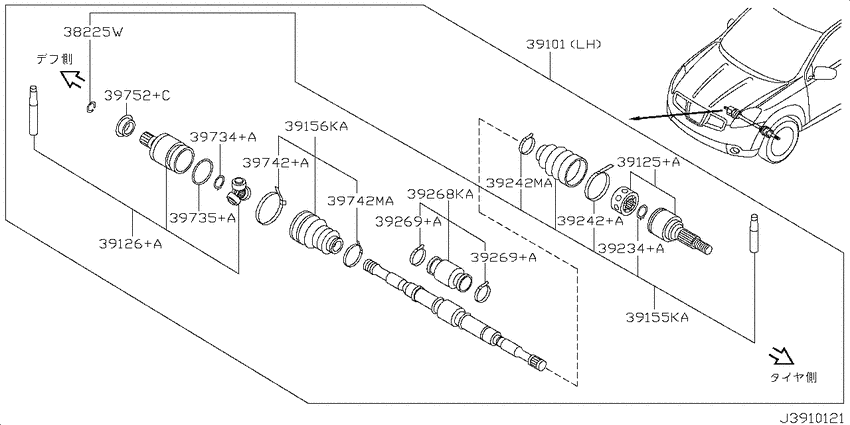

Front drive shaft (ff) (2007-12-01 ~ ; 左側; 2WD.MR20DE) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S/4
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38225W
|
38225W
3822530R00 Circlip-Side Gear0712--01 ~ ; 2WD.MR20DE |
3822530R00 |
US $1.73 |
||
|
39101
|
39101
39101JG32C Shaft Assy-Front Drive, Lh0712--01 ~ ; 2WD.MR20DE |
39101JG32C |
US $815.62 |
||
|
39125+A
|
39125+A
39211-JD22B
Joint Assy-Outer
0712--01 ~ ; 2WD.MR20DE |
39211-JD22B |
— | ||
| replacement | |||||
|
39125+A
|
39125+A
39211-JA00A Joint Assy-Outer0712--01 ~ ; 2WD.MR20DE |
39211-JA00A |
US $363.94 |
||
|
39126+A
|
39126+A
39711-JG32C Joint Assy-Inner0712--01 ~ ; 2WD.MR20DE |
39711-JG32C |
US $273.60 |
||
|
39155KA
|
39155KA
C9B41-JA00A
Repair Kit-Dust Boot, Outer
0712--01 ~ ; 2WD.MR20DE |
C9B41-JA00A |
— | ||
| replacement | |||||
|
39155KA
|
39155KA
C9B4A-JA00K REPAIR KIT-DUST0712--01 ~ ; 2WD.MR20DE |
C9B4A-JA00K |
from US $48.30 |
||
|
39156KA
|
39156KA
C9GDA-JA00A Repair Kit-Dust Boot, Inner0712--01 ~ ; 2WD.MR20DE |
C9GDA-JA00A |
US $62.38 |
||
| replacement | |||||
|
39156KA
|
39156KA
C97DA-JK00K
REPAIR KIT-DUST
0712--01 ~ ; 2WD.MR20DE |
C97DA-JK00K |
— | ||
|
39234+A
|
39234+A
39234-2B100 Circlip-Drive Shaft0712--01 ~ ; 2WD.MR20DE |
39234-2B100 |
US $2.36 |
||
|
39242+A
|
39242+A
39242-JG00A Band-Boot Drive Shaft Inner0712--01 ~ ; 2WD.MR20DE |
39242-JG00A |
US $4.03 |
||
|
39242MA
|
39242MA
39242-JG00B Band-Boot, Drive Shaft Outer0712--01 ~ ; 2WD.MR20DE |
39242-JG00B |
US $4.03 |
||
|
39268KA
|
39268KA
392685U025 Damper Kit-Dynamic, Front Drive Shaft0712--01 ~ ; 2WD.MR20DE |
392685U025 |
US $39.89 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper0712--01 ~ ; 2WD.MR20DE |
3926911A10 |
US $9.50 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper0712--01 ~ ; 2WD.MR20DE |
3926911A10 |
US $9.50 |
||
|
39734+A
|
39734+A
39708-JA00A Ring-Snap0712--01 ~ ; 2WD.MR20DE |
39708-JA00A |
US $1.58 |
||
|
39735+A
|
39735+A
39735-JA00A Ring-Stopper0712--01 ~ ; 2WD.MR20DE |
39735-JA00A |
US $3.17 |
||
|
39742+A
|
39742+A
39742-EA000 Band-Boot, Drive Shaft Outer0712--01 ~ ; 2WD.MR20DE |
39742-EA000 |
US $4.03 |
||
|
39742MA
|
39742MA
39242-17R05 Band-Dust Cover, Shaft0712--01 ~ ; 2WD.MR20DE |
39242-17R05 |
US $7.63 |
||
|
39752+C
|
39752+C
39752-JA01B
Shield-Dust
0712--01 ~ ; 2WD.MR20DE |
39752-JA01B |
— | ||
| replacement | |||||
|
39752+C
|
39752+C
39752-1FA0B Shield-Dust0712--01 ~ ; 2WD.MR20DE |
39752-1FA0B |
US $4.03 |
||
