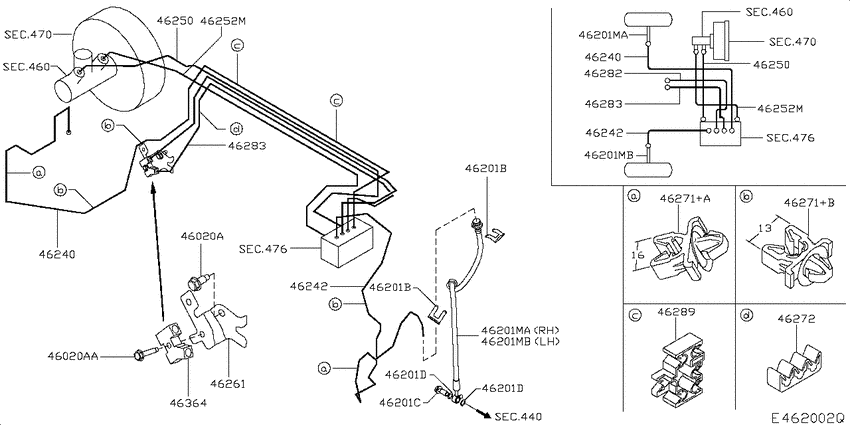

Brake piping & control (2007-01-01 ~ ; ENGINE ROOM PIPE; 5H/B.2WD) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
440
|
Front brake
440
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
46020A
|
46020A
01125-N8021 Bolt0701--01 ~ ; 5H/B.2WD |
01125-N8021 |
from US $0.87 |
||
|
46020A
|
46020A
01125N6041 Bolt0701--01 ~ ; 5H/B.2WD |
01125N6041 |
US $2.45 |
||
|
46020AA
|
46020AA
01125N6041 Bolt0701--01 ~ ; 5H/B.2WD |
01125N6041 |
US $2.45 |
||
|
46201B
|
46201B
462062J00A Spring-Lock, Brake Hose0701--01 ~ ; 5H/B.2WD |
462062J00A |
from US $0.80 |
||
|
46201B
|
46201B
462062J00A Spring-Lock, Brake Hose0701--01 ~ ; 5H/B.2WD |
462062J00A |
from US $0.80 |
||
|
46201C
|
46201C
463560E00A Bolt-Union, Front Brake Hose0701--01 ~ ; 5H/B.2WD |
463560E00A |
from US $1.52 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose0701--01 ~ ; 5H/B.2WD |
46237A4600 |
from US $0.35 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose0701--01 ~ ; 5H/B.2WD |
46237A4600 |
from US $0.35 |
||
|
46201MA
|
46201MA
46210JD000 Hose Assy-Brake, Front0701--01 ~ ; 5H/B.2WD |
46210JD000 |
US $31.54 |
||
|
46201MA
|
46201MA
46210JD000 Hose Assy-Brake, Front0701--01 ~ ; 5H/B.2WD |
46210JD000 |
US $31.54 |
||
|
46201MB
|
46201MB
46210JD005 Hose Assy-Brake, Front0701--01 ~ ; 5H/B.2WD |
46210JD005 |
from US $24.94 |
||
|
46201MB
|
46201MB
46210JD005 Hose Assy-Brake, Front0701--01 ~ ; 5H/B.2WD |
46210JD005 |
from US $24.94 |
||
|
46240
|
46240
46240-JD000 Tube Assy-Brake, Front Rh0701--01 ~ ; 5H/B.2WD |
46240-JD000 |
US $20.80 |
||
|
46240
|
46240
46240-JD000 Tube Assy-Brake, Front Rh0701--01 ~ ; 5H/B.2WD |
46240-JD000 |
US $20.80 |
||
|
46242
|
46242
46242JD000 Tube Assy-Brake, Front Lh0701--01 ~ ; 5H/B.2WD |
46242JD000 |
US $26.19 |
||
|
46242
|
46242
46242JD000 Tube Assy-Brake, Front Lh0701--01 ~ ; 5H/B.2WD |
46242JD000 |
US $26.19 |
||
|
46250
|
46250
46250-JD000 Tube Assy-Brake, Front Master Cylinder0701--01 ~ ; 5H/B.2WD |
46250-JD000 |
US $21.35 |
||
|
46250
|
46250
46250-JD010 Tube Assy-Brake, Front Master Cylinder0701--01 ~ ; *5H/B.2WD |
46250-JD010 |
US $17.60 |
||
|
46250
|
46250
46250-JD000 Tube Assy-Brake, Front Master Cylinder0701--01 ~ ; 5H/B.2WD |
46250-JD000 |
US $21.35 |
||
|
46250
|
46250
46250-JD010 Tube Assy-Brake, Front Master Cylinder0701--01 ~ ; *5H/B.2WD |
46250-JD010 |
US $17.60 |
||
|
46252M
|
46252M
46252-JD000 Tube Assy-Brake, Rear Master Cylinder0701--01 ~ ; 5H/B.2WD |
46252-JD000 |
US $17.32 |
||
|
46252M
|
46252M
46252-JD010 Tube Assy-Brake, Rear Master Cylinder0701--01 ~ ; *5H/B.2WD |
46252-JD010 |
US $11.95 |
||
|
46252M
|
46252M
46252-JD000 Tube Assy-Brake, Rear Master Cylinder0701--01 ~ ; 5H/B.2WD |
46252-JD000 |
US $17.32 |
||
|
46252M
|
46252M
46252-JD010 Tube Assy-Brake, Rear Master Cylinder0701--01 ~ ; *5H/B.2WD |
46252-JD010 |
US $11.95 |
||
|
46261
|
46261
46261-JD100 Bracket-Brake Tube0701--01 ~ ; 5H/B.2WD |
46261-JD100 |
US $13.18 |
||
|
46271+A
|
46271+A
46271JG00A Insulator0701--01 ~ ; 5H/B.2WD |
46271JG00A |
US $1.67 |
||
|
46271+B
|
46271+B
46271-JG01A Clip-Tube, Brake0701--01 ~ ; 5H/B.2WD |
46271-JG01A |
US $1.67 |
||
|
46272
|
46272
46272-JG00B Insulator0701--01 ~ ; 5H/B.2WD |
46272-JG00B |
US $4.71 |
||
|
46272
|
46272
462725M301 Insulator0701--01 ~ ; MR20DE |
462725M301 |
US $6.19 |
||
|
46272
|
46272
46272-5M302 Insulator0701--01 ~ ; MR20DE |
46272-5M302 |
US $9.84 |
||
|
46282
|
46282
46282-JD000 Tube Assy-Brake, Rear0701--01 ~ ; 5H/B.2WD |
46282-JD000 |
US $12.96 |
||
|
46283
|
46283
46283-JD000 Tube Assy-Brake, Rear0701--01 ~ ; 5H/B.2WD |
46283-JD000 |
US $7.63 |
||
|
46283
|
46283
46283-JD000 Tube Assy-Brake, Rear0701--01 ~ ; 5H/B.2WD |
46283-JD000 |
US $7.63 |
||
|
46289
|
46289
46289JG00B Clamp0701--01 ~ ; 5H/B.2WD |
46289JG00B |
US $2.64 |
||
|
46364
|
46364
46364-70J00 Connector-Brake Tube0701--01 ~ ; 5H/B.2WD |
46364-70J00 |
US $18.29 |
||
|
470
|
Brake servo & servo control
470
|
||||
|
470
|
Brake servo & servo control
470
|
||||
|
476
|
Anti skid control
476
|
||||
|
476
|
Anti skid control
476
|
||||
