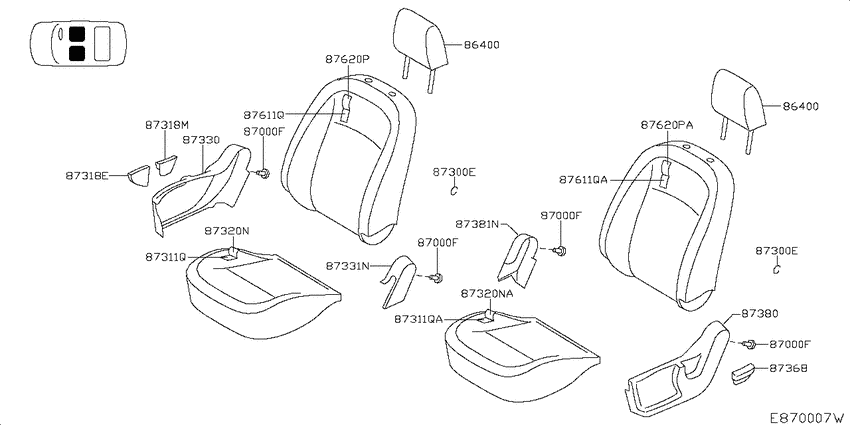

Front seat (2007-01-01 ~ ; TRIM; 5H/B.20S) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86400
|
86400
86400JD000 Head Rest Assy-Front Seat0701--01 ~ ; 5H/B.20S |
86400JD000 |
US $162.72 |
||
|
86400
|
86400
86430-JD000 Headrest Assy-Rear Seat0701--01 ~ ; 5H/B.20S |
86430-JD000 |
US $162.72 |
||
|
86400
|
86400
86400JD000 Head Rest Assy-Front Seat0701--01 ~ ; 5H/B.20S |
86400JD000 |
US $162.72 |
||
|
86400
|
86400
86430-JD000 Headrest Assy-Rear Seat0701--01 ~ ; 5H/B.20S |
86430-JD000 |
US $162.72 |
||
|
87000F
|
87000F
87332-JD00A Screw0701--01 ~ ; 5H/B.20S |
87332-JD00A |
US $1.01 |
||
|
87000F
|
87000F
87332-JD00A Screw0701--01 ~ ; 5H/B.20S |
87332-JD00A |
US $1.01 |
||
|
87000F
|
87000F
87332-JD00A Screw0701--01 ~ ; 5H/B.20S |
87332-JD00A |
US $1.01 |
||
|
87000F
|
87000F
87332-JD00A Screw0701--01 ~ ; 5H/B.20S |
87332-JD00A |
US $1.01 |
||
|
87300E
|
87300E
8690132200 Clip0701--01 ~ ; 5H/B.20S |
8690132200 |
from US $0.22 |
||
|
87300E
|
87300E
8690132200 Clip0701--01 ~ ; 5H/B.20S |
8690132200 |
from US $0.22 |
||
|
87311Q
|
87311Q
87311-JD00A Pad-Front Seat Cushion0701--01 ~ 0702--01; 5H/B.20S |
87311-JD00A |
US $224.64 |
||
|
87311Q
|
87311Q
87311JD00B Pad-Front Seat Cushion0702--01 ~ 0708--01; 5H/B.20S; +WIRE FRAME TYPE(SEE P/C 87400 ILLUSTRATION) |
87311JD00B |
US $224.64 |
||
|
87311Q
|
87311Q
87311JD00C Pad-Front Seat Cushion0708--01 ~ ; 5H/B.20S; )DEAD PAN TYPE(SEE P/C 87400 ILLUSTRATION) |
87311JD00C |
US $204.48 |
||
|
87311Q
|
87311Q
87311-JD00A Pad-Front Seat Cushion0701--01 ~ 0702--01; 5H/B.20S |
87311-JD00A |
US $224.64 |
||
|
87311Q
|
87311Q
87311JD00B Pad-Front Seat Cushion0702--01 ~ 0708--01; 5H/B.20S; +WIRE FRAME TYPE(SEE P/C 87400 ILLUSTRATION) |
87311JD00B |
US $224.64 |
||
|
87311Q
|
87311Q
87311JD00C Pad-Front Seat Cushion0708--01 ~ ; 5H/B.20S; )DEAD PAN TYPE(SEE P/C 87400 ILLUSTRATION) |
87311JD00C |
US $204.48 |
||
|
87311QA
|
87311QA
87311-JD00A Pad-Front Seat Cushion0701--01 ~ 0702--01; 5H/B.20S |
87311-JD00A |
US $224.64 |
||
|
87311QA
|
87311QA
87311JD00B Pad-Front Seat Cushion0702--01 ~ 0708--01; 5H/B.20S; +WIRE FRAME TYPE(SEE P/C 87400 ILLUSTRATION) |
87311JD00B |
US $224.64 |
||
|
87311QA
|
87311QA
87311JD00C Pad-Front Seat Cushion0708--01 ~ ; 5H/B.20S; )DEAD PAN TYPE(SEE P/C 87400 ILLUSTRATION) |
87311JD00C |
US $204.48 |
||
|
87318E
|
87318E
87346JD00A
Knob-Lifter Lever
0701--01 ~ ; 5H/B.20S |
87346JD00A |
— | ||
|
87318M
|
87318M
87318-JD00A Lever Assy-Front Seat Cushion, Rh0701--01 ~ ; 5H/B.20S |
87318-JD00A |
US $18.86 |
||
|
87320N
|
87320N
87320JD01A Trim Assy-Front Seat Cushion0701--01 ~ 0708--01; 5H/B.20S; +WIRE FRAME TYPE(SEE P/C 87400 ILLUSTRATION) |
87320JD01A |
US $433.30 |
||
|
87320N
|
87320N
87320-JD01B Trim Assy-Front Seat Cushion0708--01 ~ 0710--01; 5H/B.20S; )DEAD PAN TYPE(SEE P/C 87400 ILLUSTRATION) |
87320-JD01B |
US $433.30 |
||
|
87320N
|
87320N
87320JD01C Trim Assy-Front Seat Cushion0710--01 ~ ; 5H/B.20S |
87320JD01C |
US $393.65 |
||
|
87320N
|
87320N
87320-JD00A Trim Assy-Front Seat Cushion0701--01 ~ 0708--01; *5H/B.20S; (WIRE FRAME TYPE(SEE P/C 87400 ILLUSTRATI |
87320-JD00A |
US $433.30 |
||
|
87320N
|
87320N
87320-JD00B Trim Assy-Front Seat Cushion0708--01 ~ 0710--01; 5H/B.20S; )DEAD PAN TYPE(SEE P/C 87400 ILLUSTRATION) |
87320-JD00B |
US $433.30 |
||
|
87320N
|
87320N
87370-JD01C Trim Assy-Front Seat Cushion0710--01 ~ ; 5H/B.20S |
87370-JD01C |
US $393.65 |
||
|
87320NA
|
87320NA
87320-JD00A Trim Assy-Front Seat Cushion0701--01 ~ 0708--01; *5H/B.20S; (WIRE FRAME TYPE(SEE P/C 87400 ILLUSTRATI |
87320-JD00A |
US $433.30 |
||
|
87320NA
|
87320NA
87320-JD00B Trim Assy-Front Seat Cushion0708--01 ~ 0710--01; 5H/B.20S; )DEAD PAN TYPE(SEE P/C 87400 ILLUSTRATION) |
87320-JD00B |
US $433.30 |
||
|
87320NA
|
87320NA
87370-JD01C Trim Assy-Front Seat Cushion0710--01 ~ ; 5H/B.20S |
87370-JD01C |
US $393.65 |
||
|
87330
|
87330
87330JD00A Finisher Assy-Cushion, Front Seat Rh0701--01 ~ 0708--01; 5H/B.20S |
87330JD00A |
US $115.45 |
||
|
87330
|
87330
87330JD00B Finisher Assy-Cushion, Front Seat Rh0708--01 ~ ; 5H/B.20S |
87330JD00B |
US $68.54 |
||
|
87331N
|
87331N
87331-JD00A Finisher-Cushion, Front Seat Inner Rh0701--01 ~ ; 5H/B.20S |
87331-JD00A |
US $11.38 |
||
|
87368
|
87368
87368JD00A Lever Assy-Front Seat Cushion, Lh0701--01 ~ ; 5H/B.20S |
87368JD00A |
US $9.79 |
||
|
87380
|
87380
87380JD01A Finisher Assy-Cushion, Front Seat Lh0701--01 ~ ; 5H/B.20S |
87380JD01A |
US $68.54 |
||
|
87381N
|
87381N
87381-JD00A Finisher-Cushion, Front Seat Inner Lh0701--01 ~ ; 5H/B.20S |
87381-JD00A |
US $11.38 |
||
|
87611Q
|
87611Q
87611JD00A Pad-Front Seat Back0701--01 ~ ; *5H/B.20S |
87611JD00A |
US $288 |
||
|
87611Q
|
87611Q
87611JD01A Pad-Front Seat Back0701--01 ~ ; 5H/B.20S |
87611JD01A |
US $288 |
||
|
87611Q
|
87611Q
87611JD01A Pad-Front Seat Back0701--01 ~ ; 5H/B.20S |
87611JD01A |
US $288 |
||
|
87611Q
|
87611Q
87661-JD00A Pad-Front Seat Back0701--01 ~ ; *5H/B.20S |
87661-JD00A |
US $288 |
||
|
87611QA
|
87611QA
87611JD01A Pad-Front Seat Back0701--01 ~ ; 5H/B.20S |
87611JD01A |
US $288 |
||
|
87611QA
|
87611QA
87661-JD00A Pad-Front Seat Back0701--01 ~ ; *5H/B.20S |
87661-JD00A |
US $288 |
||
|
87620P
|
87620P
87620JD01A Trim Assy-Front Seat Back0701--01 ~ 0710--01; 5H/B.20S; [B530] |
87620JD01A |
US $689.59 |
||
|
87620P
|
87620P
87620JD01B Trim Assy-Front Seat Back0710--01 ~ ; 5H/B.20S |
87620JD01B |
US $753.31 |
||
|
87620P
|
87620P
87620-JD02A Trim Assy-Front Seat Back0701--01 ~ 0710--01; *5H/B.20S; [B530] |
87620-JD02A |
US $689.59 |
||
|
87620P
|
87620P
87620JD02B Trim Assy-Front Seat Back0710--01 ~ ; *5H/B.20S |
87620JD02B |
US $753.31 |
||
|
87620P
|
87620P
87620JD01B Trim Assy-Front Seat Back0710--01 ~ ; 5H/B.20S |
87620JD01B |
US $753.31 |
||
|
87620P
|
87620P
87670-JD01A Trim Assy-Front Seat Back0701--01 ~ 0710--01; 5H/B.20S; [B530] |
87670-JD01A |
US $689.59 |
||
|
87620P
|
87620P
87670-JD02A Trim Assy-Front Seat Back0701--01 ~ 0710--01; *5H/B.20S; [B530] |
87670-JD02A |
US $689.59 |
||
|
87620P
|
87620P
87670-JD02B Trim Assy-Front Seat Back0710--01 ~ ; *5H/B.20S |
87670-JD02B |
US $753.31 |
||
|
87620PA
|
87620PA
87620JD01B Trim Assy-Front Seat Back0710--01 ~ ; 5H/B.20S |
87620JD01B |
US $753.31 |
||
|
87620PA
|
87620PA
87670-JD01A Trim Assy-Front Seat Back0701--01 ~ 0710--01; 5H/B.20S; [B530] |
87670-JD01A |
US $689.59 |
||
|
87620PA
|
87620PA
87670-JD02A Trim Assy-Front Seat Back0701--01 ~ 0710--01; *5H/B.20S; [B530] |
87670-JD02A |
US $689.59 |
||
|
87620PA
|
87620PA
87670-JD02B Trim Assy-Front Seat Back0710--01 ~ ; *5H/B.20S |
87670-JD02B |
US $753.31 |
