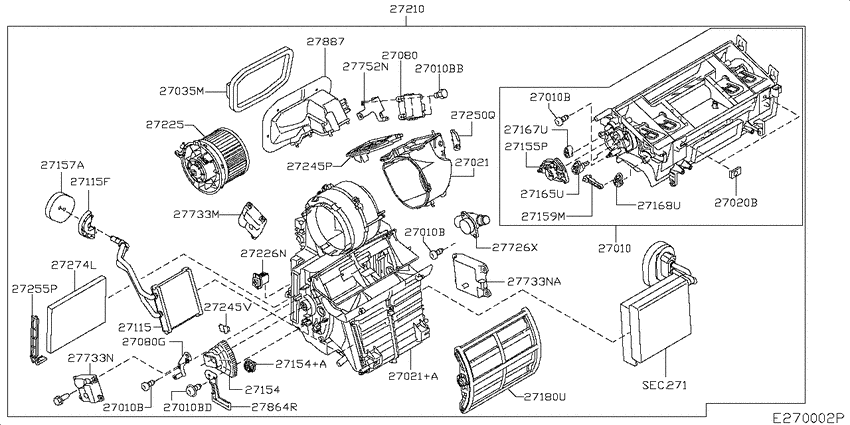

Heater & blower unit (2007-01-01 ~ ; BLOWER ASSY AIR COND FR AUTO; 5H/B) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010
|
27010
27110-JD00A Heating Unit Assy-Front0701--01 ~ ; 5H/B.20S |
27110-JD00A |
US $640.03 |
||
|
27010
|
27010
27111-2Y000 Screw0701--01 ~ ; 5H/B |
27111-2Y000 |
US $1.73 |
||
|
27010
|
27010
27111-2Y002 Screw0701--01 ~ ; 5H/B |
27111-2Y002 |
US $0.86 |
||
|
27010
|
27010
271992J000 Screw0701--01 ~ ; 5H/B.20S |
271992J000 |
US $1.73 |
||
|
27010
|
27010
27111-JD00A Screw0701--01 ~ ; 5H/B |
27111-JD00A |
US $1.73 |
||
|
27010B
|
27010B
27111-2Y000 Screw0701--01 ~ ; 5H/B |
27111-2Y000 |
US $1.73 |
||
|
27010B
|
27010B
27111-2Y002 Screw0701--01 ~ ; 5H/B |
27111-2Y002 |
US $0.86 |
||
|
27010B
|
27010B
271992J000 Screw0701--01 ~ ; 5H/B.20S |
271992J000 |
US $1.73 |
||
|
27010B
|
27010B
27111-JD00A Screw0701--01 ~ ; 5H/B |
27111-JD00A |
US $1.73 |
||
|
27010B
|
27010B
27111-2Y000 Screw0701--01 ~ ; 5H/B |
27111-2Y000 |
US $1.73 |
||
|
27010B
|
27010B
27111-2Y002 Screw0701--01 ~ ; 5H/B |
27111-2Y002 |
US $0.86 |
||
|
27010B
|
27010B
271992J000 Screw0701--01 ~ ; 5H/B.20S |
271992J000 |
US $1.73 |
||
|
27010B
|
27010B
27111-JD00A Screw0701--01 ~ ; 5H/B |
27111-JD00A |
US $1.73 |
||
|
27010B
|
27010B
27111-2Y000 Screw0701--01 ~ ; 5H/B |
27111-2Y000 |
US $1.73 |
||
|
27010B
|
27010B
27111-2Y002 Screw0701--01 ~ ; 5H/B |
27111-2Y002 |
US $0.86 |
||
|
27010B
|
27010B
271992J000 Screw0701--01 ~ ; 5H/B.20S |
271992J000 |
US $1.73 |
||
|
27010B
|
27010B
27111-JD00A Screw0701--01 ~ ; 5H/B |
27111-JD00A |
US $1.73 |
||
|
27010BB
|
27010BB
27111-2Y002 Screw0701--01 ~ ; 5H/B |
27111-2Y002 |
US $0.86 |
||
|
27010BD
|
27010BD
27111-JD00A Screw0701--01 ~ ; 5H/B |
27111-JD00A |
US $1.73 |
||
|
27020B
|
27020B
0124100011 NUT0701--01 ~ ; 5H/B |
0124100011 |
from US $2.21 |
||
|
27021
|
27021
27237-JD00A Case-Blower0701--01 ~ ; 5H/B |
27237-JD00A |
US $33.98 |
||
|
27021
|
27021
27235-JD01A Case-Blower0701--01 ~ ; 5H/B.20S |
27235-JD01A |
US $33.98 |
||
|
27021+A
|
27021+A
27235-JD01A Case-Blower0701--01 ~ ; 5H/B.20S |
27235-JD01A |
US $33.98 |
||
|
27035M
|
27035M
28714-JD00A Seal0701--01 ~ ; 5H/B |
28714-JD00A |
US $4.90 |
||
|
27080
|
27080
27730-JD00A Actuator-Air Intake Box0701--01 ~ ; 5H/B.20S |
27730-JD00A |
US $71.42 |
||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
27115
|
27115
27140-EN000 Core Assy-Front Heater0701--01 ~ ; 5H/B.20S |
27140-EN000 |
US $178.56 |
||
|
27115
|
27115
27148-EN000 Support-Heater Core0701--01 ~ ; 5H/B.20S |
27148-EN000 |
US $3.17 |
||
|
27115F
|
27115F
27148-EN000 Support-Heater Core0701--01 ~ ; 5H/B.20S |
27148-EN000 |
US $3.17 |
||
|
27154
|
27154
27154JD00A
Link
0701--01 ~ ; 5H/B.20S |
27154JD00A |
— | ||
|
27154
|
27154
271548H310 Link0701--01 ~ ; 5H/B.20S |
271548H310 |
US $1.96 |
||
|
27154+A
|
27154+A
271548H310 Link0701--01 ~ ; 5H/B.20S |
271548H310 |
US $1.96 |
||
|
27155P
|
27155P
27155-JD00A Link-Main0701--01 ~ ; 5H/B.20S |
27155-JD00A |
US $13.54 |
||
|
27157A
|
27157A
27174-JD00A Packing0701--01 ~ ; 5H/B |
27174-JD00A |
US $7.49 |
||
|
27159M
|
27159M
27159-EN000 Link-Foot0701--01 ~ ; 5H/B |
27159-EN000 |
US $29.09 |
||
|
27165U
|
27165U
27165-EN000 Lever-Vent0701--01 ~ ; 5H/B |
27165-EN000 |
US $1.58 |
||
|
27167U
|
27167U
27167-CY000 Lever-Def0701--01 ~ ; 5H/B |
27167-CY000 |
US $1.73 |
||
|
27168U
|
27168U
27168-EN000 Lever-Foot0701--01 ~ ; 5H/B |
27168-EN000 |
US $3.17 |
||
|
27180U
|
27180U
27180-AL500 Door-Front Heater0701--01 ~ ; 5H/B.20S |
27180-AL500 |
US $64.51 |
||
| replacement | |||||
|
27180U
|
27180U
27180JD11A Door-Front Heater0701--01 ~ ; 5H/B.20S |
27180JD11A |
US $70.99 |
||
|
27210
|
27210
27210-JD11B Blower Assy-Air Conditioner0701--01 ~ 0702--01; 5H/B.20S |
27210-JD11B |
US $1,260.24 |
||
|
27210
|
27210
27210-JD11C
ﾌﾞﾛｱｰ ｱﾂｾﾝﾌﾞﾘｰ,ｴｱｰ ｺﾝﾃﾞｲｼﾖﾅｰ
0702--01 ~ 0711--01; 5H/B.20S |
27210-JD11C |
— | ||
|
27210
|
27210
27210-JD11D Blower Assy-Air Conditioner0711--01 ~ ; 5H/B.20S |
27210-JD11D |
US $1,922.39 |
||
|
27225
|
27225
27225JD00A Motor Assy-Blower W/case0701--01 ~ ; 5H/B |
27225JD00A |
US $212.47 |
||
|
27245P
|
27245P
27245-EN000 Door-Intake Blower, Front0701--01 ~ ; 5H/B |
27245-EN000 |
US $13.39 |
||
|
27245V
|
27245V
21476-B0100
Clip-Cooler Case
0701--01 ~ ; 5H/B |
21476-B0100 |
— | ||
| replacement | |||||
|
27245V
|
27245V
21476-C5500 Clip0701--01 ~ ; 5H/B |
21476-C5500 |
from US $3.07 |
||
|
27250Q
|
27250Q
27253-JD00A Lever0701--01 ~ ; 5H/B |
27253-JD00A |
US $5.18 |
||
|
27255P
|
27255P
27276EN000 Shaft-Door, Intake Blower0701--01 ~ ; 5H/B |
27276EN000 |
US $1.58 |
||
|
27274L
|
27274L
AY684NS009 Filter Kit-Air, Air Conditioner0701--01 ~ ; 5H/B; ｶﾌﾝ |
AY684NS009 |
US $22.14 |
||
|
27274L
|
27274L
AY685NS009 Filter Kit-Air, Air Conditioner0701--01 ~ ; 5H/B; ｶﾌﾝ ﾆｵｲ ｱﾚﾙｹﾞﾝ |
AY685NS009 |
US $49.54 |
||
|
27752N
|
27752N
27752-JD00A Bracket-Actuator0701--01 ~ ; 5H/B |
27752-JD00A |
US $16.27 |
||
|
27864R
|
27864R
27175-JD00A Bracket0701--01 ~ ; 5H/B |
27175-JD00A |
US $8.78 |
||
|
27887
|
27887
27887-JD00A Duct-Intake, Fresh0701--01 ~ ; 5H/B |
27887-JD00A |
US $23.90 |
||
