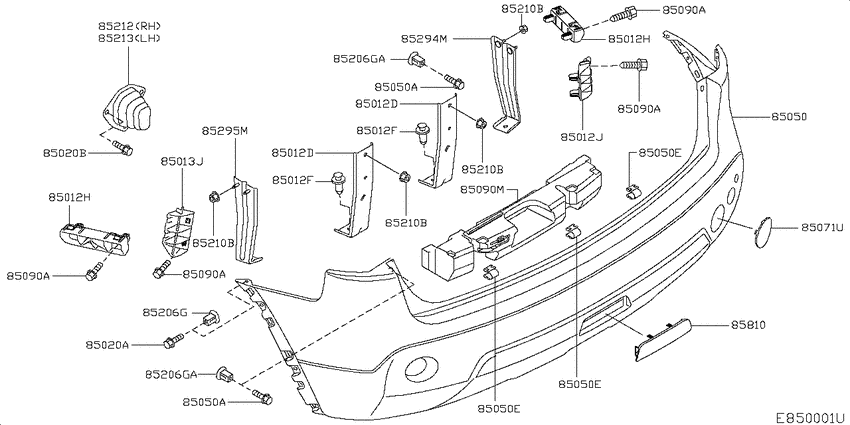

Rear bumper (2007-01-01 ~ ; 5H/B) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85012D
|
85012D
79183JD000 Bracket-Rear Bumper Side0701--01 ~ ; 5H/B |
79183JD000 |
US $7.20 |
||
|
85012D
|
85012D
79183JD000 Bracket-Rear Bumper Side0701--01 ~ ; 5H/B |
79183JD000 |
US $7.20 |
||
|
85012F
|
85012F
0155309321 CLIP0701--01 ~ ; 5H/B |
0155309321 |
US $0.97 |
||
|
85012F
|
85012F
0155309321 CLIP0701--01 ~ ; 5H/B |
0155309321 |
US $0.97 |
||
|
85012H
|
85012H
85222JD00A Bracket-Rear Bumper Side, Rh0701--01 ~ ; 5H/B |
85222JD00A |
from US $8.78 |
||
|
85012H
|
85012H
85222JD00A Bracket-Rear Bumper Side, Rh0701--01 ~ ; 5H/B |
85222JD00A |
from US $8.78 |
||
|
85012J
|
85012J
85226JD00A Bracket-Rear Bumper Side, Rh0701--01 ~ ; 5H/B |
85226JD00A |
US $12.38 |
||
|
85013J
|
85013J
85227JD00A Bracket-Rear Bumper Side, Lh0701--01 ~ ; 5H/B |
85227JD00A |
US $12.38 |
||
|
85020A
|
85020A
0146600321 SCREW0701--01 ~ ; 5H/B |
0146600321 |
from US $0.61 |
||
|
85020B
|
85020B
01225N8011 Nut0701--01 ~ ; 5H/B |
01225N8011 |
from US $0.70 |
||
|
85050
|
85050
85010JD01A Fascia-Rear Bumper0701--01 ~ ; 5H/B |
85010JD01A |
US $917.57 |
||
|
85050
|
85050
85010-JD03A Fascia-Rear Bumper0701--01 ~ ; 5H/B |
85010-JD03A |
US $917.57 |
||
|
85050
|
85050
85010JD04C Fascia-Rear Bumper0701--01 ~ ; 5H/B |
85010JD04C |
US $917.57 |
||
|
85050
|
85050
85010JD07D Fascia-Rear Bumper0701--01 ~ ; 5H/B |
85010JD07D |
US $917.57 |
||
|
85050
|
85050
85010JD09D Fascia-Rear Bumper0701--01 ~ ; 5H/B |
85010JD09D |
US $917.57 |
||
|
85050
|
85050
63849-5V000 Screw0701--01 ~ 0703--01; 5H/B |
63849-5V000 |
US $2.45 |
||
|
85050
|
85050
638495V00A Screw0703--01 ~ ; 5H/B |
638495V00A |
from US $1.55 |
||
|
85050
|
85050
85284AL510 Clip0701--01 ~ ; 5H/B |
85284AL510 |
from US $4.32 |
||
|
85050A
|
85050A
63849-5V000 Screw0701--01 ~ 0703--01; 5H/B |
63849-5V000 |
US $2.45 |
||
|
85050A
|
85050A
638495V00A Screw0703--01 ~ ; 5H/B |
638495V00A |
from US $1.55 |
||
|
85050A
|
85050A
63849-5V000 Screw0701--01 ~ 0703--01; 5H/B |
63849-5V000 |
US $2.45 |
||
|
85050A
|
85050A
638495V00A Screw0703--01 ~ ; 5H/B |
638495V00A |
from US $1.55 |
||
|
85050E
|
85050E
85284AL510 Clip0701--01 ~ ; 5H/B |
85284AL510 |
from US $4.32 |
||
|
85050E
|
85050E
85284AL510 Clip0701--01 ~ ; 5H/B |
85284AL510 |
from US $4.32 |
||
|
85050E
|
85050E
85284AL510 Clip0701--01 ~ ; 5H/B |
85284AL510 |
from US $4.32 |
||
|
85071U
|
85071U
85071JD000 Finisher Assy-Rear Bumper0701--01 ~ ; 5H/B |
85071JD000 |
US $6.48 |
||
|
85090A
|
85090A
01456-S608E Bolt0701--01 ~ ; 5H/B |
01456-S608E |
US $1.58 |
||
|
85090A
|
85090A
01456-S608E Bolt0701--01 ~ ; 5H/B |
01456-S608E |
US $1.58 |
||
|
85090A
|
85090A
01456-S608E Bolt0701--01 ~ ; 5H/B |
01456-S608E |
US $1.58 |
||
|
85090A
|
85090A
01456-S608E Bolt0701--01 ~ ; 5H/B |
01456-S608E |
US $1.58 |
||
|
85090M
|
85090M
85090JD000 Energy Absorber-Rear Bumper0701--01 ~ ; 5H/B |
85090JD000 |
US $55.73 |
||
|
85206G
|
85206G
0128100111 GROMMET-SCREW0701--01 ~ ; 5H/B |
0128100111 |
from US $0.85 |
||
|
85206G
|
85206G
638465V000 Grommet-Screw0701--01 ~ ; 5H/B |
638465V000 |
from US $1.63 |
||
|
85206GA
|
85206GA
638465V000 Grommet-Screw0701--01 ~ ; 5H/B |
638465V000 |
from US $1.63 |
||
|
85206GA
|
85206GA
638465V000 Grommet-Screw0701--01 ~ ; 5H/B |
638465V000 |
from US $1.63 |
||
|
85210B
|
85210B
01211-00QAA Nut0701--01 ~ 0704--01; 5H/B |
01211-00QAA |
US $2.45 |
||
|
85210B
|
85210B
01221-00Q0B Nut0704--01 ~ ; 5H/B |
01221-00Q0B |
US $1.73 |
||
|
85210B
|
85210B
01211-00QAA Nut0701--01 ~ 0704--01; 5H/B |
01211-00QAA |
US $2.45 |
||
|
85210B
|
85210B
01221-00Q0B Nut0704--01 ~ ; 5H/B |
01221-00Q0B |
US $1.73 |
||
|
85210B
|
85210B
01211-00QAA Nut0701--01 ~ 0704--01; 5H/B |
01211-00QAA |
US $2.45 |
||
|
85210B
|
85210B
01221-00Q0B Nut0704--01 ~ ; 5H/B |
01221-00Q0B |
US $1.73 |
||
|
85210B
|
85210B
01211-00QAA Nut0701--01 ~ 0704--01; 5H/B |
01211-00QAA |
US $2.45 |
||
|
85210B
|
85210B
01221-00Q0B Nut0704--01 ~ ; 5H/B |
01221-00Q0B |
US $1.73 |
||
|
85212
|
85212
85212JD00A Stay-Rear Bumper, Rh0701--01 ~ ; 5H/B |
85212JD00A |
from US $33.12 |
||
|
85213
|
85213
85213JD00A Stay-Rear Bumper, Lh0701--01 ~ ; 5H/B |
85213JD00A |
US $33.12 |
||
|
85294M
|
85294M
79184JD000 Retainer-Rear Bumper Side, Rh0701--01 ~ ; 5H/B |
79184JD000 |
US $25.63 |
||
|
85295M
|
85295M
79185JD000 Retainer-Rear Bumper Side, Lh0701--01 ~ ; 5H/B |
79185JD000 |
US $25.63 |
||
|
85810
|
85810
85072JD00H Moulding-Rear Bumper0701--01 ~ ; 5H/B |
85072JD00H |
US $72.86 |
