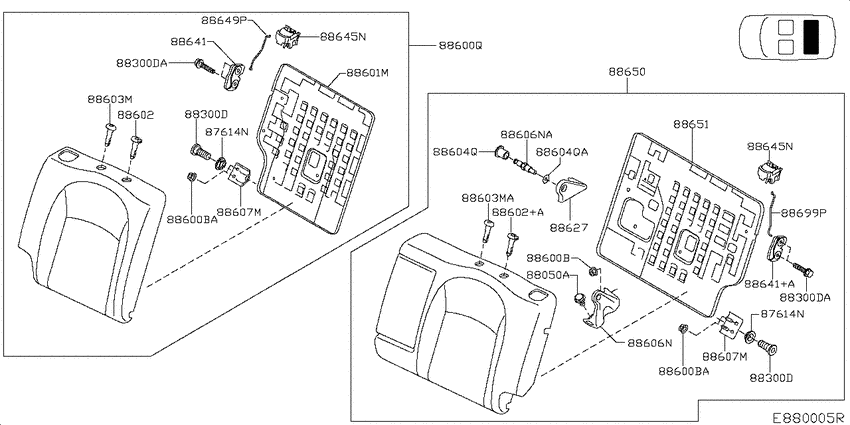

Rear seat (2007-01-01 ~ ; FRAMES; 5H/B) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87614N
|
87614N
88604JD00A Bush-Rear Seat0701--01 ~ ; 5H/B |
88604JD00A |
US $1.73 |
||
|
87614N
|
87614N
88604JD00A Bush-Rear Seat0701--01 ~ ; 5H/B |
88604JD00A |
US $1.73 |
||
|
88050A
|
88050A
01121S005E Bolt0701--01 ~ ; 5H/B |
01121S005E |
US $3.46 |
||
|
88300D
|
88300D
88612-JD00A Bolt-Special0701--01 ~ ; 5H/B |
88612-JD00A |
US $4.03 |
||
|
88300D
|
88300D
88612JD00C Bolt-Special0701--01 ~ ; 5H/B |
88612JD00C |
US $4.03 |
||
|
88300D
|
88300D
88612-JD00A Bolt-Special0701--01 ~ ; 5H/B |
88612-JD00A |
US $4.03 |
||
|
88300D
|
88300D
88612JD00C Bolt-Special0701--01 ~ ; 5H/B |
88612JD00C |
US $4.03 |
||
|
88300DA
|
88300DA
88612JD00C Bolt-Special0701--01 ~ ; 5H/B |
88612JD00C |
US $4.03 |
||
|
88300DA
|
88300DA
88612JD00C Bolt-Special0701--01 ~ ; 5H/B |
88612JD00C |
US $4.03 |
||
|
88600B
|
88600B
01225-S001E Nut0701--01 ~ ; 5H/B |
01225-S001E |
US $3.74 |
||
|
88600B
|
88600B
01225-S001E Nut0701--01 ~ ; 5H/B |
01225-S001E |
US $3.74 |
||
|
88600BA
|
88600BA
01225-S001E Nut0701--01 ~ ; 5H/B |
01225-S001E |
US $3.74 |
||
|
88600BA
|
88600BA
01225-S001E Nut0701--01 ~ ; 5H/B |
01225-S001E |
US $3.74 |
||
|
88600Q
|
88600Q
88600-JD000 Back Assy-Rear Seat, Rh0701--01 ~ ; 5H/B.20S; [B530] |
88600-JD000 |
US $1,039.34 |
||
|
88600Q
|
88600Q
88600-JD56B Back Assy-Rear Seat, Rh0701--01 ~ ; *5H/B.20S |
88600-JD56B |
US $1,383.43 |
||
|
88601M
|
88601M
88601-JD00A Frame Assy-Rear Seat Back, Rh0701--01 ~ ; 5H/B |
88601-JD00A |
US $220.32 |
||
|
88602
|
88602
87602JD00A Holder Assy-Headrest, Lock0701--01 ~ ; 5H/B |
87602JD00A |
US $4.18 |
||
|
88602
|
88602
87602JD00A Holder Assy-Headrest, Lock0701--01 ~ ; 5H/B |
87602JD00A |
US $4.18 |
||
|
88602+A
|
88602+A
87602JD00A Holder Assy-Headrest, Lock0701--01 ~ ; 5H/B |
87602JD00A |
US $4.18 |
||
|
88603M
|
88603M
87603JD00A Holder Assy-Headrest, Free0701--01 ~ ; 5H/B |
87603JD00A |
US $4.18 |
||
|
88603M
|
88603M
87603JD00A Holder Assy-Headrest, Free0701--01 ~ ; 5H/B |
87603JD00A |
US $4.18 |
||
|
88603MA
|
88603MA
87603JD00A Holder Assy-Headrest, Free0701--01 ~ ; 5H/B |
87603JD00A |
US $4.18 |
||
|
88604Q
|
88604Q
88604JD10A Bush0701--01 ~ ; 5H/B |
88604JD10A |
US $1.73 |
||
|
88604Q
|
88604Q
88654JD00A ﾌﾞﾂｼﾕ0701--01 ~ ; 5H/B |
88654JD00A |
US $4.03 |
||
|
88604QA
|
88604QA
88654JD00A ﾌﾞﾂｼﾕ0701--01 ~ ; 5H/B |
88654JD00A |
US $4.03 |
||
|
88606N
|
88606N
88606JD00A Bracket Assy-Rear Seat Back, Center0701--01 ~ ; 5H/B |
88606JD00A |
US $30.82 |
||
|
88606N
|
88606N
88606JD10A Bracket Assy-Rear Seat Back, Center0701--01 ~ ; 5H/B |
88606JD10A |
US $30.82 |
||
|
88606NA
|
88606NA
88606JD10A Bracket Assy-Rear Seat Back, Center0701--01 ~ ; 5H/B |
88606JD10A |
US $30.82 |
||
|
88607M
|
88607M
88607-JD00A Bracket Assy-Rear Seat Back, Side Rh0701--01 ~ ; 5H/B |
88607-JD00A |
US $30.82 |
||
|
88607M
|
88607M
88607-JD00A Bracket Assy-Rear Seat Back, Side Rh0701--01 ~ ; 5H/B |
88607-JD00A |
US $30.82 |
||
|
88627
|
88627
88627-JD00A Cover-Center Hinge0701--01 ~ ; 5H/B |
88627-JD00A |
US $25.63 |
||
|
88641
|
88641
88641JD00A Lock Assy-Rear Seat0701--01 ~ ; 5H/B |
88641JD00A |
US $49.82 |
||
|
88641
|
88641
88691JD00A Lock Assy-Rear Seat0701--01 ~ ; 5H/B |
88691JD00A |
US $49.82 |
||
|
88641+A
|
88641+A
88691JD00A Lock Assy-Rear Seat0701--01 ~ ; 5H/B |
88691JD00A |
US $49.82 |
||
|
88645N
|
88645N
88645JD00A Knob-Lock, Rear Seat Back0701--01 ~ ; 5H/B |
88645JD00A |
US $6.66 |
||
|
88645N
|
88645N
88645JD00A Knob-Lock, Rear Seat Back0701--01 ~ ; 5H/B |
88645JD00A |
US $6.66 |
||
|
88649P
|
88649P
88649JD00A Rod-Knob, Rh0701--01 ~ ; 5H/B |
88649JD00A |
US $2.45 |
||
|
88650
|
88650
88650JD005 Back Assy-Rear Seat, Lh0701--01 ~ ; 5H/B.20S; [B530] |
88650JD005 |
US $1,416 |
||
|
88650
|
88650
88650-JD56C Back Assy-Rear Seat, Lh0701--01 ~ ; *5H/B.20S; [B530] |
88650-JD56C |
US $2,590 |
||
|
88651
|
88651
88651-JD00A Frame Assy-Rear Seat Back, Lh0701--01 ~ ; 5H/B.20S |
88651-JD00A |
US $359.66 |
||
|
88651
|
88651
88651-JD40A Frame Assy-Rear Seat Back, Lh0701--01 ~ ; *5H/B |
88651-JD40A |
US $300.19 |
||
|
88699P
|
88699P
88699JD00A Rod-Knob, Lh0701--01 ~ ; 5H/B |
88699JD00A |
US $3.18 |
