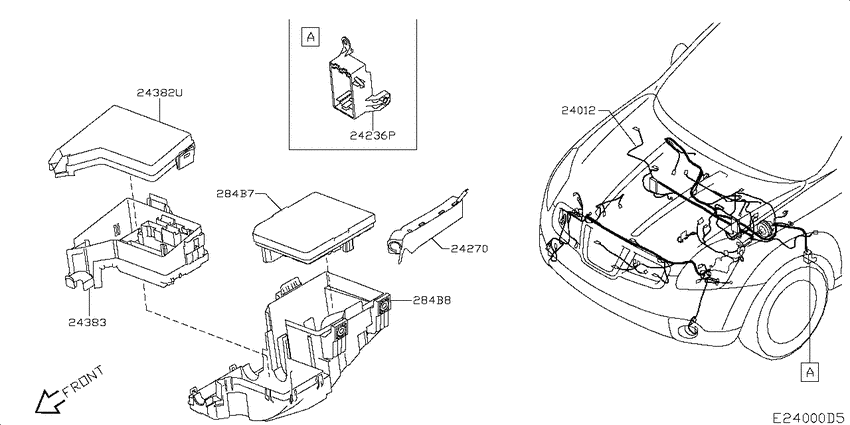

Wiring (2007-01-01 ~ ; エンジンルーム; 5H/B) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-JD08D Harness Assy-Engine Room0701--01 ~ 0712--01; 5H/B.20S |
24012-JD08D |
US $2,002 |
||
|
24012
|
24012
24012JD08E Harness Assy-Engine Room0701--01 ~ 0712--01; *5H/B.20S |
24012JD08E |
US $2,002 |
||
|
24012
|
24012
24012-JD16D Harness Assy-Engine Room0712--01 ~ ; 5H/B.20S |
24012-JD16D |
US $2,002 |
||
|
24012
|
24012
24012-JD16E Harness Assy-Engine Room0712--01 ~ ; *5H/B.20S |
24012-JD16E |
US $2,002 |
||
|
24012
|
24012
0145600411 SCREW0701--01 ~ ; 5H/B |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600031 SCREW0701--01 ~ ; 5H/B |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
01456-N8011 Screw0701--01 ~ ; 5H/B |
01456-N8011 |
US $1.73 |
||
|
24012
|
24012
01125N6011 Bolt0701--01 ~ ; 5H/B |
01125N6011 |
US $2.21 |
||
|
24012
|
24012
01125-N8021 Bolt0701--01 ~ ; 5H/B |
01125-N8021 |
from US $0.87 |
||
|
24236P
|
24236P
24346-JD01A Bracket-Connector0701--01 ~ ; 5H/B |
24346-JD01A |
US $5.62 |
||
|
24270
|
24270
24270-JD00A Protector-Harness0701--01 ~ ; 5H/B |
24270-JD00A |
US $11.95 |
||
|
24382U
|
24382U
24382-JD00A Cover-Fusible Link Holder0701--01 ~ 0712--01; 5H/B |
24382-JD00A |
US $11.09 |
||
|
24382U
|
24382U
24382-JD00B Cover-Fusible Link Holder0712--01 ~ ; 5H/B |
24382-JD00B |
US $12.38 |
||
|
24383
|
24383
24383JD00A Holder-Relay0701--01 ~ ; 5H/B |
24383JD00A |
US $41.04 |
||
|
284B7
|
284B7
284B7JD000
Controller Unit-Ipdm Engine Room
0701--01 ~ ; 5H/B |
284B7JD000 |
— | ||
| replacement | |||||
|
284B7
|
284B7
284B7-JD03A Controller Unit-Ipdm Engine Room0701--01 ~ ; 5H/B |
284B7-JD03A |
US $442.51 |
||
|
284B8
|
284B8
284B8JD00A Cover-Usm0701--01 ~ ; 5H/B |
284B8JD00A |
US $28.69 |
||
