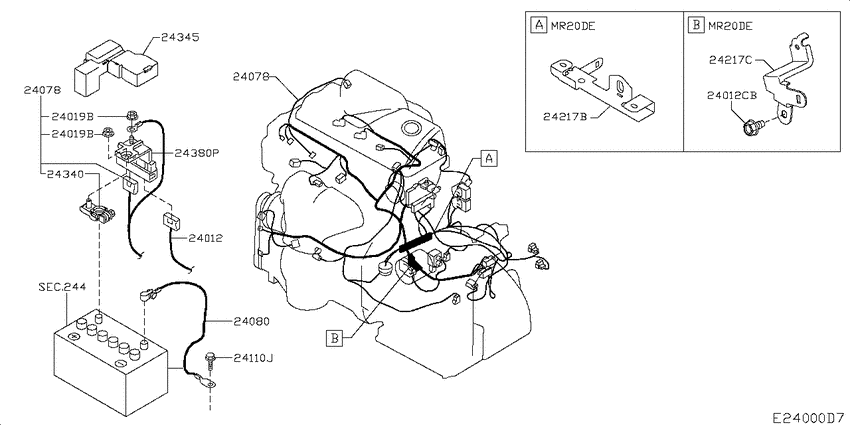

Wiring (2007-01-01 ~ ; ENGINE AND BATTERY HARNESS; 5H/B) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-JD08D Harness Assy-Engine Room0701--01 ~ 0712--01; 5H/B.20S |
24012-JD08D |
US $2,002 |
||
|
24012
|
24012
24012JD08E Harness Assy-Engine Room0701--01 ~ 0712--01; *5H/B.20S |
24012JD08E |
US $2,002 |
||
|
24012
|
24012
24012-JD16D Harness Assy-Engine Room0712--01 ~ ; 5H/B.20S |
24012-JD16D |
US $2,002 |
||
|
24012
|
24012
24012-JD16E Harness Assy-Engine Room0712--01 ~ ; *5H/B.20S |
24012-JD16E |
US $2,002 |
||
|
24012
|
24012
0145600411 SCREW0701--01 ~ ; 5H/B |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600031 SCREW0701--01 ~ ; 5H/B |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
01456-N8011 Screw0701--01 ~ ; 5H/B |
01456-N8011 |
US $1.73 |
||
|
24012
|
24012
01125N6011 Bolt0701--01 ~ ; 5H/B |
01125N6011 |
US $2.21 |
||
|
24012
|
24012
01125-N8021 Bolt0701--01 ~ ; 5H/B |
01125-N8021 |
from US $0.87 |
||
|
24012CB
|
24012CB
01456-N8011 Screw0701--01 ~ ; 5H/B |
01456-N8011 |
US $1.73 |
||
|
24019B
|
24019B
0122100381 NUT0701--01 ~ ; 5H/B |
0122100381 |
from US $5.37 |
||
|
24019B
|
24019B
0122100381 NUT0701--01 ~ ; 5H/B |
0122100381 |
from US $5.37 |
||
|
24078
|
24078
24011JD02E Harness Assy-Egi0701--01 ~ ; 5H/B |
24011JD02E |
US $768.89 |
||
|
24078
|
24078
24011JD02E Harness Assy-Egi0701--01 ~ ; 5H/B |
24011JD02E |
US $768.89 |
||
|
24080
|
24080
24080-JD02D Cable Assy-Battery Earth0701--01 ~ ; 5H/B |
24080-JD02D |
US $69.99 |
||
|
24110J
|
24110J
01125-S016E Bolt0701--01 ~ ; 5H/B |
01125-S016E |
from US $1.33 |
||
|
24217B
|
24217B
24239-JD20A Bracket-Harness Clip0701--01 ~ ; 5H/B |
24239-JD20A |
US $22.75 |
||
|
24217C
|
24217C
24239-EN000 Bracket-Harness0701--01 ~ 0702--01; 5H/B |
24239-EN000 |
US $7.92 |
||
|
24217C
|
24217C
24239-EN03A Bracket-Harness0702--01 ~ ; 5H/B |
24239-EN03A |
US $7.92 |
||
|
24340
|
24340
243407F000 Connector Assy0701--01 ~ ; 5H/B |
243407F000 |
from US $9.56 |
||
|
24345
|
24345
2434579912 Cover-Connector0708--01 ~ ; 5H/B; ﾚﾂﾄﾞ |
2434579912 |
US $12.96 |
||
| replacement | |||||
|
24345
|
24345
24345-7992A Cover-Connector0708--01 ~ ; 5H/B; ﾚﾂﾄﾞ |
24345-7992A |
from US $14.42 |
||
|
24345
|
24345
2434579915 Cover-Connector0701--01 ~ 0708--01; 5H/B; ﾌﾞﾗﾂｸ |
2434579915 |
US $14.42 |
||
|
24345
|
24345
24345-6N006 Cover-Connector0701--01 ~ ; 5H/B |
24345-6N006 |
from US $2.22 |
||
|
24380P
|
24380P
243807994A Holder-Fusible Link0701--01 ~ 0712--01; 5H/B |
243807994A |
from US $36.86 |
||
|
