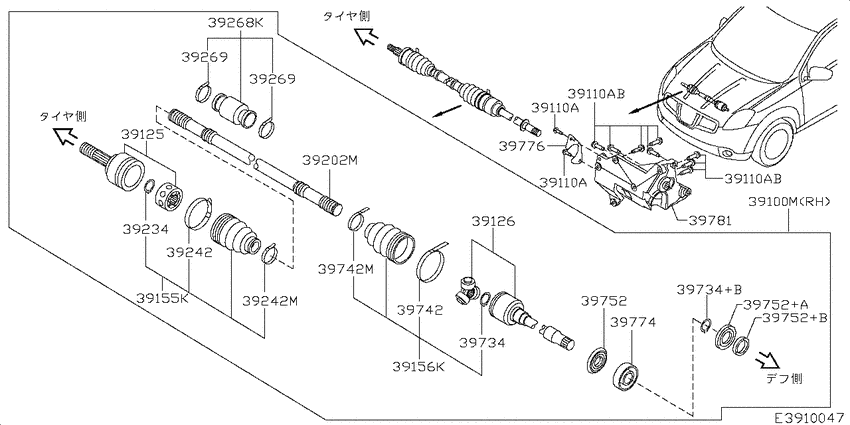

Front drive shaft (ff) (2007-01-01 ~ ; 右側; 4WD.MR20DE) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 4WD
- transmission
- MCVT
- grade
- 20S
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39100M
|
39100M
39100JD24C Shaft Assy-Front Drive, Rh0701--01 ~ ; 4WD.MR20DE |
39100JD24C |
US $770.30 |
||
|
39110A
|
39110A
01125N8031 Bolt0701--01 ~ ; 4WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
39110A
|
39110A
01125-N1041 Bolt0701--01 ~ ; 4WD.MR20DE |
01125-N1041 |
from US $1.15 |
||
|
39110A
|
39110A
01125N8031 Bolt0701--01 ~ ; 4WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
39110A
|
39110A
01125-N1041 Bolt0701--01 ~ ; 4WD.MR20DE |
01125-N1041 |
from US $1.15 |
||
|
39110AB
|
39110AB
01125-N1041 Bolt0701--01 ~ ; 4WD.MR20DE |
01125-N1041 |
from US $1.15 |
||
|
39110AB
|
39110AB
01125-N1041 Bolt0701--01 ~ ; 4WD.MR20DE |
01125-N1041 |
from US $1.15 |
||
|
39125
|
39125
C9211-JA00A Joint Assy-Outer0701--01 ~ ; 4WD.MR20DE |
C9211-JA00A |
US $366.74 |
||
|
39125
|
39125
C9B11-JA00A Joint Assy-Outer0701--01 ~ ; 4WD.MR20DE |
C9B11-JA00A |
US $366.74 |
||
|
39126
|
39126
39771-JD24C Joint Assy-Inner0701--01 ~ ; 4WD.MR20DE |
39771-JD24C |
US $282.24 |
||
|
39126
|
39126
39711-JD24C Joint Assy-Inner0701--01 ~ ; 4WD.MR20DE |
39711-JD24C |
US $282.24 |
||
|
39155K
|
39155K
C9241JA00A Repair Kit-Dust Boot, Outer0701--01 ~ ; 4WD.MR20DE |
C9241JA00A |
from US $62.38 |
||
| replacement | |||||
|
39155K
|
39155K
C9BDA-JA0JH Repair Kit-Dust Boot, Outer0701--01 ~ ; 4WD.MR20DE |
C9BDA-JA0JH |
from US $46.14 |
||
|
39155K
|
39155K
C9241JA00A Repair Kit-Dust Boot, Outer0701--01 ~ ; 4WD.MR20DE |
C9241JA00A |
from US $62.38 |
||
| replacement | |||||
|
39155K
|
39155K
C9BDA-JA0JH Repair Kit-Dust Boot, Outer0701--01 ~ ; 4WD.MR20DE |
C9BDA-JA0JH |
from US $46.14 |
||
|
39156K
|
39156K
C9741JA00A
Repair Kit-Dust B00T, Inner
0701--01 ~ ; 4WD.MR20DE |
C9741JA00A |
— | ||
| replacements | |||||
|
39156K
|
39156K
C97DA-JA00K REPAIR KIT-DUST0701--01 ~ ; 4WD.MR20DE |
C97DA-JA00K |
from US $41.11 |
||
|
39156K
|
39156K
C9GDA-JA00A Repair Kit-Dust Boot, Inner0701--01 ~ ; 4WD.MR20DE |
C9GDA-JA00A |
US $62.38 |
||
|
39156K
|
39156K
C9741JA00A
Repair Kit-Dust B00T, Inner
0701--01 ~ ; 4WD.MR20DE |
C9741JA00A |
— | ||
| replacements | |||||
|
39156K
|
39156K
C97DA-JA00K REPAIR KIT-DUST0701--01 ~ ; 4WD.MR20DE |
C97DA-JA00K |
from US $41.11 |
||
|
39156K
|
39156K
C9GDA-JA00A Repair Kit-Dust Boot, Inner0701--01 ~ ; 4WD.MR20DE |
C9GDA-JA00A |
US $62.38 |
||
|
39202M
|
39202M
39204-JD24C Shaft-Front Drive, Rh0701--01 ~ ; 4WD.MR20DE |
39204-JD24C |
US $185.76 |
||
|
39234
|
39234
39234-2B100 Circlip-Drive Shaft0701--01 ~ ; 4WD.MR20DE |
39234-2B100 |
US $2.36 |
||
|
39234
|
39234
39234-2B100 Circlip-Drive Shaft0701--01 ~ ; 4WD.MR20DE |
39234-2B100 |
US $2.36 |
||
|
39242
|
39242
39242-JD22B
Band-Boot, Drive Shaft Outer
0701--01 ~ ; 4WD.MR20DE |
39242-JD22B |
— | ||
|
39242
|
39242
39242-JD22B
Band-Boot, Drive Shaft Outer
0701--01 ~ ; 4WD.MR20DE |
39242-JD22B |
— | ||
|
39242
|
39242
39242-8J000
Band-Boot, Drive Shaft
0701--01 ~ ; 4WD.MR20DE |
39242-8J000 |
— | ||
|
39242
|
39242
39242-8J000
Band-Boot, Drive Shaft
0701--01 ~ ; 4WD.MR20DE |
39242-8J000 |
— | ||
|
39242M
|
39242M
39242-8J000
Band-Boot, Drive Shaft
0701--01 ~ ; 4WD.MR20DE |
39242-8J000 |
— | ||
|
39242M
|
39242M
39242-8J000
Band-Boot, Drive Shaft
0701--01 ~ ; 4WD.MR20DE |
39242-8J000 |
— | ||
|
39268K
|
39268K
39268-8H328 Damper Kit-Dynamic, Front Drive Shaft0701--01 ~ ; 4WD.MR20DE |
39268-8H328 |
US $39.89 |
||
|
39269
|
39269
39269-AW300 Band-Damper0701--01 ~ ; 4WD.MR20DE |
39269-AW300 |
US $3.46 |
||
|
39269
|
39269
39269-AW300 Band-Damper0701--01 ~ ; 4WD.MR20DE |
39269-AW300 |
US $3.46 |
||
|
39734
|
39734
39734-JD22B Ring-Snap0701--01 ~ ; 4WD.MR20DE |
39734-JD22B |
US $1.58 |
||
|
39734
|
39734
39734-JD22B Ring-Snap0701--01 ~ ; 4WD.MR20DE |
39734-JD22B |
US $1.58 |
||
|
39734
|
39734
39777-JD22B Ring-Snap0701--01 ~ ; 4WD.MR20DE |
39777-JD22B |
from US $1.82 |
||
|
39734+B
|
39734+B
39777-JD22B Ring-Snap0701--01 ~ ; 4WD.MR20DE |
39777-JD22B |
from US $1.82 |
||
|
39742
|
39742
39742-JD22B Band-Boot, Drive Shaft Inner0701--01 ~ ; 4WD.MR20DE |
39742-JD22B |
US $4.03 |
||
|
39742
|
39742
39742-JD22B Band-Boot, Drive Shaft Inner0701--01 ~ ; 4WD.MR20DE |
39742-JD22B |
US $4.03 |
||
|
39742
|
39742
39742-JD23B Band-Boot, Drive Shaft Inner0701--01 ~ ; 4WD.MR20DE |
39742-JD23B |
US $4.03 |
||
|
39742
|
39742
39742-JD23B Band-Boot, Drive Shaft Inner0701--01 ~ ; 4WD.MR20DE |
39742-JD23B |
US $4.03 |
||
|
39742M
|
39742M
39742-JD23B Band-Boot, Drive Shaft Inner0701--01 ~ ; 4WD.MR20DE |
39742-JD23B |
US $4.03 |
||
|
39742M
|
39742M
39742-JD23B Band-Boot, Drive Shaft Inner0701--01 ~ ; 4WD.MR20DE |
39742-JD23B |
US $4.03 |
||
|
39752
|
39752
39752-JD21B Shield-Dust0701--01 ~ ; 4WD.MR20DE |
39752-JD21B |
US $4.03 |
||
|
39752
|
39752
39752-JD22B Shield-Dust0701--01 ~ ; 4WD.MR20DE |
39752-JD22B |
from US $4.03 |
||
|
39752
|
39752
39752-JD23B Shield-Dust0701--01 ~ ; 4WD.MR20DE |
39752-JD23B |
US $4.03 |
||
|
39752
|
39752
39752-JD22C Shield-Dust0701--01 ~ ; 4WD.MR20DE |
39752-JD22C |
US $4.03 |
||
|
39752
|
39752
3975277A1A Shield-Dust0701--01 ~ ; 4WD.MR20DE |
3975277A1A |
from US $3.90 |
||
|
39752+A
|
39752+A
39752-JD22B Shield-Dust0701--01 ~ ; 4WD.MR20DE |
39752-JD22B |
from US $4.03 |
||
|
39752+B
|
39752+B
39752-JD23B Shield-Dust0701--01 ~ ; 4WD.MR20DE |
39752-JD23B |
US $4.03 |
||
|
39774
|
39774
39774JA00A Bearing-Support0701--01 ~ ; 4WD.MR20DE |
39774JA00A |
US $51.26 |
||
| replacement | |||||
|
39774
|
39774
39774JA02A Bearing-Support0701--01 ~ ; 4WD.MR20DE |
39774JA02A |
from US $48.93 |
||
|
39776
|
39776
39776-EN000 Retainer-Bearing, Front Drive Shaft0701--01 ~ ; 4WD.MR20DE |
39776-EN000 |
US $8.32 |
||
|
39781
|
39781
39780JD22B Bracket-Bearing Support, Fr Drive Shaft0701--01 ~ ; 4WD.MR20DE |
39780JD22B |
US $129.60 |
||
