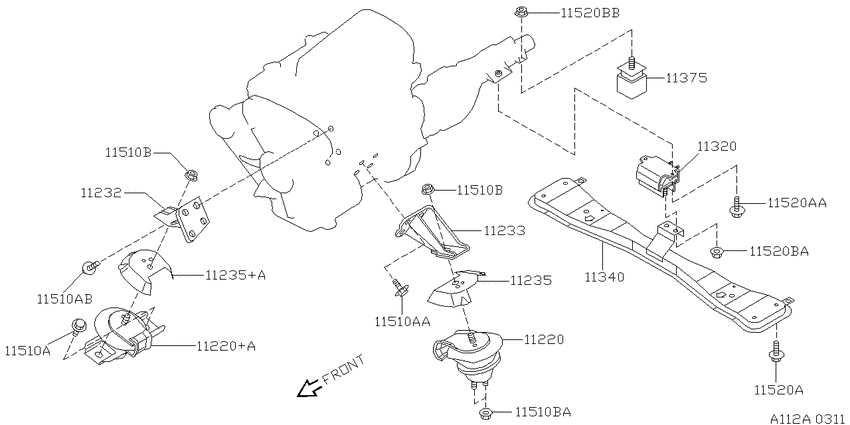

Engine & transmission mounting (1997-05-01 ~ 1998-10-01; 2WD.VG33E) Diagram Nissan ELGRAND
- Year
- 1997 - 2000
- Sales region
- Japan
- Engine
- VG33E
- drive
- 2WD
- transmission
- AT
- grade
- V
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220
|
11220
11220-1W300 Insulator-Engine Mounting, Front9705--01 ~ 9709--01; 2WD.VG33E |
11220-1W300 |
US $203.04 |
||
| replacement | |||||
|
11220
|
11220
11220-VE403 Insulator-Engine Mounting, Front9705--01 ~ 9709--01; 2WD.VG33E |
11220-VE403 |
US $152.64 |
||
|
11220
|
11220
11220-VE403 Insulator-Engine Mounting, Front9709--01 ~ 9810--01; 2WD.VG33E |
11220-VE403 |
US $152.64 |
||
|
11220
|
11220
11220-VE400 Insulator-Engine Mounting, Front9705--01 ~ 9709--01; 2WD.VG33E |
11220-VE400 |
US $130.46 |
||
|
11220
|
11220
11220-VE402 Insulator-Engine Mounting, Front9709--01 ~ 9810--01; 2WD.VG33E |
11220-VE402 |
US $97.92 |
||
|
11220+A
|
11220+A
11220-VE400 Insulator-Engine Mounting, Front9705--01 ~ 9709--01; 2WD.VG33E |
11220-VE400 |
US $130.46 |
||
|
11220+A
|
11220+A
11220-VE402 Insulator-Engine Mounting, Front9709--01 ~ 9810--01; 2WD.VG33E |
11220-VE402 |
US $97.92 |
||
|
11232
|
11232
11232-VE400 Bracket-Engine Mounting, Rh9705--01 ~ 9810--01; 2WD.VG33E |
11232-VE400 |
US $61.63 |
||
|
11233
|
11233
11233-0W000 Bracket-Engine Mounting, Lh9705--01 ~ 9810--01; 2WD.VG33E |
11233-0W000 |
US $61.63 |
||
|
11235
|
11235
11284-0W000 Plate-Heat Shield9705--01 ~ 9810--01; 2WD.VG33E |
11284-0W000 |
US $8.35 |
||
|
11235
|
11235
11284-VE400 Plate-Heat Shield9705--01 ~ 9810--01; 2WD.VG33E |
11284-VE400 |
US $8.35 |
||
|
11235+A
|
11235+A
11284-VE400 Plate-Heat Shield9705--01 ~ 9810--01; 2WD.VG33E |
11284-VE400 |
US $8.35 |
||
|
11320
|
11320
11320-1W000 Insulator-Engine Mounting, Rear9705--01 ~ 9810--01; 2WD.VG33E |
11320-1W000 |
US $65.23 |
||
|
11340
|
11340
11330-VE300 Member Assy-Engine Mounting, Rear9705--01 ~ 9810--01; 2WD.VG33E |
11330-VE300 |
US $208.80 |
||
|
11375
|
11375
11375-17V00 Damper Assy-Dynamic9705--01 ~ 9810--01; 2WD.VG33E |
11375-17V00 |
US $92.45 |
||
|
11375
|
11375
11375-1W420 Damper Assy-Dynamic9908--01 ~ 0008--01; *2WD.VG33E.V |
11375-1W420 |
US $98.21 |
||
|
11510A
|
11510A
01125-03071 BOLT9705--01 ~ 9810--01; 2WD.VG33E |
01125-03071 |
US $2.45 |
||
|
11510A
|
11510A
0112503041 BOLT9705--01 ~ 9810--01; 2WD.VG33E |
0112503041 |
US $3.46 |
||
|
11510A
|
11510A
01125-01831 BOLT9705--01 ~ 9810--01; 2WD.VG33E |
01125-01831 |
US $4.18 |
||
|
11510AA
|
11510AA
0112503041 BOLT9705--01 ~ 9810--01; 2WD.VG33E |
0112503041 |
US $3.46 |
||
|
11510AB
|
11510AB
01125-01831 BOLT9705--01 ~ 9810--01; 2WD.VG33E |
01125-01831 |
US $4.18 |
||
|
11510B
|
11510B
11258D0101 Nut9705--01 ~ 9810--01; 2WD.VG33E |
11258D0101 |
from US $2.41 |
||
|
11510B
|
11510B
11258D0101 Nut9705--01 ~ 9810--01; 2WD.VG33E |
11258D0101 |
from US $2.41 |
||
|
11510B
|
11510B
11258D0101 Nut9705--01 ~ 9810--01; 2WD.VG33E |
11258D0101 |
from US $2.41 |
||
|
11510B
|
11510B
11258D0101 Nut9705--01 ~ 9810--01; 2WD.VG33E |
11258D0101 |
from US $2.41 |
||
|
11510BA
|
11510BA
11258D0101 Nut9705--01 ~ 9810--01; 2WD.VG33E |
11258D0101 |
from US $2.41 |
||
|
11520A
|
11520A
11298-0W000 Bolt9705--01 ~ 9810--01; 2WD.VG33E |
11298-0W000 |
US $3.46 |
||
|
11520A
|
11520A
11298-VG104 Bolt9908--01 ~ 0008--01; 2WD.VG33E |
11298-VG104 |
US $3.46 |
||
|
11520A
|
11520A
01125-03461 BOLT9705--01 ~ 9810--01; 2WD.VG33E |
01125-03461 |
US $3.46 |
||
|
11520A
|
11520A
11298VG103 Bolt9908--01 ~ 0008--01; 2WD.VG33E |
11298VG103 |
US $3.46 |
||
|
11520AA
|
11520AA
01125-03461 BOLT9705--01 ~ 9810--01; 2WD.VG33E |
01125-03461 |
US $3.46 |
||
|
11520AA
|
11520AA
11298VG103 Bolt9908--01 ~ 0008--01; 2WD.VG33E |
11298VG103 |
US $3.46 |
||
|
11520BA
|
11520BA
11258D0101 Nut9705--01 ~ 9810--01; 2WD.VG33E |
11258D0101 |
from US $2.41 |
||
|
11520BB
|
11520BB
0122500082 NUT9705--01 ~ 9810--01; 2WD.VG33E |
0122500082 |
from US $0.61 |
||
