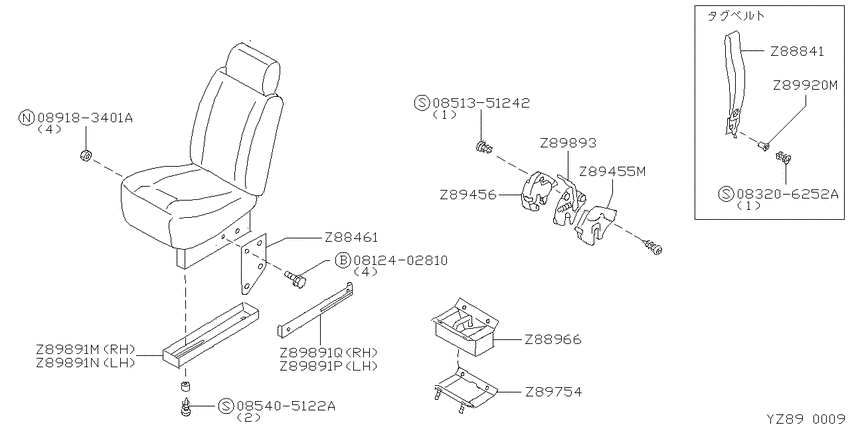

ﾊﾟﾂｾﾝｼﾞﾔｰｽﾞ ｼｰﾄ (1999-09-01 ~ ; (サードシート ｳｭｱ; ﾁｪｱ ｷｬﾌﾞ) Diagram Nissan ELGRAND
- Year
- 1997 - 2000
- Sales region
- Japan
- Engine
- VG33E
- drive
- 2WD
- transmission
- AT
- grade
- V
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812402810
|
0812402810
08124-02810
Bolt
|
08124-02810 |
— | ||
|
083206252A
|
083206252A
08320-6252A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-6252A |
— | ||
|
0851351242
|
0851351242
08513-51242
SCREW
|
08513-51242 |
— | ||
|
085405122A
|
085405122A
085405122A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
085405122A |
— | ||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
Z88461
|
Z88461
89160-1A501
ｽﾃｲ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ｸﾂｼﾖﾝ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ[K116] |
89160-1A501 |
— | ||
|
Z88841
|
Z88841
89800-0A150
ﾍﾞﾙﾄ ｾﾂﾄ,ﾘﾔ ｼ-ﾄ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ[K116] |
89800-0A150 |
— | ||
|
Z88966
|
Z88966
75436-1A510
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾏｳﾝﾃｲﾝｸﾞ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ LH[K116] |
75436-1A510 |
— | ||
|
Z88966
|
Z88966
75437-1A510
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾏｳﾝﾃｲﾝｸﾞ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ RH[K116] |
75437-1A510 |
— | ||
|
Z89455M
|
Z89455M
89346-0C600 Cover-Lock, Rh Outer9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ RH |
89346-0C600 |
US $5.04 |
||
|
Z89455M
|
Z89455M
89396-0C600 Cover-Lock, Lh Outer9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ LH |
89396-0C600 |
US $4.61 |
||
|
Z89456
|
Z89456
89345-0C600 Cover-Lock, Rh Inner9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ RH |
89345-0C600 |
US $4.61 |
||
|
Z89456
|
Z89456
89395-0C600 Cover-Lock, Lh Inner9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ LH |
89395-0C600 |
US $4.61 |
||
|
Z89754
|
Z89754
75436-1A511
ﾌﾞﾗｹﾂﾄ,ｻ-ﾄﾞｼ-ﾄ ﾏｳﾝﾃｲﾝｸﾞ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ LH[K116] |
75436-1A511 |
— | ||
|
Z89754
|
Z89754
75437-1A511
ﾌﾞﾗｹﾂﾄ,ｻ-ﾄﾞｼ-ﾄ ﾏｳﾝﾃｲﾝｸﾞ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ RH[K116] |
75437-1A511 |
— | ||
|
Z89891M
|
Z89891M
89162-1A502
ｶﾊﾞ-,ﾚﾂｸﾞ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ[K116] |
89162-1A502 |
— | ||
|
Z89891N
|
Z89891N
89163-1A502
ｶﾊﾞ-,ﾚﾂｸﾞ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ[K116] |
89163-1A502 |
— | ||
|
Z89891P
|
Z89891P
89160-1A500
ｶﾊﾞ-,ﾚﾂｸﾞ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ[K116] |
89160-1A500 |
— | ||
|
Z89891Q
|
Z89891Q
89161-1A500
ｶﾊﾞ-,ﾚﾂｸﾞ
9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ[K116] |
89161-1A500 |
— | ||
|
Z89893
|
Z89893
89341-0C601 Lock Assy-3Rd Seat, Rh9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ RH |
89341-0C601 |
US $54.86 |
||
|
Z89893
|
Z89893
893910C601 Lock Assy-3Rd Seat, Lh9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ LH |
893910C601 |
US $54.86 |
||
|
Z89920M
|
Z89920M
89610-0C703 Hook-Seat Belt9909--01 ~ 0008--01; K.V; ﾁｪｱｷｬﾌﾞ ｼﾖｳ |
89610-0C703 |
US $3.46 |
