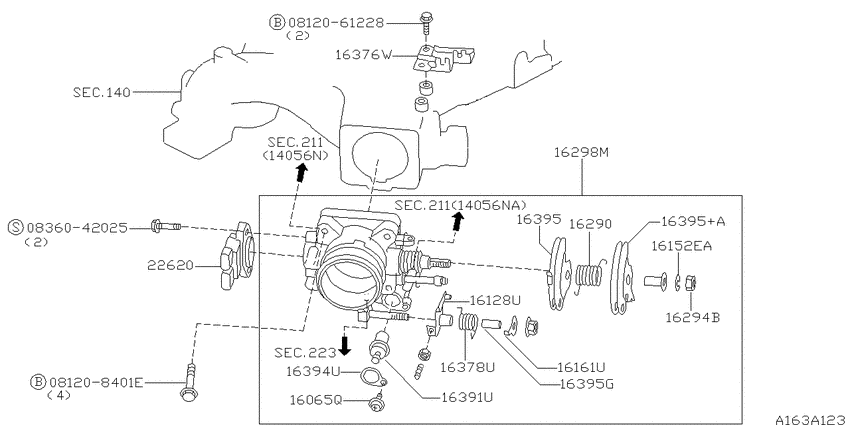

Throttle chamber (1998-10-01 ~ 2000-08-01; VG33E) Diagram Nissan ELGRAND
- Year
- 1997 - 2000
- Sales region
- Japan
- Engine
- VG33E
- drive
- 2WD
- transmission
- AT
- grade
- V
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
081208401E
|
081208401E
08120-8401E
Bolt-hexagon
|
08120-8401E |
— | ||
|
0836042025
|
0836042025
0836042025
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836042025 |
— | ||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
16065Q
|
16065Q
1606531U00 Screw9705--01 ~ 9810--01; VG33E |
1606531U00 |
US $3.46 |
||
|
16128U
|
16128U
16128-0W010 Cam-Fast Idle9705--01 ~ 9810--01; VG33E |
16128-0W010 |
US $18.43 |
||
|
16152EA
|
16152EA
16152-97E15 WASHER9705--01 ~ 9810--01; VG33E |
16152-97E15 |
US $0.86 |
||
|
16161U
|
16161U
16161-0W000 Hanger-Throttle Return9705--01 ~ 9810--01; VG33E |
16161-0W000 |
US $5.04 |
||
|
16290
|
16290
16160-0W000 Spring-Throttle Return9705--01 ~ 9810--01; VG33E |
16160-0W000 |
US $7.34 |
||
|
16294B
|
16294B
1607495E15 NUT9705--01 ~ 9810--01; VG33E |
1607495E15 |
US $2.45 |
||
|
16298M
|
16298M
16118-0W010 Chamber Assy-Throttle9705--01 ~ 9810--01; VG33E |
16118-0W010 |
US $502.68 |
||
| replacement | |||||
|
16298M
|
16298M
161180W01A
CHMBR ASSYTHRO
9705--01 ~ 9810--01; VG33E |
161180W01A |
— | ||
|
16376W
|
16376W
16167-0W000 Bracket-Accelerator Cable9705--01 ~ 9810--01; VG33E |
16167-0W000 |
US $9.50 |
||
|
16378U
|
16378U
16378-0W000 Spring-Cam9705--01 ~ 9810--01; VG33E |
16378-0W000 |
US $10.54 |
||
|
16391U
|
16391U
1639131U00 Element Kit-Thermo9705--01 ~ 9810--01; VG33E |
1639131U00 |
US $168.48 |
||
|
16394U
|
16394U
1639473C00 Ptc9705--01 ~ 9810--01; VG33E |
1639473C00 |
US $3.46 |
||
|
16395
|
16395
16134-0W000 Lever-Throttle9705--01 ~ 9810--01; VG33E |
16134-0W000 |
US $16.27 |
||
|
16395
|
16395
16134-0W001 Lever-Throttle9705--01 ~ 9810--01; VG33E |
16134-0W001 |
US $16.27 |
||
|
16395
|
16395
16116-86G00 Retainer-Spring9705--01 ~ 9810--01; VG33E |
16116-86G00 |
US $4.18 |
||
|
16395+A
|
16395+A
16134-0W001 Lever-Throttle9705--01 ~ 9810--01; VG33E |
16134-0W001 |
US $16.27 |
||
|
16395G
|
16395G
16116-86G00 Retainer-Spring9705--01 ~ 9810--01; VG33E |
16116-86G00 |
US $4.18 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
22620
|
22620
22620-4P202 Throttle Position Switch9705--01 ~ 9706--01; VG33E |
22620-4P202 |
US $74.02 |
||
| replacement | |||||
|
22620
|
22620
22620-4P21A Throttle position switch9705--01 ~ 9706--01; VG33E |
22620-4P21A |
US $132.93 |
||
|
22620
|
22620
22620-4P210 Throttle Position Switch9706--01 ~ 9810--01; VG33E |
22620-4P210 |
US $132.93 |
||
| replacement | |||||
|
22620
|
22620
22620-4P21A Throttle position switch9706--01 ~ 9810--01; VG33E |
22620-4P21A |
US $132.93 |
||
