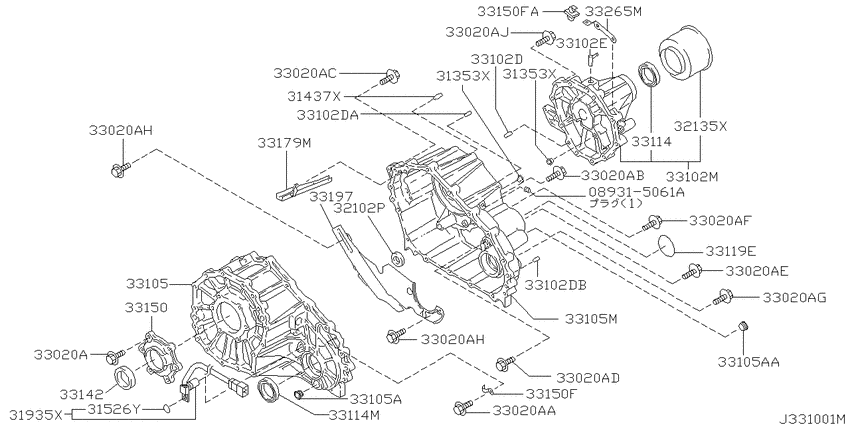

Transfer case (2000-08-01 ~ ; 4WD.VQ35DE) Diagram Nissan ELGRAND
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089315061A
|
089315061A
089315061A
Plug-Taper
|
089315061A |
— | ||
|
31353X
|
31353X
31353-0W410 Bush0008--01 ~ ; 4WD.VQ35DE |
31353-0W410 |
US $5.18 |
||
|
31353X
|
31353X
31353-0W410 Bush0008--01 ~ ; 4WD.VQ35DE |
31353-0W410 |
US $5.18 |
||
|
31437X
|
31437X
31437-0W410 Spacer0008--01 ~ ; 4WD.VQ35DE |
31437-0W410 |
US $2.45 |
||
|
31526Y
|
31526Y
31526-27X01 Seal-O Ring0008--01 ~ ; 4WD.VQ35DE |
31526-27X01 |
US $4.18 |
||
|
31935X
|
31935X
31935-0W420 Sensor Assy-Revolution0008--01 ~ ; 4WD.VQ35DE |
31935-0W420 |
US $119.76 |
||
|
32102P
|
32102P
31379-01X01 Magnet0008--01 ~ ; 4WD.VQ35DE |
31379-01X01 |
US $7.20 |
||
|
32135X
|
32135X
33141-33G01 Cover-Dust, Transfer0008--01 ~ ; 4WD.VQ35DE |
33141-33G01 |
US $15.26 |
||
|
33020A
|
33020A
31377-0W410 Bolt0008--01 ~ 0012--01; 4WD.VQ35DE |
31377-0W410 |
US $3.46 |
||
| replacement | |||||
|
33020A
|
33020A
31377-0W41A Bolt0008--01 ~ 0012--01; 4WD.VQ35DE |
31377-0W41A |
US $3.46 |
||
|
33020A
|
33020A
31377-0W411 Bolt0012--01 ~ ; 4WD.VQ35DE |
31377-0W411 |
US $3.46 |
||
| replacement | |||||
|
33020A
|
33020A
31377-0W41A Bolt0012--01 ~ ; 4WD.VQ35DE |
31377-0W41A |
US $3.46 |
||
|
33020A
|
33020A
01121-04911 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-04911 |
US $0.86 |
||
|
33020A
|
33020A
01121-02691 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-02691 |
US $1.73 |
||
|
33020A
|
33020A
31377-0W420 Bolt0008--01 ~ 0012--01; 4WD.VQ35DE |
31377-0W420 |
US $3.46 |
||
|
33020A
|
33020A
31377-0W421 Bolt0012--01 ~ ; 4WD.VQ35DE |
31377-0W421 |
US $3.46 |
||
|
33020A
|
33020A
01121-03701 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-03701 |
US $0.86 |
||
|
33020A
|
33020A
01121-02691 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-02691 |
US $1.73 |
||
|
33020A
|
33020A
31377-0W415 Bolt0008--01 ~ 0012--01; 4WD.VQ35DE |
31377-0W415 |
US $3.46 |
||
|
33020A
|
33020A
31377-0W416 Bolt0012--01 ~ ; 4WD.VQ35DE |
31377-0W416 |
US $3.46 |
||
|
33020A
|
33020A
01121-04911 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-04911 |
US $0.86 |
||
|
33020A
|
33020A
01121-04901 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-04901 |
US $3.46 |
||
|
33020A
|
33020A
31377-0W420 Bolt0008--01 ~ 0012--01; 4WD.VQ35DE |
31377-0W420 |
US $3.46 |
||
|
33020A
|
33020A
31377-0W421 Bolt0012--01 ~ ; 4WD.VQ35DE |
31377-0W421 |
US $3.46 |
||
|
33020AA
|
33020AA
01121-04911 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-04911 |
US $0.86 |
||
|
33020AB
|
33020AB
01121-02691 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-02691 |
US $1.73 |
||
|
33020AC
|
33020AC
31377-0W420 Bolt0008--01 ~ 0012--01; 4WD.VQ35DE |
31377-0W420 |
US $3.46 |
||
|
33020AC
|
33020AC
31377-0W421 Bolt0012--01 ~ ; 4WD.VQ35DE |
31377-0W421 |
US $3.46 |
||
|
33020AD
|
33020AD
01121-03701 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-03701 |
US $0.86 |
||
|
33020AE
|
33020AE
01121-02691 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-02691 |
US $1.73 |
||
|
33020AF
|
33020AF
31377-0W415 Bolt0008--01 ~ 0012--01; 4WD.VQ35DE |
31377-0W415 |
US $3.46 |
||
|
33020AF
|
33020AF
31377-0W416 Bolt0012--01 ~ ; 4WD.VQ35DE |
31377-0W416 |
US $3.46 |
||
|
33020AG
|
33020AG
01121-04911 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-04911 |
US $0.86 |
||
|
33020AH
|
33020AH
01121-04901 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-04901 |
US $3.46 |
||
|
33020AH
|
33020AH
01121-04901 BOLT0008--01 ~ ; 4WD.VQ35DE |
01121-04901 |
US $3.46 |
||
|
33020AJ
|
33020AJ
31377-0W420 Bolt0008--01 ~ 0012--01; 4WD.VQ35DE |
31377-0W420 |
US $3.46 |
||
|
33020AJ
|
33020AJ
31377-0W421 Bolt0012--01 ~ ; 4WD.VQ35DE |
31377-0W421 |
US $3.46 |
||
|
33102D
|
33102D
32105-C6901 Pin0008--01 ~ ; 4WD.VQ35DE |
32105-C6901 |
US $4.71 |
||
|
33102D
|
33102D
04651-0818P Pin-Dowel0008--01 ~ ; 4WD.VQ35DE |
04651-0818P |
US $2.45 |
||
|
33102D
|
33102D
32105-C6901 Pin0008--01 ~ ; 4WD.VQ35DE |
32105-C6901 |
US $4.71 |
||
|
33102DA
|
33102DA
04651-0818P Pin-Dowel0008--01 ~ ; 4WD.VQ35DE |
04651-0818P |
US $2.45 |
||
|
33102DB
|
33102DB
32105-C6901 Pin0008--01 ~ ; 4WD.VQ35DE |
32105-C6901 |
US $4.71 |
||
|
33102E
|
33102E
38322-0W410 Breather0008--01 ~ ; 4WD.VQ35DE |
38322-0W410 |
US $10.80 |
||
|
33102M
|
33102M
33102-VE010 Case-Transfer, Rear0008--01 ~ ; 4WD.VQ35DE |
33102-VE010 |
US $430.46 |
||
|
33105
|
33105
33107-VE010 Case-Transfer, Front0008--01 ~ ; 4WD.VQ35DE |
33107-VE010 |
US $327.10 |
||
|
33105
|
33105
33312-23U00 Plug0008--01 ~ ; 4WD.VQ35DE |
33312-23U00 |
US $1.73 |
||
| replacement | |||||
|
33105
|
33105
3331223U0A Plug0008--01 ~ ; 4WD.VQ35DE |
3331223U0A |
US $1.73 |
||
|
33105
|
33105
33312-23U00 Plug0008--01 ~ ; 4WD.VQ35DE |
33312-23U00 |
US $1.73 |
||
| replacement | |||||
|
33105
|
33105
3331223U0A Plug0008--01 ~ ; 4WD.VQ35DE |
3331223U0A |
US $1.73 |
||
|
33105
|
33105
33105-0W411 Case-Transfer, Center0008--01 ~ ; 4WD.VQ35DE |
33105-0W411 |
US $345.50 |
||
|
33105A
|
33105A
33312-23U00 Plug0008--01 ~ ; 4WD.VQ35DE |
33312-23U00 |
US $1.73 |
||
| replacement | |||||
|
33105A
|
33105A
3331223U0A Plug0008--01 ~ ; 4WD.VQ35DE |
3331223U0A |
US $1.73 |
||
|
33105A
|
33105A
33312-23U00 Plug0008--01 ~ ; 4WD.VQ35DE |
33312-23U00 |
US $1.73 |
||
| replacement | |||||
|
33105A
|
33105A
3331223U0A Plug0008--01 ~ ; 4WD.VQ35DE |
3331223U0A |
US $1.73 |
||
|
33105AA
|
33105AA
33312-23U00 Plug0008--01 ~ ; 4WD.VQ35DE |
33312-23U00 |
US $1.73 |
||
| replacement | |||||
|
33105AA
|
33105AA
3331223U0A Plug0008--01 ~ ; 4WD.VQ35DE |
3331223U0A |
US $1.73 |
||
|
33105M
|
33105M
33105-0W411 Case-Transfer, Center0008--01 ~ ; 4WD.VQ35DE |
33105-0W411 |
US $345.50 |
||
|
33114
|
33114
33140-33G02
Seal-Oil, Transfer Case
0008--01 ~ 0010--01; 4WD.VQ35DE |
33140-33G02 |
— | ||
| replacement | |||||
|
33114
|
33114
3314233G10 Seal-Oil, Transfer Case0008--01 ~ 0010--01; 4WD.VQ35DE |
3314233G10 |
from US $5.22 |
||
|
33114
|
33114
3314233G10 Seal-Oil, Transfer Case0010--01 ~ ; 4WD.VQ35DE |
3314233G10 |
from US $5.22 |
||
|
33114
|
33114
33216-33G00
Seal-Oil, Transfer Case
0008--01 ~ ; 4WD.VQ35DE |
33216-33G00 |
— | ||
| replacement | |||||
|
33114
|
33114
3321633G01 Seal-Oil, Transfer Case0008--01 ~ ; 4WD.VQ35DE |
3321633G01 |
from US $7.54 |
||
|
33114M
|
33114M
33216-33G00
Seal-Oil, Transfer Case
0008--01 ~ ; 4WD.VQ35DE |
33216-33G00 |
— | ||
| replacement | |||||
|
33114M
|
33114M
3321633G01 Seal-Oil, Transfer Case0008--01 ~ ; 4WD.VQ35DE |
3321633G01 |
from US $7.54 |
||
|
33119E
|
33119E
33157-0W415 Seal-O Ring0008--01 ~ ; 4WD.VQ35DE |
33157-0W415 |
US $2.45 |
||
|
33142
|
33142
31375-51X00
Seal-Oil Pump Housing
0008--01 ~ ; 4WD.VQ35DE |
31375-51X00 |
— | ||
| replacement | |||||
|
33142
|
33142
3137551X03 Seal-Oil Pump Housing0008--01 ~ ; 4WD.VQ35DE |
3137551X03 |
from US $3.43 |
||
|
33150
|
33150
33117-0W410 Cover-Case, Transfer0008--01 ~ ; 4WD.VQ35DE |
33117-0W410 |
US $115.34 |
||
|
33150
|
33150
24210-01W07 Clip-Wiring Harness0008--01 ~ ; 4WD.VQ35DE |
24210-01W07 |
US $2.45 |
||
| replacement | |||||
|
33150
|
33150
24210-01W0A
Clip
0008--01 ~ ; 4WD.VQ35DE |
24210-01W0A |
— | ||
|
33150
|
33150
24220-0W410 Clip0008--01 ~ ; 4WD.VQ35DE |
24220-0W410 |
US $1.73 |
||
|
33150F
|
33150F
24210-01W07 Clip-Wiring Harness0008--01 ~ ; 4WD.VQ35DE |
24210-01W07 |
US $2.45 |
||
| replacement | |||||
|
33150F
|
33150F
24210-01W0A
Clip
0008--01 ~ ; 4WD.VQ35DE |
24210-01W0A |
— | ||
|
33150F
|
33150F
24220-0W410 Clip0008--01 ~ ; 4WD.VQ35DE |
24220-0W410 |
US $1.73 |
||
|
33150FA
|
33150FA
24220-0W410 Clip0008--01 ~ ; 4WD.VQ35DE |
24220-0W410 |
US $1.73 |
||
|
33179M
|
33179M
33179-0W410 Gutter-Oil0008--01 ~ ; 4WD.VQ35DE |
33179-0W410 |
US $7.06 |
||
|
33197
|
33197
33108-0W410 Plate-Baffle0008--01 ~ ; 4WD.VQ35DE |
33108-0W410 |
US $2.45 |
||
|
33265M
|
33265M
33265-0W411 Bracket-Transfer Cable0008--01 ~ ; 4WD.VQ35DE |
33265-0W411 |
US $8.06 |
||
| replacement | |||||
|
33265M
|
33265M
33265-0W41A Bracket-Transfer Cable0008--01 ~ ; 4WD.VQ35DE |
33265-0W41A |
US $8.06 |
||
