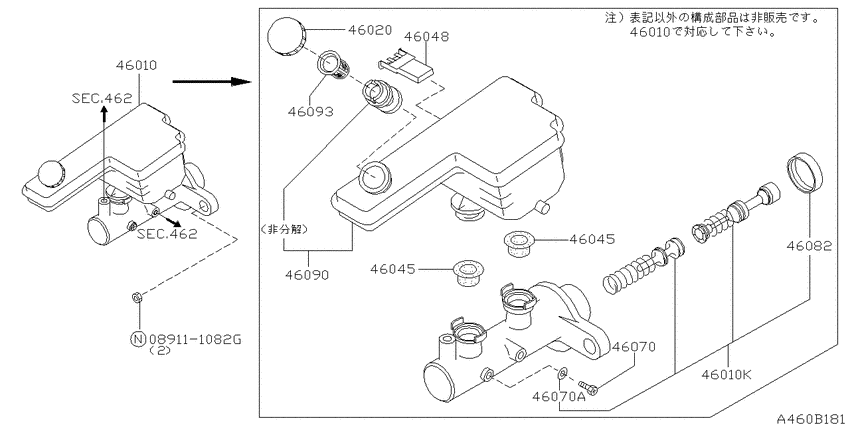

Brake master cylinder (1999-08-01 ~ 2000-08-01; ZD30DDTI) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
46010
|
46010
46010VE401 Cylinder Assy-Brake Master9908--01 ~ 0008--01; ZD30DDTI; TOKICO 1(25.40) |
46010VE401 |
US $539.50 |
||
|
46010
|
46010
46011-0W928 Piston Kit-Tandem Brake Master Cylinder0003--01 ~ 0008--01; ZD30DDTI; TOKICO 1(25.40) |
46011-0W928 |
US $91.58 |
||
|
46010
|
46010
46011-14Y26 Piston Kit-Tandem Brake Master Cylinder9908--01 ~ 0003--01; ZD30DDTI; TOKICO 1(25.40) |
46011-14Y26 |
US $91.58 |
||
| replacement | |||||
|
46010
|
46010
D601114Y26 Piston Kit-Tandem Brake Master Cylinder9908--01 ~ 0003--01; ZD30DDTI; TOKICO 1(25.40) |
D601114Y26 |
US $102.43 |
||
|
46010
|
46010
46010VE401 Cylinder Assy-Brake Master9908--01 ~ 0008--01; ZD30DDTI; TOKICO 1(25.40) |
46010VE401 |
US $539.50 |
||
|
46010
|
46010
46011-0W928 Piston Kit-Tandem Brake Master Cylinder0003--01 ~ 0008--01; ZD30DDTI; TOKICO 1(25.40) |
46011-0W928 |
US $91.58 |
||
|
46010
|
46010
46011-14Y26 Piston Kit-Tandem Brake Master Cylinder9908--01 ~ 0003--01; ZD30DDTI; TOKICO 1(25.40) |
46011-14Y26 |
US $91.58 |
||
| replacement | |||||
|
46010
|
46010
D601114Y26 Piston Kit-Tandem Brake Master Cylinder9908--01 ~ 0003--01; ZD30DDTI; TOKICO 1(25.40) |
D601114Y26 |
US $102.43 |
||
|
46010K
|
46010K
46011-0W928 Piston Kit-Tandem Brake Master Cylinder0003--01 ~ 0008--01; ZD30DDTI; TOKICO 1(25.40) |
46011-0W928 |
US $91.58 |
||
|
46010K
|
46010K
46011-14Y26 Piston Kit-Tandem Brake Master Cylinder9908--01 ~ 0003--01; ZD30DDTI; TOKICO 1(25.40) |
46011-14Y26 |
US $91.58 |
||
| replacement | |||||
|
46010K
|
46010K
D601114Y26 Piston Kit-Tandem Brake Master Cylinder9908--01 ~ 0003--01; ZD30DDTI; TOKICO 1(25.40) |
D601114Y26 |
US $102.43 |
||
|
46020
|
46020
46020VE400 Cap Assy-Oil Reservoir Tank9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46020VE400 |
US $17.71 |
||
|
46045
|
46045
46045W1010 Seal-Reservoir Tank9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46045W1010 |
from US $3.07 |
||
|
46045
|
46045
46045W1010 Seal-Reservoir Tank9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46045W1010 |
from US $3.07 |
||
|
46048
|
46048
46048-64J01 Indicator Assy-Level9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46048-64J01 |
US $42.91 |
||
|
46070
|
46070
46032-70T00 Screw-Stopper9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46032-70T00 |
US $4.18 |
||
|
46070
|
46070
46079-W1010 Packing-Stopper Screw9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46079-W1010 |
US $2.45 |
||
|
46070A
|
46070A
46079-W1010 Packing-Stopper Screw9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46079-W1010 |
US $2.45 |
||
|
46082
|
46082
4608201A11
Retainer-Piston
9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
4608201A11 |
— | ||
| replacement | |||||
|
46082
|
46082
46082-01A1A Ring-Snap9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46082-01A1A |
US $2.43 |
||
|
46090
|
46090
46091-VE400 Tank-Oil Reservoir9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46091-VE400 |
US $48.38 |
||
|
46093
|
46093
46093-0T001 Strainer-Brake Oil9908--01 ~ 0008--01; ZD30DDTI; TOKICO |
46093-0T001 |
US $9.79 |
||
|
