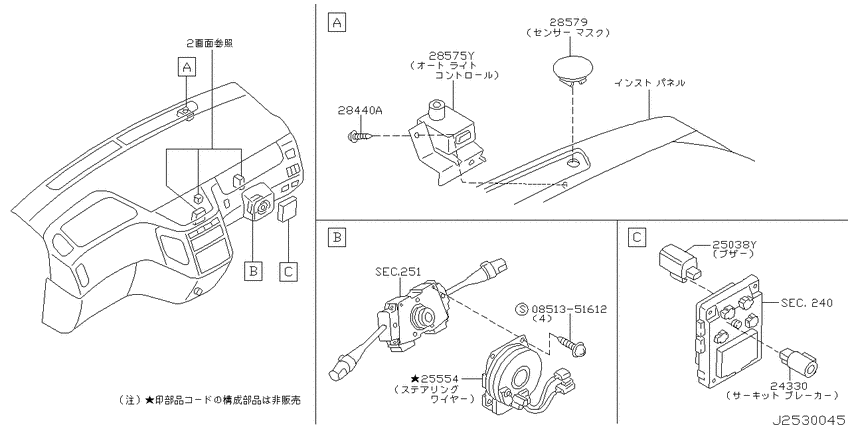

Electrical unit (1999-08-01 ~ 2000-08-01; ｲﾝｽﾄ(1); K) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851351612
|
0851351612
08513-51612 SCREW |
08513-51612 |
US $2.21 |
||
|
24330
|
24330
24330C9900 Breaker Assy-Circuit, Power Window0008--01 ~ ; K |
24330C9900 |
from US $22.32 |
||
|
24330
|
24330
24330C9960 Breaker Assy-Circuit, Power Window9908--01 ~ 0008--01; K |
24330C9960 |
from US $13.10 |
||
|
25038Y
|
25038Y
26350-5V000 Buzzer Assy-Warning9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
26350-5V000 |
US $50.26 |
||
|
25554
|
25554
255545L325
Wire Assy-Steering Air Bag
0008--01 ~ ; K |
255545L325 |
— | ||
| replacement | |||||
|
25554
|
25554
B5554-5L325 Wire assy-steering air bag0008--01 ~ ; K |
B5554-5L325 |
from US $173.92 |
||
|
25554
|
25554
25554-5L326 Wire Assy-Steering Air Bag9908--01 ~ 0008--01; K.8P.X +K.7P |
25554-5L326 |
US $214.56 |
||
|
28440A
|
28440A
0145100581 SCREW9908--01 ~ 0008--01; K.8P.X +K.7P +K.V |
0145100581 |
from US $1.67 |
||
|
28575Y
|
28575Y
28575-VE000 Control Assy-Auto Light9908--01 ~ 0008--01; K.8P.X +K.7P +K.V |
28575-VE000 |
US $295.94 |
||
|
28575Y
|
28575Y
28575-VG200 Control Assy-Auto Light0008--01 ~ ; K |
28575-VG200 |
US $295.94 |
||
|
28579
|
28579
28579-4P000 Mask-Sensor9908--01 ~ 0008--01; K.8P.X +K.7P +K.V |
28579-4P000 |
US $19.15 |
||
