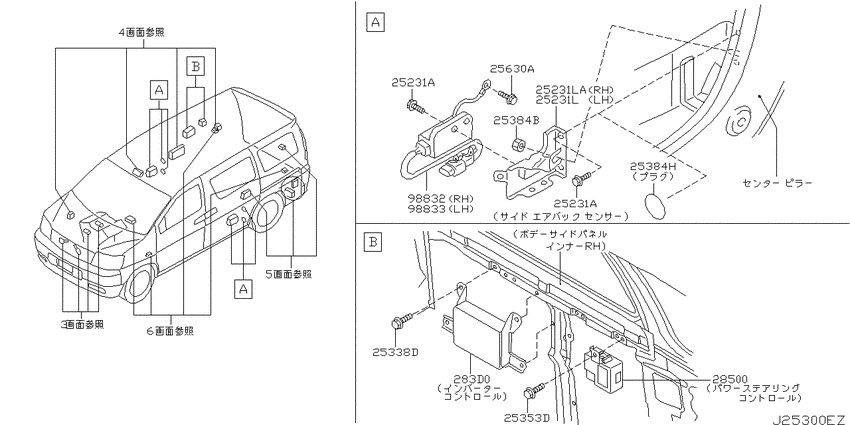

Electrical unit (1999-08-01 ~ 2000-08-01; ﾎﾞﾃﾞ-(4); K) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25231A
|
25231A
01141-00321 BOLT9908--01 ~ 0008--01; K |
01141-00321 |
US $3.46 |
||
|
25231A
|
25231A
01141-00321 BOLT9908--01 ~ 0008--01; K |
01141-00321 |
US $3.46 |
||
|
25231L
|
25231L
74387-VE700 Bracket9908--01 ~ 0008--01; *K |
74387-VE700 |
US $84.38 |
||
|
25231L
|
25231L
74387-VE701 Bracket9908--01 ~ 0008--01; *K |
74387-VE701 |
US $84.38 |
||
|
25231LA
|
25231LA
74387-VE701 Bracket9908--01 ~ 0008--01; *K |
74387-VE701 |
US $84.38 |
||
|
25338D
|
25338D
0146600051 SCREW9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
0146600051 |
US $0.82 |
||
|
25353D
|
25353D
0146600051 SCREW0008--01 ~ ; K |
0146600051 |
US $0.82 |
||
|
25384B
|
25384B
01225-00871 NUT9908--01 ~ 0008--01; *K |
01225-00871 |
from US $0.50 |
||
|
25384H
|
25384H
64891W5000 Plug-Rubber9908--01 ~ 0008--01; K |
64891W5000 |
from US $0.80 |
||
|
25630A
|
25630A
0145600031 SCREW9908--01 ~ 0008--01; K |
0145600031 |
from US $1.11 |
||
|
283D0
|
283D0
283D0-VG000 Control Assy-Inverter9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
283D0-VG000 |
US $387.98 |
||
|
28500
|
28500
28500-VG010 Control Assy-Power Steering0008--01 ~ ; K.ZD30DDTI |
28500-VG010 |
US $1,281.48 |
||
|
98832
|
98832
98832-VE725 ｾﾝｻｰ,ｻｲﾄﾞ ｴｱｰ ﾊﾞﾂｸﾞ rh9908--01 ~ 0008--01; *K |
98832-VE725 |
US $337.01 |
||
|
98833
|
98833
98833-VE725 ｾﾝｻｰ,ｻｲﾄﾞ ｴｱｰ ﾊﾞﾂｸﾞ lh9908--01 ~ 0008--01; *K |
98833-VE725 |
US $337.01 |
