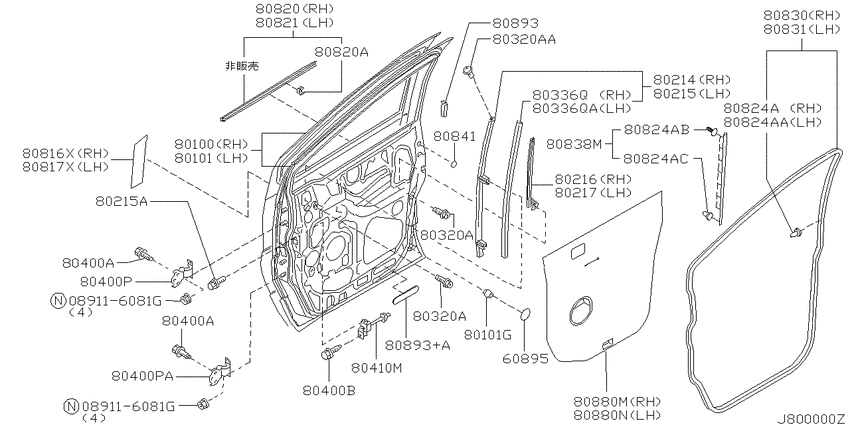

Front door panel & fitting (1999-08-01 ~ 2000-08-01; K) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
60895
|
60895
60895-01A01
Seal-Stopper
9908--01 ~ 0008--01; K |
60895-01A01 |
— | ||
| replacement | |||||
|
60895
|
60895
26320G5100 Protector-Headlamp9908--01 ~ 0008--01; K |
26320G5100 |
US $4.16 |
||
|
80100
|
80100
H0100VG0AM Door-Front, Rh0004--01 ~ 0008--01; K |
H0100VG0AM |
US $1,281.48 |
||
|
80100
|
80100
H0100-VG0MM ﾄﾞｱ,ﾌﾛﾝﾄ rh9908--01 ~ 0004--01; K |
H0100-VG0MM |
US $1,281.48 |
||
|
80100
|
80100
0122500193 NUT0008--01 ~ ; K |
0122500193 |
US $0.86 |
||
|
80101
|
80101
H0101-VE001 ﾄﾞｱ,ﾌﾛﾝﾄ lh9908--01 ~ 0004--01; K |
H0101-VE001 |
US $1,281.48 |
||
|
80101
|
80101
H0101VE0AM Door-Front, Lh0004--01 ~ 0008--01; K |
H0101VE0AM |
US $890.66 |
||
|
80101
|
80101
80872D0100
Bumper Rubber-Door
9908--01 ~ 0008--01; K |
80872D0100 |
— | ||
| replacement | |||||
|
80101
|
80101
80872D0101 Bumper Rubber-Door9908--01 ~ 0008--01; K |
80872D0101 |
US $4.85 |
||
|
80101G
|
80101G
80872D0100
Bumper Rubber-Door
9908--01 ~ 0008--01; K |
80872D0100 |
— | ||
| replacement | |||||
|
80101G
|
80101G
80872D0101 Bumper Rubber-Door9908--01 ~ 0008--01; K |
80872D0101 |
US $4.85 |
||
|
80214
|
80214
80254VE000 Sash Assy-Front Door, Front Rh9908--01 ~ 0008--01; K |
80254VE000 |
US $64.66 |
||
|
80215
|
80215
80255-VE000 Sash Assy-Front Door, Front Lh9908--01 ~ 0008--01; K |
80255-VE000 |
US $64.66 |
||
|
80215
|
80215
01125-00503 BOLT9908--01 ~ 0008--01; K |
01125-00503 |
US $2.45 |
||
|
80215A
|
80215A
01125-00503 BOLT9908--01 ~ 0008--01; K |
01125-00503 |
US $2.45 |
||
|
80216
|
80216
80216VE001 Sash Assy-Front Door, Rear Rh9908--01 ~ 0008--01; K |
80216VE001 |
US $31.10 |
||
|
80217
|
80217
80217-VE001 Sash Assy-Front Door, Rear Lh9908--01 ~ 0008--01; K |
80217-VE001 |
US $31.10 |
||
|
80320A
|
80320A
0112503241 BOLT9908--01 ~ 0008--01; K |
0112503241 |
US $1.73 |
||
|
80320A
|
80320A
80899-0M000 Bolt9908--01 ~ 0008--01; K |
80899-0M000 |
US $1.73 |
||
| replacement | |||||
|
80320A
|
80320A
80899-0M00A
Screw
9908--01 ~ 0008--01; K |
80899-0M00A |
— | ||
|
80320A
|
80320A
0112503241 BOLT9908--01 ~ 0008--01; K |
0112503241 |
US $1.73 |
||
|
80320A
|
80320A
80899-0M000 Bolt9908--01 ~ 0008--01; K |
80899-0M000 |
US $1.73 |
||
| replacement | |||||
|
80320A
|
80320A
80899-0M00A
Screw
9908--01 ~ 0008--01; K |
80899-0M00A |
— | ||
|
80320AA
|
80320AA
80899-0M000 Bolt9908--01 ~ 0008--01; K |
80899-0M000 |
US $1.73 |
||
| replacement | |||||
|
80320AA
|
80320AA
80899-0M00A
Screw
9908--01 ~ 0008--01; K |
80899-0M00A |
— | ||
|
80336Q
|
80336Q
80384VE000 Glass Run-Front Door Lower Sash, Front9908--01 ~ 0008--01; K |
80384VE000 |
US $14.16 |
||
|
80336Q
|
80336Q
80385VE000 Glass Run-Front Door Lower Sash, Front9908--01 ~ 0008--01; K |
80385VE000 |
US $14.16 |
||
|
80336QA
|
80336QA
80385VE000 Glass Run-Front Door Lower Sash, Front9908--01 ~ 0008--01; K |
80385VE000 |
US $14.16 |
||
|
80400A
|
80400A
01121-01063 BOLT9908--01 ~ 0008--01; K |
01121-01063 |
US $1.73 |
||
|
80400A
|
80400A
01121-01063 BOLT9908--01 ~ 0008--01; K |
01121-01063 |
US $1.73 |
||
|
80400B
|
80400B
80498-VE000 Bolt9908--01 ~ 0008--01; K |
80498-VE000 |
US $2.45 |
||
|
80400P
|
80400P
80400VE000 Hinge Assy-Front Door9908--01 ~ 0008--01; K; UPR RH & LH |
80400VE000 |
US $29.52 |
||
| replacement | |||||
|
80400P
|
80400P
80400-VE09A Hinge Assy-Front Door9908--01 ~ 0008--01; K; UPR RH & LH |
80400-VE09A |
US $29.52 |
||
|
80400P
|
80400P
80420VE000
Hinge Assy-Front Door
9908--01 ~ 0008--01; K; LWR RH & LH |
80420VE000 |
— | ||
| replacement | |||||
|
80400P
|
80400P
80420-VE09A Hinge Assy-Front Door9908--01 ~ 0008--01; K; LWR RH & LH |
80420-VE09A |
US $38.12 |
||
|
80400PA
|
80400PA
80420VE000
Hinge Assy-Front Door
9908--01 ~ 0008--01; K; LWR RH & LH |
80420VE000 |
— | ||
| replacement | |||||
|
80400PA
|
80400PA
80420-VE09A Hinge Assy-Front Door9908--01 ~ 0008--01; K; LWR RH & LH |
80420-VE09A |
US $38.12 |
||
|
80410M
|
80410M
80430-VE000 Link-Door Stopper9908--01 ~ 0008--01; K |
80430-VE000 |
US $22.61 |
||
|
80816X
|
80816X
80816-VE000 Tape-Front Door Sash Front, Rh9908--01 ~ 0008--01; K |
80816-VE000 |
US $4.32 |
||
|
80817X
|
80817X
80817-VE000 Tape-Front Door Sash Front, Lh9908--01 ~ 0008--01; K |
80817-VE000 |
US $4.32 |
||
|
80820
|
80820
80820VE001 Moulding Assy-Front Door Outside, Rh9908--01 ~ 0008--01; K |
80820VE001 |
US $83.23 |
||
|
80820
|
80820
80826-VE000 Clip9908--01 ~ 0008--01; K |
80826-VE000 |
US $1.73 |
||
|
80820A
|
80820A
80826-VE000 Clip9908--01 ~ 0008--01; K |
80826-VE000 |
US $1.73 |
||
|
80821
|
80821
80821VE001 Moulding Assy-Front Door Outside, Lh9908--01 ~ 0008--01; K |
80821VE001 |
US $83.23 |
||
|
80824A
|
80824A
80850-VE002 Clip-Weatherstrip9908--01 ~ 0008--01; K; RH ﾌﾞﾗｳﾝ |
80850-VE002 |
US $0.86 |
||
|
80824A
|
80824A
80850-VE003 Clip-Weatherstrip9908--01 ~ 0008--01; K; RH ｼﾛ |
80850-VE003 |
US $0.86 |
||
|
80824A
|
80824A
80850-VE002 Clip-Weatherstrip9908--01 ~ 0008--01; K; LH BROWN |
80850-VE002 |
US $0.86 |
||
|
80824A
|
80824A
80850-VE003 Clip-Weatherstrip9908--01 ~ 0008--01; K; LH ﾎﾜｲﾄ |
80850-VE003 |
US $0.86 |
||
|
80824A
|
80824A
80850-VE000 ｸﾘﾂﾌﾟ,ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ9908--01 ~ 0008--01; K |
80850-VE000 |
US $1.44 |
||
|
80824A
|
80824A
80850-VE001 Clip9908--01 ~ 0008--01; K |
80850-VE001 |
US $1.01 |
||
|
80824AA
|
80824AA
80850-VE002 Clip-Weatherstrip9908--01 ~ 0008--01; K; LH BROWN |
80850-VE002 |
US $0.86 |
||
|
80824AA
|
80824AA
80850-VE003 Clip-Weatherstrip9908--01 ~ 0008--01; K; LH ﾎﾜｲﾄ |
80850-VE003 |
US $0.86 |
||
|
80824AB
|
80824AB
80850-VE000 ｸﾘﾂﾌﾟ,ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ9908--01 ~ 0008--01; K |
80850-VE000 |
US $1.44 |
||
|
80824AC
|
80824AC
80850-VE001 Clip9908--01 ~ 0008--01; K |
80850-VE001 |
US $1.01 |
||
|
80830
|
80830
80830VE002 Weatherstrip-Front Door, Rh9908--01 ~ 0008--01; K |
80830VE002 |
US $75.74 |
||
|
80831
|
80831
80831VE002 Weatherstrip-Front Door, Lh9908--01 ~ 0008--01; K |
80831VE002 |
US $75.74 |
||
|
80838M
|
80838M
80838-VE002 ｼ-ﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ﾊﾟ-ﾃｲﾝｸﾞ rh9908--01 ~ 0008--01; K |
80838-VE002 |
US $43.92 |
||
|
80838M
|
80838M
80838VE003 ｼ-ﾙ0107--01 ~ ; K |
80838VE003 |
US $43.92 |
||
|
80841
|
80841
648990M000 Cover-Hole9908--01 ~ 0008--01; K |
648990M000 |
US $1.46 |
||
| replacement | |||||
|
80841
|
80841
H0895R8000 Plug-Rubber9908--01 ~ 0008--01; K |
H0895R8000 |
from US $7.63 |
||
|
80880M
|
80880M
80860VE000 Screen-Sealing, Front Rh9908--01 ~ 0008--01; K |
80860VE000 |
US $13.39 |
||
|
80880N
|
80880N
80861VE000 Screen-Sealing, Front Lh9908--01 ~ 0008--01; K |
80861VE000 |
US $13.39 |
||
|
80893
|
80893
800002S401 Protector-Front Door9908--01 ~ 0008--01; K |
800002S401 |
US $31.10 |
||
|
80893
|
80893
80898VE700 Protector-Front Door9908--01 ~ 0008--01; K |
80898VE700 |
US $31.10 |
||
|
80893+A
|
80893+A
80898VE700 Protector-Front Door9908--01 ~ 0008--01; K |
80898VE700 |
US $31.10 |
||
