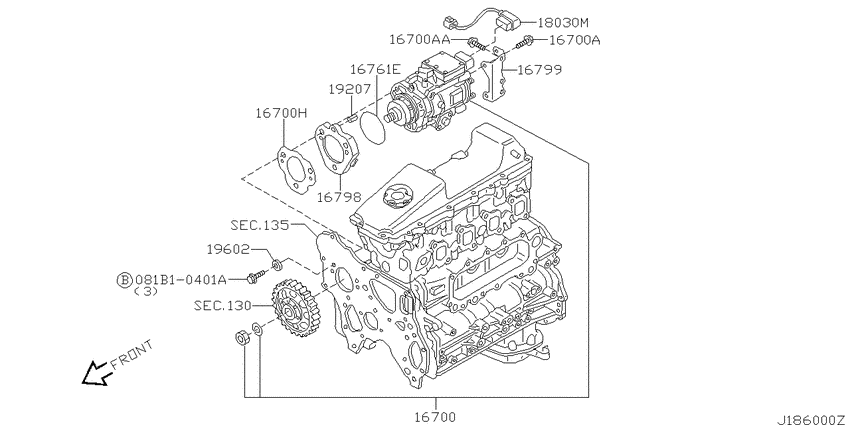

Fuel injection pump (1999-08-01 ~ 2000-08-01; ZD30DDTI) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B10401A
|
081B10401A
081B1-0401A
BOLTFLANGE
|
081B1-0401A |
— | ||
|
130
|
Camshaft & valve mechanism
130
|
||||
|
130
|
Camshaft & valve mechanism
130
|
||||
|
130
|
Camshaft & valve mechanism
130
|
||||
|
135
|
Front cover & fitting
135
|
||||
|
135
|
Front cover & fitting
135
|
||||
|
135
|
Front cover & fitting
135
|
||||
|
135
|
Front cover & fitting
135
|
||||
|
16700
|
16700
16700-VG100 Pump Assy-Injection9908--01 ~ 0008--01; ZD30DDTI |
16700-VG100 |
US $5,780.78 |
||
|
16700
|
16700
01125-08164 BOLT-BALANCE SHAFT9908--01 ~ 0008--01; ZD30DDTI |
01125-08164 |
US $2.02 |
||
|
16700
|
16700
01125-08164 BOLT-BALANCE SHAFT9908--01 ~ 0008--01; ZD30DDTI |
01125-08164 |
US $2.02 |
||
|
16700
|
16700
167012W200 Gasket-Injection Pump9908--01 ~ 0008--01; ZD30DDTI |
167012W200 |
from US $7.49 |
||
|
16700A
|
16700A
01125-08164 BOLT-BALANCE SHAFT9908--01 ~ 0008--01; ZD30DDTI |
01125-08164 |
US $2.02 |
||
|
16700A
|
16700A
01125-08164 BOLT-BALANCE SHAFT9908--01 ~ 0008--01; ZD30DDTI |
01125-08164 |
US $2.02 |
||
|
16700AA
|
16700AA
01125-08164 BOLT-BALANCE SHAFT9908--01 ~ 0008--01; ZD30DDTI |
01125-08164 |
US $2.02 |
||
|
16700H
|
16700H
167012W200 Gasket-Injection Pump9908--01 ~ 0008--01; ZD30DDTI |
167012W200 |
from US $7.49 |
||
|
16761E
|
16761E
16781AD200
O Ring
9908--01 ~ 0008--01; ZD30DDTI |
16781AD200 |
— | ||
| replacement | |||||
|
16761E
|
16761E
16781-AD20A Seal-O Ring9908--01 ~ 0008--01; ZD30DDTI |
16781-AD20A |
from US $5.31 |
||
|
16798
|
16798
16816-2W200 Spacer9908--01 ~ 0008--01; ZD30DDTI |
16816-2W200 |
US $41.18 |
||
|
16799
|
16799
16811-2W203 Bracket-Injection9908--01 ~ 0008--01; ZD30DDTI |
16811-2W203 |
US $27.94 |
||
|
18030M
|
18030M
240122W200 Harness Sub9908--01 ~ 0008--01; ZD30DDTI |
240122W200 |
US $82.37 |
||
|
19207
|
19207
16756-AD200 Pin-Guide9908--01 ~ 0008--01; ZD30DDTI |
16756-AD200 |
US $9.65 |
||
|
19602
|
19602
167392W200 Washer9908--01 ~ 0008--01; ZD30DDTI |
167392W200 |
from US $1.87 |
||
