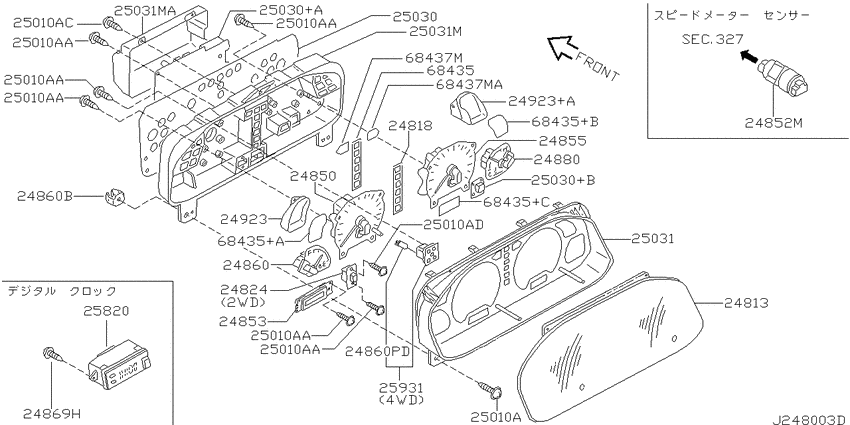

meter & gauge (1999-08-01 ~ 2000-08-01; フロント ビュー; K.8P.X +K.7P) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24813
|
24813
24813VE760 Cover-Front Meter9908--01 ~ 0008--01; K.8P.X +K.7P |
24813VE760 |
US $44.78 |
||
|
24813
|
24813
24813VG260 Cover-Front Meter0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24813VG260 |
US $37.58 |
||
|
24813
|
24813
24823-VG260 Cover-Front Meter0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24823-VG260 |
US $37.58 |
||
|
24818
|
24818
24881-VG060 Guide-Light9908--01 ~ 0008--01; K.8P.X +K.7P |
24881-VG060 |
US $29.52 |
||
|
24818
|
24818
24881-VG260 Guide-Light0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24881-VG260 |
US $24.77 |
||
|
24818
|
24818
24881-VG201 Guide-Light0008--01 ~ ; 6K.2WD.7P +K.2WD.8P.VQ35DE.X +K.2WD.ZD30DDTI.X +K.2WD.V |
24881-VG201 |
US $29.52 |
||
|
24824
|
24824
24824-VE470 Switch Assy9908--01 ~ 0008--01; K.2WD.8P.X +K.2WD.7P |
24824-VE470 |
US $56.45 |
||
|
24850
|
24850
24820-VE060 Speedometer Assy9908--01 ~ 0008--01; &K.2WD.8P.ZD30DDTI.X +K.2WD.7P.ZD30DDTI |
24820-VE060 |
US $491.35 |
||
|
24850
|
24850
24820-VG260 Speedometer Assy0008--01 ~ ; K.2WD.ZD30DDTI.X |
24820-VG260 |
US $413.47 |
||
|
24852M
|
24852M
2501045N10 Sensor-Speedometer9908--01 ~ 0008--01; K.8P.X +K.7P |
2501045N10 |
US $118.37 |
||
|
24853
|
24853
24875-VE470 Odo & Tripmeter Assy9908--01 ~ 0008--01; K.8P.X +K.7P |
24875-VE470 |
US $484.27 |
||
|
24855
|
24855
24825-VE060 Tachometer Assy9908--01 ~ 0008--01; K.8P.ZD30DDTI.X +K.7P.ZD30DDTI |
24825-VE060 |
US $601.80 |
||
|
24855
|
24855
24825-VG261 Tachometer Assy0008--01 ~ ; K.ZD30DDTI.X |
24825-VG261 |
US $505.51 |
||
|
24860
|
24860
24830VE470 Meter Assy-Fuel9908--01 ~ 0008--01; K.8P.X +K.7P |
24830VE470 |
US $174.24 |
||
|
24860
|
24860
24830-VG260 Meter Assy-Fuel0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24830-VG260 |
US $146.88 |
||
|
24860
|
24860
68191-51E00
NUT
9908--01 ~ 0008--01; K.8P.X +K.7P |
68191-51E00 |
— | ||
| replacement | |||||
|
24860
|
24860
6819151E0A Nut9908--01 ~ 0008--01; K.8P.X +K.7P |
6819151E0A |
US $1.39 |
||
|
24860
|
24860
248600M000 Socket & Bulb9908--01 ~ 9909--01; K |
248600M000 |
US $14.98 |
||
|
24860
|
24860
248602J000 Socket & Bulb9909--01 ~ 0008--01; K |
248602J000 |
US $7.49 |
||
|
24860
|
24860
2504301B00 Socket & Bulb Assy9908--01 ~ 0008--01; K.8P.X +K.7P |
2504301B00 |
US $4.71 |
||
|
24860
|
24860
24860AN000 Socket & Bulb Assy0008--01 ~ ; K |
24860AN000 |
US $12.67 |
||
|
24860
|
24860
25043D4101 Socket & Bulb Assy9908--01 ~ 0008--01; HK.2WD.8P.ZD30DDTI.X +K.2WD.7P.ZD30DDTI +K.4WD.8P.VG33E.X +K.4WD.7P.VG33E |
25043D4101 |
US $4.18 |
||
|
24860
|
24860
24860AN011 Socket & Bulb Assy0008--01 ~ ; K.ZD30DDTI.X |
24860AN011 |
US $7.20 |
||
|
24860
|
24860
25043VE470 Socket & Bulb Assy9908--01 ~ 0008--01; K.8P.X +K.7P |
25043VE470 |
US $7.63 |
||
|
24860
|
24860
2486039N62 Socket & Bulb Assy0008--01 ~ ; K |
2486039N62 |
US $5.62 |
||
|
24860
|
24860
2486042Y11 Led-Warning9908--01 ~ 0008--01; K.8P.X +K.7P |
2486042Y11 |
US $36.86 |
||
|
24860
|
24860
24860VG260 Socket & Bulb Assy0008--01 ~ ; )K.2WD.7P +K.2WD.8P.VQ35DE.X +K.ZD30DDTI.X |
24860VG260 |
US $12.67 |
||
|
24860
|
24860
24861VG261 Socket & Bulb Assy0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24861VG261 |
US $8.06 |
||
|
24860B
|
24860B
68191-51E00
NUT
9908--01 ~ 0008--01; K.8P.X +K.7P |
68191-51E00 |
— | ||
| replacement | |||||
|
24860B
|
24860B
6819151E0A Nut9908--01 ~ 0008--01; K.8P.X +K.7P |
6819151E0A |
US $1.39 |
||
|
24869H
|
24869H
0145100581 SCREW9908--01 ~ 0008--01; K.8P.X +K.7P |
0145100581 |
from US $0.78 |
||
|
24880
|
24880
24835-VE470 Meter Assy-Water Temperature9908--01 ~ 0008--01; K.8P.X +K.7P |
24835-VE470 |
US $174.24 |
||
|
24880
|
24880
24835-VG260 Meter Assy-Water Temperature0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24835-VG260 |
US $146.88 |
||
|
24923
|
24923
24923-VE460 Case-Unit9908--01 ~ 0008--01; K.8P.X +K.7P |
24923-VE460 |
US $23.18 |
||
|
24923
|
24923
24923-VE470 Case-Unit9908--01 ~ 0008--01; K.8P.X +K.7P |
24923-VE470 |
US $23.18 |
||
|
24923+A
|
24923+A
24923-VE470 Case-Unit9908--01 ~ 0008--01; K.8P.X +K.7P |
24923-VE470 |
US $23.18 |
||
|
25010A
|
25010A
0145100581 SCREW9908--01 ~ 0008--01; K.8P.X +K.7P |
0145100581 |
from US $0.78 |
||
|
25010A
|
25010A
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010A
|
25010A
24869-VG200 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG200 |
US $0.86 |
||
|
25010A
|
25010A
24869-VE470 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE470 |
US $0.86 |
||
|
25010A
|
25010A
24869-VG260 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG260 |
US $1.15 |
||
|
25010A
|
25010A
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010A
|
25010A
24869-VG260 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG260 |
US $1.15 |
||
|
25010AA
|
25010AA
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010AA
|
25010AA
24869-VG200 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG200 |
US $0.86 |
||
|
25010AA
|
25010AA
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010AA
|
25010AA
24869-VG200 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG200 |
US $0.86 |
||
|
25010AA
|
25010AA
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010AA
|
25010AA
24869-VG200 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG200 |
US $0.86 |
||
|
25010AA
|
25010AA
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010AA
|
25010AA
24869-VG200 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG200 |
US $0.86 |
||
|
25010AA
|
25010AA
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010AA
|
25010AA
24869-VG200 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG200 |
US $0.86 |
||
|
25010AA
|
25010AA
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010AA
|
25010AA
24869-VG200 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG200 |
US $0.86 |
||
|
25010AC
|
25010AC
24869-VE460 Bolt9908--01 ~ 0008--01; K.8P.X +K.7P |
24869-VE460 |
US $1.15 |
||
|
25010AC
|
25010AC
24869-VG260 Bolt0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24869-VG260 |
US $1.15 |
||
|
25030
|
25030
24814-VE761 Plate Assy-Printed Circuit9908--01 ~ 0008--01; K.2WD.8P.X +K.2WD.7P |
24814-VE761 |
US $78.19 |
||
|
25030
|
25030
24814-VE764 Plate Assy-Printed Circuit9908--01 ~ 0008--01; &K.2WD.8P.ZD30DDTI.X +K.2WD.7P.ZD30DDTI |
24814-VE764 |
US $427.63 |
||
|
25030
|
25030
24814-VE060 Plate Assy-Printed Circuit9908--01 ~ 0008--01; K.8P.X +K.7P |
24814-VE060 |
US $78.19 |
||
|
25030
|
25030
24814-VG261 Plate Assy-Printed Circuit0008--01 ~ ; -K.2WD.7P +K.2WD.8P.VQ35DE.X +K.2WD.ZD30DDTI.X |
24814-VG261 |
US $56.59 |
||
|
25030+A
|
25030+A
24814-VE764 Plate Assy-Printed Circuit9908--01 ~ 0008--01; &K.2WD.8P.ZD30DDTI.X +K.2WD.7P.ZD30DDTI |
24814-VE764 |
US $427.63 |
||
|
25030+B
|
25030+B
24814-VE060 Plate Assy-Printed Circuit9908--01 ~ 0008--01; K.8P.X +K.7P |
24814-VE060 |
US $78.19 |
||
|
25031
|
25031
24812-VG060 Housing-Meter Comb, Upper9908--01 ~ 0008--01; K.2WD.8P.X +K.2WD.7P |
24812-VG060 |
US $73.44 |
||
|
25031
|
25031
24812-VG260 Housing-Meter Comb, Upper0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24812-VG260 |
US $61.63 |
||
|
25031
|
25031
24811-VG060 Housing-Meter Comb, Lower9908--01 ~ 0008--01; K.8P.X +K.7P |
24811-VG060 |
US $57.60 |
||
|
25031
|
25031
24811-VG260 Housing-Meter Comb, Lower0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24811-VG260 |
US $48.38 |
||
|
25031
|
25031
24811-VE460 Housing-Meter Comb, Lower9908--01 ~ 0008--01; K.8P.X +K.7P |
24811-VE460 |
US $57.60 |
||
|
25031M
|
25031M
24811-VG060 Housing-Meter Comb, Lower9908--01 ~ 0008--01; K.8P.X +K.7P |
24811-VG060 |
US $57.60 |
||
|
25031M
|
25031M
24811-VG260 Housing-Meter Comb, Lower0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24811-VG260 |
US $48.38 |
||
|
25031M
|
25031M
24811-VE460 Housing-Meter Comb, Lower9908--01 ~ 0008--01; K.8P.X +K.7P |
24811-VE460 |
US $57.60 |
||
|
25031MA
|
25031MA
24811-VE460 Housing-Meter Comb, Lower9908--01 ~ 0008--01; K.8P.X +K.7P |
24811-VE460 |
US $57.60 |
||
|
25820
|
25820
25820-VE000 Clock Assy-Digital9908--01 ~ 0008--01; K.8P.X +K.7P |
25820-VE000 |
US $346.92 |
||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
68435
|
68435
24885-VG060 Lens-Warning Lamp9908--01 ~ 0008--01; K.8P.X +K.7P |
24885-VG060 |
US $25.63 |
||
|
68435
|
68435
24885-VG260 Lens-Warning Lamp0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24885-VG260 |
US $21.46 |
||
|
68435
|
68435
24880-VE060 Lens-Warning Lamp9908--01 ~ 0008--01; &K.2WD.8P.ZD30DDTI.X +K.2WD.7P.ZD30DDTI |
24880-VE060 |
US $25.63 |
||
|
68435
|
68435
24890-VG260 Lens-Warning Lamp0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24890-VG260 |
US $21.46 |
||
|
68435
|
68435
24890-VE470 Lens-Warning Lamp9908--01 ~ 0008--01; K.8P.X +K.7P |
24890-VE470 |
US $25.63 |
||
|
68435
|
68435
24893-VG260 Lens-Warning Lamp0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24893-VG260 |
US $21.46 |
||
|
68435
|
68435
24880-VG261 Lens-Warning Lamp0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24880-VG261 |
US $21.46 |
||
|
68435
|
68435
24885-VG062 Lens-Warning Lamp9908--01 ~ 0008--01; K.8P.X +K.7P |
24885-VG062 |
US $25.63 |
||
|
68435+A
|
68435+A
24880-VE060 Lens-Warning Lamp9908--01 ~ 0008--01; &K.2WD.8P.ZD30DDTI.X +K.2WD.7P.ZD30DDTI |
24880-VE060 |
US $25.63 |
||
|
68435+A
|
68435+A
24890-VG260 Lens-Warning Lamp0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24890-VG260 |
US $21.46 |
||
|
68435+B
|
68435+B
24890-VE470 Lens-Warning Lamp9908--01 ~ 0008--01; K.8P.X +K.7P |
24890-VE470 |
US $25.63 |
||
|
68435+B
|
68435+B
24893-VG260 Lens-Warning Lamp0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24893-VG260 |
US $21.46 |
||
|
68435+C
|
68435+C
24880-VG261 Lens-Warning Lamp0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24880-VG261 |
US $21.46 |
||
|
68435+C
|
68435+C
24885-VG062 Lens-Warning Lamp9908--01 ~ 0008--01; K.8P.X +K.7P |
24885-VG062 |
US $25.63 |
||
|
68437M
|
68437M
24816-VG060 Lens-Warning Turn Signal9908--01 ~ 0008--01; K.8P.X +K.7P |
24816-VG060 |
US $11.38 |
||
|
68437M
|
68437M
24816-VG260 Lens-Warning Turn Signal0008--01 ~ ; !K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X |
24816-VG260 |
US $9.50 |
||
|
68437M
|
68437M
24816-VE470 Lens-Warning Turn Signal9908--01 ~ 0008--01; K.8P.X +K.7P |
24816-VE470 |
US $11.38 |
||
|
68437MA
|
68437MA
24816-VE470 Lens-Warning Turn Signal9908--01 ~ 0008--01; K.8P.X +K.7P |
24816-VE470 |
US $11.38 |
||
