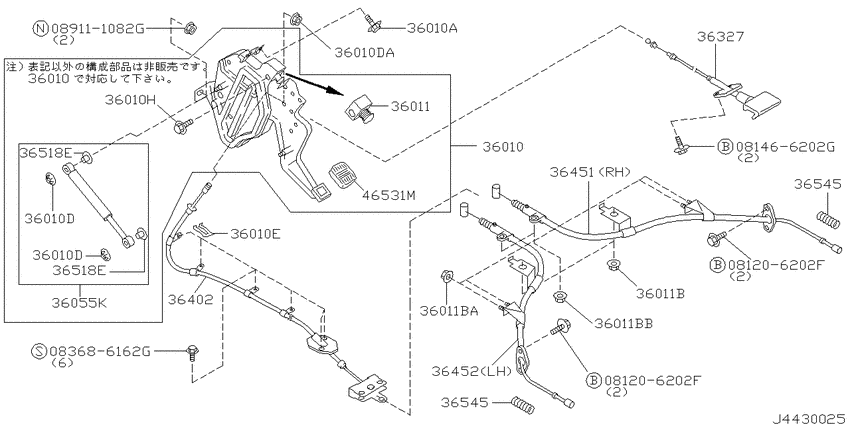

Parking brake control (1999-08-01 ~ 2000-08-01; VG33E +ZD30DDTI) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206202F
|
081206202F
081206202F
Bolt-hexagon
|
081206202F |
— | ||
|
081206202F
|
081206202F
081206202F
Bolt-hexagon
|
081206202F |
— | ||
|
081466202G
|
081466202G
081466202G
Bolt-hexagon
|
081466202G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
36010
|
36010
36010-VE000 Device Assy-Parking Brake Control9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36010-VE000 |
US $211.68 |
||
|
36010
|
36010
36010-VG200 Device Assy-Parking Brake Control0008--01 ~ 0101--01; VQ35DE +ZD30DDTI |
36010-VG200 |
US $211.68 |
||
|
36010
|
36010
36010-VG210 Device Assy-Parking Brake Control0101--01 ~ ; VQ35DE +ZD30DDTI |
36010-VG210 |
US $211.68 |
||
|
36010
|
36010
01125-00623 BOLT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
01125-00623 |
US $1.73 |
||
|
36010
|
36010
36385-18000 Nut9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36385-18000 |
US $0.86 |
||
|
36010
|
36010
0122500901 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122500901 |
from US $0.72 |
||
|
36010
|
36010
364550P000 Clip9908--01 ~ 0008--01; VG33E +ZD30DDTI |
364550P000 |
US $3.46 |
||
|
36010
|
36010
0145400431 SCREW9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0145400431 |
US $1.73 |
||
|
36010A
|
36010A
01125-00623 BOLT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
01125-00623 |
US $1.73 |
||
|
36010D
|
36010D
36385-18000 Nut9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36385-18000 |
US $0.86 |
||
|
36010D
|
36010D
0122500901 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122500901 |
from US $0.72 |
||
|
36010D
|
36010D
36385-18000 Nut9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36385-18000 |
US $0.86 |
||
|
36010D
|
36010D
0122500901 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122500901 |
from US $0.72 |
||
|
36010DA
|
36010DA
0122500901 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122500901 |
from US $0.72 |
||
|
36010E
|
36010E
364550P000 Clip9908--01 ~ 0008--01; VG33E +ZD30DDTI |
364550P000 |
US $3.46 |
||
|
36010H
|
36010H
0145400431 SCREW9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0145400431 |
US $1.73 |
||
|
36011
|
36011
36011-4E100
SWITCH ASSY-PARKING BRAKE LAMP
9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36011-4E100 |
— | ||
| replacement | |||||
|
36011
|
36011
360114E10A Switch Assy-Parking Brake Lamp9908--01 ~ 0008--01; VG33E +ZD30DDTI |
360114E10A |
from US $5.75 |
||
|
36011
|
36011
0122100163 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122100163 |
US $1.73 |
||
|
36011
|
36011
0122100163 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122100163 |
US $1.73 |
||
|
36011
|
36011
0122100163 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122100163 |
US $1.73 |
||
|
36011B
|
36011B
0122100163 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122100163 |
US $1.73 |
||
|
36011B
|
36011B
0122100163 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122100163 |
US $1.73 |
||
|
36011B
|
36011B
0122100163 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122100163 |
US $1.73 |
||
|
36011BA
|
36011BA
0122100163 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122100163 |
US $1.73 |
||
|
36011BB
|
36011BB
0122100163 NUT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
0122100163 |
US $1.73 |
||
|
36055K
|
36055K
36055-VE025 Absorber Kit-Shock, Parking Control9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36055-VE025 |
US $85.97 |
||
|
36327
|
36327
36327-VE000 Cable Assy-Release9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36327-VE000 |
US $46.37 |
||
|
36402
|
36402
36402VE000 Cable Assy-Parking Brake, Front9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36402VE000 |
US $159.84 |
||
|
36402
|
36402
36402VG200 Cable Assy-Parking Brake, Front0008--01 ~ ; VQ35DE +ZD30DDTI |
36402VG200 |
US $152.64 |
||
|
36451
|
36451
36530-VE700 Cable Assy-Brake, Rear Rh9908--01 ~ 0001--01; VG33E +ZD30DDTI |
36530-VE700 |
US $83.66 |
||
|
36451
|
36451
36530-VG200
Cable Assy-Brake, Rear Rh
0001--01 ~ 0008--01; VG33E +ZD30DDTI |
36530-VG200 |
— | ||
| replacement | |||||
|
36451
|
36451
36530-VG21D Cable assy-brak0001--01 ~ 0008--01; VG33E +ZD30DDTI |
36530-VG21D |
from US $48.91 |
||
|
36451
|
36451
36530-VG210 Cable Assy-Brake, Rear Rh0102--01 ~ ; VQ35DE +ZD30DDTI |
36530-VG210 |
US $83.66 |
||
|
36452
|
36452
36531-VE700 Cable Assy-Brake, Rear Lh9908--01 ~ 0001--01; VG33E +ZD30DDTI |
36531-VE700 |
US $83.66 |
||
|
36452
|
36452
36531-VG200
Cable Assy-Brake, Rear Lh
0001--01 ~ 0008--01; VG33E +ZD30DDTI |
36531-VG200 |
— | ||
| replacement | |||||
|
36452
|
36452
36531-VG21D Cable assy-brak0001--01 ~ 0008--01; VG33E +ZD30DDTI |
36531-VG21D |
US $94.96 |
||
|
36452
|
36452
36531-VG210 Cable Assy-Brake, Rear Lh0102--01 ~ ; VQ35DE +ZD30DDTI |
36531-VG210 |
US $83.66 |
||
|
36518E
|
36518E
36057-11V00 Bush9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36057-11V00 |
US $1.58 |
||
|
36518E
|
36518E
36057-11V00 Bush9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36057-11V00 |
US $1.58 |
||
|
36545
|
36545
36545VE000 Spring-Return, Parking Brake9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36545VE000 |
US $2.88 |
||
|
36545
|
36545
36545VE000 Spring-Return, Parking Brake9908--01 ~ 0008--01; VG33E +ZD30DDTI |
36545VE000 |
US $2.88 |
||
|
46531M
|
46531M
46531V0500 Pad-Pedal9908--01 ~ 0008--01; VG33E +ZD30DDTI |
46531V0500 |
US $8.93 |
||
