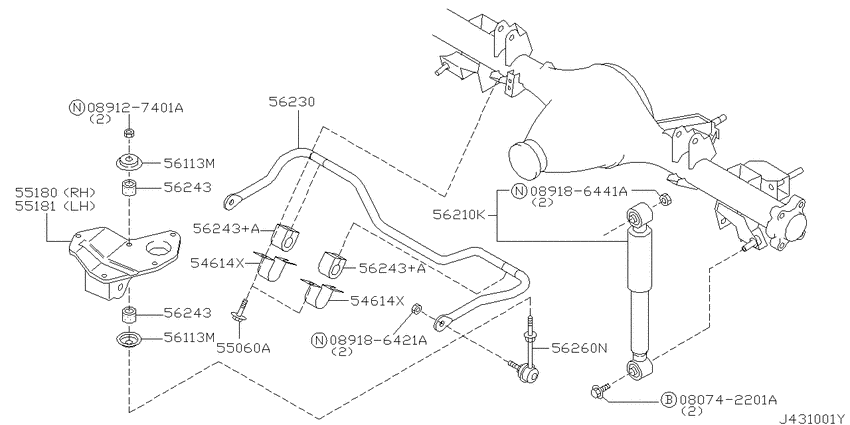

Rear suspension (1999-08-01 ~ 2000-08-01; アブソーバー&スタビライザー; VG33E +ZD30DDTI) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080742201A
|
080742201A
08074-2201A
Bolt-hexagon
|
08074-2201A |
— | ||
|
089127401A
|
089127401A
089127401A NUT-HEX |
089127401A |
from US $0.52 |
||
| replacement | |||||
|
089127401A
|
089127401A
08912-74010 NUTHEX |
08912-74010 |
from US $0.52 |
||
|
089186421A
|
089186421A
089186421A NUTSLOCK |
089186421A |
from US $0.57 |
||
|
089186441A
|
089186441A
089186441A NUTSLOCK |
089186441A |
US $0.70 |
||
|
54614X
|
54614X
54614-51E00 CLAMP-STABILIZER9908--01 ~ 0008--01; VG33E +ZD30DDTI |
54614-51E00 |
from US $12.10 |
||
|
54614X
|
54614X
54614-51E00 CLAMP-STABILIZER9908--01 ~ 0008--01; VG33E +ZD30DDTI |
54614-51E00 |
from US $12.10 |
||
|
55060A
|
55060A
01125-00663 BOLT9908--01 ~ 0008--01; VG33E +ZD30DDTI |
01125-00663 |
US $2.45 |
||
|
55180
|
55180
55180VE010 Bracket Assy-Upper Link Body, Rh9908--01 ~ 0008--01; 2WD.VG33E +2WD.ZD30DDTI |
55180VE010 |
US $84.82 |
||
|
55181
|
55181
55181VE010 Bracket Assy-Upper Link Body, Lh9908--01 ~ 0008--01; 2WD.VG33E +2WD.ZD30DDTI |
55181VE010 |
US $84.82 |
||
|
56113M
|
56113M
56113-60U05
Washer
9908--01 ~ 0008--01; VG33E +ZD30DDTI |
56113-60U05 |
— | ||
| replacement | |||||
|
56113M
|
56113M
5611360U0A Washer9908--01 ~ 0008--01; VG33E +ZD30DDTI |
5611360U0A |
from US $1.39 |
||
|
56113M
|
56113M
56113-60U05
Washer
9908--01 ~ 0008--01; VG33E +ZD30DDTI |
56113-60U05 |
— | ||
| replacement | |||||
|
56113M
|
56113M
5611360U0A Washer9908--01 ~ 0008--01; VG33E +ZD30DDTI |
5611360U0A |
from US $1.39 |
||
|
56210K
|
56210K
56200VE127 Absorber Kit-Shock, Rear0008--01 ~ ; VQ35DE +ZD30DDTI; ｺｸｲﾝNO.56200-VE102 |
56200VE127 |
US $355.42 |
||
|
56210K
|
56210K
56200VE226 Absorber Kit-Shock, Rear9908--01 ~ 0008--01; 08P.VG33E.X +8P.ZD30DDTI.X +7P.VG33E +7P.ZD30DDTI; ｺｸｲﾝNO.56200ｰVE211 |
56200VE226 |
US $710.83 |
||
|
56230
|
56230
56230-VE020 Stabilizer-Rear9908--01 ~ 0008--01; VG33E +ZD30DDTI |
56230-VE020 |
US $241.92 |
||
|
56243
|
56243
56112-09400
Bushing-Stabilizer
9908--01 ~ 0008--01; VG33E +ZD30DDTI |
56112-09400 |
— | ||
| replacement | |||||
|
56243
|
56243
56112V0100 Stabilizer cushion9908--01 ~ 0008--01; VG33E +ZD30DDTI |
56112V0100 |
from US $1.67 |
||
|
56243
|
56243
54613VE023 Bush-Rear Stabilizer9908--01 ~ 0008--01; VG33E +ZD30DDTI |
54613VE023 |
from US $7.16 |
||
|
56243
|
56243
56112-09400
Bushing-Stabilizer
9908--01 ~ 0008--01; VG33E +ZD30DDTI |
56112-09400 |
— | ||
| replacement | |||||
|
56243
|
56243
56112V0100 Stabilizer cushion9908--01 ~ 0008--01; VG33E +ZD30DDTI |
56112V0100 |
from US $1.67 |
||
|
56243
|
56243
54613VE023 Bush-Rear Stabilizer9908--01 ~ 0008--01; VG33E +ZD30DDTI |
54613VE023 |
from US $7.16 |
||
|
56243+A
|
56243+A
54613VE023 Bush-Rear Stabilizer9908--01 ~ 0008--01; VG33E +ZD30DDTI |
54613VE023 |
from US $7.16 |
||
|
56243+A
|
56243+A
54613VE023 Bush-Rear Stabilizer9908--01 ~ 0008--01; VG33E +ZD30DDTI |
54613VE023 |
from US $7.16 |
||
|
56260N
|
56260N
56260-VE700 Rod Assy-Connecting, Stabilizer9908--01 ~ 0008--01; VG33E +ZD30DDTI |
56260-VE700 |
US $73.73 |
||
|
56260N
|
56260N
56260-VG000 Rod Assy-Connecting, Stabilizer0108--01 ~ ; VQ35DE +ZD30DDTI |
56260-VG000 |
from US $9.81 |
||
