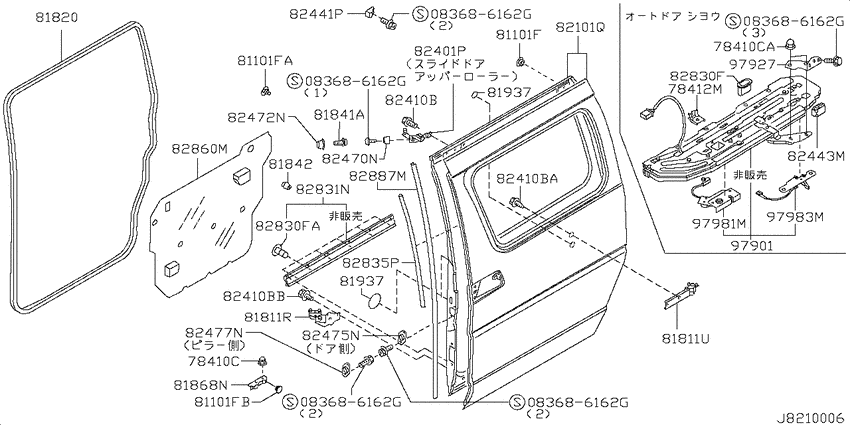

Slide door panel & fitting (1999-08-01 ~ 2000-08-01; K) Diagram Nissan ELGRAND
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- X
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
78410C
|
78410C
01217-00221 NUT9908--01 ~ 0008--01; K |
01217-00221 |
US $2.87 |
||
|
78410C
|
78410C
01217-00111 NUT9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
01217-00111 |
US $2.45 |
||
|
78410CA
|
78410CA
01217-00111 NUT9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
01217-00111 |
US $2.45 |
||
|
78412M
|
78412M
97963-VE200 ﾌﾞﾗｹﾂﾄ,ｽﾗｲﾄﾞ ﾄﾞｱ ｽﾄﾂﾊﾟ-9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
97963-VE200 |
US $13.68 |
||
|
81101F
|
81101F
0165800511 GROMMET9908--01 ~ 0008--01; K |
0165800511 |
US $2.21 |
||
|
81101F
|
81101F
64892W5000 Unit Assy-Divider Tachometer9908--01 ~ 0008--01; K |
64892W5000 |
from US $0.96 |
||
|
81101F
|
81101F
66902-50A03 Cap9908--01 ~ 0008--01; K |
66902-50A03 |
US $2.02 |
||
|
81101FA
|
81101FA
64892W5000 Unit Assy-Divider Tachometer9908--01 ~ 0008--01; K |
64892W5000 |
from US $0.96 |
||
|
81101FB
|
81101FB
66902-50A03 Cap9908--01 ~ 0008--01; K |
66902-50A03 |
US $2.02 |
||
|
81811R
|
81811R
82421-VE000 ﾛ-ﾗ- ｱﾂｾﾝﾌﾞﾘ-,ｽﾗｲﾄﾞ ﾄﾞｱ ﾛｱ lh9908--01 ~ 0008--01; K |
82421-VE000 |
US $185.76 |
||
|
81811R
|
81811R
82421-VG200 ﾛ-ﾗ- ｱﾂｾﾝﾌﾞﾘ-,ｽﾗｲﾄﾞ ﾄﾞｱ ﾛｱ lh0008--01 ~ ; K |
82421-VG200 |
US $185.76 |
||
|
81811U
|
81811U
82411-VE000 ROLLER, SLIDE DORR, REAR9908--01 ~ 0008--01; K |
82411-VE000 |
US $129.89 |
||
|
81820
|
81820
82831VE005 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ9908--01 ~ 0008--01; K |
82831VE005 |
US $223.20 |
||
|
81820
|
81820
82831-VE205 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ｽﾗｲﾄﾞ ﾄﾞｱ9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
82831-VE205 |
US $223.20 |
||
|
81841A
|
81841A
01431-00283 SCREW9908--01 ~ 0008--01; K |
01431-00283 |
US $1.73 |
||
|
81842
|
81842
82896-01N00 Bumper-Slide Door9908--01 ~ 0008--01; K |
82896-01N00 |
US $2.74 |
||
|
81868N
|
81868N
82431-VE002 ﾁｴﾂｶ-,ｽﾗｲﾄﾞ ﾄﾞｱ lh0008--01 ~ ; **K.7P +*K.8P.VQ35DE.X +*K.ZD30DDTI.X +*K.V |
82431-VE002 |
US $35.28 |
||
|
81868N
|
81868N
82431-VE019 ﾁｴﾂｶ-,ｽﾗｲﾄﾞ ﾄﾞｱ lh9908--01 ~ 0008--01; K |
82431-VE019 |
US $35.28 |
||
|
81868N
|
81868N
82431VG200 ﾁｴﾂｶ-,ｽﾗｲﾄﾞ ﾄﾞｱ0008--01 ~ ; K |
82431VG200 |
US $37.01 |
||
|
81937
|
81937
80854Q0100 Plug9908--01 ~ 0008--01; K |
80854Q0100 |
from US $0.97 |
||
|
81937
|
81937
64892W5000 Unit Assy-Divider Tachometer0008--01 ~ ; K |
64892W5000 |
from US $0.96 |
||
|
81937
|
81937
80854Q0100 Plug9908--01 ~ 0008--01; K |
80854Q0100 |
from US $0.97 |
||
|
81937
|
81937
64892W5000 Unit Assy-Divider Tachometer0008--01 ~ ; K |
64892W5000 |
from US $0.96 |
||
|
82101Q
|
82101Q
H2101-VE000 ﾄﾞｱ ｱﾂｾﾝﾌﾞﾘ-,ｽﾗｲﾄﾞ lh9908--01 ~ 0004--01; K |
H2101-VE000 |
US $1,400.42 |
||
|
82101Q
|
82101Q
H2101VE0MA ﾄﾞｱ ｱﾂｼｰ0004--01 ~ 0008--01; K |
H2101VE0MA |
US $1,400.42 |
||
|
82101Q
|
82101Q
H2101VG2MM ﾄﾞｱ ｱﾂｼｰ0008--01 ~ ; &K.7P +K.8P.VQ35DE.X +K.ZD30DDTI.X +K.V |
H2101VG2MM |
US $1,400.42 |
||
|
82401P
|
82401P
82401-VE000 ﾛ-ﾗ-,ｽﾗｲﾄﾞ ﾄﾞｱ ｱﾂﾊﾟ- lh9908--01 ~ 0008--01; K |
82401-VE000 |
US $47.95 |
||
|
82401P
|
82401P
82401-VG000 ﾛ-ﾗ-,ｽﾗｲﾄﾞ ﾄﾞｱ ｱﾂﾊﾟ- lh0008--01 ~ ; K |
82401-VG000 |
US $47.95 |
||
|
82410B
|
82410B
01121-04621 BOLT9908--01 ~ 0008--01; K |
01121-04621 |
US $1.93 |
||
|
82410B
|
82410B
01125-00443 SCREW0008--01 ~ ; K |
01125-00443 |
US $2.45 |
||
|
82410B
|
82410B
01121-04621 BOLT9908--01 ~ 0008--01; K |
01121-04621 |
US $1.93 |
||
|
82410B
|
82410B
01125-00443 SCREW0008--01 ~ ; K |
01125-00443 |
US $2.45 |
||
|
82410B
|
82410B
01121-04621 BOLT9908--01 ~ 0008--01; K |
01121-04621 |
US $1.93 |
||
|
82410B
|
82410B
01125-00443 SCREW0008--01 ~ ; K |
01125-00443 |
US $2.45 |
||
|
82410B
|
82410B
01121-01443 ﾎﾞﾙﾄ0008--01 ~ ; K |
01121-01443 |
US $2.45 |
||
|
82410BA
|
82410BA
01121-04621 BOLT9908--01 ~ 0008--01; K |
01121-04621 |
US $1.93 |
||
|
82410BA
|
82410BA
01125-00443 SCREW0008--01 ~ ; K |
01125-00443 |
US $2.45 |
||
|
82410BB
|
82410BB
01121-04621 BOLT9908--01 ~ 0008--01; K |
01121-04621 |
US $1.93 |
||
|
82410BB
|
82410BB
01125-00443 SCREW0008--01 ~ ; K |
01125-00443 |
US $2.45 |
||
|
82441P
|
82441P
82441VE005 ｽﾄﾂﾊﾟ-,lh9908--01 ~ 0008--01; K |
82441VE005 |
US $53.14 |
||
|
82441P
|
82441P
82441-VE205 ｽﾄﾂﾊﾟ-,ﾘﾔ ﾄﾞｱ ｱﾂﾊﾟ- lh9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
82441-VE205 |
US $67.25 |
||
|
82443M
|
82443M
82487-VE200 ｽﾄﾂﾊﾟ-,ﾘﾔ ﾄﾞｱ ﾛｱ lh9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
82487-VE200 |
US $49.97 |
||
|
82470N
|
82470N
82471-VE000 ﾒ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾀﾞﾌﾞﾃ-ﾙ ｱﾂﾊﾟ-9908--01 ~ 0008--01; K |
82471-VE000 |
US $44.90 |
||
|
82472N
|
82472N
82473-VE000 Female Assy-Dovetail Upper9908--01 ~ 0008--01; K |
82473-VE000 |
US $14.55 |
||
|
82475N
|
82475N
82475-VE010 ﾒ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾀﾞﾌﾞﾃ-ﾙ ﾛｱ lh9908--01 ~ 0008--01; K |
82475-VE010 |
US $56.28 |
||
|
82477N
|
82477N
82477-VE010 ﾌｲﾒ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾀﾞﾌﾞﾃ-ﾙ ﾛｱ lh9908--01 ~ 0008--01; K |
82477-VE010 |
US $14.83 |
||
|
82830F
|
82830F
01553-03933 ｸﾘﾂﾌﾟ9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
01553-03933 |
US $3.46 |
||
|
82830F
|
82830F
65810K2008 Clip9908--01 ~ 0008--01; K |
65810K2008 |
US $2.91 |
||
|
82830FA
|
82830FA
65810K2008 Clip9908--01 ~ 0008--01; K |
65810K2008 |
US $2.91 |
||
|
82831N
|
82831N
82833-VE000 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ｽﾗｲﾄﾞ ﾄﾞｱ ﾛｱ lh9908--01 ~ 0008--01; K |
82833-VE000 |
US $47.52 |
||
|
82835P
|
82835P
82839-VE001 ｼ-ﾙ,ｽﾗｲﾄﾞ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh9908--01 ~ 0008--01; K |
82839-VE001 |
US $43.92 |
||
|
82835P
|
82835P
82839-VG000 ｼ-ﾙ,ｽﾗｲﾄﾞ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
82839-VG000 |
US $43.92 |
||
|
82860M
|
82860M
82861VE001 ｽｸﾘ-ﾝ,ﾄﾞｱ9908--01 ~ 0008--01; K.8P.X +K.7P +K.V |
82861VE001 |
US $30.10 |
||
|
82887M
|
82887M
82887-VG000 ﾌﾟﾛﾃｸﾀ-,ｽﾗｲﾄﾞ ﾄﾞｱ ﾌﾛﾝﾄ9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
82887-VG000 |
US $66.38 |
||
|
97901
|
97901
97901-VG000 ｽﾃﾂﾌﾟ ｺﾝﾌﾟﾘｰﾄ,ｵｰﾄ ｽﾗｲﾄﾞ ﾄﾞｱ,lh9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
97901-VG000 |
US $4,144 |
||
|
97927
|
97927
97969-VE200 ﾌﾞﾗｹﾂﾄ ﾍﾞﾙﾄ ｼﾞﾖｲﾝﾄ,lh9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
97969-VE200 |
US $43.92 |
||
|
97981M
|
97981M
97981-VE200 ｽｲﾂﾁ ｱﾂｾﾝﾌﾞﾘｰ ｵｰﾄ ｽﾗｲﾄﾞ ﾄﾞｱ ｾﾝﾀｰ,lh9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
97981-VE200 |
US $25.06 |
||
|
97983M
|
97983M
97983-VE200 ｽｲﾂﾁ ｱﾂｾﾝﾌﾞﾘｰ ｵｰﾄ ｽﾗｲﾄﾞ ﾄﾞｱ ﾘｱ,lh9908--01 ~ 0008--01; *K.8P.X +*K.7P +*K.V |
97983-VE200 |
US $10.08 |
