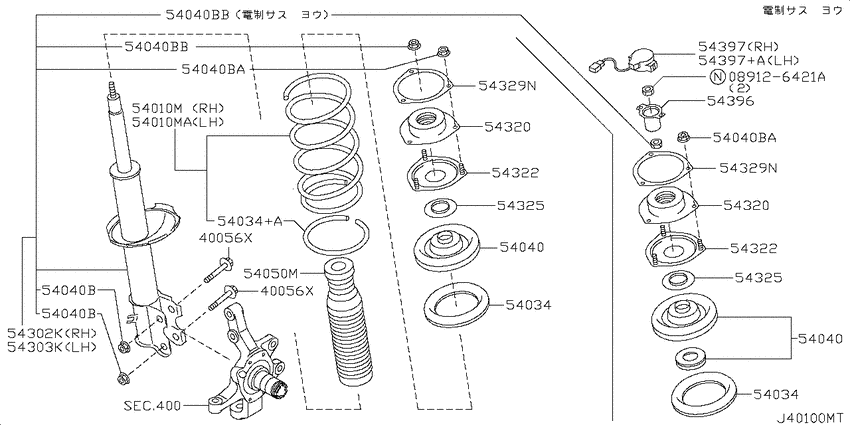

Front suspension (2000-08-01 ~ 2000-09-01; ストラット&スプリング; VQ35DE +ZD30DDTI) Diagram Nissan ELGRAND
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- HWS
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089126421A
|
089126421A
08912-6421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-6421A |
— | ||
|
400
|
Front axle
400
|
||||
|
40056X
|
40056X
40056-0W000
Bolt-Knuckle Arm
0008--01 ~ ; VQ35DE +ZD30DDTI |
40056-0W000 |
— | ||
| replacement | |||||
|
40056X
|
40056X
400560W00A Bolt-Knuckle Arm0008--01 ~ ; VQ35DE +ZD30DDTI |
400560W00A |
from US $4.57 |
||
|
40056X
|
40056X
40056-0W000
Bolt-Knuckle Arm
0008--01 ~ ; VQ35DE +ZD30DDTI |
40056-0W000 |
— | ||
| replacement | |||||
|
40056X
|
40056X
400560W00A Bolt-Knuckle Arm0008--01 ~ ; VQ35DE +ZD30DDTI |
400560W00A |
from US $4.57 |
||
|
54010M
|
54010M
54010-VG210 Spring-Front0008--01 ~ 0009--01; 2WD.ZD30DDTI; ﾐｷﾞ ﾖｳ |
54010-VG210 |
US $294.53 |
||
|
54010M
|
54010M
54010-VG212 Spring-Front0009--01 ~ ; 2WD.ZD30DDTI; ﾐｷﾞ ﾖｳ |
54010-VG212 |
US $294.53 |
||
|
54010M
|
54010M
54010-VG310 Spring-Front0008--01 ~ 0009--01; 2WD.ZD30DDTI; ﾋﾀﾞﾘ ﾖｳ |
54010-VG310 |
US $294.53 |
||
|
54010M
|
54010M
54010-VG312 Spring-Front0009--01 ~ ; 2WD.ZD30DDTI; ﾋﾀﾞﾘ ﾖｳ |
54010-VG312 |
US $294.53 |
||
|
54010MA
|
54010MA
54010-VG310 Spring-Front0008--01 ~ 0009--01; 2WD.ZD30DDTI; ﾋﾀﾞﾘ ﾖｳ |
54010-VG310 |
US $294.53 |
||
|
54010MA
|
54010MA
54010-VG312 Spring-Front0009--01 ~ ; 2WD.ZD30DDTI; ﾋﾀﾞﾘ ﾖｳ |
54010-VG312 |
US $294.53 |
||
|
54034
|
54034
540340W000 Seat-Rubber, Front Spring0008--01 ~ ; VQ35DE +ZD30DDTI |
540340W000 |
from US $14.14 |
||
|
54034
|
54034
540340W010 Tube-Coil Spring, Front0008--01 ~ ; VQ35DE +ZD30DDTI |
540340W010 |
US $11.65 |
||
|
54034
|
54034
54034-0W020 Seat-Rubber, Front Spring0009--01 ~ ; VQ35DE +ZD30DDTI |
54034-0W020 |
from US $19.50 |
||
|
54034
|
54034
540340W000 Seat-Rubber, Front Spring0008--01 ~ ; VQ35DE +ZD30DDTI |
540340W000 |
from US $14.14 |
||
|
54034
|
54034
540340W010 Tube-Coil Spring, Front0008--01 ~ ; VQ35DE +ZD30DDTI |
540340W010 |
US $11.65 |
||
|
54034
|
54034
54034-0W020 Seat-Rubber, Front Spring0009--01 ~ ; VQ35DE +ZD30DDTI |
54034-0W020 |
from US $19.50 |
||
|
54034+A
|
54034+A
540340W010 Tube-Coil Spring, Front0008--01 ~ ; VQ35DE +ZD30DDTI |
540340W010 |
US $11.65 |
||
|
54040
|
54040
540400W000 Seat Assy-Front Spring, Upper0008--01 ~ ; VQ35DE +ZD30DDTI |
540400W000 |
from US $23.57 |
||
|
54040
|
54040
0122300321 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122300321 |
from US $0.72 |
||
|
54040
|
54040
0122500231 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500231 |
from US $0.63 |
||
|
54040
|
54040
0122500032 NUT-MOUNTING BOLT,LOWER0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500032 |
from US $3.06 |
||
|
54040
|
54040
540400W000 Seat Assy-Front Spring, Upper0008--01 ~ ; VQ35DE +ZD30DDTI |
540400W000 |
from US $23.57 |
||
|
54040
|
54040
0122300321 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122300321 |
from US $0.72 |
||
|
54040
|
54040
0122500231 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500231 |
from US $0.63 |
||
|
54040
|
54040
0122500032 NUT-MOUNTING BOLT,LOWER0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500032 |
from US $3.06 |
||
|
54040B
|
54040B
0122300321 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122300321 |
from US $0.72 |
||
|
54040B
|
54040B
0122500231 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500231 |
from US $0.63 |
||
|
54040B
|
54040B
0122500032 NUT-MOUNTING BOLT,LOWER0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500032 |
from US $3.06 |
||
|
54040B
|
54040B
0122300321 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122300321 |
from US $0.72 |
||
|
54040B
|
54040B
0122500231 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500231 |
from US $0.63 |
||
|
54040B
|
54040B
0122500032 NUT-MOUNTING BOLT,LOWER0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500032 |
from US $3.06 |
||
|
54040BA
|
54040BA
0122500231 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500231 |
from US $0.63 |
||
|
54040BA
|
54040BA
0122500231 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500231 |
from US $0.63 |
||
|
54040BB
|
54040BB
0122500032 NUT-MOUNTING BOLT,LOWER0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500032 |
from US $3.06 |
||
|
54040BB
|
54040BB
0122500032 NUT-MOUNTING BOLT,LOWER0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500032 |
from US $3.06 |
||
|
54050M
|
54050M
540500W002 Bumper Assy-Bound0008--01 ~ ; VQ35DE +ZD30DDTI |
540500W002 |
from US $21.56 |
||
|
54302K
|
54302K
54302-VG225 Strut Kit-Front Suspension, Rh0008--01 ~ 0010--01; VQ35DE +ZD30DDTI; ｺｸｲﾝNO.54302-VG201 |
54302-VG225 |
US $526.75 |
||
|
54302K
|
54302K
54302-VG226 Strut Kit-Front Suspension, Rh0008--01 ~ 0010--01; *VQ35DE +*ZD30DDTI; ｺｸｲﾝNO.54302-VG210 |
54302-VG226 |
US $1,052.09 |
||
|
54302K
|
54302K
54302-VG227 Strut Kit-Front Suspension, Rh0010--01 ~ ; VQ35DE +ZD30DDTI; ｺｸｲﾝNO.54302-VG202 |
54302-VG227 |
US $526.75 |
||
|
54302K
|
54302K
54302-VG228 Strut Kit-Front Suspension, Rh0010--01 ~ ; *VQ35DE +*ZD30DDTI; ｺｸｲﾝNO.54302-VG211 |
54302-VG228 |
US $1,052.09 |
||
|
54303K
|
54303K
54303-VG225 Strut Kit-Front Suspension, Lh0008--01 ~ 0010--01; VQ35DE +ZD30DDTI; ｺｸｲﾝNO.54303-VG201 |
54303-VG225 |
US $526.75 |
||
|
54303K
|
54303K
54303-VG226 Strut Kit-Front Suspension, Lh0008--01 ~ 0010--01; *VQ35DE +*ZD30DDTI; ｺｸｲﾝNO.54303-VG210 |
54303-VG226 |
US $1,052.09 |
||
|
54303K
|
54303K
54303-VG227 Strut Kit-Front Suspension, Lh0010--01 ~ ; VQ35DE +ZD30DDTI; ｺｸｲﾝNO.54303-VG202 |
54303-VG227 |
US $526.75 |
||
|
54303K
|
54303K
54303-VG228 Strut Kit-Front Suspension, Lh0010--01 ~ ; *VQ35DE +*ZD30DDTI; ｺｸｲﾝNO.54303-VG211 |
54303-VG228 |
US $1,052.09 |
||
|
54320
|
54320
543202W100 Insulator Assy-Strut Mounting0008--01 ~ ; VQ35DE +ZD30DDTI |
543202W100 |
from US $50.08 |
||
|
54320
|
54320
543202W100 Insulator Assy-Strut Mounting0008--01 ~ ; VQ35DE +ZD30DDTI |
543202W100 |
from US $50.08 |
||
|
54322
|
54322
54322-0W000
Bracket-Front Strut Mounting Insulator
0008--01 ~ ; VQ35DE +ZD30DDTI |
54322-0W000 |
— | ||
|
54322
|
54322
54322-0W000
Bracket-Front Strut Mounting Insulator
0008--01 ~ ; VQ35DE +ZD30DDTI |
54322-0W000 |
— | ||
|
54325
|
54325
543255V000 Bearing-Strut Mounting0008--01 ~ ; VQ35DE +ZD30DDTI |
543255V000 |
from US $20.80 |
||
|
54325
|
54325
543255V000 Bearing-Strut Mounting0008--01 ~ ; VQ35DE +ZD30DDTI |
543255V000 |
from US $20.80 |
||
|
54329N
|
54329N
543290W000 Spacer-Front Strut Insulator0008--01 ~ ; VQ35DE +ZD30DDTI |
543290W000 |
US $8.45 |
||
|
54329N
|
54329N
543290W000 Spacer-Front Strut Insulator0008--01 ~ ; VQ35DE +ZD30DDTI |
543290W000 |
US $8.45 |
||
|
54396
|
54396
54396-VE210 Plate-Actuator0008--01 ~ ; *VQ35DE +*ZD30DDTI |
54396-VE210 |
US $21.02 |
||
|
54397
|
54397
54397-VE210 Actuator Assy-Adjustable Shock Absorber0008--01 ~ ; *VQ35DE +*ZD30DDTI |
54397-VE210 |
US $410.64 |
||
|
54397
|
54397
54398VE210 Actuator Assy-Adjustable Shock Absorber0008--01 ~ ; *VQ35DE +*ZD30DDTI |
54398VE210 |
US $488.52 |
||
|
54397+A
|
54397+A
54398VE210 Actuator Assy-Adjustable Shock Absorber0008--01 ~ ; *VQ35DE +*ZD30DDTI |
54398VE210 |
US $488.52 |
||
