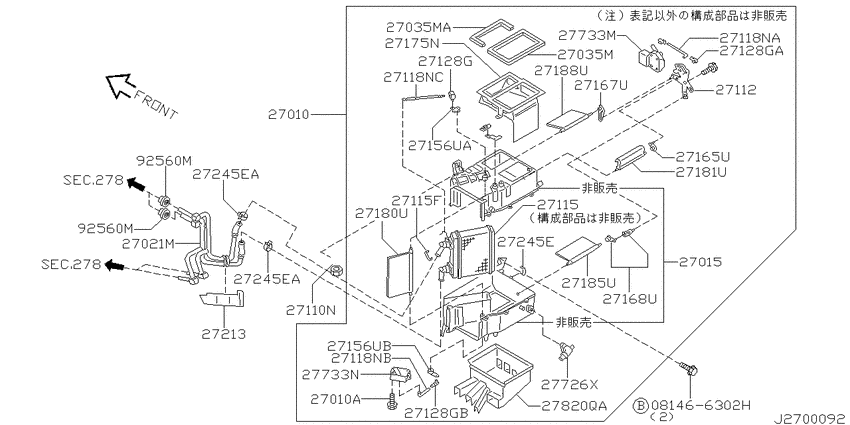

Heater & blower unit (2000-08-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ; K) Diagram Nissan ELGRAND
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- HWS
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466302H
|
081466302H
08146-6302H
Bolt-hexagon
|
08146-6302H |
— | ||
|
27010
|
27010
27110-VE200 Heating Unit Assy-Front0008--01 ~ ; K |
27110-VE200 |
US $584.81 |
||
|
27010
|
27010
27199-VE200 Screw0008--01 ~ ; K |
27199-VE200 |
US $0.86 |
||
|
27010
|
27010
0146600051 SCREW0008--01 ~ ; K |
0146600051 |
US $0.82 |
||
|
27010A
|
27010A
27199-VE200 Screw0008--01 ~ ; K |
27199-VE200 |
US $0.86 |
||
|
27015
|
27015
27120-VE200 Case Assy-Front Heater0008--01 ~ ; K |
27120-VE200 |
US $54.29 |
||
|
27015
|
27015
21489-14Y10 Clip0008--01 ~ ; K |
21489-14Y10 |
US $0.85 |
||
|
27015
|
27015
92551-VE200 Clip0008--01 ~ ; K |
92551-VE200 |
US $4.90 |
||
|
27015
|
27015
21489-14Y00 Clip0008--01 ~ ; K; [B421] |
21489-14Y00 |
US $0.43 |
||
|
27021M
|
27021M
92414-VG300 Hose-Water0008--01 ~ ; K |
92414-VG300 |
US $303.02 |
||
|
27035M
|
27035M
28713-VE100 Seal0008--01 ~ ; K |
28713-VE100 |
US $1.73 |
||
|
27035M
|
27035M
28713-VE105 Seal0008--01 ~ ; K |
28713-VE105 |
US $1.73 |
||
|
27035MA
|
27035MA
28713-VE105 Seal0008--01 ~ ; K |
28713-VE105 |
US $1.73 |
||
|
27110N
|
27110N
0122500561 NUT0008--01 ~ ; *K.(V+HWS) |
0122500561 |
from US $0.57 |
||
|
27112
|
27112
27159-VE200 Link Assy-Side0008--01 ~ ; K |
27159-VE200 |
US $15.12 |
||
|
27115
|
27115
27140-VE100 Core Assy-Front Heater0008--01 ~ ; K |
27140-VE100 |
US $177.12 |
||
|
27115
|
27115
27148-0E000 SUPPORT-HEATER CORE0008--01 ~ ; K |
27148-0E000 |
US $3.46 |
||
|
27115F
|
27115F
27148-0E000 SUPPORT-HEATER CORE0008--01 ~ ; K |
27148-0E000 |
US $3.46 |
||
|
27118NA
|
27118NA
27781-VE200 Rod0008--01 ~ ; K |
27781-VE200 |
US $1.73 |
||
|
27118NB
|
27118NB
27781-VE210 Rod0008--01 ~ ; K |
27781-VE210 |
US $1.73 |
||
|
27118NC
|
27118NC
27781-VE100 Rod0008--01 ~ ; K |
27781-VE100 |
US $4.32 |
||
|
27128G
|
27128G
27137-D4000 Holder-Rod0008--01 ~ ; K |
27137-D4000 |
US $0.85 |
||
|
27128G
|
27128G
27141-VE200 Holder-Rod0008--01 ~ ; K; [B421] |
27141-VE200 |
US $0.43 |
||
|
27128G
|
27128G
27141-VE200 Holder-Rod0008--01 ~ ; K; [B421] |
27141-VE200 |
US $0.43 |
||
|
27128GA
|
27128GA
27141-VE200 Holder-Rod0008--01 ~ ; K; [B421] |
27141-VE200 |
US $0.43 |
||
|
27128GB
|
27128GB
27141-VE200 Holder-Rod0008--01 ~ ; K; [B421] |
27141-VE200 |
US $0.43 |
||
|
27156UA
|
27156UA
27156-VE100 Lever-Air Mix Door0008--01 ~ ; K |
27156-VE100 |
US $1.15 |
||
|
27156UB
|
27156UB
27156-VE200 Lever-Air Mix Door0008--01 ~ ; K |
27156-VE200 |
US $3.46 |
||
|
27165U
|
27165U
27165-0C001 Lever-Vent0008--01 ~ ; K |
27165-0C001 |
US $3.46 |
||
|
27167U
|
27167U
27167-0C000 Lever-Def0008--01 ~ ; K |
27167-0C000 |
US $3.46 |
||
|
27168U
|
27168U
27168-0C000 Lever-Foot0008--01 ~ ; K |
27168-0C000 |
US $5.18 |
||
|
27175N
|
27175N
27865-VE200 Duct Assy-Defroster0008--01 ~ ; K |
27865-VE200 |
US $33.98 |
||
|
27180U
|
27180U
27180-0M000 Door-Front Heater0008--01 ~ ; K |
27180-0M000 |
US $12.10 |
||
|
27181U
|
27181U
27181-VE100 Door Assy-Vent, No.10008--01 ~ ; K |
27181-VE100 |
US $10.22 |
||
|
27185U
|
27185U
27185-VE200 Door Assy-Foot0008--01 ~ ; K |
27185-VE200 |
US $8.78 |
||
|
27188U
|
27188U
27188-0T000 Door Assy-Def0008--01 ~ ; K |
27188-0T000 |
US $10.22 |
||
|
27213
|
27213
92419-VG300 Cover-Heater0008--01 ~ ; K; [G502] |
92419-VG300 |
US $28.37 |
||
|
27245E
|
27245E
21476-B0100
Clip-Cooler Case
0008--01 ~ ; K |
21476-B0100 |
— | ||
| replacement | |||||
|
27245E
|
27245E
21476-C5500 Clip0008--01 ~ ; K |
21476-C5500 |
from US $3.07 |
||
|
27245E
|
27245E
01558-00191 CLIP0008--01 ~ ; K |
01558-00191 |
US $4.18 |
||
|
27245EA
|
27245EA
01558-00191 CLIP0008--01 ~ ; K |
01558-00191 |
US $4.18 |
||
|
27245EA
|
27245EA
01558-00191 CLIP0008--01 ~ ; K |
01558-00191 |
US $4.18 |
||
|
27726X
|
27726X
27726-15U00 Aspirator0008--01 ~ ; K; [B421] |
27726-15U00 |
US $8.64 |
||
|
27733M
|
27733M
27741-VE200 Actuator Assy-Mode0008--01 ~ ; K |
27741-VE200 |
US $45.22 |
||
|
27733N
|
27733N
27742VE200 Actuator Assy-Air Mix0008--01 ~ ; K |
27742VE200 |
US $47.52 |
||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
27820QA
|
27820QA
27836-VE105 Duct0008--01 ~ ; K; [B421] |
27836-VE105 |
US $28.08 |
||
|
92560M
|
92560M
92580-78E00
GROMMET-RUBBER
0008--01 ~ ; *K.(V+HWS) |
92580-78E00 |
— | ||
| replacement | |||||
|
92560M
|
92560M
92580-78E01 GROMMET-RUBBER0008--01 ~ ; *K.(V+HWS) |
92580-78E01 |
US $5.48 |
||
|
92560M
|
92560M
92580-78E00
GROMMET-RUBBER
0008--01 ~ ; *K.(V+HWS) |
92580-78E00 |
— | ||
| replacement | |||||
|
92560M
|
92560M
92580-78E01 GROMMET-RUBBER0008--01 ~ ; *K.(V+HWS) |
92580-78E01 |
US $5.48 |
||
