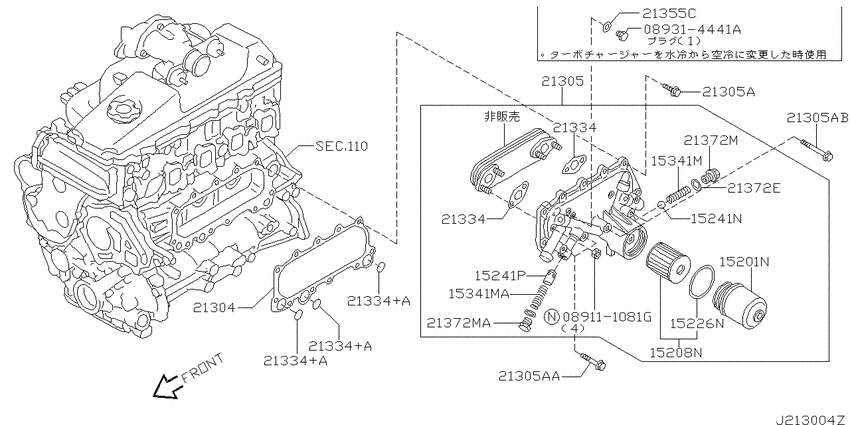

Oil cooler (2001-11-01 ~ ; ZD30DDTI) Diagram Nissan ELGRAND
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- HWS
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089314441A
|
089314441A
089314441A
PLUGTHREAD
|
089314441A |
— | ||
|
110
|
Cylinder block & oil pan
110
|
||||
|
15201N
|
15201N
15201-2W201 Body, Oil Filter0008--01 ~ ; ZD30DDTI |
15201-2W201 |
US $117.65 |
||
|
15208N
|
15208N
AY110NS002 Element-Oil Filter0008--01 ~ ; ZD30DDTI |
AY110NS002 |
US $25.20 |
||
|
15226N
|
15226N
152262W200 Seal-O Ring0008--01 ~ ; ZD30DDTI |
152262W200 |
US $5.18 |
||
|
15241N
|
15241N
15300-76200 Valve Assy-Relief, Oil Cooler0008--01 ~ ; ZD30DDTI |
15300-76200 |
US $2.03 |
||
|
15241P
|
15241P
1513243G01 Valve Assy-Relief, Oil Cooler0008--01 ~ ; ZD30DDTI |
1513243G01 |
US $11.51 |
||
|
15341M
|
15341M
15133-2W210 Spring-Valve, Oil Cooler0104--01 ~ ; ZD30DDTI |
15133-2W210 |
US $3.31 |
||
|
15341M
|
15341M
15341-T9000 Spring-Valve, Oil Cooler0008--01 ~ 0104--01; ZD30DDTI |
15341-T9000 |
US $4.32 |
||
|
15341M
|
15341M
15133-2W200 Spring-Valve, Oil Cooler0104--01 ~ ; ZD30DDTI |
15133-2W200 |
US $3.31 |
||
|
15341M
|
15341M
15133-43G01 Spring-Valve, Oil Cooler0008--01 ~ 0104--01; ZD30DDTI |
15133-43G01 |
US $5.04 |
||
|
15341MA
|
15341MA
15133-2W200 Spring-Valve, Oil Cooler0104--01 ~ ; ZD30DDTI |
15133-2W200 |
US $3.31 |
||
|
15341MA
|
15341MA
15133-43G01 Spring-Valve, Oil Cooler0008--01 ~ 0104--01; ZD30DDTI |
15133-43G01 |
US $5.04 |
||
|
21304
|
21304
213042W200 Ring-Rubber0008--01 ~ ; ZD30DDTI |
213042W200 |
US $23.18 |
||
|
21305
|
21305
21305-2W201 Cooler Assy-Oil0008--01 ~ 0012--01; ZD30DDTI |
21305-2W201 |
US $601.80 |
||
|
21305
|
21305
21305-2W202 Cooler Assy-Oil0012--01 ~ 0104--01; ZD30DDTI |
21305-2W202 |
US $601.80 |
||
|
21305
|
21305
21305-2W203 Cooler Assy-Oil0104--01 ~ 0111--01; ZD30DDTI |
21305-2W203 |
US $601.80 |
||
|
21305
|
21305
21305-2W210 Cooler Assy-Oil0111--01 ~ ; ZD30DDTI |
21305-2W210 |
US $601.80 |
||
|
21305
|
21305
0112508204 BOLT0008--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
21305
|
21305
01125-08554 BOLT0008--01 ~ ; ZD30DDTI |
01125-08554 |
US $3.31 |
||
|
21305
|
21305
0112508804 BOLT0008--01 ~ ; ZD30DDTI |
0112508804 |
US $3.31 |
||
|
21305
|
21305
21606-VG110 Cooler Assy-Oil0008--01 ~ ; 2WD.ZD30DDTI.AT |
21606-VG110 |
US $1,121.47 |
||
|
21305A
|
21305A
0112508204 BOLT0008--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
21305A
|
21305A
01125-08554 BOLT0008--01 ~ ; ZD30DDTI |
01125-08554 |
US $3.31 |
||
|
21305A
|
21305A
0112508804 BOLT0008--01 ~ ; ZD30DDTI |
0112508804 |
US $3.31 |
||
|
21305AA
|
21305AA
01125-08554 BOLT0008--01 ~ ; ZD30DDTI |
01125-08554 |
US $3.31 |
||
|
21305AB
|
21305AB
0112508804 BOLT0008--01 ~ ; ZD30DDTI |
0112508804 |
US $3.31 |
||
|
21334
|
21334
2133405D03 Seal-0 Ring0008--01 ~ 0012--01; ZD30DDTI |
2133405D03 |
from US $5.09 |
||
|
21334
|
21334
2133405D04 Seal-0 Ring0012--01 ~ ; ZD30DDTI |
2133405D04 |
from US $4.61 |
||
|
21334
|
21334
2133402N00 Seal-O Ring0008--01 ~ ; ZD30DDTI |
2133402N00 |
from US $7.49 |
||
|
21334
|
21334
2133405D03 Seal-0 Ring0008--01 ~ 0012--01; ZD30DDTI |
2133405D03 |
from US $5.09 |
||
|
21334
|
21334
2133405D04 Seal-0 Ring0012--01 ~ ; ZD30DDTI |
2133405D04 |
from US $4.61 |
||
|
21334
|
21334
2133402N00 Seal-O Ring0008--01 ~ ; ZD30DDTI |
2133402N00 |
from US $7.49 |
||
|
21334+A
|
21334+A
2133402N00 Seal-O Ring0008--01 ~ ; ZD30DDTI |
2133402N00 |
from US $7.49 |
||
|
21334+A
|
21334+A
2133402N00 Seal-O Ring0008--01 ~ ; ZD30DDTI |
2133402N00 |
from US $7.49 |
||
|
21334+A
|
21334+A
2133402N00 Seal-O Ring0008--01 ~ ; ZD30DDTI |
2133402N00 |
from US $7.49 |
||
|
21355C
|
21355C
1679410G01 Gasket0111--01 ~ ; ZD30DDTI |
1679410G01 |
US $8.18 |
||
|
21372E
|
21372E
15304-61501 Gasket-Oil Filter0008--01 ~ ; ZD30DDTI |
15304-61501 |
US $2.59 |
||
| replacement | |||||
|
21372E
|
21372E
15304-Y1400
Gasket-oil filter
0008--01 ~ ; ZD30DDTI |
15304-Y1400 |
— | ||
|
21372M
|
21372M
15134-2W210 Plug-Oil Cooler0112--01 ~ ; *ZD30DDTI |
15134-2W210 |
US $10.94 |
||
|
21372M
|
21372M
15303-61503 Plug-Oil Cooler0008--01 ~ ; ZD30DDTI |
15303-61503 |
US $12.10 |
||
| replacement | |||||
|
21372M
|
21372M
15134-6150A Plug-Oil Cooler0008--01 ~ ; ZD30DDTI |
15134-6150A |
US $12.10 |
||
|
21372M
|
21372M
15134-2W210 Plug-Oil Cooler0104--01 ~ ; ZD30DDTI |
15134-2W210 |
US $10.94 |
||
|
21372M
|
21372M
15134-43G01 Plug-Oil Cooler0008--01 ~ 0104--01; ZD30DDTI |
15134-43G01 |
US $8.78 |
||
|
21372MA
|
21372MA
15134-2W210 Plug-Oil Cooler0104--01 ~ ; ZD30DDTI |
15134-2W210 |
US $10.94 |
||
|
21372MA
|
21372MA
15134-43G01 Plug-Oil Cooler0008--01 ~ 0104--01; ZD30DDTI |
15134-43G01 |
US $8.78 |
||
