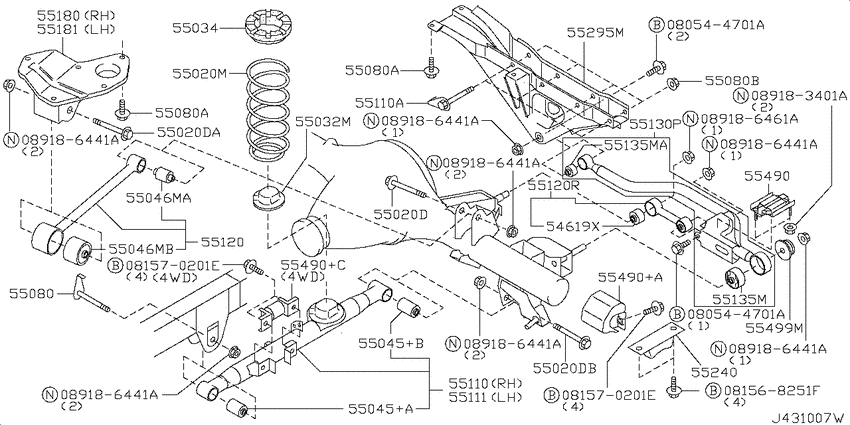

Rear suspension (2000-08-01 ~ ; リンク&スプリング; VQ35DE +ZD30DDTI) Diagram Nissan ELGRAND
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD
- transmission
- AT
- grade
- HWS
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080544701A
|
080544701A
08054-4701A
Bolt-hexagon
|
08054-4701A |
— | ||
|
080544701A
|
080544701A
08054-4701A
Bolt-hexagon
|
08054-4701A |
— | ||
|
081568251F
|
081568251F
08156-8251F BOLTHEXPP WW |
08156-8251F |
from US $0.89 |
||
|
081570201E
|
081570201E
08157-0201E
ﾎﾞﾙﾄ
|
08157-0201E |
— | ||
|
081570201E
|
081570201E
08157-0201E
ﾎﾞﾙﾄ
|
08157-0201E |
— | ||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.74 |
||
|
089186441A
|
089186441A
089186441A NUTSLOCK |
089186441A |
US $0.70 |
||
|
089186441A
|
089186441A
089186441A NUTSLOCK |
089186441A |
US $0.70 |
||
|
089186441A
|
089186441A
089186441A NUTSLOCK |
089186441A |
US $0.70 |
||
|
089186441A
|
089186441A
089186441A NUTSLOCK |
089186441A |
US $0.70 |
||
|
089186441A
|
089186441A
089186441A NUTSLOCK |
089186441A |
US $0.70 |
||
|
089186441A
|
089186441A
089186441A NUTSLOCK |
089186441A |
US $0.70 |
||
|
089186441A
|
089186441A
089186441A NUTSLOCK |
089186441A |
US $0.70 |
||
|
089186461A
|
089186461A
089186461A STANDARD HARDWA |
089186461A |
US $0.63 |
||
|
54619X
|
54619X
55152-VG200 Bush-Connecting Rod0008--01 ~ ; VQ35DE +ZD30DDTI |
55152-VG200 |
US $26.35 |
||
|
55020D
|
55020D
54368-VG000 Bolt0008--01 ~ ; VQ35DE +ZD30DDTI |
54368-VG000 |
US $2.45 |
||
|
55020D
|
55020D
54368VE001 Bolt0008--01 ~ ; VQ35DE +ZD30DDTI |
54368VE001 |
US $2.45 |
||
|
55020D
|
55020D
54368-VE010 Bolt0008--01 ~ ; VQ35DE +ZD30DDTI |
54368-VE010 |
US $2.45 |
||
|
55020DA
|
55020DA
54368VE001 Bolt0008--01 ~ ; VQ35DE +ZD30DDTI |
54368VE001 |
US $2.45 |
||
|
55020DB
|
55020DB
54368-VE010 Bolt0008--01 ~ ; VQ35DE +ZD30DDTI |
54368-VE010 |
US $2.45 |
||
|
55020M
|
55020M
55020-VG200 Spring-Rear Suspension0008--01 ~ ; VQ35DE +ZD30DDTI |
55020-VG200 |
US $294.53 |
||
|
55032M
|
55032M
55032-VE000 Seat-Rubber, Rear Spring Lower0008--01 ~ ; VQ35DE +ZD30DDTI |
55032-VE000 |
US $22.90 |
||
|
55034
|
55034
55034-VE020 Seat-Rubber, Rear Spring Upper0008--01 ~ ; VQ35DE +ZD30DDTI |
55034-VE020 |
US $23.76 |
||
|
55045+A
|
55045+A
55045-VE010 Bush-Rear Spring0008--01 ~ ; VQ35DE +ZD30DDTI; ﾎﾞﾃﾞｲ ﾖｳ |
55045-VE010 |
from US $21.02 |
||
|
55045+B
|
55045+B
55045-VE020 Bush-Rear Spring0008--01 ~ ; VQ35DE +ZD30DDTI; ｱｸｽﾙ ﾖｳ |
55045-VE020 |
US $21.02 |
||
|
55046MA
|
55046MA
55046-VE000 Bush-Rear Suspension Link0008--01 ~ ; VQ35DE +ZD30DDTI; ｱｸｽﾙ ﾖｳ |
55046-VE000 |
US $21.02 |
||
|
55046MB
|
55046MB
55046-VE020 Bush-Rear Suspension Link0008--01 ~ ; VQ35DE +ZD30DDTI; ﾎﾞﾃﾞｲ ﾖｳ |
55046-VE020 |
US $49.82 |
||
|
55080
|
55080
55082-VE000 Bolt-Link, Rear Suspension0008--01 ~ ; VQ35DE +ZD30DDTI |
55082-VE000 |
US $6.91 |
||
|
55080
|
55080
01125-00841 BOLT0008--01 ~ ; VQ35DE +ZD30DDTI |
01125-00841 |
US $2.45 |
||
|
55080
|
55080
0122500891 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500891 |
US $2.45 |
||
|
55080A
|
55080A
01125-00841 BOLT0008--01 ~ ; VQ35DE +ZD30DDTI |
01125-00841 |
US $2.45 |
||
|
55080A
|
55080A
01125-00841 BOLT0008--01 ~ ; VQ35DE +ZD30DDTI |
01125-00841 |
US $2.45 |
||
|
55080B
|
55080B
0122500891 NUT0008--01 ~ ; VQ35DE +ZD30DDTI |
0122500891 |
US $2.45 |
||
|
55110
|
55110
55110VE020 Link Compl-Lower, Rear Suspension Rh0008--01 ~ 0009--01; VQ35DE +ZD30DDTI |
55110VE020 |
US $249.12 |
||
|
55110
|
55110
55110-VG200 Link Compl-Lower, Rear Suspension Rh0009--01 ~ ; VQ35DE +ZD30DDTI |
55110-VG200 |
US $210.24 |
||
|
55110
|
55110
55080-VE000 Bolt-Link Fix0008--01 ~ ; VQ35DE +ZD30DDTI |
55080-VE000 |
US $3.46 |
||
|
55110A
|
55110A
55080-VE000 Bolt-Link Fix0008--01 ~ ; VQ35DE +ZD30DDTI |
55080-VE000 |
US $3.46 |
||
|
55111
|
55111
55111-VE020 Link Compl-Lower, Rear Suspension Lh0008--01 ~ 0009--01; VQ35DE +ZD30DDTI |
55111-VE020 |
US $249.12 |
||
|
55111
|
55111
55111-VG200 Link Compl-Lower, Rear Suspension Lh0009--01 ~ ; VQ35DE +ZD30DDTI |
55111-VG200 |
US $210.24 |
||
|
55120
|
55120
55120-VE000 Link Compl-Upper, Rear Suspension0008--01 ~ ; VQ35DE +ZD30DDTI |
55120-VE000 |
US $212.08 |
||
|
55120
|
55120
55120VG200 Rod Compl-Control0008--01 ~ ; VQ35DE +ZD30DDTI |
55120VG200 |
US $84.67 |
||
|
55120R
|
55120R
55120VG200 Rod Compl-Control0008--01 ~ ; VQ35DE +ZD30DDTI |
55120VG200 |
US $84.67 |
||
|
55130P
|
55130P
55130VE020 Link Compl-Lateral0008--01 ~ ; VQ35DE +ZD30DDTI |
55130VE020 |
US $240.48 |
||
|
55135M
|
55135M
55135VE000 Bush-Lateral0008--01 ~ ; VQ35DE +ZD30DDTI |
55135VE000 |
US $35.14 |
||
|
55135M
|
55135M
55136VE000 Bush-Lateral0008--01 ~ ; VQ35DE +ZD30DDTI |
55136VE000 |
from US $13.97 |
||
|
55135MA
|
55135MA
55136VE000 Bush-Lateral0008--01 ~ ; VQ35DE +ZD30DDTI |
55136VE000 |
from US $13.97 |
||
|
55180
|
55180
55180VE010 Bracket Assy-Upper Link Body, Rh0008--01 ~ ; 2WD.VQ35DE +2WD.ZD30DDTI |
55180VE010 |
US $84.82 |
||
|
55181
|
55181
55181VE010 Bracket Assy-Upper Link Body, Lh0008--01 ~ ; 2WD.VQ35DE +2WD.ZD30DDTI |
55181VE010 |
US $84.82 |
||
|
55240
|
55240
55240VE700 Bumper Assy-Bound Rear Suspension0008--01 ~ 0101--01; VQ35DE +ZD30DDTI |
55240VE700 |
US $76.03 |
||
|
55240
|
55240
55240VG200 Bumper Assy-Bound Rear Suspension0101--01 ~ ; VQ35DE +ZD30DDTI |
55240VG200 |
US $50.60 |
||
|
55295M
|
55295M
55295VE000 Bracket Assy-Lateral Link0008--01 ~ ; VQ35DE +ZD30DDTI |
55295VE000 |
US $240.48 |
||
|
55490
|
55490
55490VE010 Damper Assy-Dynamic, Rear Suspension0008--01 ~ ; 2WD.VQ35DE +ZD30DDTI; ﾛｱ ﾖｳ |
55490VE010 |
US $139.82 |
||
|
55490+A
|
55490+A
55490VE010 Damper Assy-Dynamic, Rear Suspension0008--01 ~ ; 2WD.VQ35DE +ZD30DDTI; ﾛｱ ﾖｳ |
55490VE010 |
US $139.82 |
