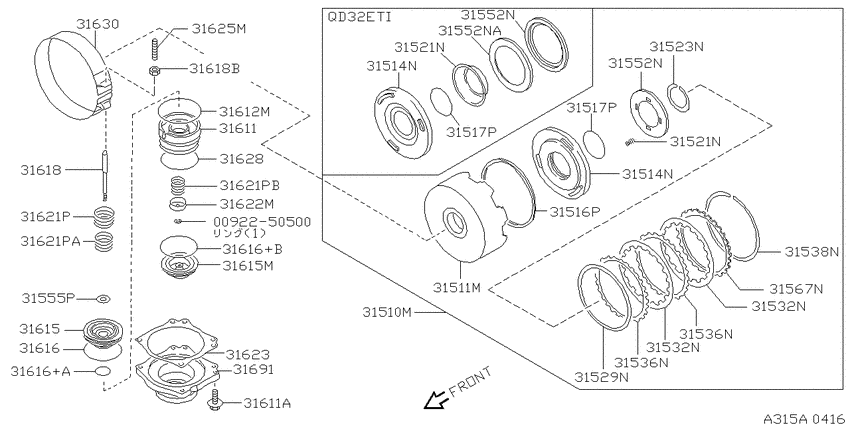

Clutch & band servo (1998-10-01 ~ 1999-08-01; サーボ&リバース クラッチ; 2WD.AT) Diagram Nissan ELGRAND
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- QD32ETI
- drive
- 2WD
- transmission
- AT
- grade
- J
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250500
|
0092250500
00922-50500
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50500 |
— | ||
|
31510M
|
31510M
31510-41X18 Clutch Assy-Reverse9705--01 ~ 9802--01; 2WD.QD32ETI.AT |
31510-41X18 |
US $298.78 |
||
|
31510M
|
31510M
31510-4AX00 Clutch Assy-Reverse9802--01 ~ 9810--01; 2WD.QD32ETI.AT |
31510-4AX00 |
US $298.78 |
||
|
31511M
|
31511M
31511-41X05 Drum-Reverse Clutch9705--01 ~ 9802--01; 2WD.QD32ETI.AT |
31511-41X05 |
US $158.40 |
||
|
31511M
|
31511M
31511-4AX00 Drum-Reverse Clutch9802--01 ~ 9810--01; 2WD.QD32ETI.AT |
31511-4AX00 |
US $158.40 |
||
|
31514N
|
31514N
31514-41X00 Piston Assy-Clutch9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31514-41X00 |
US $83.52 |
||
|
31514N
|
31514N
31514-41X00 Piston Assy-Clutch9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31514-41X00 |
US $83.52 |
||
|
31516P
|
31516P
31516-21X01
Seal-Lip
9705--01 ~ 9810--01; 2WD.AT |
31516-21X01 |
— | ||
| replacement | |||||
|
31516P
|
31516P
C1516-21X01 Seal-lip9705--01 ~ 9810--01; 2WD.AT |
C1516-21X01 |
US $11.79 |
||
|
31517P
|
31517P
31517-21X00 Seal-Lathe Cut Ring9705--01 ~ 9810--01; 2WD.AT |
31517-21X00 |
US $6.77 |
||
|
31517P
|
31517P
31517-21X00 Seal-Lathe Cut Ring9705--01 ~ 9810--01; 2WD.AT |
31517-21X00 |
US $6.77 |
||
|
31521N
|
31521N
31505-41X07 Spring-Piston Return9705--01 ~ 9802--01; 2WD.QD32ETI.AT |
31505-41X07 |
US $0.86 |
||
|
31521N
|
31521N
31505-41X07 Spring-Piston Return9705--01 ~ 9802--01; 2WD.QD32ETI.AT |
31505-41X07 |
US $0.86 |
||
|
31523N
|
31523N
31523-21X00 Ring-Snap9705--01 ~ 9810--01; 2WD.AT |
31523-21X00 |
US $2.45 |
||
|
31529N
|
31529N
3153541X10 Plate-Dished9705--01 ~ 9810--01; 2WD.AT |
3153541X10 |
US $10.51 |
||
|
31532N
|
31532N
31532-41X70 Plate Assy-Drive9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31532-41X70 |
US $17.71 |
||
|
31532N
|
31532N
31532-41X73 Plate Assy-Drive9810--01 ~ 9908--01; 2WD.QD32ETI.AT |
31532-41X73 |
US $17.71 |
||
|
31532N
|
31532N
31532-41X70 Plate Assy-Drive9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31532-41X70 |
US $17.71 |
||
|
31532N
|
31532N
31532-41X73 Plate Assy-Drive9810--01 ~ 9908--01; 2WD.QD32ETI.AT |
31532-41X73 |
US $17.71 |
||
|
31536N
|
31536N
31536-41X20 Plate-Driven9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31536-41X20 |
US $10.80 |
||
|
31536N
|
31536N
31536-41X20 Plate-Driven9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31536-41X20 |
US $10.80 |
||
|
31538N
|
31538N
3150641X13 Ring-Snap9705--01 ~ 9810--01; 2WD.AT |
3150641X13 |
US $6.19 |
||
|
31552N
|
31552N
31522-41X03 Retainer-Spring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31522-41X03 |
US $4.18 |
||
|
31552N
|
31552N
31522-41X04 Retainer-Spring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31522-41X04 |
US $4.18 |
||
|
31552N
|
31552N
31522-41X03 Retainer-Spring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31522-41X03 |
US $4.18 |
||
|
31552N
|
31552N
31522-41X04 Retainer-Spring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31522-41X04 |
US $4.18 |
||
|
31552NA
|
31552NA
31522-41X04 Retainer-Spring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31522-41X04 |
US $4.18 |
||
|
31555P
|
31555P
31619-01X00 Washer-Piston Stem9705--01 ~ 9810--01; 2WD.AT |
31619-01X00 |
US $0.86 |
||
|
31567N
|
31567N
31537-42X20 Plate-Retaining9705--01 ~ 9810--01; 2WD.QD32ETI.AT; ｾﾝﾀｸ T=4.6 |
31537-42X20 |
US $17.71 |
||
|
31567N
|
31567N
31537-42X21 Plate-Retaining9705--01 ~ 9810--01; 2WD.QD32ETI.AT; ｾﾝﾀｸ T=4.8 |
31537-42X21 |
US $17.71 |
||
|
31567N
|
31567N
31537-42X22 Plate-Retaining9705--01 ~ 9810--01; 2WD.QD32ETI.AT; ｾﾝﾀｸ T=5.0 |
31537-42X22 |
US $17.71 |
||
|
31567N
|
31567N
31537-42X23 Plate-Retaining9705--01 ~ 9810--01; 2WD.QD32ETI.AT; ｾﾝﾀｸ T=5.2 |
31537-42X23 |
US $17.71 |
||
|
31567N
|
31567N
31537-42X24 Plate-Retaining9705--01 ~ 9810--01; 2WD.QD32ETI.AT; ｾﾝﾀｸ T=5.4 |
31537-42X24 |
US $17.71 |
||
|
31611
|
31611
31611-41X00 Retainer-Servo Piston9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31611-41X00 |
US $47.66 |
||
|
31611
|
31611
31377-51X04 Bolt9705--01 ~ 9810--01; 2WD.AT |
31377-51X04 |
US $1.73 |
||
|
31611A
|
31611A
31377-51X04 Bolt9705--01 ~ 9810--01; 2WD.AT |
31377-51X04 |
US $1.73 |
||
|
31615
|
31615
31615-41X05 Piston-Band Servo9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31615-41X05 |
US $36.86 |
||
|
31615
|
31615
31526-41X02 Seal-O Ring9705--01 ~ 9810--01; 2WD.AT; 3R |
31526-41X02 |
US $2.36 |
||
|
31615
|
31615
31526-41X03 Seal-O Ring9705--01 ~ 9810--01; 2WD.AT; 3R |
31526-41X03 |
US $2.36 |
||
|
31615
|
31615
31526-41X02 Seal-O Ring9705--01 ~ 9810--01; 2WD.AT; 2A |
31526-41X02 |
US $2.36 |
||
|
31615
|
31615
31695-41X01 Piston-Overdrive Servo9705--01 ~ 9810--01; 2WD.AT |
31695-41X01 |
US $15.26 |
||
|
31615M
|
31615M
31695-41X01 Piston-Overdrive Servo9705--01 ~ 9810--01; 2WD.AT |
31695-41X01 |
US $15.26 |
||
|
31616
|
31616
31527-41X00 Seal-Lathe Cut Ring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31527-41X00 |
US $4.75 |
||
|
31616
|
31616
31527-41X01 Seal-Lathe Cut Ring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31527-41X01 |
US $4.75 |
||
|
31616
|
31616
31527-41X03 Seal-Lathe Cut Ring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31527-41X03 |
US $4.57 |
||
|
31616+A
|
31616+A
31527-41X01 Seal-Lathe Cut Ring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31527-41X01 |
US $4.75 |
||
|
31616+B
|
31616+B
31527-41X03 Seal-Lathe Cut Ring9705--01 ~ 9810--01; 2WD.QD32ETI.AT |
31527-41X03 |
US $4.57 |
||
|
31618
|
31618
31618-41X03 Stem-Band Servo Piston9705--01 ~ 9810--01; 2WD.AT |
31618-41X03 |
US $8.93 |
||
|
31618
|
31618
31365-41X00 Nut9705--01 ~ 9810--01; 2WD.AT |
31365-41X00 |
US $1.73 |
||
|
31618B
|
31618B
31365-41X00 Nut9705--01 ~ 9810--01; 2WD.AT |
31365-41X00 |
US $1.73 |
||
|
31621P
|
31621P
31605-41X00 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; 2ND ｻ-ﾎﾞ ｱｳﾀ- |
31605-41X00 |
US $4.03 |
||
|
31621P
|
31621P
31605-41X05 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; 2ND ｻ-ﾎﾞ ｲﾝﾅ- |
31605-41X05 |
US $2.45 |
||
|
31621P
|
31621P
31605-41X01 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; 4TH ﾘﾀ-ﾝ |
31605-41X01 |
US $2.45 |
||
|
31621P
|
31621P
31605-41X06 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; 4A |
31605-41X06 |
US $1.73 |
||
|
31621P
|
31621P
31605-41X10 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; 3R |
31605-41X10 |
US $3.88 |
||
|
31621P
|
31621P
31605-41X09 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; 2A |
31605-41X09 |
US $3.88 |
||
|
31621P
|
31621P
31605-41X02 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; N-D |
31605-41X02 |
US $4.03 |
||
|
31621PA
|
31621PA
31605-41X05 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; 2ND ｻ-ﾎﾞ ｲﾝﾅ- |
31605-41X05 |
US $2.45 |
||
|
31621PB
|
31621PB
31605-41X01 Spring-Servo9705--01 ~ 9810--01; 2WD.AT; 4TH ﾘﾀ-ﾝ |
31605-41X01 |
US $2.45 |
||
|
31622M
|
31622M
31622-41X00 Retainer-Spring, Servo Piston9705--01 ~ 9810--01; 2WD.AT; 4TH |
31622-41X00 |
US $1.73 |
||
|
31623
|
31623
31623-41X00 Gasket-Retainer, Servo9705--01 ~ 9810--01; 2WD.AT |
31623-41X00 |
US $0.82 |
||
|
31625M
|
31625M
31625-41X01 Pin-Anchor End9705--01 ~ 9810--01; 2WD.AT |
31625-41X01 |
US $4.03 |
||
|
31628
|
31628
31628-X0100 Seal-O Ring9705--01 ~ 9810--01; 2WD.AT |
31628-X0100 |
US $1.67 |
||
|
31630
|
31630
31630-41X08 Band Assy-Brake9705--01 ~ 9810--01; 2WD.AT |
31630-41X08 |
US $48.24 |
||
|
31691
|
31691
31691-41X01 Retainer-Piston, Overdrive Servo9705--01 ~ 9810--01; 2WD.AT |
31691-41X01 |
US $37.58 |
||
