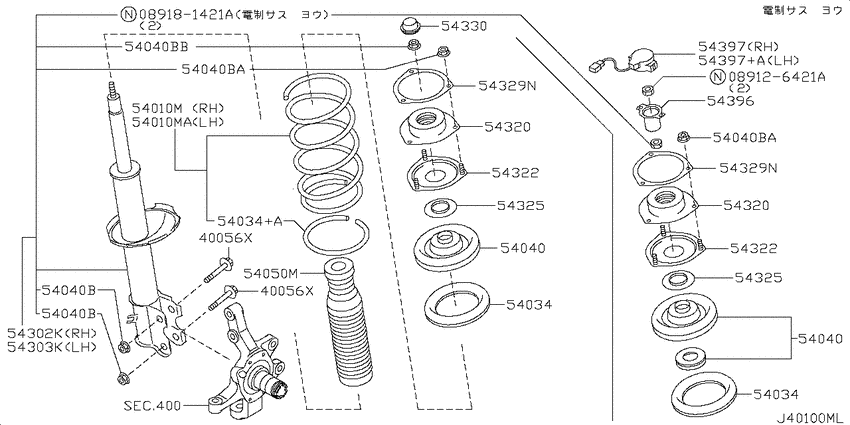

Front suspension (1997-05-01 ~ 1998-10-01; ストラット&スプリング; VG33E +QD32ETI) Diagram Nissan ELGRAND
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- QD32ETI
- drive
- 2WD
- transmission
- AT
- grade
- J
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089126421A
|
089126421A
08912-6421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-6421A |
— | ||
|
089181421A
|
089181421A
08918-1421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08918-1421A |
— | ||
|
400
|
Front axle
400
|
||||
|
400
|
Front axle
400
|
||||
|
40056X
|
40056X
40056-0W000
Bolt-Knuckle Arm
9705--01 ~ 9810--01; VG33E +QD32ETI |
40056-0W000 |
— | ||
| replacement | |||||
|
40056X
|
40056X
400560W00A Bolt-Knuckle Arm9705--01 ~ 9810--01; VG33E +QD32ETI |
400560W00A |
from US $4.57 |
||
|
40056X
|
40056X
40056-0W000
Bolt-Knuckle Arm
9705--01 ~ 9810--01; VG33E +QD32ETI |
40056-0W000 |
— | ||
| replacement | |||||
|
40056X
|
40056X
400560W00A Bolt-Knuckle Arm9705--01 ~ 9810--01; VG33E +QD32ETI |
400560W00A |
from US $4.57 |
||
|
54010M
|
54010M
54010VE302 Spring-Front9705--01 ~ 9810--01; 2WD.QD32ETI; ﾐｷﾞ ﾖｳ |
54010VE302 |
US $162.72 |
||
|
54010M
|
54010M
54010-VE710 Spring-Front9810--01 ~ 9908--01; 2WD.QD32ETI; ﾐｷﾞ ﾖｳ |
54010-VE710 |
US $294.53 |
||
|
54010M
|
54010M
54010-VE312 Spring-Front9705--01 ~ 9810--01; 2WD.QD32ETI; ﾋﾀﾞﾘ ﾖｳ |
54010-VE312 |
US $294.53 |
||
|
54010M
|
54010M
54010-VE711 Spring-Front9810--01 ~ 9908--01; 2WD.QD32ETI; ﾋﾀﾞﾘ ﾖｳ |
54010-VE711 |
US $294.53 |
||
|
54010MA
|
54010MA
54010-VE312 Spring-Front9705--01 ~ 9810--01; 2WD.QD32ETI; ﾋﾀﾞﾘ ﾖｳ |
54010-VE312 |
US $294.53 |
||
|
54010MA
|
54010MA
54010-VE711 Spring-Front9810--01 ~ 9908--01; 2WD.QD32ETI; ﾋﾀﾞﾘ ﾖｳ |
54010-VE711 |
US $294.53 |
||
|
54034
|
54034
540340W000 Seat-Rubber, Front Spring9705--01 ~ 9810--01; VG33E +QD32ETI |
540340W000 |
from US $14.14 |
||
|
54034
|
54034
540340W010 Tube-Coil Spring, Front9705--01 ~ 9810--01; VG33E +QD32ETI |
540340W010 |
US $11.65 |
||
|
54034
|
54034
540340W000 Seat-Rubber, Front Spring9705--01 ~ 9810--01; VG33E +QD32ETI |
540340W000 |
from US $14.14 |
||
|
54034
|
54034
540340W010 Tube-Coil Spring, Front9705--01 ~ 9810--01; VG33E +QD32ETI |
540340W010 |
US $11.65 |
||
|
54034+A
|
54034+A
540340W010 Tube-Coil Spring, Front9705--01 ~ 9810--01; VG33E +QD32ETI |
540340W010 |
US $11.65 |
||
|
54040
|
54040
540400W000 Seat Assy-Front Spring, Upper9705--01 ~ 9810--01; VG33E +QD32ETI |
540400W000 |
from US $23.57 |
||
|
54040
|
54040
0122300321 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122300321 |
from US $0.72 |
||
|
54040
|
54040
0122500231 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122500231 |
from US $0.63 |
||
|
54040
|
54040
0122500032 NUT-MOUNTING BOLT,LOWER9705--01 ~ 9908--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT |
0122500032 |
from US $3.06 |
||
|
54040
|
54040
540400W000 Seat Assy-Front Spring, Upper9705--01 ~ 9810--01; VG33E +QD32ETI |
540400W000 |
from US $23.57 |
||
|
54040
|
54040
0122300321 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122300321 |
from US $0.72 |
||
|
54040
|
54040
0122500231 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122500231 |
from US $0.63 |
||
|
54040
|
54040
0122500032 NUT-MOUNTING BOLT,LOWER9705--01 ~ 9908--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT |
0122500032 |
from US $3.06 |
||
|
54040B
|
54040B
0122300321 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122300321 |
from US $0.72 |
||
|
54040B
|
54040B
0122500231 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122500231 |
from US $0.63 |
||
|
54040B
|
54040B
0122500032 NUT-MOUNTING BOLT,LOWER9705--01 ~ 9908--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT |
0122500032 |
from US $3.06 |
||
|
54040B
|
54040B
0122300321 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122300321 |
from US $0.72 |
||
|
54040B
|
54040B
0122500231 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122500231 |
from US $0.63 |
||
|
54040B
|
54040B
0122500032 NUT-MOUNTING BOLT,LOWER9705--01 ~ 9908--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT |
0122500032 |
from US $3.06 |
||
|
54040BA
|
54040BA
0122500231 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122500231 |
from US $0.63 |
||
|
54040BA
|
54040BA
0122500231 NUT9705--01 ~ 9810--01; VG33E +QD32ETI |
0122500231 |
from US $0.63 |
||
|
54040BB
|
54040BB
0122500032 NUT-MOUNTING BOLT,LOWER9705--01 ~ 9908--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT |
0122500032 |
from US $3.06 |
||
|
54050M
|
54050M
540500W002 Bumper Assy-Bound9705--01 ~ 9810--01; VG33E +QD32ETI |
540500W002 |
from US $21.56 |
||
|
54302K
|
54302K
54302-VE125 Strut Kit-Front Suspension, Rh9705--01 ~ 9905--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT; ｺｸｲﾝNO.54302-VE100 |
54302-VE125 |
US $526.75 |
||
|
54302K
|
54302K
54302-VE725 Strut Kit-Front Suspension, Rh9905--01 ~ 9908--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT; ｺｸｲﾝNO.54302-VE700 |
54302-VE725 |
US $526.75 |
||
|
54303K
|
54303K
54303-VE125 Strut Kit-Front Suspension, Lh9705--01 ~ 9905--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT; ｺｸｲﾝNO.54303-VE100 |
54303-VE125 |
US $526.75 |
||
|
54303K
|
54303K
54303-VE725 Strut Kit-Front Suspension, Lh9905--01 ~ 9908--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT; ｺｸｲﾝNO.54303-VE700 |
54303-VE725 |
US $526.75 |
||
|
54320
|
54320
543200W000 Insulator Assy-Strut Mounting9705--01 ~ 9810--01; VG33E +QD32ETI |
543200W000 |
from US $31.08 |
||
|
54320
|
54320
543200W000 Insulator Assy-Strut Mounting9705--01 ~ 9810--01; VG33E +QD32ETI |
543200W000 |
from US $31.08 |
||
|
54322
|
54322
543220W010 Bracket-Front Strut Mounting Insulator9705--01 ~ 9810--01; VG33E +QD32ETI |
543220W010 |
from US $13.08 |
||
|
54322
|
54322
543220W010 Bracket-Front Strut Mounting Insulator9705--01 ~ 9810--01; VG33E +QD32ETI |
543220W010 |
from US $13.08 |
||
|
54325
|
54325
54325-0W000 Bearing-Strut Mounting9705--01 ~ 9810--01; VG33E +QD32ETI |
54325-0W000 |
US $19.15 |
||
|
54325
|
54325
54325-0W000 Bearing-Strut Mounting9705--01 ~ 9810--01; VG33E +QD32ETI |
54325-0W000 |
US $19.15 |
||
|
54329N
|
54329N
543290W000 Spacer-Front Strut Insulator9705--01 ~ 9810--01; VG33E +QD32ETI |
543290W000 |
US $8.45 |
||
|
54329N
|
54329N
543290W000 Spacer-Front Strut Insulator9705--01 ~ 9810--01; VG33E +QD32ETI |
543290W000 |
US $8.45 |
||
|
54330
|
54330
543304P000 Cap-Front Strut Insulator9705--01 ~ 9908--01; VG33E.(J+V).AT +QD32ETI.(J+V).AT |
543304P000 |
US $4.82 |
||
