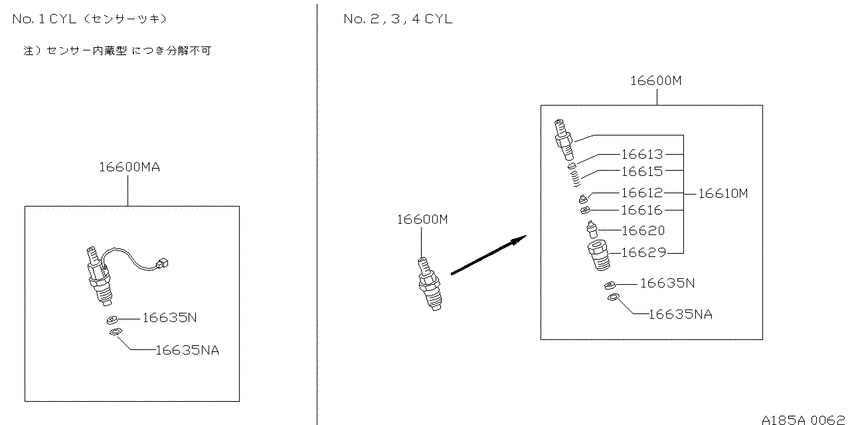

Fuel supply system (1998-10-01 ~ 1999-08-01; ノズルアッセンブリー&ホルダー; QD32ETI) Diagram Nissan ELGRAND
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- QD32ETI
- drive
- 2WD
- transmission
- AT
- grade
- J
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16600M
|
16600M
16600-63G20 Nozzle Assy & Holder9705--01 ~ 9810--01; QD32ETI; [B421] |
16600-63G20 |
US $180 |
||
|
16600M
|
16600M
16600-65N20
Nozzle Assy & Holder
9705--01 ~ 9810--01; QD32ETI; W/SEN[B421] |
16600-65N20 |
— | ||
|
16600M
|
16600M
16600-63G20 Nozzle Assy & Holder9705--01 ~ 9810--01; QD32ETI; [B421] |
16600-63G20 |
US $180 |
||
|
16600M
|
16600M
16600-65N20
Nozzle Assy & Holder
9705--01 ~ 9810--01; QD32ETI; W/SEN[B421] |
16600-65N20 |
— | ||
|
16600MA
|
16600MA
16600-65N20
Nozzle Assy & Holder
9705--01 ~ 9810--01; QD32ETI; W/SEN[B421] |
16600-65N20 |
— | ||
|
16610M
|
16610M
1661043G01 Holder Assy-Nozzle9705--01 ~ 9810--01; QD32ETI |
1661043G01 |
US $98.78 |
||
|
16612
|
16612
16612-43G00 Rod-Push9705--01 ~ 9810--01; QD32ETI |
16612-43G00 |
US $4.42 |
||
|
16613
|
16613
16613-43G00 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.1 |
16613-43G00 |
US $1.67 |
||
|
16613
|
16613
16613-43G01 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.2 |
16613-43G01 |
US $1.67 |
||
|
16613
|
16613
16613-43G02 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.3 |
16613-43G02 |
US $1.67 |
||
|
16613
|
16613
16613-43G03 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.4 |
16613-43G03 |
US $1.67 |
||
|
16613
|
16613
16613-43G04 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.5 |
16613-43G04 |
US $1.67 |
||
|
16613
|
16613
16613-43G05 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.52 |
16613-43G05 |
US $1.67 |
||
|
16613
|
16613
16613-43G06 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.54 |
16613-43G06 |
US $1.67 |
||
|
16613
|
16613
16613-43G07 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.56 |
16613-43G07 |
US $1.67 |
||
|
16613
|
16613
16613-43G08 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.58 |
16613-43G08 |
from US $1.67 |
||
|
16613
|
16613
16613-43G09 Washer-Adjusting9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ ｼﾖｳ T=0.8 |
16613-43G09 |
US $1.67 |
||
|
16615
|
16615
16615-43G00 Spring-Nozzle9705--01 ~ 9810--01; QD32ETI |
16615-43G00 |
US $5.68 |
||
|
16616
|
16616
16616-43G00 Piece-Distance9705--01 ~ 9810--01; QD32ETI |
16616-43G00 |
US $4.85 |
||
|
16620
|
16620
16620-63G00 Nozzle Assy9705--01 ~ 9810--01; QD32ETI |
16620-63G00 |
US $61.12 |
||
|
16629
|
16629
16629-43G01 Nut-Nozzle9705--01 ~ 9810--01; QD32ETI |
16629-43G01 |
US $8.64 |
||
|
16635N
|
16635N
1662543G00 Gasket-Nozzle9705--01 ~ 9810--01; QD32ETI |
1662543G00 |
from US $1.37 |
||
|
16635N
|
16635N
1662643G00 Gasket-Nozzle9705--01 ~ 9810--01; QD32ETI |
1662643G00 |
from US $1.41 |
||
|
16635N
|
16635N
1662543G00 Gasket-Nozzle9705--01 ~ 9810--01; QD32ETI |
1662543G00 |
from US $1.37 |
||
|
16635N
|
16635N
1662643G00 Gasket-Nozzle9705--01 ~ 9810--01; QD32ETI |
1662643G00 |
from US $1.41 |
||
|
16635NA
|
16635NA
1662643G00 Gasket-Nozzle9705--01 ~ 9810--01; QD32ETI |
1662643G00 |
from US $1.41 |
||
|
16635NA
|
16635NA
1662643G00 Gasket-Nozzle9705--01 ~ 9810--01; QD32ETI |
1662643G00 |
from US $1.41 |
