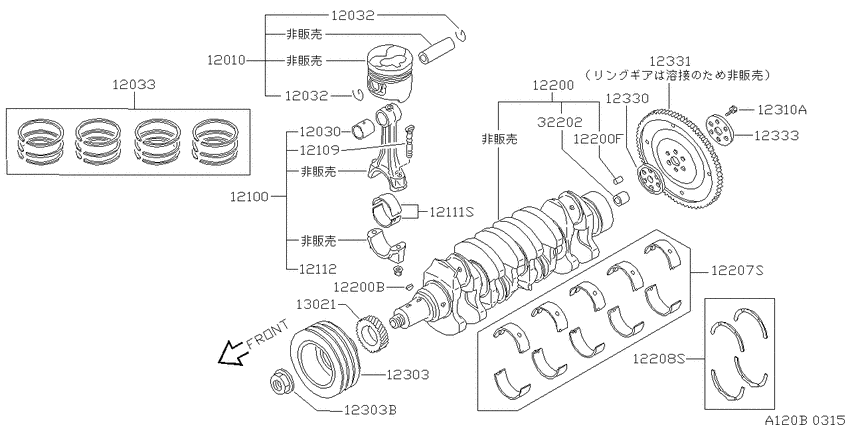

Piston,crankshaft & flywheel (1997-05-01 ~ 1998-10-01; QD32ETI) Diagram Nissan ELGRAND
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- QD32ETI
- drive
- 2WD
- transmission
- AT
- grade
- J
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12010
|
12010
12010-1W400 Piston, W/pin9705--01 ~ 9810--01; QD32ETI; ｱ-ﾄ STD ｸﾞﾚ-ﾄﾞ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12010-1W400 |
US $223.20 |
||
|
12010
|
12010
12010-1W405 Piston, W/pin9801--01 ~ 9810--01; QD32ETI; ｲｽﾞﾐ STD ｸﾞﾚ-ﾄﾞ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12010-1W405 |
US $223.20 |
||
|
12010
|
12010
12010-1W410 Piston, W/pin9705--01 ~ 9810--01; QD32ETI; ｱ-ﾄ STD ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12010-1W410 |
US $223.20 |
||
|
12010
|
12010
12010-1W415 Piston, W/pin9801--01 ~ 9810--01; QD32ETI; ｲｽﾞﾐ STD ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12010-1W415 |
US $223.20 |
||
|
12030
|
12030
12030-1W400 Bush-Piston Pin9705--01 ~ 9810--01; QD32ETI |
12030-1W400 |
US $7.78 |
||
|
12032
|
12032
12032-2S600 Ring-Snap9705--01 ~ 9810--01; QD32ETI |
12032-2S600 |
US $1.01 |
||
|
12032
|
12032
12032-2S600 Ring-Snap9705--01 ~ 9810--01; QD32ETI |
12032-2S600 |
US $1.01 |
||
|
12033
|
12033
12033-1W410 Ring Set-Piston9705--01 ~ 9810--01; QD32ETI |
12033-1W410 |
US $598.97 |
||
|
12100
|
12100
12100-1W401
Rod Compl-Connecting
9705--01 ~ 9810--01; QD32ETI |
12100-1W401 |
— | ||
| replacement | |||||
|
12100
|
12100
12100-1W40A Rod Compl-Connecting9705--01 ~ 9810--01; QD32ETI |
12100-1W40A |
from US $147.72 |
||
|
12109
|
12109
12109-43G00 Bolt-Connecting Rod9705--01 ~ 9810--01; QD32ETI |
12109-43G00 |
from US $5.14 |
||
|
12111S
|
12111S
12110-54T10 Bearing Set-Connecting Rod9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ US=0.25 |
12110-54T10 |
US $25.63 |
||
|
12111S
|
12111S
12110-54T11 Bearing Set-Connecting Rod9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ US=0.50 |
12110-54T11 |
US $25.63 |
||
|
12111S
|
12111S
12110-54T12 Bearing Set-Connecting Rod9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ US=0.75 |
12110-54T12 |
US $25.63 |
||
|
12111S
|
12111S
12110-54T13 Bearing Set-Connecting Rod9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ US=1.00 |
12110-54T13 |
US $14.26 |
||
|
12111S
|
12111S
12110-54T14 Bearing Set-Connecting Rod9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ STD |
12110-54T14 |
US $31.46 |
||
|
12112
|
12112
12112-43G00 Nut-Connecting Rod9705--01 ~ 9810--01; QD32ETI |
12112-43G00 |
from US $1.28 |
||
|
12200
|
12200
12200-1W405 Crankshaft Assy9705--01 ~ 9708--01; QD32ETI |
12200-1W405 |
US $2,226 |
||
|
12200
|
12200
12200-1W406 Crankshaft Assy9708--01 ~ 9810--01; QD32ETI |
12200-1W406 |
US $1,624 |
||
|
12200
|
12200
1220576200 Key9705--01 ~ 9810--01; QD32ETI |
1220576200 |
from US $2.44 |
||
|
12200
|
12200
01522-10224 PIN-CRANKSHAFT9705--01 ~ 9810--01; QD32ETI |
01522-10224 |
US $4.18 |
||
|
12200B
|
12200B
1220576200 Key9705--01 ~ 9810--01; QD32ETI |
1220576200 |
from US $2.44 |
||
|
12200F
|
12200F
01522-10224 PIN-CRANKSHAFT9705--01 ~ 9810--01; QD32ETI |
01522-10224 |
US $4.18 |
||
|
12207S
|
12207S
1220754T10 Bearing Set-Crankshaft9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ STD |
1220754T10 |
from US $33.34 |
||
|
12207S
|
12207S
12209-54T10 Bearing Set-Crankshaft9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ US=0.25 |
12209-54T10 |
US $269.28 |
||
|
12207S
|
12207S
12210-54T10 Bearing Set-Crankshaft9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ US=0.50 |
12210-54T10 |
US $269.28 |
||
|
12207S
|
12207S
12211-54T10 Bearing Set-Crankshaft9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ US=0.75 |
12211-54T10 |
US $269.28 |
||
|
12207S
|
12207S
12212-54T10 Bearing Set-Crankshaft9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ US=1.00 |
12212-54T10 |
US $269.28 |
||
|
12208S
|
12208S
12280-37525 Washer Set-Thrust9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ T=2.325 |
12280-37525 |
from US $14.26 |
||
|
12208S
|
12208S
12280-37526 Washer Set-Thrust9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ T=2.350 |
12280-37526 |
US $45.05 |
||
|
12208S
|
12208S
12280-37527 Washer Set-Thrust9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ T=2.375 |
12280-37527 |
from US $14.80 |
||
|
12208S
|
12208S
12280-37528 Washer Set-Thrust (OS 0.20)9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ OS=0.20 |
12280-37528 |
from US $23.64 |
||
|
12208S
|
12208S
12280-37529 Washer Set-Thrust9705--01 ~ 9810--01; QD32ETI; ｾﾝﾀｸ OS=0.40 |
12280-37529 |
US $50.40 |
||
|
12303
|
12303
12303-0W801 Pulley-Crankshaft9705--01 ~ 9810--01; QD32ETI |
12303-0W801 |
US $327.10 |
||
|
12303
|
12303
12309-61503 Nut-Pulley, Crankshaft9705--01 ~ 9810--01; QD32ETI |
12309-61503 |
US $14.68 |
||
| replacement | |||||
|
12303
|
12303
12309-Q4000
Nut-pulley,crankshaft
9705--01 ~ 9810--01; QD32ETI |
12309-Q4000 |
— | ||
|
12303B
|
12303B
12309-61503 Nut-Pulley, Crankshaft9705--01 ~ 9810--01; QD32ETI |
12309-61503 |
US $14.68 |
||
| replacement | |||||
|
12303B
|
12303B
12309-Q4000
Nut-pulley,crankshaft
9705--01 ~ 9810--01; QD32ETI |
12309-Q4000 |
— | ||
|
12310A
|
12310A
12315-2W200 Bolt-Flywheel9808--01 ~ 9810--01; QD32ETI |
12315-2W200 |
from US $6.19 |
||
|
12310A
|
12310A
12316-V1701 Bolt-Flywheel9705--01 ~ 9808--01; QD32ETI |
12316-V1701 |
US $5.33 |
||
| replacement | |||||
|
12310A
|
12310A
12315-2W200 Bolt-Flywheel9705--01 ~ 9808--01; QD32ETI |
12315-2W200 |
from US $6.19 |
||
|
12330
|
12330
123301W400 Pilot-Converter9705--01 ~ 9810--01; QD32ETI |
123301W400 |
US $8.84 |
||
|
12331
|
12331
12331-1W402 Plate Assy-Drive & Gear9705--01 ~ 9810--01; QD32ETI |
12331-1W402 |
US $434.71 |
||
|
12333
|
12333
12333-06J00 Plate-Crankshaft To Converter9705--01 ~ 9810--01; QD32ETI |
12333-06J00 |
US $27.79 |
||
|
13021
|
13021
13021-43G01 Sprocket-Crankshaft9705--01 ~ 9810--01; QD32ETI |
13021-43G01 |
from US $90.32 |
||
|
32202
|
32202
32202-B9500
Bushing-Crankshaft
9705--01 ~ 9810--01; QD32ETI |
32202-B9500 |
— | ||
| replacement | |||||
|
32202
|
32202
32202B950A Bushing-Crankshaft9705--01 ~ 9810--01; QD32ETI |
32202B950A |
from US $2.97 |
||
