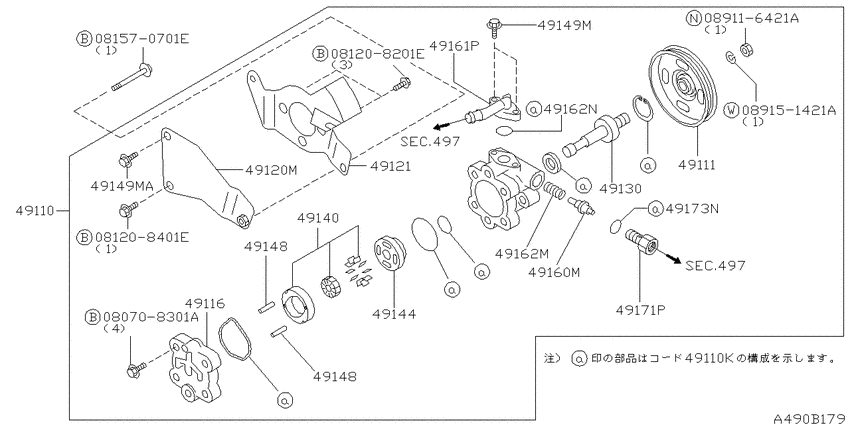

Power steering pump (1998-10-01 ~ 1999-08-01; QD32ETI) Diagram Nissan ELGRAND
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- QD32ETI
- drive
- 2WD
- transmission
- AT
- grade
- J
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080708301A
|
080708301A
08070-8301A
Bolt-hexagon
|
08070-8301A |
— | ||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208401E
|
081208401E
08120-8401E
Bolt-hexagon
|
08120-8401E |
— | ||
|
081570701E
|
081570701E
08157-0701E
ﾎﾞﾙﾄ
|
08157-0701E |
— | ||
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
49110
|
49110
49110-VE000 Pump Assy-Power Steering9705--01 ~ 9810--01; QD32ETI |
49110-VE000 |
US $1,666 |
||
|
49110
|
49110
49591-VE025
Seal Kit-Power Steering Pump
9705--01 ~ 9810--01; QD32ETI |
49591-VE025 |
— | ||
| replacement | |||||
|
49110
|
49110
49591VE026 Seal Kit-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49591VE026 |
US $20.38 |
||
|
49110K
|
49110K
49591-VE025
Seal Kit-Power Steering Pump
9705--01 ~ 9810--01; QD32ETI |
49591-VE025 |
— | ||
| replacement | |||||
|
49110K
|
49110K
49591VE026 Seal Kit-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49591VE026 |
US $20.38 |
||
|
49111
|
49111
4913202N00 Pulley-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
4913202N00 |
US $115.63 |
||
|
49116
|
49116
49116-0E001 COVER-REAR,POWER STEERING PUMP9705--01 ~ 9810--01; QD32ETI |
49116-0E001 |
US $32 |
||
|
49120M
|
49120M
49122-VE000 Bracket Assy-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49122-VE000 |
US $68.26 |
||
|
49121
|
49121
49121-VE000 Bracket Assy-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49121-VE000 |
US $73.15 |
||
|
49130
|
49130
49130-VE000 Shaft-Drive, Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49130-VE000 |
US $73.15 |
||
|
49140
|
49140
49140-28N00 Rotor & Camring Set-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49140-28N00 |
US $158.40 |
||
|
49144
|
49144
49144-65F00 Plate-Side, Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49144-65F00 |
US $31.25 |
||
|
49148
|
49148
49148-40U00 Pin-Camring, Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49148-40U00 |
US $3.31 |
||
|
49148
|
49148
49148-40U00 Pin-Camring, Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49148-40U00 |
US $3.31 |
||
|
49149M
|
49149M
49164-0E000 BOLT-POWER STEERING PUMP9705--01 ~ 9810--01; QD32ETI |
49164-0E000 |
US $2.88 |
||
| replacement | |||||
|
49149M
|
49149M
49164-0E00A Bolt-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49164-0E00A |
from US $2.88 |
||
|
49149M
|
49149M
49164-0E000 BOLT-POWER STEERING PUMP9705--01 ~ 9810--01; QD32ETI |
49164-0E000 |
US $2.88 |
||
| replacement | |||||
|
49149M
|
49149M
49164-0E00A Bolt-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49164-0E00A |
from US $2.88 |
||
|
49149MA
|
49149MA
49164-0E000 BOLT-POWER STEERING PUMP9705--01 ~ 9810--01; QD32ETI |
49164-0E000 |
US $2.88 |
||
| replacement | |||||
|
49149MA
|
49149MA
49164-0E00A Bolt-Power Steering Pump9705--01 ~ 9810--01; QD32ETI |
49164-0E00A |
from US $2.88 |
||
|
49160M
|
49160M
49165-VE000 Valve Assy-Flow Control9705--01 ~ 9810--01; QD32ETI |
49165-VE000 |
US $57.60 |
||
|
49161P
|
49161P
49161VE000 Connector-Inlet9705--01 ~ 9810--01; QD32ETI |
49161VE000 |
US $50.69 |
||
|
49162M
|
49162M
49167-63U00 Spring-Flow Control Valve9705--01 ~ 9810--01; QD32ETI |
49167-63U00 |
US $6.34 |
||
|
49162N
|
49162N
4916226E00 SEAL-INLET CONNECTOR9705--01 ~ 9810--01; QD32ETI |
4916226E00 |
from US $1.65 |
||
|
49171P
|
49171P
49171-0W800 Connector-Outlet9705--01 ~ 9810--01; QD32ETI |
49171-0W800 |
US $30.10 |
||
|
49173N
|
49173N
49173-50L00 Seal-Outlet Connector9705--01 ~ 9810--01; QD32ETI |
49173-50L00 |
US $5.04 |
||
|
