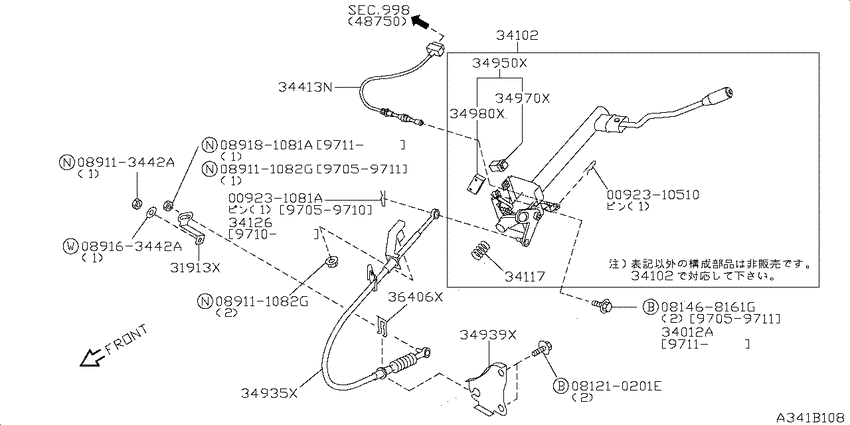

Transmission control & linkage (1998-10-01 ~ 1999-08-01; QD32ETI) Diagram Nissan ELGRAND
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- QD32ETI
- drive
- 2WD
- transmission
- AT
- grade
- J
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092310510
|
0092310510
00923-10510
PIN-SNAP
|
00923-10510 |
— | ||
|
009231081A
|
009231081A
009231081A PINSNAP |
009231081A |
from US $0.52 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089113442A
|
089113442A
08911-3442A
NUTHEX
|
08911-3442A |
— | ||
|
089163442A
|
089163442A
08916-3442A
WASHERTOOTH
|
08916-3442A |
— | ||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
31913X
|
31913X
31913-VE000 Yoke-Select Range9705--01 ~ 9810--01; QD32ETI |
31913-VE000 |
US $10.22 |
||
|
34012A
|
34012A
01125-00523 BOLT9711--01 ~ 9810--01; QD32ETI |
01125-00523 |
US $3.46 |
||
|
34102
|
34102
34101-VE001 Device Assy-Transmission Control9705--01 ~ 9710--01; QD32ETI |
34101-VE001 |
US $1,059.17 |
||
|
34102
|
34102
34101-VE002 Device Assy-Transmission Control9710--01 ~ 9804--01; QD32ETI |
34101-VE002 |
US $1,059.17 |
||
|
34102
|
34102
34101VE003 Device Assy-Transmission Control9804--01 ~ 9810--01; QD32ETI |
34101VE003 |
US $1,059.17 |
||
|
34102
|
34102
34101-VE700 Device Assy-Transmission Control9810--01 ~ 9908--01; QD32ETI |
34101-VE700 |
US $1,059.17 |
||
|
34117
|
34117
34117-VE000 Seat-Spring9705--01 ~ 9810--01; QD32ETI |
34117-VE000 |
US $8.35 |
||
|
34126
|
34126
34126-VE000 Pin-Lock9710--01 ~ 9810--01; QD32ETI |
34126-VE000 |
US $4.18 |
||
|
34413N
|
34413N
34908-VE000 Cable Assy-Control9705--01 ~ 9810--01; QD32ETI |
34908-VE000 |
US $66.82 |
||
|
34935X
|
34935X
34935-VE000 Cable Assy-Control9705--01 ~ 9804--01; QD32ETI |
34935-VE000 |
US $143.57 |
||
|
34935X
|
34935X
34935-VE700 Cable Assy-Control9804--01 ~ 9810--01; QD32ETI |
34935-VE700 |
US $143.57 |
||
|
34939X
|
34939X
34939-VE000 Bracket-Cable Mounting9705--01 ~ 9810--01; QD32ETI |
34939-VE000 |
US $11.38 |
||
|
34950X
|
34950X
34950VE000 Bracket Assy-Key Lock Unit9705--01 ~ 9804--01; QD32ETI |
34950VE000 |
US $184.32 |
||
|
34950X
|
34950X
34950-VE003 Bracket Assy-Key Lock Unit9804--01 ~ 9810--01; QD32ETI |
34950-VE003 |
US $184.32 |
||
|
34970X
|
34970X
34970-5V000 Solenoid Assy-Select Lock9810--01 ~ 9908--01; QD32ETI |
34970-5V000 |
US $84.67 |
||
|
34970X
|
34970X
34970-VE000 Solenoid Assy-Select Lock9705--01 ~ 9804--01; QD32ETI |
34970-VE000 |
US $110.59 |
||
|
34970X
|
34970X
34970-VE003 Solenoid Assy-Select Lock9804--01 ~ 9810--01; QD32ETI |
34970-VE003 |
US $110.59 |
||
|
34980X
|
34980X
349805V300 Switch Assy-Parking Position9810--01 ~ 9908--01; QD32ETI |
349805V300 |
US $50.98 |
||
|
34980X
|
34980X
34980-VE000 Switch Assy-Parking Position9705--01 ~ 9810--01; QD32ETI |
34980-VE000 |
US $73.58 |
||
|
36406X
|
36406X
36406VE000 Plate-Lock9705--01 ~ 9810--01; QD32ETI |
36406VE000 |
from US $5.47 |
||
|
