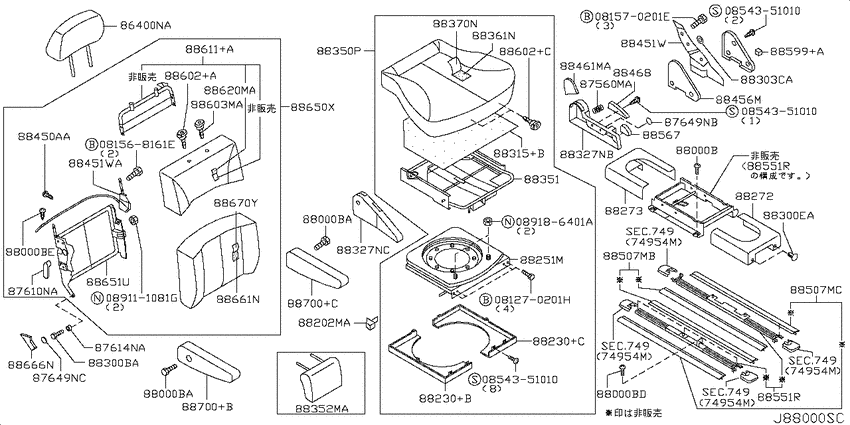

Rear seat (2005-11-01 ~ 2006-12-01; LHシート; 5K.7P) Diagram Nissan ELGRAND
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- AT
- grade
- XL
- body
- 5K
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081270201H
|
081270201H
08127-0201H
Bolt-hexagon
|
08127-0201H |
— | ||
|
081568161E
|
081568161E
08156-8161E
ﾎﾞﾙﾄ
|
08156-8161E |
— | ||
|
081570201E
|
081570201E
08157-0201E
ﾎﾞﾙﾄ
|
08157-0201E |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089186401A
|
089186401A
089186401A NUTSLOCK |
089186401A |
US $1.83 |
||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
749
|
Floor trimming
749
|
||||
|
86400NA
|
86400NA
86400-WL210 Headrest Assy-Rear Seat0205--01 ~ 0408--01; 5K.7P |
86400-WL210 |
US $286.56 |
||
|
86400NA
|
86400NA
86430-WL600 Headrest Assy-Rear Seat0408--01 ~ 0710--01; 5K.7P |
86430-WL600 |
US $286.56 |
||
|
86400NA
|
86400NA
86430-WL80A Headrest Assy-Rear Seat0706--01 ~ 0710--01; *5K.7P |
86430-WL80A |
US $286.56 |
||
|
87560MA
|
87560MA
87560-VG200 Spring-Helper0205--01 ~ ; 5K.7P |
87560-VG200 |
US $7.06 |
||
|
87610NA
|
87610NA
88660-WL200 Lever-Seat Back0205--01 ~ 0408--01; 5K.7P |
88660-WL200 |
US $7.78 |
||
|
87610NA
|
87610NA
88660-WL600 Lever-Seat Back0408--01 ~ ; 5K.7P |
88660-WL600 |
US $7.78 |
||
|
87614NA
|
87614NA
87614-VE005 Bush-Front Seat0205--01 ~ ; 5K.7P |
87614-VE005 |
US $1.73 |
||
|
87649NB
|
87649NB
87649-WL005 Cap0205--01 ~ 0308--01; *5K.7P |
87649-WL005 |
US $3.31 |
||
|
87649NB
|
87649NB
87649-WL601 Cap0408--01 ~ 0710--01; *5K.7P |
87649-WL601 |
US $3.31 |
||
|
87649NC
|
87649NC
87649WL000 Cap-Seat Back0205--01 ~ 0408--01; 5K.7P |
87649WL000 |
US $3.31 |
||
|
87649NC
|
87649NC
87649-WL600 Cap-Seat Back0408--01 ~ 0710--01; *5K.7P |
87649-WL600 |
US $3.31 |
||
|
88000B
|
88000B
0112100503 BOLT-SPECIAL0205--01 ~ ; 5K.7P |
0112100503 |
US $2.45 |
||
|
88000B
|
88000B
87850-VE200 Bolt-Special0205--01 ~ ; 5K.7P |
87850-VE200 |
US $3.46 |
||
|
88000B
|
88000B
01136-00091 BOLT0205--01 ~ 0308--01; 5K.7P |
01136-00091 |
US $2.45 |
||
|
88000B
|
88000B
0112100503 BOLT-SPECIAL0612--01 ~ ; 5K.7P |
0112100503 |
US $2.45 |
||
|
88000B
|
88000B
87850-WL000 Bolt-Special0205--01 ~ 0612--01; 5K.7P |
87850-WL000 |
US $3.46 |
||
|
88000B
|
88000B
87850-WL000 Bolt-Special0408--01 ~ 0511--01; 5K.7P |
87850-WL000 |
US $3.46 |
||
|
88000B
|
88000B
01136-00091 BOLT0408--01 ~ ; 5K.7P |
01136-00091 |
US $2.45 |
||
|
88000BA
|
88000BA
87850-VE200 Bolt-Special0205--01 ~ ; 5K.7P |
87850-VE200 |
US $3.46 |
||
|
88000BA
|
88000BA
87850-VE200 Bolt-Special0205--01 ~ ; 5K.7P |
87850-VE200 |
US $3.46 |
||
|
88000BD
|
88000BD
87850-WL000 Bolt-Special0408--01 ~ 0511--01; 5K.7P |
87850-WL000 |
US $3.46 |
||
|
88000BE
|
88000BE
01136-00091 BOLT0408--01 ~ ; 5K.7P |
01136-00091 |
US $2.45 |
||
|
88202MA
|
88202MA
88252-WL200 Knob-Swivel0205--01 ~ 0408--01; 5K.7P |
88252-WL200 |
US $7.06 |
||
|
88202MA
|
88202MA
88252-WL600 Knob-Swivel0408--01 ~ 0710--01; *5K.7P |
88252-WL600 |
US $7.06 |
||
|
88230+B
|
88230+B
88232-WL200 Cover-Swivwl0408--01 ~ 0511--01; 5K.7P |
88232-WL200 |
US $46.66 |
||
|
88230+B
|
88230+B
88282-WL200 Cover-Swivwl0205--01 ~ 0308--01; *5K.7P |
88282-WL200 |
US $46.66 |
||
|
88230+C
|
88230+C
88233-WL200 Cover-Swivwl0408--01 ~ 0511--01; 5K.7P |
88233-WL200 |
US $46.66 |
||
|
88230+C
|
88230+C
88283-WL200 Cover-Swivwl0205--01 ~ 0408--01; 5K.7P |
88283-WL200 |
US $46.66 |
||
|
88251M
|
88251M
88251-WL200 Swivel Assy-2Nd Seat, Lh0205--01 ~ ; 5K.7P |
88251-WL200 |
US $273.60 |
||
|
88272
|
88272
88270-WL000 Cover-Leg, 2Nd Seat Lh Front0205--01 ~ 0408--01; 5K.7P |
88270-WL000 |
US $46.66 |
||
|
88272
|
88272
88270-WL600 Cover-Leg, 2Nd Seat Lh Front0408--01 ~ 0710--01; *5K.7P |
88270-WL600 |
US $93.89 |
||
|
88273
|
88273
88271-WL000 Cover-Leg, 2Nd Seat Lh Rear0205--01 ~ 0408--01; 5K.7P |
88271-WL000 |
US $46.66 |
||
|
88273
|
88273
88271-WL600 Cover-Leg, 2Nd Seat Lh Rear0408--01 ~ 0710--01; *5K.7P |
88271-WL600 |
US $93.89 |
||
|
88300BA
|
88300BA
87615-VE005 Bolt-Special0205--01 ~ ; 5K.7P |
87615-VE005 |
US $3.46 |
||
|
88300EA
|
88300EA
01553-05423 CLIP-TRIM0408--01 ~ ; 5K.7P |
01553-05423 |
US $1.73 |
||
|
88303CA
|
88303CA
87856-VE000 Washer-Special0408--01 ~ 0511--01; *5K.7P |
87856-VE000 |
US $1.73 |
||
|
88315+B
|
88315+B
88326VE200 New Genuine Part0205--01 ~ ; 5K.7P |
88326VE200 |
US $23.47 |
||
|
88327NB
|
88327NB
88380-WL000 Cover-Cushion, Rear Seat0205--01 ~ 0408--01; 5K.7P |
88380-WL000 |
US $46.66 |
||
|
88327NB
|
88327NB
88380-WL600 Cover-Cushion, Rear Seat0408--01 ~ 0710--01; *5K.7P |
88380-WL600 |
US $46.66 |
||
|
88327NC
|
88327NC
88381WL600 Cover-Cushion, Rear Seat0408--01 ~ ; 5K.7P |
88381WL600 |
US $46.66 |
||
|
88350P
|
88350P
88350-WL200 Cushion Assy-2Nd Seat, Lh0205--01 ~ 0408--01; 5K.7P; [D105] |
88350-WL200 |
US $2,702 |
||
|
88350P
|
88350P
88350-WL210 Cushion Assy-2Nd Seat, Lh0205--01 ~ 0408--01; *5K.7P; [D105] |
88350-WL210 |
US $2,702 |
||
|
88350P
|
88350P
88350-WL600 Cushion Assy-2Nd Seat, Lh0408--01 ~ ; 5K.7P |
88350-WL600 |
US $2,702 |
||
|
88350P
|
88350P
88350-WL601 Cushion Assy-2Nd Seat, Lh0408--01 ~ 0710--01; *5K.7P; [D105] |
88350-WL601 |
US $2,702 |
||
|
88351
|
88351
88351-WL200 Frame Assy-Rear Seat Cushion, Lh0205--01 ~ 0408--01; 5K.7P |
88351-WL200 |
US $397.90 |
||
|
88351
|
88351
88351-WL210 Frame Assy-Rear Seat Cushion, Lh0205--01 ~ 0408--01; *5K.7P |
88351-WL210 |
US $397.90 |
||
|
88351
|
88351
88351-WL600 Frame Assy-Rear Seat Cushion, Lh0408--01 ~ ; 5K.7P |
88351-WL600 |
US $397.90 |
||
|
88351
|
88351
88351-WL601 Frame Assy-Rear Seat Cushion, Lh0408--01 ~ 0710--01; *5K.7P |
88351-WL601 |
US $397.90 |
||
|
88352MA
|
88352MA
88352WL600 Ottoman Assy0408--01 ~ 0710--01; *5K.7P |
88352WL600 |
US $254.88 |
||
|
88361N
|
88361N
88361-WL200 Pad Assy-2Nd Seat Cushion, Lh0205--01 ~ 0408--01; 5K.7P |
88361-WL200 |
US $331.34 |
||
|
88361N
|
88361N
88361-WL210 Pad Assy-2Nd Seat Cushion, Lh0205--01 ~ 0408--01; *5K.7P |
88361-WL210 |
US $331.34 |
||
|
88361N
|
88361N
88361-WL600 Pad Assy-2Nd Seat Cushion, Lh0408--01 ~ ; 5K.7P |
88361-WL600 |
US $331.34 |
||
|
88361N
|
88361N
88361-WL601 Pad Assy-2Nd Seat Cushion, Lh0408--01 ~ 0710--01; *5K.7P |
88361-WL601 |
US $331.34 |
||
|
88370N
|
88370N
88370-WL200 Trim Assy-2Nd Seat Cushion, Lh0205--01 ~ 0408--01; 5K.7P; [D105] |
88370-WL200 |
US $1,428 |
||
|
88370N
|
88370N
88370-WL210 Trim Assy-2Nd Seat Cushion, Lh0205--01 ~ 0408--01; *5K.7P; [D105] |
88370-WL210 |
US $1,428 |
||
|
88370N
|
88370N
88370-WL600 Trim Assy-2Nd Seat Cushion, Lh0408--01 ~ ; 5K.7P |
88370-WL600 |
US $1,428 |
||
|
88370N
|
88370N
88370-WL601 Trim Assy-2Nd Seat Cushion, Lh0408--01 ~ 0710--01; *5K.7P; [D105] |
88370-WL601 |
US $1,428 |
||
|
88450AA
|
88450AA
87499-VR400 Screw0408--01 ~ ; 5K.7P |
87499-VR400 |
US $0.86 |
||
|
88451W
|
88451W
88451-WL200 Device Assy-Reclining, 2Nd Lh Seat Outer0205--01 ~ ; 5K.7P |
88451-WL200 |
US $126.43 |
||
|
88451W
|
88451W
88451-WL210 Device Assy-Reclining, 2Nd Lh Seat Outer0205--01 ~ ; 5K.7P |
88451-WL210 |
US $75.89 |
||
|
88451WA
|
88451WA
88451-WL210 Device Assy-Reclining, 2Nd Lh Seat Outer0205--01 ~ ; 5K.7P |
88451-WL210 |
US $75.89 |
||
|
88456M
|
88456M
88452-WL000 Cover-Reclining Device, Inner0205--01 ~ 0408--01; 5K.7P |
88452-WL000 |
US $13.25 |
||
|
88456M
|
88456M
88452-WL600 Cover-Reclining Device, Inner0408--01 ~ 0710--01; *5K.7P |
88452-WL600 |
US $13.25 |
||
|
88456M
|
88456M
88666-WL200 Cover-Reclining Device, Inner Lh0205--01 ~ 0408--01; 5K.7P |
88666-WL200 |
US $6.62 |
||
|
88461MA
|
88461MA
88495-WL000 Cover-Device Arm0205--01 ~ 0408--01; 5K.7P |
88495-WL000 |
US $25.78 |
||
|
88461MA
|
88461MA
88495-WL600 Cover-Device Arm0408--01 ~ 0710--01; *5K.7P |
88495-WL600 |
US $25.78 |
||
|
88468
|
88468
88468WL000 Knob-Reclining Device Lever, Lh0205--01 ~ 0408--01; 5K.7P |
88468WL000 |
US $8.06 |
||
|
88468
|
88468
88468-WL600 Knob-Reclining Device Lever, Lh0408--01 ~ 0710--01; *5K.7P |
88468-WL600 |
US $8.06 |
||
|
88507MB
|
88507MB
88554WL000 Cover-Slide Rail0205--01 ~ 0408--01; 5K.7P |
88554WL000 |
US $21.62 |
||
|
88507MB
|
88507MB
88554-WL600 Cover-Slide Rail0408--01 ~ 0511--01; 5K.7P |
88554-WL600 |
US $17.86 |
||
|
88507MC
|
88507MC
88555-WL000 Cover-Slide Rail0205--01 ~ 0408--01; 5K.7P |
88555-WL000 |
US $40.90 |
||
|
88507MC
|
88507MC
88555-WL600 Cover-Slide Rail0408--01 ~ 0511--01; 5K.7P |
88555-WL600 |
US $33.70 |
||
|
88551R
|
88551R
88550-WL000 Slide Assy-2Nd Seat, Lh0205--01 ~ 0710--01; 5K.7P |
88550-WL000 |
US $536.66 |
||
|
88551R
|
88551R
88550WL80A Slide Assy-2Nd Seat, Lh0706--01 ~ 0710--01; *5K.7P |
88550WL80A |
US $644.28 |
||
|
88567
|
88567
88567-WL000 Knob-Slide Lever0205--01 ~ 0408--01; 5K.7P |
88567-WL000 |
US $7.06 |
||
|
88567
|
88567
88567-WL600 Knob-Slide Lever0408--01 ~ 0710--01; *5K.7P |
88567-WL600 |
US $7.06 |
||
|
88599+A
|
88599+A
88599-WL600 Cap-Device Cover0408--01 ~ 0710--01; *5K.7P |
88599-WL600 |
US $4.46 |
||
|
88602+A
|
88602+A
87602-89918 Holder Assy-Headrest, Lock0205--01 ~ 0408--01; 5K.7P |
87602-89918 |
US $4.18 |
||
|
88602+A
|
88602+A
87602-89923 Holder Assy-Headrest, Lock0408--01 ~ 0511--01; 5K.7P |
87602-89923 |
US $4.18 |
||
|
88602+C
|
88602+C
87602-89923 Holder Assy-Headrest, Lock0511--01 ~ 0612--01; 5K.7P |
87602-89923 |
US $4.18 |
||
|
88603MA
|
88603MA
87603-89918 Holder Assy-Headrest, Free0205--01 ~ 0408--01; 5K.7P |
87603-89918 |
US $4.18 |
||
|
88603MA
|
88603MA
87603-89923 Holder Assy-Headrest, Free0408--01 ~ 0710--01; *5K.7P |
87603-89923 |
US $4.18 |
||
|
88611+A
|
88611+A
88613-WL200 Pad-Rear Seat Back0205--01 ~ 0308--01; 5K.7P |
88613-WL200 |
US $266.40 |
||
|
88620MA
|
88620MA
88621-WL600 Trim Assy-Rear Seat Back0408--01 ~ ; 5K.7P |
88621-WL600 |
US $579.14 |
||
|
88650X
|
88650X
88650-WL200 Back Assy-2Nd Seat, Lh0205--01 ~ 0408--01; 5K.7P; [D105] |
88650-WL200 |
US $2,408 |
||
|
88650X
|
88650X
88650-WL600 Back Assy-2Nd Seat, Lh0408--01 ~ 0710--01; *5K.7P |
88650-WL600 |
US $2,408 |
||
|
88651U
|
88651U
88651-WL200 Frame Assy-Back, 2Nd Seat Lh0205--01 ~ ; 5K.7P |
88651-WL200 |
US $397.90 |
||
|
88661N
|
88661N
88661-WL200 Pad Assy-2Nd Seat Back, Lh0205--01 ~ 0710--01; *5K.7P |
88661-WL200 |
US $200.16 |
||
|
88666N
|
88666N
88666-WL600 Cover-2Nd Seat Hinge, Lh0408--01 ~ ; 5K.7P |
88666-WL600 |
US $6.62 |
||
|
88670Y
|
88670Y
88670-WL200 Trim Assy-2Nd Seat Back, Lh0205--01 ~ 0408--01; 5K.7P; [D105] |
88670-WL200 |
US $872.26 |
||
|
88670Y
|
88670Y
88670-WL600 Trim Assy-2Nd Seat Back, Lh0408--01 ~ 0710--01; *5K.7P |
88670-WL600 |
US $872.26 |
||
|
88700+B
|
88700+B
88700-WL200 Armrest Assy-Rear Seat0205--01 ~ 0408--01; 5K.7P |
88700-WL200 |
US $234.72 |
||
|
88700+B
|
88700+B
88700-WL600 Armrest Assy-Rear Seat0408--01 ~ 0710--01; 5K.7P |
88700-WL600 |
US $234.72 |
||
|
88700+B
|
88700+B
88700-WL80A Armrest Assy-Rear Seat0706--01 ~ 0710--01; *5K.7P |
88700-WL80A |
US $234.72 |
||
|
88700+C
|
88700+C
88750-WL200 Armrest Assy-Rear Seat0205--01 ~ 0408--01; 5K.7P |
88750-WL200 |
US $234.72 |
||
|
88700+C
|
88700+C
88750-WL600 Armrest Assy-Rear Seat0408--01 ~ 0710--01; 5K.7P |
88750-WL600 |
US $234.72 |
||
|
88700+C
|
88700+C
88750-WL80A Armrest Assy-Rear Seat0706--01 ~ 0710--01; *5K.7P |
88750-WL80A |
US $234.72 |
||
