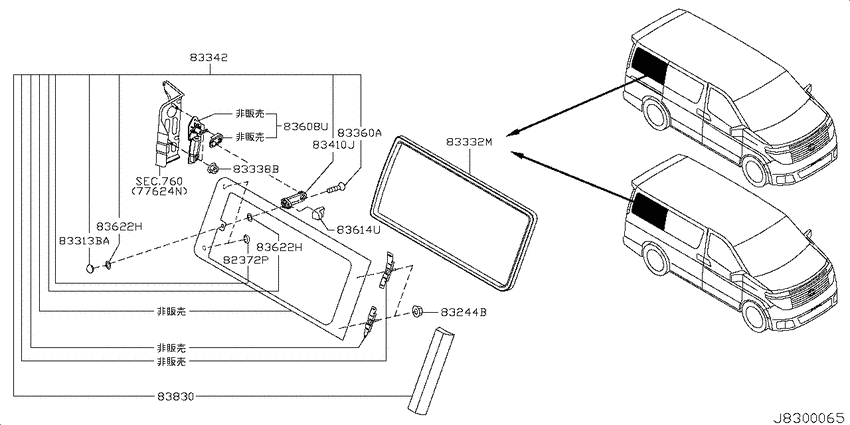

Side window (2007-10-01 ~ ; 2ND ミギガワ; 5K) Diagram Nissan ELGRAND
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- AT
- grade
- XL
- body
- 5K
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
82372P
|
82372P
83396-WL000 Packing-Slide Door Window0205--01 ~ 0308--01; 4K +5K |
83396-WL000 |
US $12.10 |
||
|
82372P
|
82372P
83396-WL001 Packing-Slide Door Window0401--01 ~ 0408--01; 5K |
83396-WL001 |
US $12.10 |
||
|
83244B
|
83244B
01225N6011 Nut0710--01 ~ ; 5K |
01225N6011 |
from US $0.50 |
||
|
83313BA
|
83313BA
76844WL000 Nut0205--01 ~ 0308--01; 4K +5K |
76844WL000 |
US $4.16 |
||
|
83332M
|
83332M
83352-WL000 Weatherstrip-Side Window, 2Nd Rh0205--01 ~ 0308--01; 4K +5K |
83352-WL000 |
US $93.89 |
||
|
83332M
|
83332M
83353WL000 Weatherstrip-Side Window, 2Nd Lh0308--01 ~ 0408--01; 5K |
83353WL000 |
US $93.89 |
||
|
83338B
|
83338B
0122500371 NUT0710--01 ~ ; 5K |
0122500371 |
US $1.73 |
||
|
83338B
|
83338B
0122500371 NUT0710--01 ~ ; 5K |
0122500371 |
US $1.73 |
||
|
83342
|
83342
83340WB30A Glass-Side Window, 2Nd Rh0710--01 ~ ; *5K |
83340WB30A |
US $770.30 |
||
|
83342
|
83342
83340-WL010 Glass-Side Window, 2Nd Rh0308--01 ~ 0408--01; *5K.7P; [D608] |
83340-WL010 |
US $674.02 |
||
|
83342
|
83342
83340WL020 Glass-Side Window, 2Nd Rh0207--01 ~ 0408--01; *5K.2WD.7P; [D608] |
83340WL020 |
US $559.32 |
||
|
83342
|
83342
83340WL110 Glass-Side Window, 2Nd Rh0205--01 ~ 0408--01; 5K.7P; [D608] |
83340WL110 |
US $770.30 |
||
|
83360A
|
83360A
83348WL010 Screw0205--01 ~ 0308--01; 4K +5K |
83348WL010 |
US $2.21 |
||
|
83410J
|
83410J
83615WL000 Bracket-Side Window0205--01 ~ 0308--01; 4K +5K |
83615WL000 |
US $10.69 |
||
|
83608U
|
83608U
83608WL000 Unit Assy-Side Window, Rh0205--01 ~ 0308--01; 4K +5K.7P +5K.(V/VG+X) |
83608WL000 |
US $129.02 |
||
|
83608U
|
83608U
83608WL600 Unit Assy-Side Window, Rh0408--01 ~ 0410--01; 5K.VQ35DE |
83608WL600 |
US $129.02 |
||
|
83614U
|
83614U
83614-WL000 Cover-Side Window Handle0205--01 ~ 0308--01; *5K.2WD.7P |
83614-WL000 |
US $4.61 |
||
|
83614U
|
83614U
83614-WL600 Cover-Side Window Handle0408--01 ~ 0410--01; 5K.VQ35DE |
83614-WL600 |
US $4.61 |
||
|
83622H
|
83622H
76828M0200 Packing0205--01 ~ 0308--01; 4K +5K |
76828M0200 |
US $1.67 |
||
|
83622H
|
83622H
76828M0200 Packing0205--01 ~ 0308--01; 4K +5K |
76828M0200 |
US $1.67 |
||
|
83830
|
83830
83819WL000 Moulding-Side Window, Rear Rh0205--01 ~ 0408--01; 5K |
83819WL000 |
US $53.28 |
||
