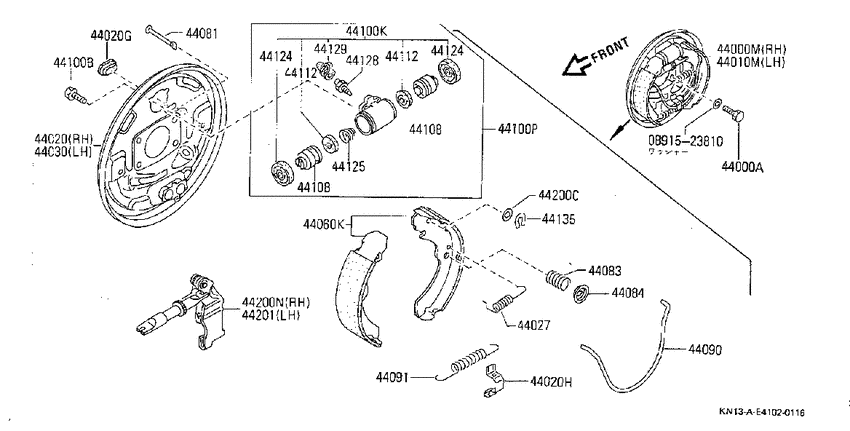

Rear brake (1988-05-01 ~ ; TYPE X) Diagram Nissan EXA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- CA16D
- transmission
- MT
- grade
- TYPE X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891523810
|
0891523810
08915-23810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-23810 |
— | ||
|
44000A
|
44000A
0141100131 BOLT8610--01 ~ ; ALL |
0141100131 |
US $1.73 |
||
|
44000A
|
44000A
44005-50A10 Bolt8805--01 ~ ; *TYPEX; *=ﾘﾔ ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ ﾖｳ |
44005-50A10 |
US $1.73 |
||
|
44000M
|
44000M
44000-50A10 Brake Assy-Drum, Rear Rh8805--01 ~ ; TYPEX |
44000-50A10 |
US $307.27 |
||
|
44010M
|
44010M
44010-50A10 Brake Assy-Drum, Rear Lh8805--01 ~ ; TYPEX |
44010-50A10 |
US $315.77 |
||
|
44020
|
44020
44020-50A10 Plate Assy-Back, Rear Brake Rh8805--01 ~ ; TYPEX |
44020-50A10 |
US $53.92 |
||
|
44020
|
44020
44046-15A00 Plug8610--01 ~ ; ALL |
44046-15A00 |
US $7.34 |
||
|
44020
|
44020
4109850A10 Plug8805--01 ~ ; TYPEX |
4109850A10 |
US $1.58 |
||
|
44020
|
44020
44092-01A01 Spring-Holder8805--01 ~ ; TYPEX |
44092-01A01 |
US $1.93 |
||
|
44020G
|
44020G
4109850A10 Plug8805--01 ~ ; TYPEX |
4109850A10 |
US $1.58 |
||
|
44020H
|
44020H
44092-01A01 Spring-Holder8805--01 ~ ; TYPEX |
44092-01A01 |
US $1.93 |
||
|
44027
|
44027
44214-01A01 Spring-Adjusting, Rear Brake8805--01 ~ ; TYPEX |
44214-01A01 |
US $1.87 |
||
|
44030
|
44030
44030-50A10
Plate Assy-Back, Rear Brake Lh
8805--01 ~ ; TYPEX |
44030-50A10 |
— | ||
|
44060K
|
44060K
44060-01A25 Shoe Set-Rear Brake8805--01 ~ ; TYPEX; [B102] |
44060-01A25 |
US $76.18 |
||
| replacement | |||||
|
44060K
|
44060K
44060-07Y25 Shoe Set-Rear Brake8805--01 ~ ; TYPEX; [B102] |
44060-07Y25 |
US $132.48 |
||
|
44081
|
44081
44081-01A00 Pin-Anti Shoe Rattle8805--01 ~ ; TYPEX |
44081-01A00 |
US $0.86 |
||
|
44083
|
44083
44083-01A00 Spring-Anti Shoe Rattle8805--01 ~ ; TYPEX |
44083-01A00 |
US $2.64 |
||
|
44084
|
44084
44084-01A00
Retainer-Spring, Anti Shoe Rattle
8805--01 ~ ; TYPEX |
44084-01A00 |
— | ||
| replacement | |||||
|
44084
|
44084
4408401A0A Retainer-Spring, Anti Shoe Rattle8805--01 ~ ; TYPEX |
4408401A0A |
from US $1.67 |
||
|
44090
|
44090
44090-01A01 Spring-Return, Rear Brake Shoe8805--01 ~ ; TYPEX |
44090-01A01 |
US $5.04 |
||
|
44090
|
44090
44081-15A00 Cover-Spring8610--01 ~ ; ALL |
44081-15A00 |
US $9.07 |
||
|
44090
|
44090
44091-50A00 Spring-Return, Rh8610--01 ~ ; ALL |
44091-50A00 |
US $9.36 |
||
|
44091
|
44091
4409101A00 Spring-Return, Rear Brake Shoe8805--01 ~ ; TYPEX |
4409101A00 |
from US $2.59 |
||
|
44091
|
44091
44090-50A00
Spring-Return, Lh
8610--01 ~ ; ALL |
44090-50A00 |
— | ||
|
44100B
|
44100B
0143600052 BOLT8805--01 ~ ; TYPEX |
0143600052 |
US $2.91 |
||
|
44100K
|
44100K
AY220NT005 Cup Kit-Brake Wheel Cylinder, Rear8805--01 ~ ; TYPEX; ﾄｷｺ 11/16 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY220NT005 |
US $23.62 |
||
|
44100K
|
44100K
D4100-13A90 Cup Kit-Brake Wheel Cylinder, Rear8805--01 ~ ; TYPEX; ﾅﾌﾞｺ 11/16 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
D4100-13A90 |
US $19.87 |
||
| replacement | |||||
|
44100K
|
44100K
D4100-13A92
Cup kit-brake wheel cylinder,rear
8805--01 ~ ; TYPEX; ﾅﾌﾞｺ 11/16 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
D4100-13A92 |
— | ||
|
44100P
|
44100P
44100-13A00 Cylinder Assy-Rear Wheel8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ﾄｷｺ 11/16 |
44100-13A00 |
US $65.38 |
||
| replacement | |||||
|
44100P
|
44100P
44100-13A01 Cylinder Assy-Rear Wheel8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ﾄｷｺ 11/16 |
44100-13A01 |
US $65.38 |
||
|
44108
|
44108
44108-13A00 Piston-Cylinder8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-13A00 |
US $18.43 |
||
|
44108
|
44108
44108-13A10 Piston-Cylinder8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-13A10 |
US $20.59 |
||
| replacement | |||||
|
44108
|
44108
44108-13A11 Piston-Cylinder8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-13A11 |
US $22.75 |
||
|
44108
|
44108
44108-13A00 Piston-Cylinder8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-13A00 |
US $18.43 |
||
|
44108
|
44108
44108-13A10 Piston-Cylinder8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-13A10 |
US $20.59 |
||
| replacement | |||||
|
44108
|
44108
44108-13A11 Piston-Cylinder8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-13A11 |
US $22.75 |
||
|
44112
|
44112
AY260NN003 Cup-Piston8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NN003 |
US $3.17 |
||
|
44112
|
44112
AY260NT003 Cup-Piston8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NT003 |
US $4.18 |
||
|
44112
|
44112
AY260NN003 Cup-Piston8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NN003 |
US $3.17 |
||
|
44112
|
44112
AY260NT003 Cup-Piston8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NT003 |
US $4.18 |
||
|
44124
|
44124
44124-01A00 Cover-Dust8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-01A00 |
US $4.61 |
||
|
44124
|
44124
44124-01A10 Cover-Dust8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-01A10 |
US $2.16 |
||
|
44124
|
44124
44124-01A00 Cover-Dust8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-01A00 |
US $4.61 |
||
|
44124
|
44124
44124-01A10 Cover-Dust8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-01A10 |
US $2.16 |
||
|
44125
|
44125
44125-M7010 Spring8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44125-M7010 |
US $4.03 |
||
|
44125
|
44125
44125-U9200 Spring8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44125-U9200 |
US $4.61 |
||
|
44128
|
44128
41128-B5012 Screw-Bleeder8805--01 ~ ; *TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ *=ﾘﾔ ﾌﾞﾚ-ｷ ｼﾖｳ |
41128-B5012 |
US $6.91 |
||
|
44128
|
44128
41128-U3400
Screw-Bleeder
8610--01 ~ ; ALL |
41128-U3400 |
— | ||
| replacement | |||||
|
44128
|
44128
4112880Z0A Screw-Bleeder8610--01 ~ ; ALL |
4112880Z0A |
US $7.35 |
||
|
44128
|
44128
41128-U5200 Screw-Bleeder, Clutch Damper8805--01 ~ ; *TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ *=ﾘﾔ ﾌﾞﾚ-ｷ ｼﾖｳ |
41128-U5200 |
US $9.02 |
||
|
44129
|
44129
41129-A2410
Cap-Bleeder Screw
8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41129-A2410 |
— | ||
| replacement | |||||
|
44129
|
44129
4112940F00 Cap-Bleeder Screw8805--01 ~ ; TYPEX; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
4112940F00 |
from US $1.07 |
||
|
44129
|
44129
41129U0201 Cap-Bleeder8805--01 ~ ; TYPEX; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41129U0201 |
US $1.07 |
||
|
44135
|
44135
44222-M4900
Ring-Retaining
8805--01 ~ ; TYPEX |
44222-M4900 |
— | ||
| replacement | |||||
|
44135
|
44135
44222M490A Ring-Retaining8805--01 ~ ; TYPEX |
44222M490A |
from US $0.81 |
||
|
44200C
|
44200C
44085-01A00
Washer-Lock
8805--01 ~ ; TYPEX |
44085-01A00 |
— | ||
| replacement | |||||
|
44200C
|
44200C
4408501A0A Washer-Lock8805--01 ~ ; TYPEX |
4408501A0A |
from US $0.76 |
||
|
44200N
|
44200N
44200-50A10 Adjuster Assy-Rear Brake, Rh8805--01 ~ ; TYPEX; |
44200-50A10 |
US $66.82 |
||
|
44201
|
44201
44201-50A10 Adjuster Assy-Rear Brake, Lh8805--01 ~ ; TYPEX; |
44201-50A10 |
US $66.82 |
||
