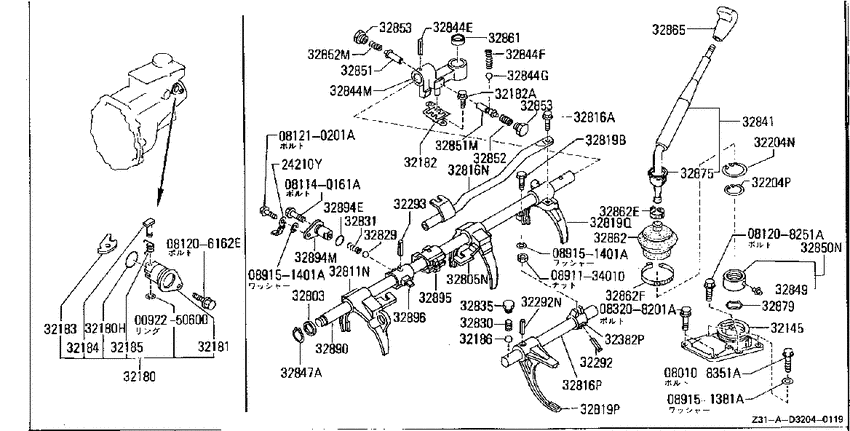

shift control (1986-10-01 ~ ; "VG30D.MT(FS5R30A); VG30D.MT) Diagram Nissan FAIRLADY Z
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- MT
- grade
- ZR
- Roof
- KZ#
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250600
|
0092250600
00922-50600
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50600 |
— | ||
|
080108351A
|
080108351A
08010-8351A
Bolt-hexagon
|
08010-8351A |
— | ||
|
081140161A
|
081140161A
08114-0161A
Bolt-hexagon
|
08114-0161A |
— | ||
|
081206162E
|
081206162E
08120-6162E Bolt-hexagon |
08120-6162E |
US $2.21 |
||
|
081208251A
|
081208251A
08120-8251A
Bolt-hexagon
|
08120-8251A |
— | ||
| replacement | |||||
|
081208251A
|
081208251A
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
081210201A
|
081210201A
08121-0201A
Bolt-hexagon
|
08121-0201A |
— | ||
|
083208201A
|
083208201A
08320-8201A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-8201A |
— | ||
|
0891134010
|
0891134010
08911-34010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-34010 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.56 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
24210Y
|
24210Y
24222-01R01 Clip-Wiring Harness8610--01 ~ ; VG30D.MT |
24222-01R01 |
US $4.57 |
||
|
32145
|
32145
32515-03G60
Housing-Shift Control
8610--01 ~ ; VG30D.MT |
32515-03G60 |
— | ||
|
32180
|
32180
32180-03G61 Checking Assy-Reverse8610--01 ~ ; VG30D.MT |
32180-03G61 |
US $26.64 |
||
| replacement | |||||
|
32180
|
32180
32180-03G63 Checking Assy-Reverse8610--01 ~ ; VG30D.MT |
32180-03G63 |
US $25.49 |
||
|
32180
|
32180
31933X0100 Seal-O Ring8610--01 ~ ; VG30D.MT |
31933X0100 |
US $0.81 |
||
|
32180H
|
32180H
31933X0100 Seal-O Ring8610--01 ~ ; VG30D.MT |
31933X0100 |
US $0.81 |
||
|
32181
|
32181
32186-03G61 Sleeve-Reverse Checking8610--01 ~ ; VG30D.MT |
32186-03G61 |
US $17.71 |
||
|
32182
|
32182
32181-03G60 Plate-Guide, Shift Lever8610--01 ~ ; VG30D.MT |
32181-03G60 |
US $20.88 |
||
|
32182
|
32182
32152-03G60 Bolt-Guide Plate8610--01 ~ ; VG30D.MT |
32152-03G60 |
US $2.45 |
||
|
32182A
|
32182A
32152-03G60 Bolt-Guide Plate8610--01 ~ ; VG30D.MT |
32152-03G60 |
US $2.45 |
||
|
32183
|
32183
32183-31G00 Cam-Reverse Checking8610--01 ~ ; VG30D.MT |
32183-31G00 |
US $4.03 |
||
|
32184
|
32184
32184-V5000 Shaft Set-Cam8610--01 ~ ; VG30D.MT |
32184-V5000 |
US $2.45 |
||
|
32185
|
32185
32185-E9801 Spring-Reverse Checking8610--01 ~ ; MT |
32185-E9801 |
US $1.73 |
||
|
32186
|
32186
32829-26760 Ball-Check8610--01 ~ ; VG30D.MT |
32829-26760 |
from US $0.74 |
||
|
32204N
|
32204N
32204V5003 Ring-Snap, Control Lever8610--01 ~ ; MT |
32204V5003 |
from US $2.89 |
||
|
32204P
|
32204P
32204V5004 Ring-Snap, Control Lever8610--01 ~ ; MT |
32204V5004 |
from US $2.07 |
||
|
32292
|
32292
34133M8000 Pin-Retaining8610--01 ~ ; VG30D.MT |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining8610--01 ~ ; VG30D.MT |
34133M8000 |
from US $4.03 |
||
|
32292N
|
32292N
34133M8000 Pin-Retaining8610--01 ~ ; VG30D.MT |
34133M8000 |
from US $4.03 |
||
|
32293
|
32293
34133M8000 Pin-Retaining8610--01 ~ ; VG30D.MT |
34133M8000 |
from US $4.03 |
||
|
32382P
|
32382P
32382-01G00 Bracket-Rod, Overdrive8610--01 ~ ; VG30D.MT |
32382-01G00 |
US $17.42 |
||
|
32803
|
32803
32812-01G11 Stopper8610--01 ~ ; VG30D.MT |
32812-01G11 |
US $4.90 |
||
|
32805N
|
32805N
32805-01G04 Fork-Shift, 1St & 2Nd8610--01 ~ ; VG30D.MT |
32805-01G04 |
US $41.47 |
||
|
32811N
|
32811N
32811-01G03 Fork-Shift, 3Rd & 4Th8610--01 ~ ; VG30D.MT |
32811-01G03 |
US $41.47 |
||
|
32816A
|
32816A
3281501G00 Bolt-Reverse & Overdrive Rod8610--01 ~ ; VG30D.MT |
3281501G00 |
US $1.73 |
||
|
32816N
|
32816N
32816-01G00 Rod-Fork, Reverse & Overdrive8610--01 ~ ; VG30D.MT |
32816-01G00 |
US $36.14 |
||
|
32816P
|
32816P
32816-01G11 Rod-Fork, Overdrive8610--01 ~ ; VG30D.MT; |
32816-01G11 |
US $20.88 |
||
| replacement | |||||
|
32816P
|
32816P
32816-01G20 Rod-Fork, Overdrive8610--01 ~ ; VG30D.MT; |
32816-01G20 |
US $21.31 |
||
|
32819B
|
32819B
32809-01G00 Bolt-Shift Fork8610--01 ~ ; VG30D.MT |
32809-01G00 |
US $4.18 |
||
|
32819P
|
32819P
32819-01G60 Fork-Shift, Overdrive8610--01 ~ 8905--01; VG30D.MT; |
32819-01G60 |
US $25.49 |
||
|
32819P
|
32819P
32819-01G61 Fork-Shift, Overdrive8905--01 ~ ; VG30D.MT; |
32819-01G61 |
US $37.15 |
||
|
32819Q
|
32819Q
32819-01G01 Fork-Shift, Reverse8610--01 ~ ; VG30D.MT |
32819-01G01 |
US $51.98 |
||
|
32829
|
32829
32829-26760 Ball-Check8610--01 ~ ; VG30D.MT |
32829-26760 |
from US $0.74 |
||
|
32830
|
32830
32830-20100 Spring-Locking8610--01 ~ ; MT |
32830-20100 |
US $0.82 |
||
|
32831
|
32831
32831-01G01 Spring-Check Ball8610--01 ~ ; VG30D.MT |
32831-01G01 |
US $1.11 |
||
|
32835
|
32835
32835-78000
Plug-Checking Ball
8610--01 ~ ; MT |
32835-78000 |
— | ||
| replacement | |||||
|
32835
|
32835
32835-7800A Plug-Checking Ball8610--01 ~ ; MT |
32835-7800A |
US $2.36 |
||
|
32841
|
32841
32840-03G62 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘｰ,ｺﾝﾄﾛ-ﾙ8610--01 ~ 8807--01; VG30D.MT; |
32840-03G62 |
US $80.93 |
||
|
32841
|
32841
32840-03G63 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘｰ,ｺﾝﾄﾛ-ﾙ8807--01 ~ ; MT.300ZR |
32840-03G63 |
US $61.34 |
||
|
32844E
|
32844E
34133M8000 Pin-Retaining8610--01 ~ ; VG30D.MT |
34133M8000 |
from US $4.03 |
||
|
32844F
|
32844F
32858-03G60 Spring-Check, Striking Arm8610--01 ~ ; VG30D.MT |
32858-03G60 |
US $0.86 |
||
|
32844G
|
32844G
32829-26760 Ball-Check8610--01 ~ ; MT |
32829-26760 |
from US $0.74 |
||
|
32844M
|
32844M
32844-03G60 Arm-Striking8610--01 ~ ; VG30D.MT |
32844-03G60 |
US $30.96 |
||
|
32847A
|
32847A
48269-78500 Shim-Worm8610--01 ~ ; VG30D.MT |
48269-78500 |
US $3.40 |
||
|
32849
|
32849
32849-V5003 Pin-Control Arm8610--01 ~ ; MT |
32849-V5003 |
US $4.03 |
||
|
32850N
|
32850N
32870V5003 Socket Assy-Control Lever8610--01 ~ ; MT |
32870V5003 |
from US $18.71 |
||
|
32851
|
32851
32851-01G01 Plunger8610--01 ~ ; VG30D.MT |
32851-01G01 |
US $11.95 |
||
|
32851
|
32851
32851-01G11 Plunger8610--01 ~ ; VG30D.MT |
32851-01G11 |
US $7.06 |
||
|
32851M
|
32851M
32851-01G11 Plunger8610--01 ~ ; VG30D.MT |
32851-01G11 |
US $7.06 |
||
|
32852
|
32852
32852-01G01 Spring-Return8610--01 ~ ; VG30D.MT |
32852-01G01 |
US $0.86 |
||
|
32852
|
32852
32852-01G04 Spring-Return8610--01 ~ ; VG30D.MT |
32852-01G04 |
US $0.86 |
||
|
32852M
|
32852M
32852-01G04 Spring-Return8610--01 ~ ; VG30D.MT |
32852-01G04 |
US $0.86 |
||
|
32853
|
32853
32853-V5001 Plug-Return Spring8610--01 ~ ; MT |
32853-V5001 |
US $2.45 |
||
|
32853
|
32853
32853-V5001 Plug-Return Spring8610--01 ~ ; MT |
32853-V5001 |
US $2.45 |
||
|
32861
|
32861
3286101G00 Bush-Control Lever8610--01 ~ ; VG30D.MT |
3286101G00 |
from US $4.42 |
||
|
32862
|
32862
32862V5001
Boot-Control Lever
8610--01 ~ ; MT |
32862V5001 |
— | ||
| replacement | |||||
|
32862
|
32862
3286205U00 Boot-Control Lever8610--01 ~ ; MT |
3286205U00 |
from US $6.66 |
||
|
32862
|
32862
24216-V5000 Clip-Harness8610--01 ~ ; MT |
24216-V5000 |
US $2.49 |
||
|
32862
|
32862
24216-V5010
Retainer-Boot Upper
8610--01 ~ ; MT |
24216-V5010 |
— | ||
| replacement | |||||
|
32862
|
32862
2421610Y80 Clamp8610--01 ~ ; MT |
2421610Y80 |
from US $4.42 |
||
|
32862E
|
32862E
24216-V5000 Clip-Harness8610--01 ~ ; MT |
24216-V5000 |
US $2.49 |
||
|
32862F
|
32862F
24216-V5010
Retainer-Boot Upper
8610--01 ~ ; MT |
24216-V5010 |
— | ||
| replacement | |||||
|
32862F
|
32862F
2421610Y80 Clamp8610--01 ~ ; MT |
2421610Y80 |
from US $4.42 |
||
|
32865
|
32865
32865-11P00
ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-
8610--01 ~ ; MT; (G) ｾﾝﾀｸ ﾌﾞﾗﾂｸ |
32865-11P00 |
— | ||
|
32865
|
32865
32865-11P01 Knob-Hand Lever8610--01 ~ ; MT; (B) ｾﾝﾀｸ ﾌﾞﾙ- |
32865-11P01 |
US $31.68 |
||
|
32865
|
32865
32865-11P02
ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-
8610--01 ~ ; MT; (A) ｾﾝﾀｸ ﾚﾂﾄﾞ |
32865-11P02 |
— | ||
| replacement | |||||
|
32865
|
32865
32865-05S07
Knob-Hand Lever
8610--01 ~ ; MT; (A) ｾﾝﾀｸ ﾚﾂﾄﾞ |
32865-05S07 |
— | ||
|
32865
|
32865
32865-11P03 ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-8610--01 ~ ; MT; (C) ｾﾝﾀｸ ﾌﾞﾗｳﾝ |
32865-11P03 |
US $31.68 |
||
|
32865
|
32865
32865-11P04 ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-8610--01 ~ ; MT; (T) ｾﾝﾀｸ ﾌﾞﾗﾂｸ |
32865-11P04 |
US $31.68 |
||
|
32875
|
32875
32875V5002 Seat-Control Lever8610--01 ~ ; MT |
32875V5002 |
US $4.03 |
||
|
32879
|
32879
3287603G61 Washer-Lock8610--01 ~ ; MT |
3287603G61 |
US $3.46 |
||
|
32890
|
32890
32892-03G11 Rod-Striking8610--01 ~ ; VG30D.MT |
32892-03G11 |
US $63.22 |
||
|
32894E
|
32894E
32182-01G00
Seal-O Ring
8610--01 ~ ; VG30D.MT |
32182-01G00 |
— | ||
| replacement | |||||
|
32894E
|
32894E
32182-01G01 SEAL8610--01 ~ ; VG30D.MT |
32182-01G01 |
US $1.82 |
||
|
32894M
|
32894M
32897-01G10 Stopper-Inter Lock8610--01 ~ ; VG30D.MT |
32897-01G10 |
US $18.86 |
||
|
32895
|
32895
32895-01G60 Interlock-Striking8610--01 ~ 8612--01; VG30D.MT |
32895-01G60 |
US $27.22 |
||
|
32895
|
32895
3289501G61 Inter Lock-Striking8612--01 ~ ; VG30D.MT |
3289501G61 |
US $26.19 |
||
|
32896
|
32896
32896-01G01 Lever-Striking8610--01 ~ ; VG30D.MT |
32896-01G01 |
US $31.54 |
||
