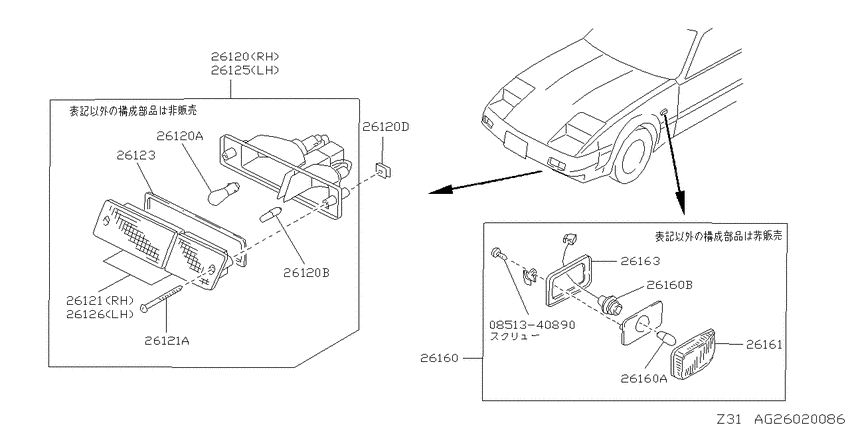

Front combination lamp (1983-09-01 ~ 1986-10-01; ALL) Diagram Nissan FAIRLADY Z
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- ZR
- Roof
- KZ#
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851340890
|
0851340890
08513-40890
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-40890 |
— | ||
|
26120
|
26120
26120-11P00 Lamp Assy-Front Combination, Rh8309--01 ~ 8610--01; ALL; [B113] |
26120-11P00 |
US $114.19 |
||
|
26120
|
26120
26120-22P00 Lamp Assy-Front Combination, Rh8610--01 ~ ; ALL; [B113] |
26120-22P00 |
US $114.19 |
||
|
26120
|
26120
AY08000023
Bulb
8309--01 ~ 8610--01; ALL; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26120
|
26120
AY080-00087 Bulb (12V 21W)8309--01 ~ 8610--01; ALL; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26120
|
26120
AY08000062
Bulb
8309--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26120
|
26120
AY080-00090 BULB LICENCE_AS8309--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26120
|
26120
01241-00431
NUT
8610--01 ~ ; ALL |
01241-00431 |
— | ||
| replacement | |||||
|
26120
|
26120
0124100113 NUT-J8610--01 ~ ; ALL |
0124100113 |
from US $2.50 |
||
|
26120
|
26120
68965-89900 Nut8309--01 ~ 8610--01; ALL; IKI |
68965-89900 |
US $1.73 |
||
|
26120A
|
26120A
AY08000023
Bulb
8309--01 ~ 8610--01; ALL; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26120A
|
26120A
AY080-00087 Bulb (12V 21W)8309--01 ~ 8610--01; ALL; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26120B
|
26120B
AY08000062
Bulb
8309--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26120B
|
26120B
AY080-00090 BULB LICENCE_AS8309--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26120D
|
26120D
01241-00431
NUT
8610--01 ~ ; ALL |
01241-00431 |
— | ||
| replacement | |||||
|
26120D
|
26120D
0124100113 NUT-J8610--01 ~ ; ALL |
0124100113 |
from US $2.50 |
||
|
26120D
|
26120D
68965-89900 Nut8309--01 ~ 8610--01; ALL; IKI |
68965-89900 |
US $1.73 |
||
|
26121
|
26121
26121-11P00
Lens-Front Combination Lamp, Rh
8309--01 ~ 8610--01; ALL; [B113] |
26121-11P00 |
— | ||
|
26121
|
26121
26121-22P00 Lens-Front Combination Lamp, Rh8610--01 ~ ; ALL; [B113] |
26121-22P00 |
US $45.94 |
||
|
26121
|
26121
26128-11P00 Screw8309--01 ~ 8610--01; ALL; [B113] |
26128-11P00 |
US $3.02 |
||
|
26121A
|
26121A
26128-11P00 Screw8309--01 ~ 8610--01; ALL; [B113] |
26128-11P00 |
US $3.02 |
||
|
26123
|
26123
26123-V5000 Packing-Lens, Rh8309--01 ~ 8610--01; ALL; [B113] |
26123-V5000 |
US $6.51 |
||
|
26125
|
26125
26125-11P00 Lamp Assy-Front Combination, Lh8309--01 ~ 8610--01; ALL; [B113] |
26125-11P00 |
US $114.19 |
||
|
26125
|
26125
26125-22P00 Lamp Assy-Front Combination, Lh8610--01 ~ ; ALL; [B113] |
26125-22P00 |
US $114.19 |
||
|
26126
|
26126
26126-11P00
Lens-Front Combination Lamp, Lh
8309--01 ~ 8610--01; ALL; [B113] |
26126-11P00 |
— | ||
|
26126
|
26126
26126-22P00 Lens-Front Combination Lamp, Lh8610--01 ~ ; ALL; [B113] |
26126-22P00 |
US $45.94 |
||
|
26160
|
26160
2616011P00 Lamp Assy-Side Flasher, Rh8309--01 ~ ; ALL; ﾐｷﾞ+ﾋﾀﾞﾘ[B113] |
2616011P00 |
US $42.19 |
||
|
26160
|
26160
AY08000062
Bulb
8309--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26160
|
26160
AY080-00090 BULB LICENCE_AS8309--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26160
|
26160
26162-11P00 Socket Assy-Side Flasher Lamp8309--01 ~ ; ALL; [B113] |
26162-11P00 |
US $15.84 |
||
|
26160A
|
26160A
AY08000062
Bulb
8309--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26160A
|
26160A
AY080-00090 BULB LICENCE_AS8309--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26160B
|
26160B
26162-11P00 Socket Assy-Side Flasher Lamp8309--01 ~ ; ALL; [B113] |
26162-11P00 |
US $15.84 |
||
|
26161
|
26161
26161-11P00 Lens-Side Flasher Lamp, Rh8309--01 ~ ; ALL; [B113] |
26161-11P00 |
US $39.31 |
||
|
26163
|
26163
26163-11P00 Packing-Lens, Rh8309--01 ~ 8610--01; ALL; [B113] |
26163-11P00 |
US $6.48 |
||
