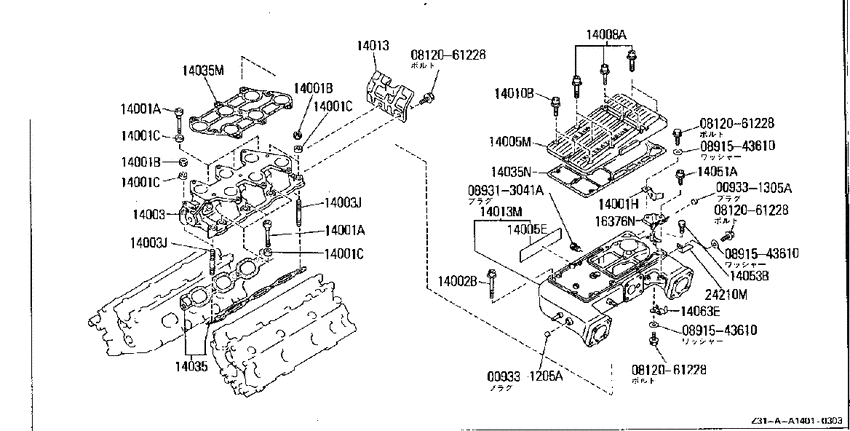

Manifold (1986-10-01 ~ ; インテーク側; VG30D) Diagram Nissan FAIRLADY Z
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- ZR
- Roof
- KZ#
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331205A
|
009331205A
00933-1205A
ﾌﾟﾗｸﾞ
|
00933-1205A |
— | ||
|
009331305A
|
009331305A
00933-1305A
ﾌﾟﾗｸﾞ
|
00933-1305A |
— | ||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
089313041A
|
089313041A
089313041A
Plug-Drain
|
089313041A |
— | ||
|
14001A
|
14001A
14069-V5001 Bolt8610--01 ~ ; VG30D |
14069-V5001 |
from US $2.44 |
||
|
14001A
|
14001A
14069-V5001 Bolt8610--01 ~ ; VG30D |
14069-V5001 |
from US $2.44 |
||
|
14001B
|
14001B
14039-V5300 Nut8610--01 ~ ; VG30D |
14039-V5300 |
US $4.03 |
||
|
14001B
|
14001B
14039-V5300 Nut8610--01 ~ ; VG30D |
14039-V5300 |
US $4.03 |
||
|
14001C
|
14001C
14037-V5200 Spacer8610--01 ~ ; VG30D |
14037-V5200 |
from US $10.69 |
||
|
14001C
|
14001C
14037-V5200 Spacer8610--01 ~ ; VG30D |
14037-V5200 |
from US $10.69 |
||
|
14001C
|
14001C
14037-V5200 Spacer8610--01 ~ ; VG30D |
14037-V5200 |
from US $10.69 |
||
|
14001C
|
14001C
14037-V5200 Spacer8610--01 ~ ; VG30D |
14037-V5200 |
from US $10.69 |
||
|
14001H
|
14001H
24239-22P00
Clamp-Egi Harness
8610--01 ~ ; VG30D |
24239-22P00 |
— | ||
|
14002B
|
14002B
16163-F6500
Bolt
8610--01 ~ ; VG30D |
16163-F6500 |
— | ||
|
14003
|
14003
14003-F6502 Manifold-Intake8610--01 ~ ; VG30D |
14003-F6502 |
US $421.97 |
||
|
14003
|
14003
14070-F6500 Stud8610--01 ~ ; VG30D |
14070-F6500 |
US $4.18 |
||
|
14003
|
14003
14414-P7600 Stud8610--01 ~ ; VG30D |
14414-P7600 |
US $2.45 |
||
|
14003J
|
14003J
14070-F6500 Stud8610--01 ~ ; VG30D |
14070-F6500 |
US $4.18 |
||
|
14003J
|
14003J
14070-F6500 Stud8610--01 ~ ; VG30D |
14070-F6500 |
US $4.18 |
||
|
14005E
|
14005E
14041-F6500
Ornament Assy-Engine Cover
8610--01 ~ ; VG30D |
14041-F6500 |
— | ||
|
14005M
|
14005M
14027-22P00 Cover-Intake Manifold Collector8610--01 ~ ; VG30D |
14027-22P00 |
US $192.96 |
||
|
14008A
|
14008A
16163-F6520 Bolt8610--01 ~ ; VG30D |
16163-F6520 |
US $52.95 |
||
|
14010B
|
14010B
16163-F6521
Bolt
8610--01 ~ ; VG30D |
16163-F6521 |
— | ||
|
14013
|
14013
14013-F6500 Plate-Heat Shield, Front8610--01 ~ ; VG30D |
14013-F6500 |
US $12.53 |
||
|
14013
|
14013
14005-F6503 Collector-Intake Manifold8610--01 ~ 8710--01; VG30D |
14005-F6503 |
US $691.01 |
||
|
14013
|
14013
14005-F6504 Collector-Intake Manifold8710--01 ~ ; VG30D |
14005-F6504 |
US $691.01 |
||
|
14013M
|
14013M
14005-F6503 Collector-Intake Manifold8610--01 ~ 8710--01; VG30D |
14005-F6503 |
US $691.01 |
||
|
14013M
|
14013M
14005-F6504 Collector-Intake Manifold8710--01 ~ ; VG30D |
14005-F6504 |
US $691.01 |
||
|
14035
|
14035
14035F6500 Gasket-Manifold8610--01 ~ ; VG30D |
14035F6500 |
US $124.06 |
||
|
14035
|
14035
14032-F6500 Gasket-Intake Manifold, A8610--01 ~ ; VG30D |
14032-F6500 |
US $18.29 |
||
|
14035
|
14035
14033-F6501 Gasket-Intake Manifold, B8610--01 ~ ; VG30D |
14033-F6501 |
US $18.29 |
||
|
14035M
|
14035M
14032-F6500 Gasket-Intake Manifold, A8610--01 ~ ; VG30D |
14032-F6500 |
US $18.29 |
||
|
14035N
|
14035N
14033-F6501 Gasket-Intake Manifold, B8610--01 ~ ; VG30D |
14033-F6501 |
US $18.29 |
||
|
14051A
|
14051A
16163-F6521
Bolt
8610--01 ~ ; VG30D |
16163-F6521 |
— | ||
|
14053B
|
14053B
14053-42L00
Plug Assy-Air Relief
8610--01 ~ ; VG30D |
14053-42L00 |
— | ||
| replacement | |||||
|
14053B
|
14053B
1405342L0A Plug Assy-Air Relief8610--01 ~ ; VG30D |
1405342L0A |
US $3.89 |
||
|
14063E
|
14063E
24201-F6512 Bracket-Egi Harness8610--01 ~ ; VG30D |
24201-F6512 |
US $2.45 |
||
|
16376N
|
16376N
16165-22P01 Bracket-Accelerator Cable8610--01 ~ ; VG30D |
16165-22P01 |
US $18.43 |
||
|
24210M
|
24210M
24228-F6500 Clamp-Egi Harness8610--01 ~ ; VG30D |
24228-F6500 |
US $7.20 |
||
